Product Description：

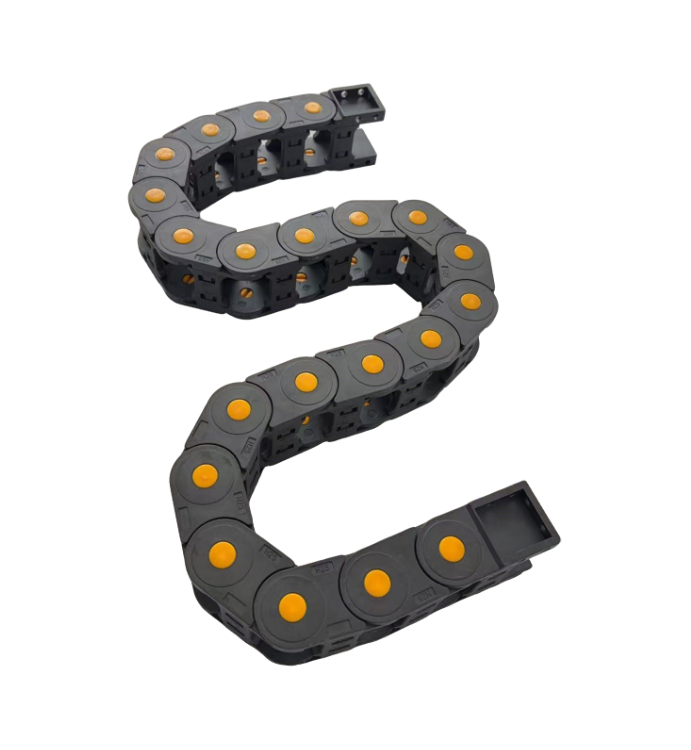

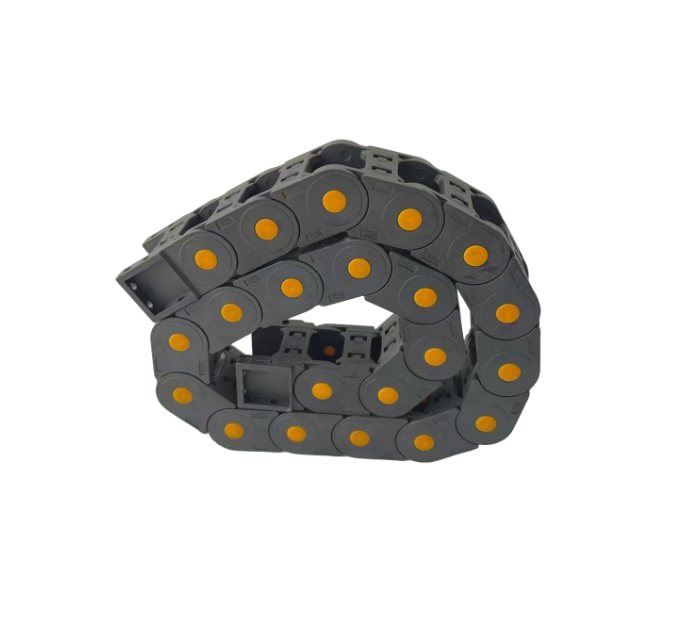

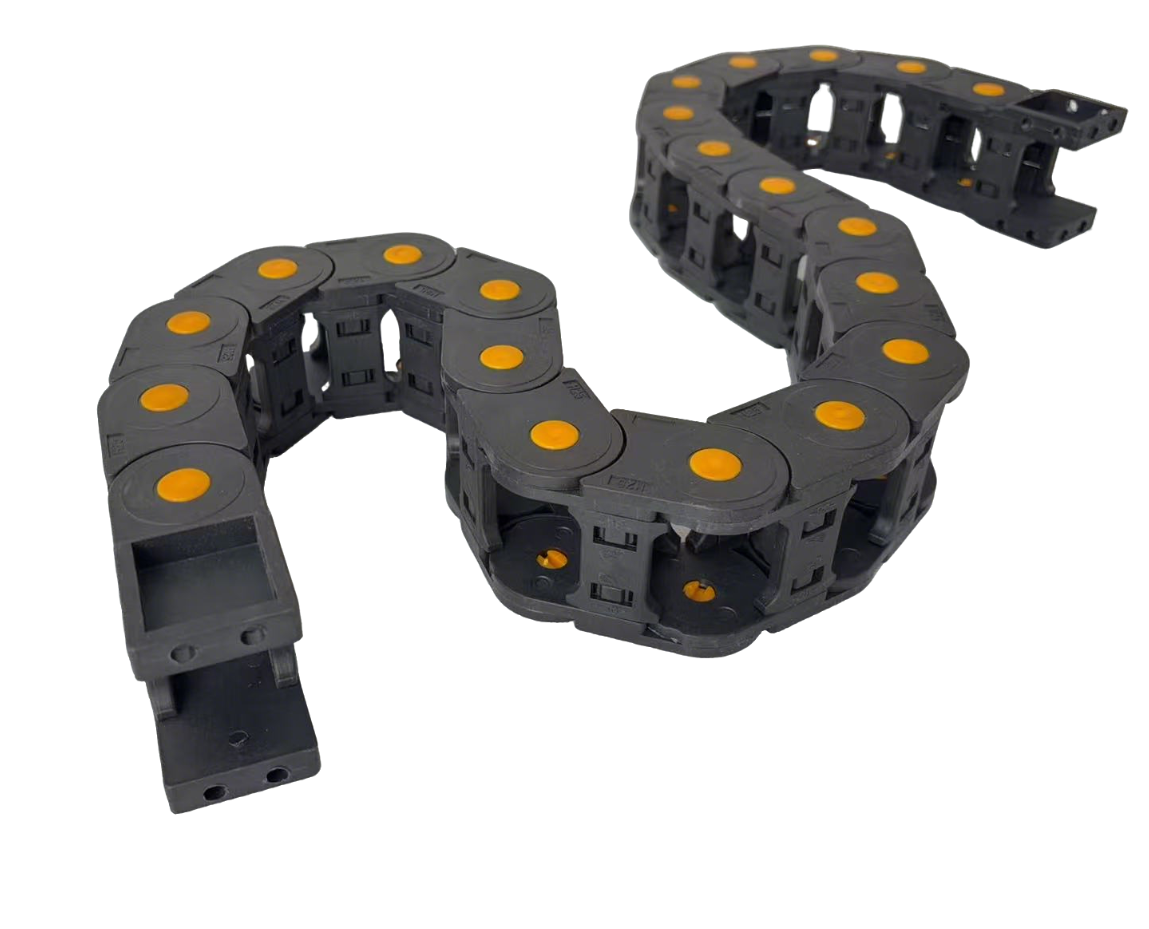

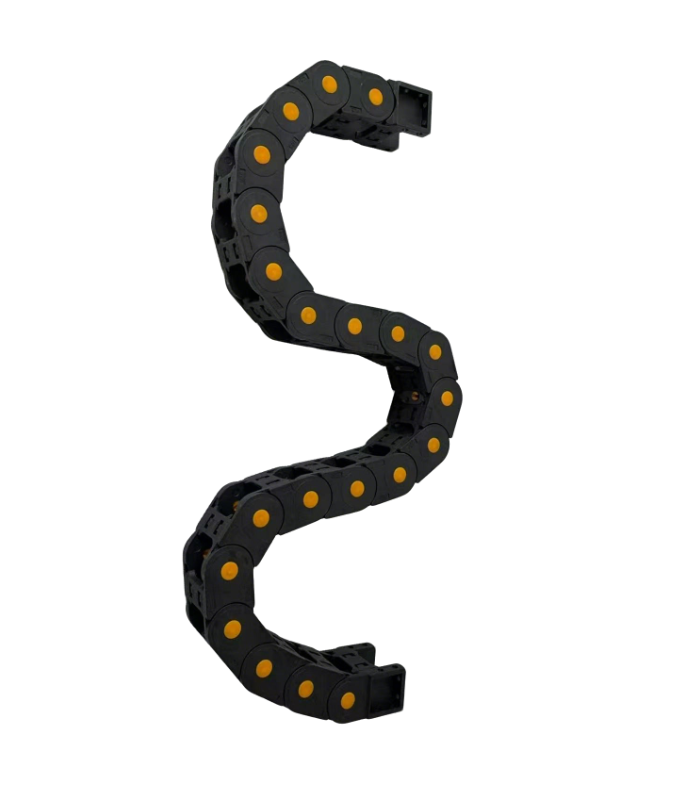

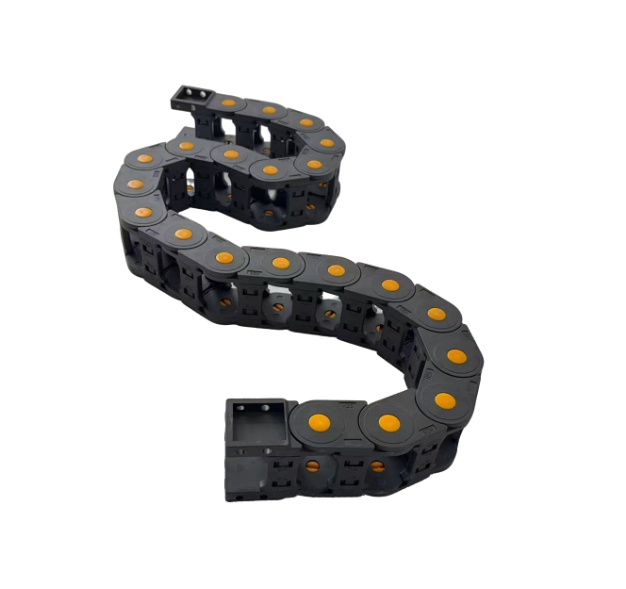

Our S-type bridge cable drag chain, ranging in inner height from 20mm to 80mm, is engineered for high-performance cable and hose management in demanding industrial environments. Crafted from premium reinforced nylon (PA66) with a rigid bridge-style structure, it delivers exceptional strength, wear resistance, and load-bearing capacity.
Key features ：
1. Dual-Directional Bending Flexibility: Uniquely designed to bend smoothly in both forward and reverse directions, enabling versatile installation in complex machinery layouts with dual-motion or bidirectional movement requirements. Eliminates constraints from single-direction bending and adapts to diverse mechanical transmission paths.
2. Easy Installation & Maintenance: The integrated bridge-style upper cover streamlines setup and upkeep, allowing quick arrangement of internal cables and hoses without complex tools or disassembly. It ensures a hassle-free experience during initial setup, future adjustments, or emergency repairs.
3. Superior Durability: Built to withstand harsh conditions, offering excellent resistance to oil, dust, coolant, and low temperatures (-40°C to 100°C). It ensures long-term reliability even in high-speed, high-cycle applications.
4. High Load-Bearing Stability: Reinforced link structure ensures stable support for cables/hoses during high-frequency movement, preventing sagging or deformation.
Technical Specifications & Dimension Table :

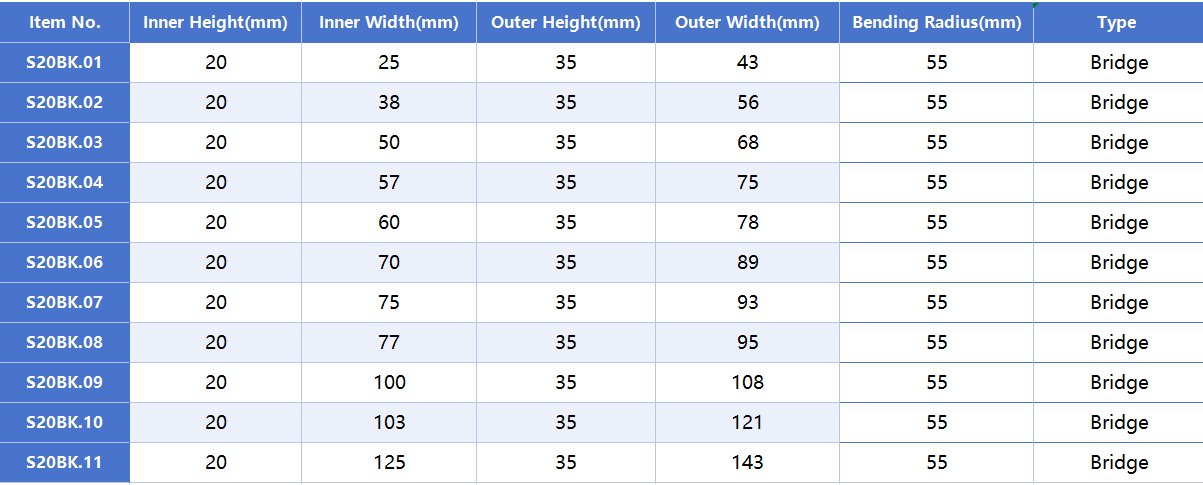

Inner height 20mm series :
Inner height 25mm series :
Inner height 30mm series :

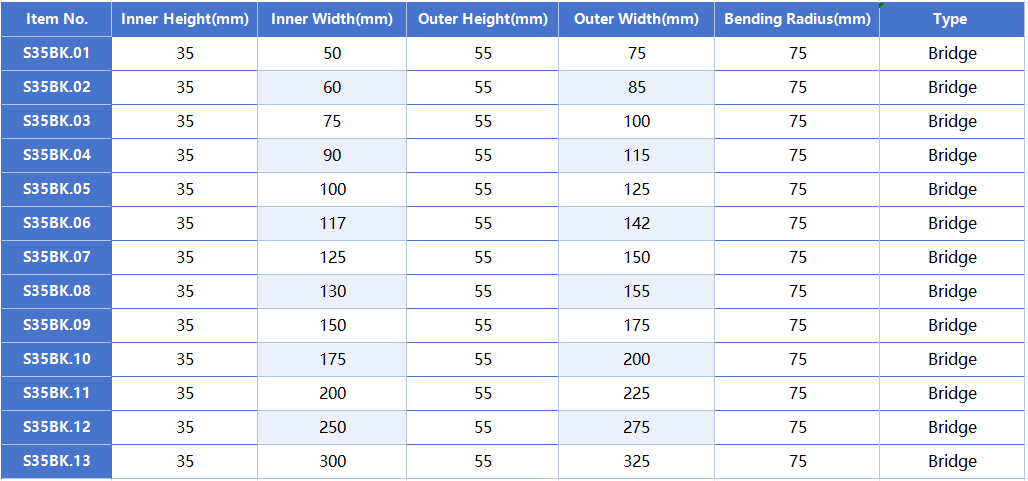

Inner height 35mm series :

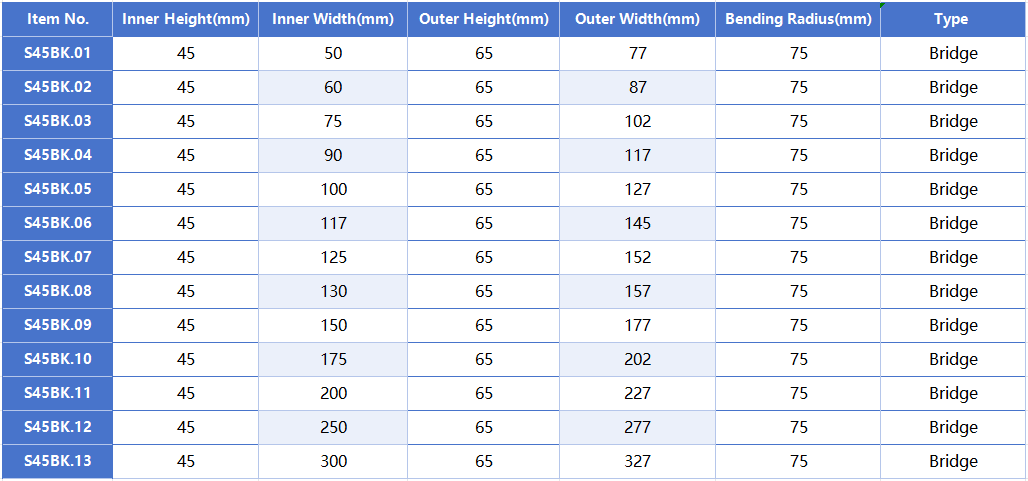

Inner height 45mm series :

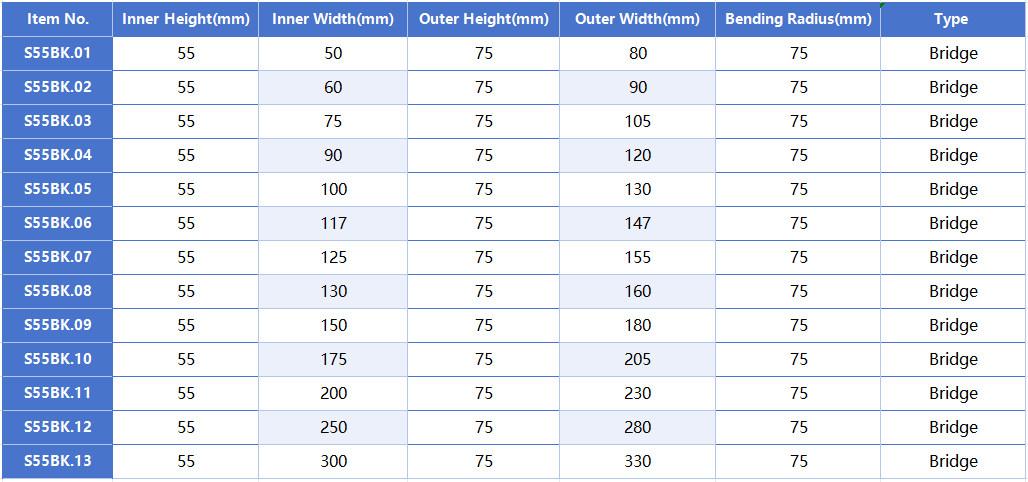

Inner height 55mm series :

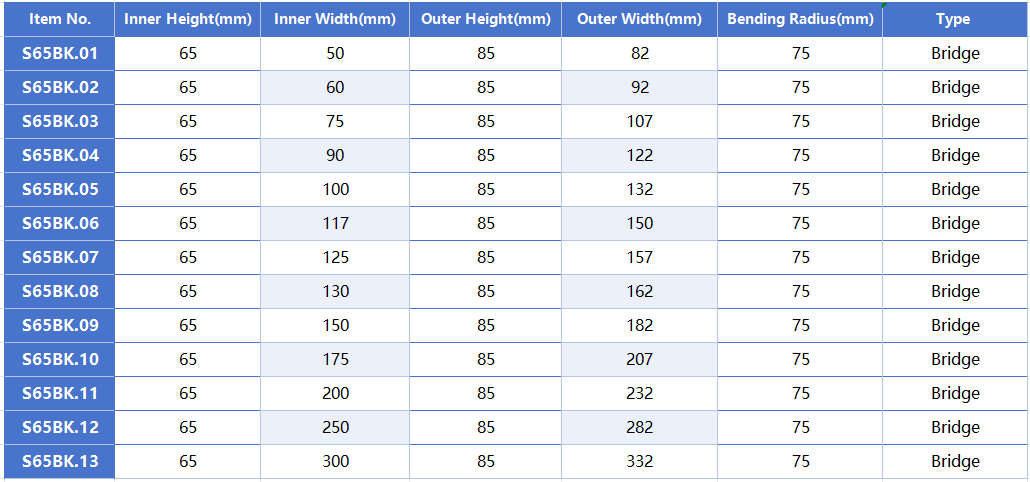

Inner height 65mm series :

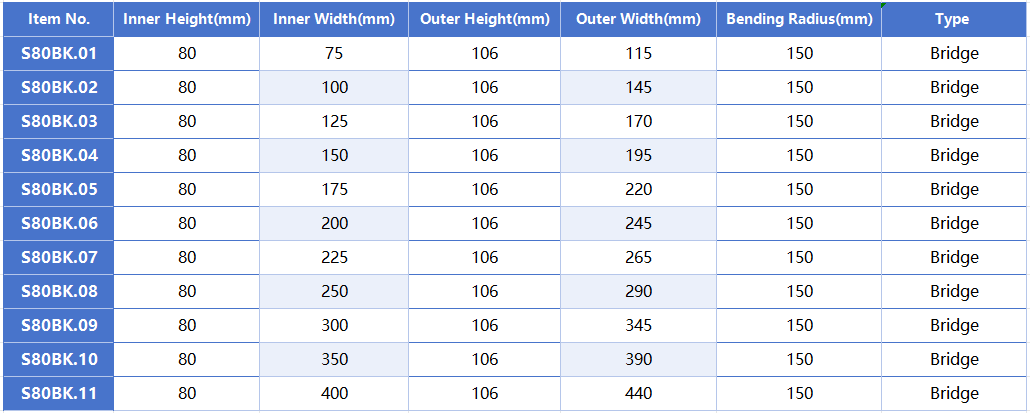

Inner height 80mm series :

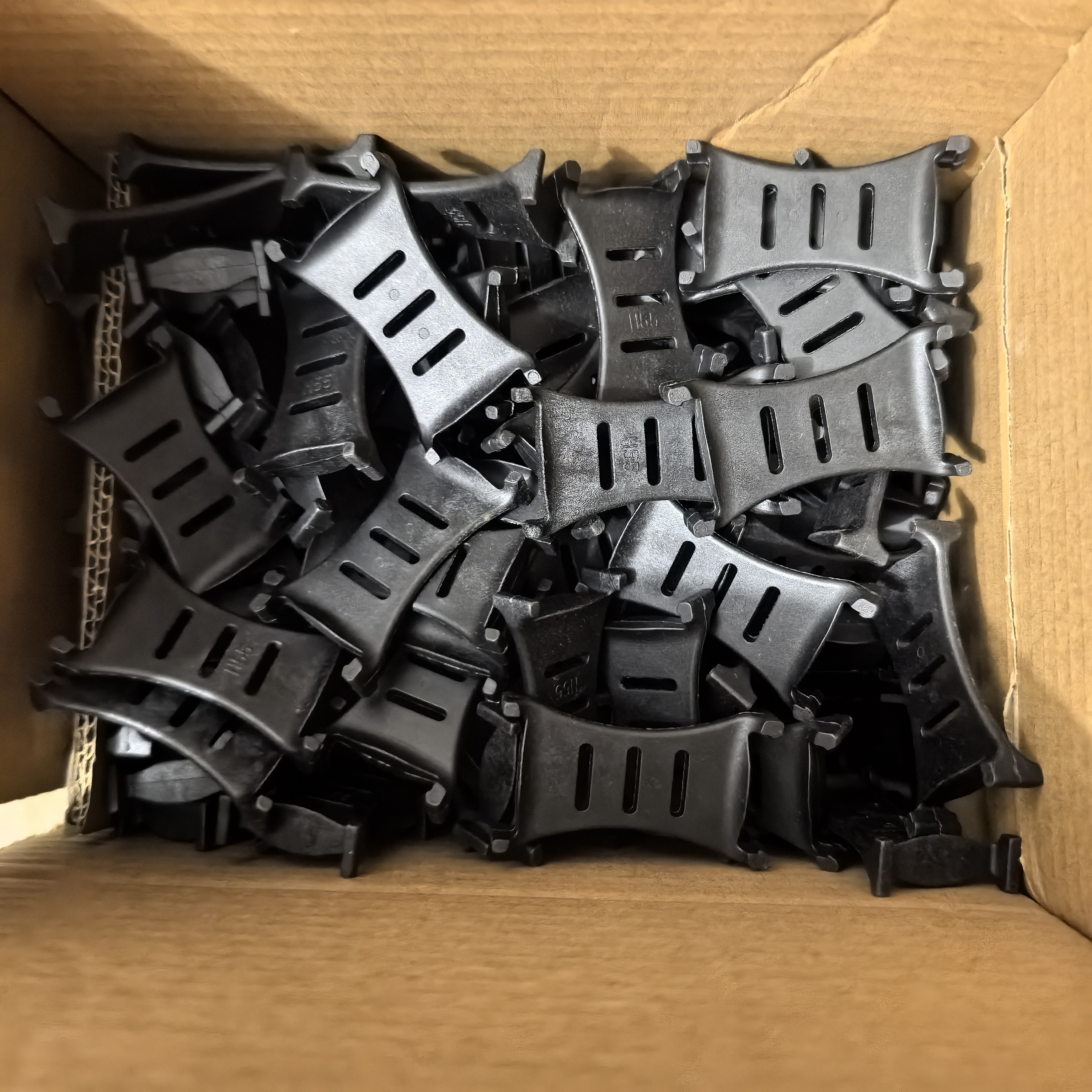

Dividers: Available as per customer requirements.
Applications :
This dual-directional bending bridge-type drag chain is widely used for cable and hose protection in various automated equipment, such as CNC machine tools, machining centers, robotic arms, automated production lines, laser cutting machines, packaging and printing machinery, woodworking equipment, injection molding machines, automated warehousing & logistics systems, stone processing machinery, and other industrial automation equipment.

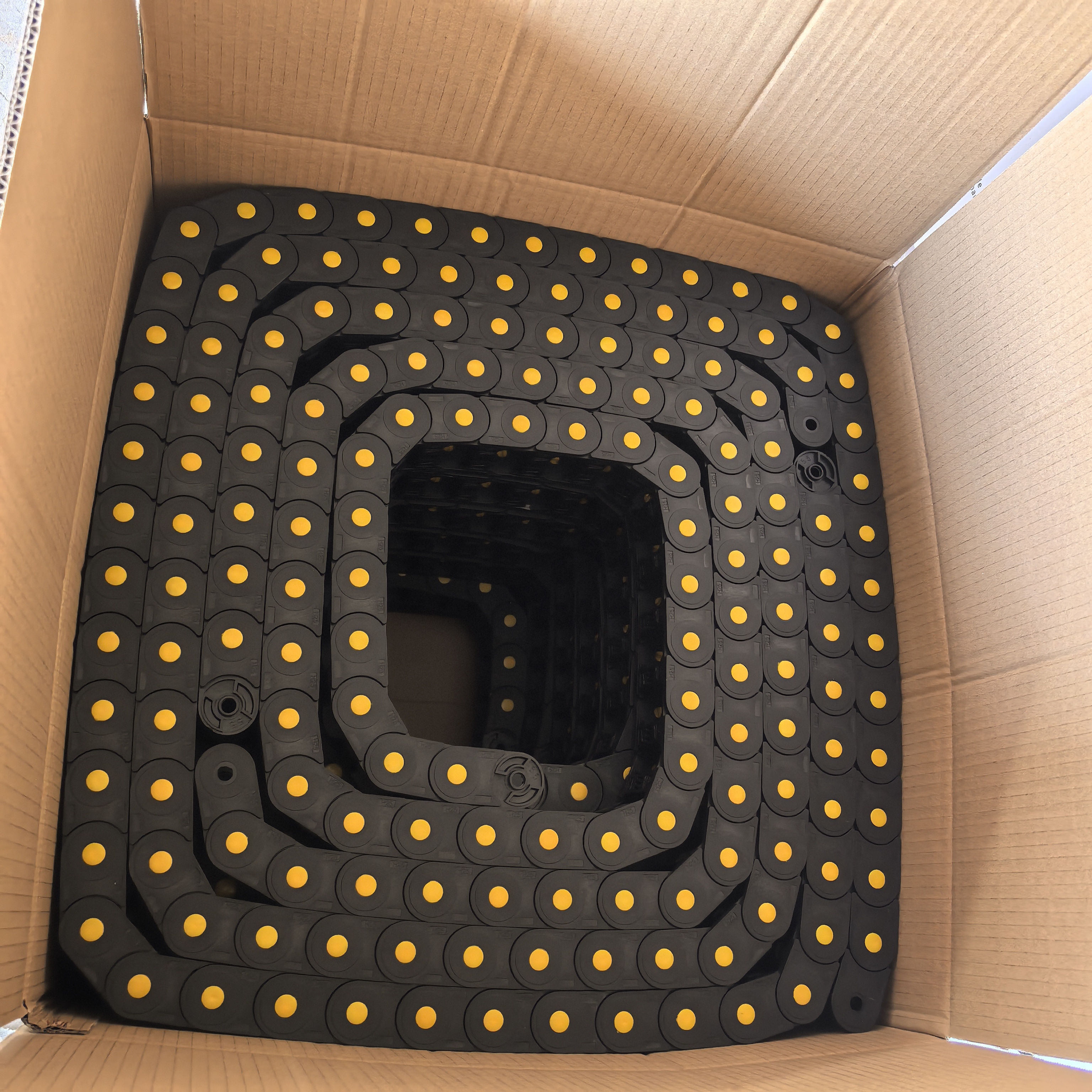

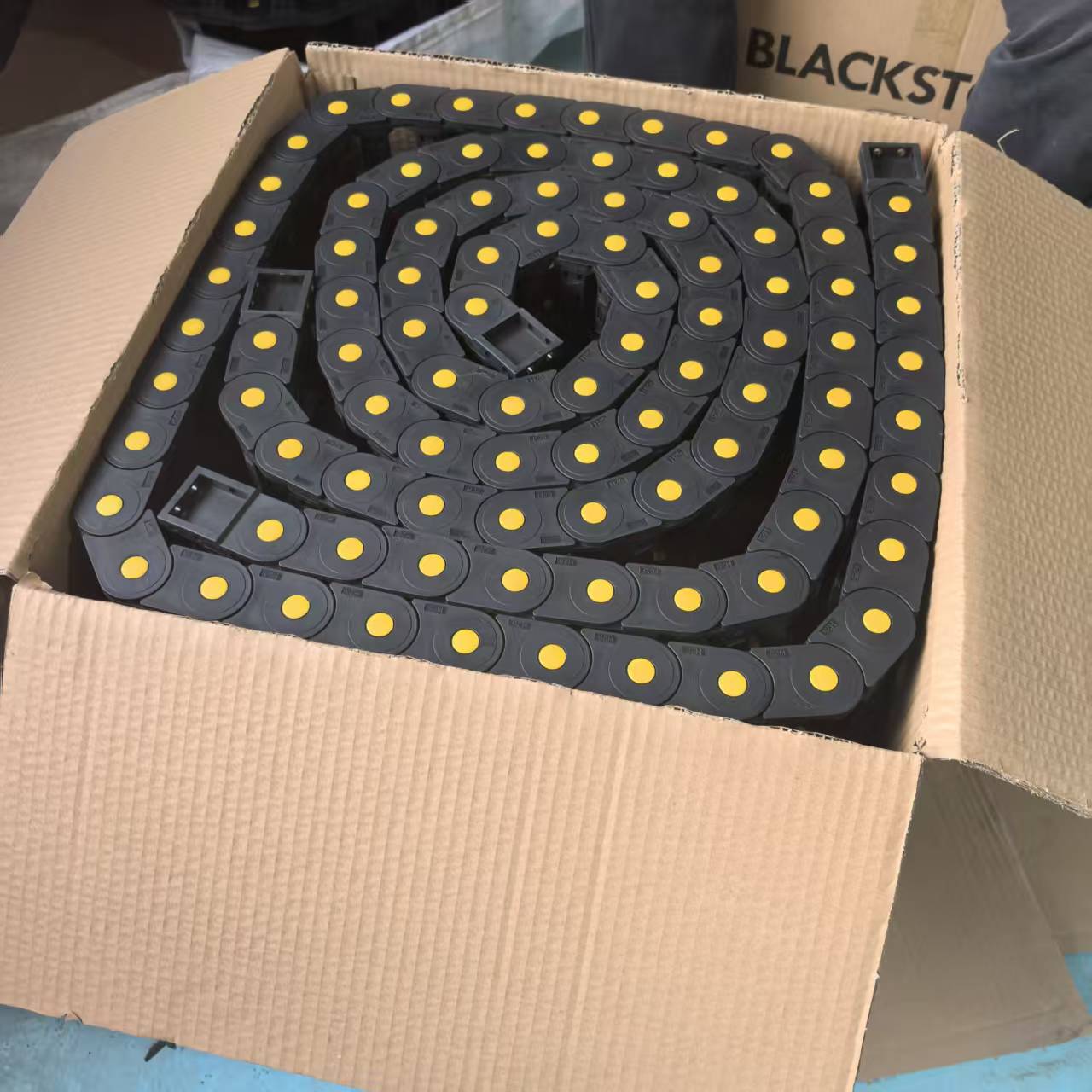

Packaging: Export carton，wooden case or wooden pallet.
Why Choose Yodel S-Type Bridge Cable Carrier ?
1.Professional Manufacturer with Rich Experience
We are a professional drag chain manufacturer with nearly 20 years of production experience, ensuring stable quality, complete sizes and strong durability.
2.High Cost-Effectiveness
We offer factory-direct competitive pricing with reliable performance, bringing you great value and lower overall cost.
3.Large Production & Efficient Delivery Service
We have a large-scale production base and sufficient ready stock, ensuring on-time delivery. We also provide safe and reliable global transportation to guarantee your goods arrive smoothly.
