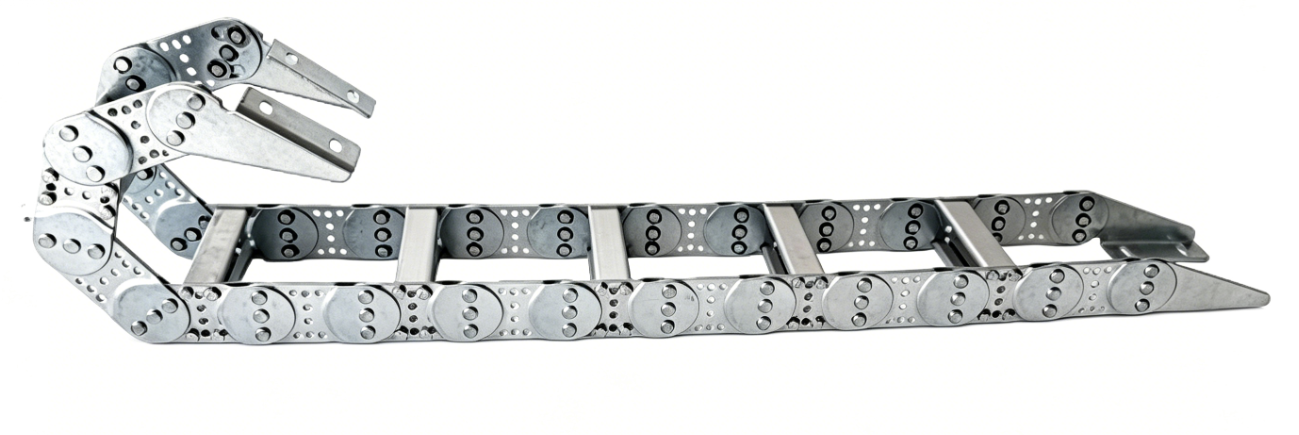

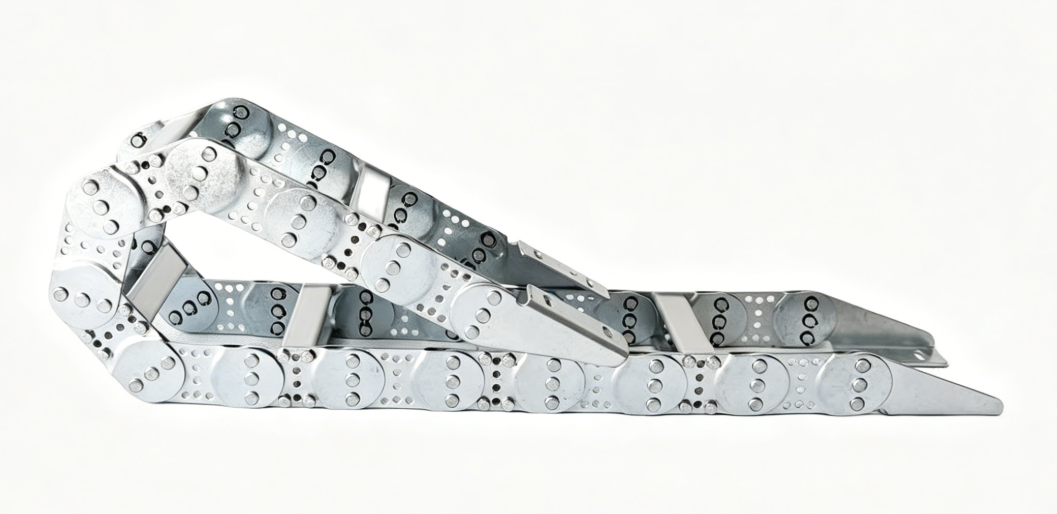

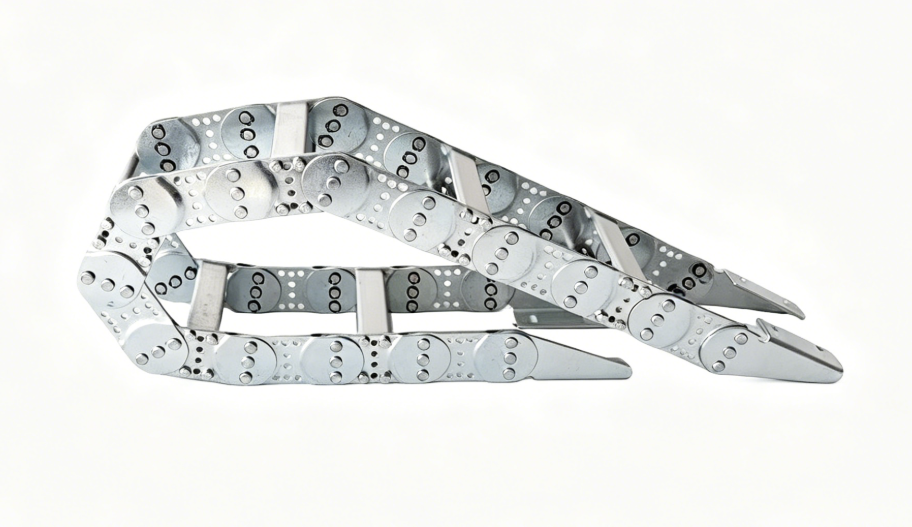

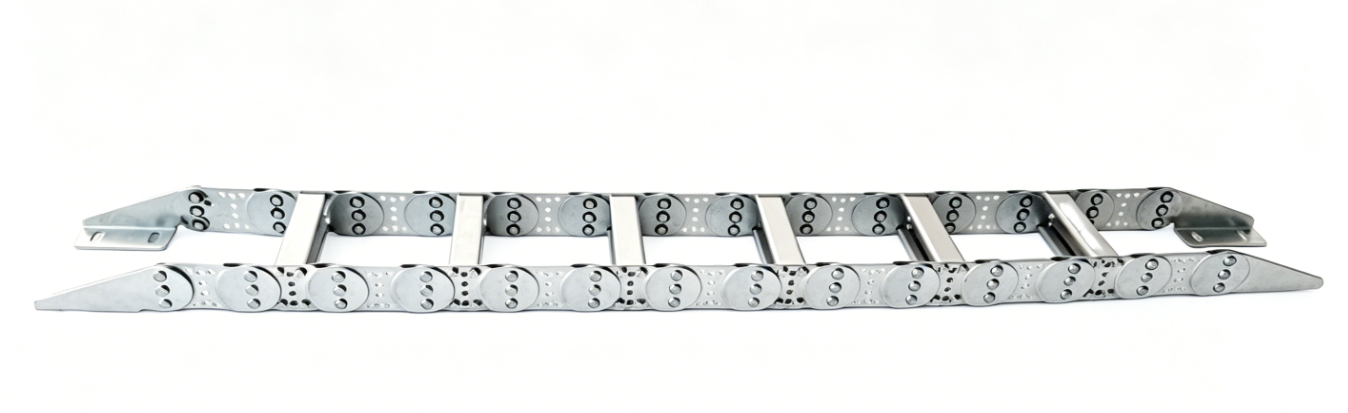

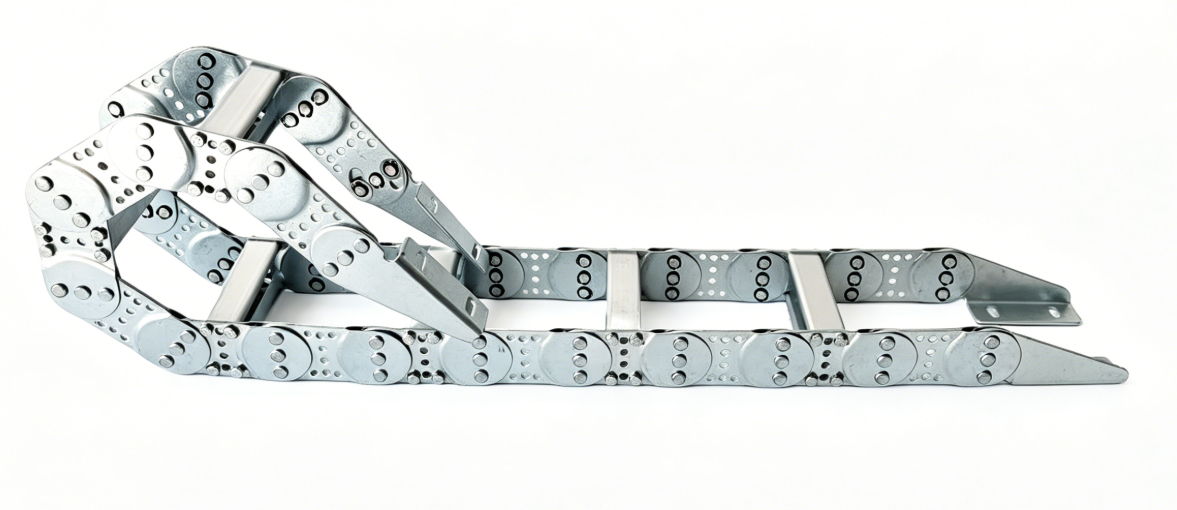

TL bridge type steel drag chain

Product Description：

Our Bridge-Type Steel Cable Drag Chains are engineered for high-performance cable and hose management in demanding industrial environments. Constructed from premium galvanized steel or stainless steel, these drag chains deliver exceptional durability, corrosion resistance, and structural rigidity. The modular aluminum crossbars can be customized with drilled holes or fitted with internal separators, allowing flexible configuration to organize power cables, data lines, hydraulic hoses, and pneumatic lines efficiently. Designed for long-travel, high-speed, and heavy-load applications, they protect moving components from abrasion, tangling, and mechanical damage, while ensuring smooth, low-friction operation. Ideal for machine tools, automation equipment, and harsh working conditions, these drag chains combine robust build quality with versatile adaptability.

Key Features ：

1. Premium Material Construction

    Main chain links: Available in galvanized steel (for cost-effective corrosion resistance) or stainless steel (for superior rust protection in humid/chemical environments).

    Crossbars: High-strength aluminum alloy, lightweight yet rigid, supporting heavy loads without deformation.

2. Customizable Design ：

    Bridge-style open structure for easy installation, inspection, and maintenance of cables/hoses.

    Crossbars can be pre-drilled or modified to add internal separators/dividers, enabling multi-line organization and preventing cable tangling.

3. Superior Durability & Performance ：

    Precision-machined link connections ensure smooth articulation, low noise, and minimal wear during repeated movement.

    High load-bearing capacity and long service life, even under continuous high-speed reciprocating motion.

    Excellent resistance to impact, abrasion, and temperature fluctuations, suitable for harsh industrial conditions.

4. Versatile Compatibility

     Modular design allows quick assembly, disassembly, and length adjustment to fit specific travel paths.

    Compatible with various cable/hose sizes and types (power, signal, hydraulic, pneumatic), with optional internal accessories for tailored management.

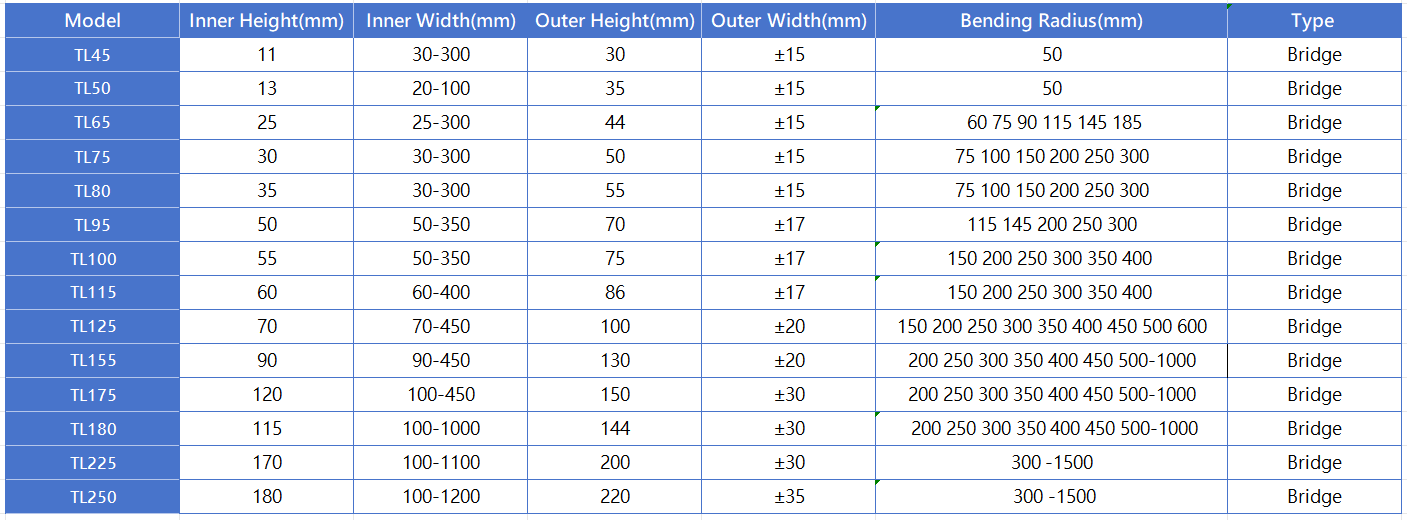

Technical Specifications & Dimension Table :

TL Series Bridge-Type Steel Drag Chains

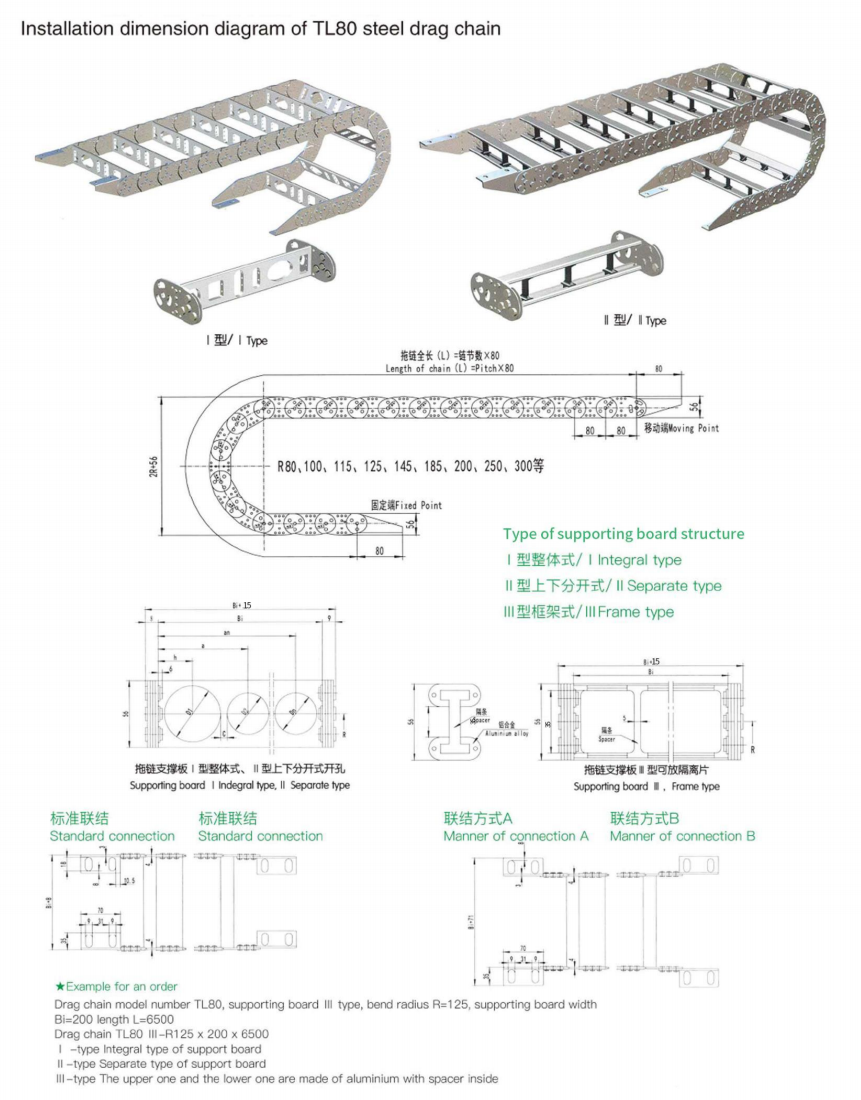

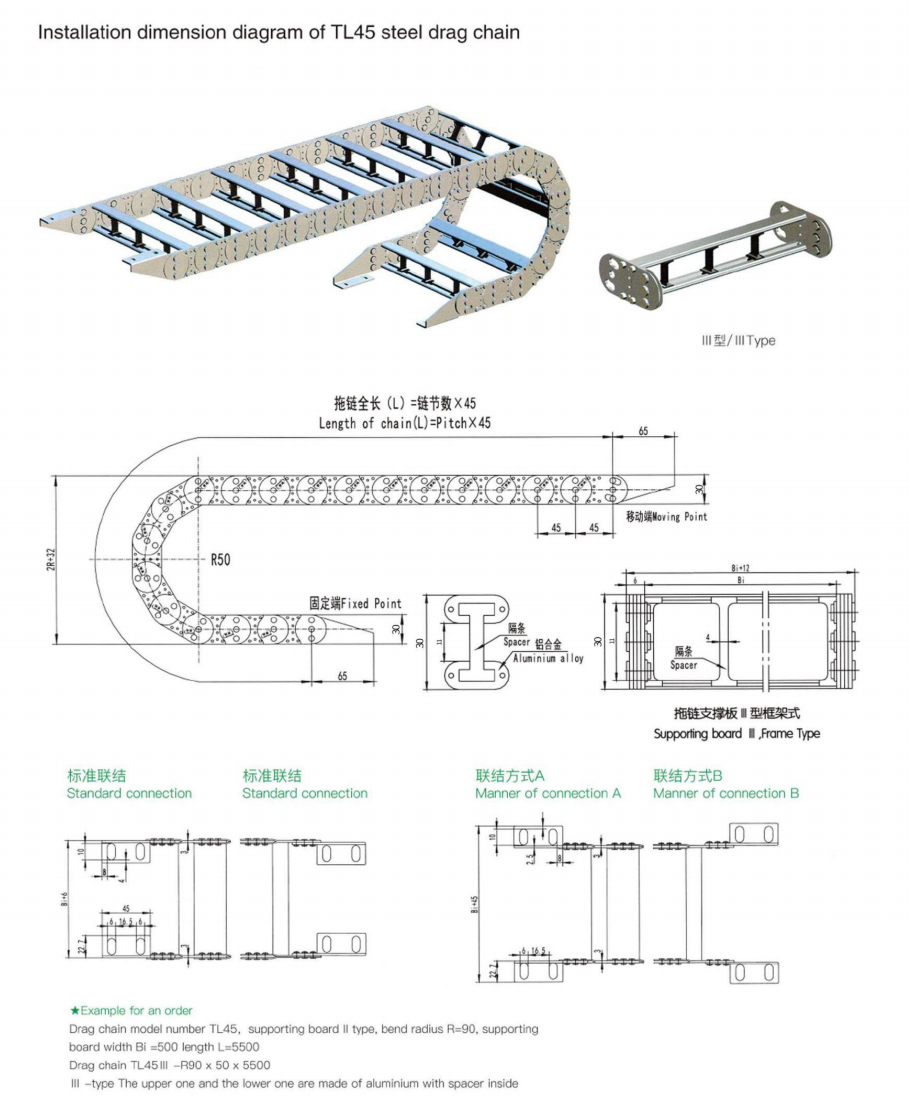

TL45 Drawing

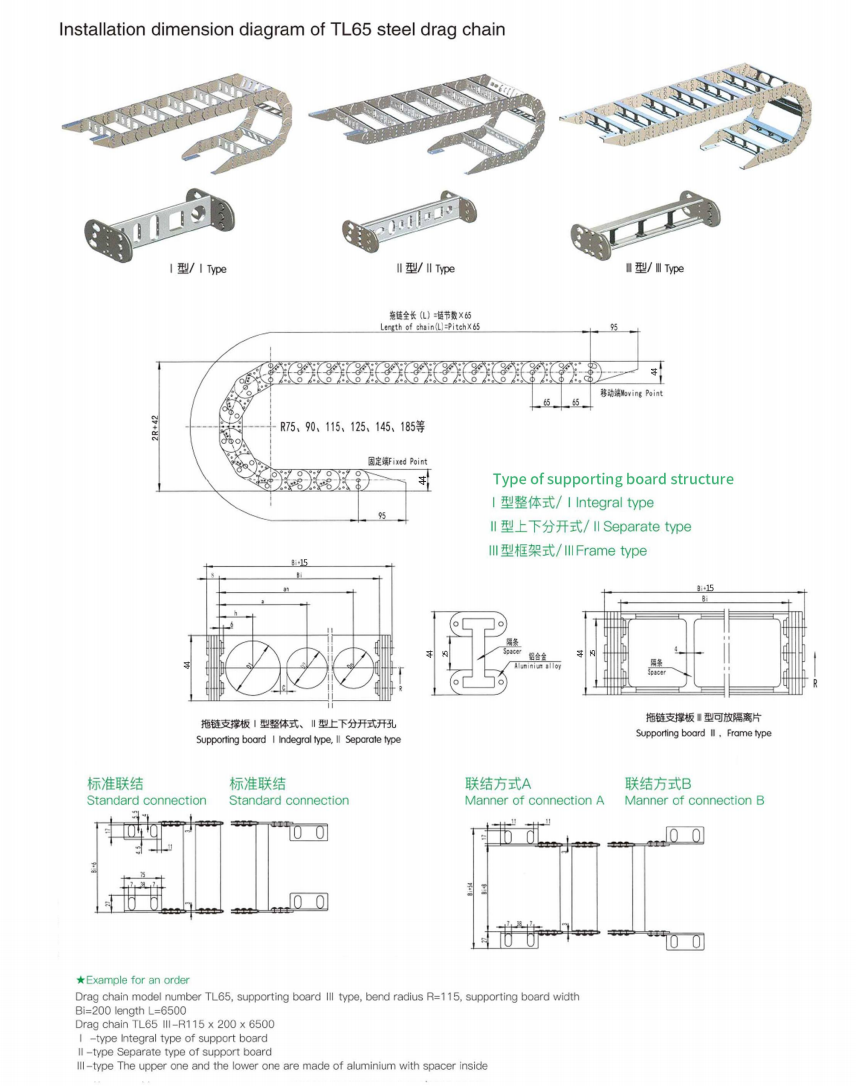

TL65 Drawing

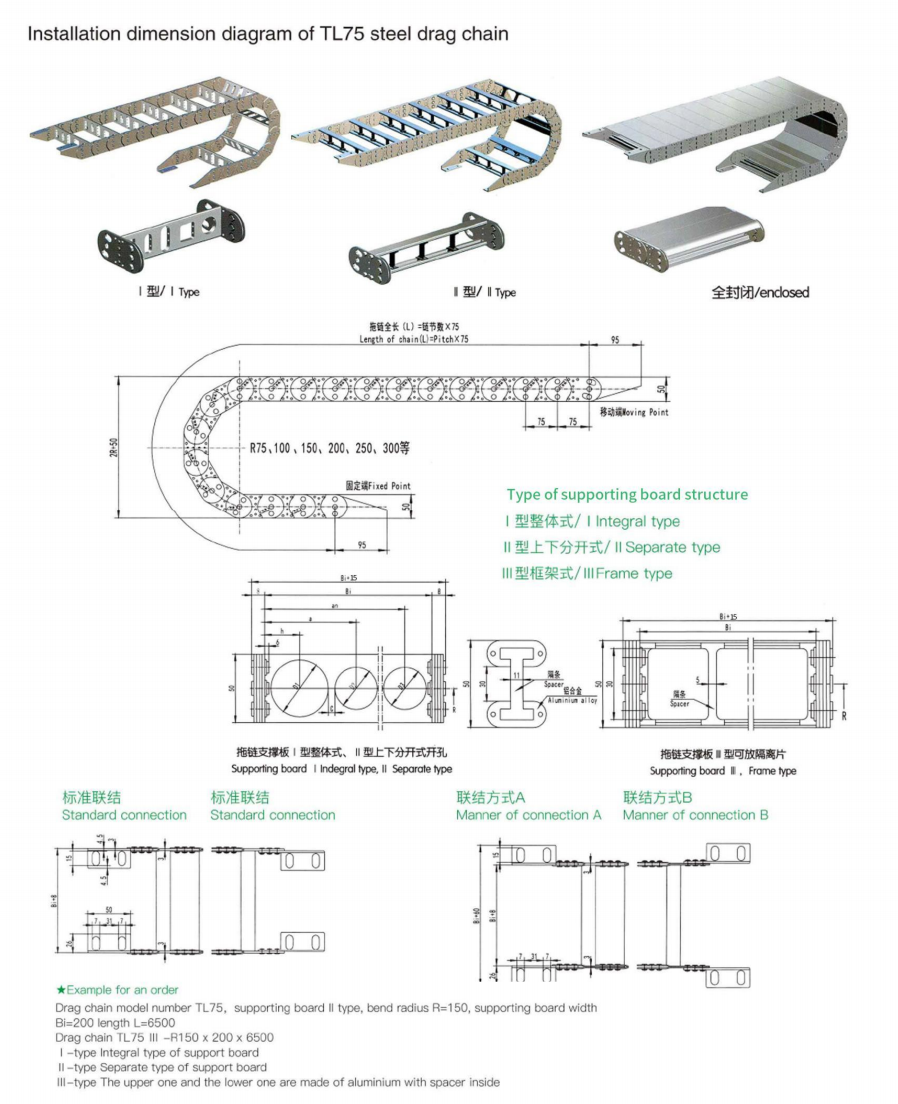

TL75 Drawing

TL80 Drawing

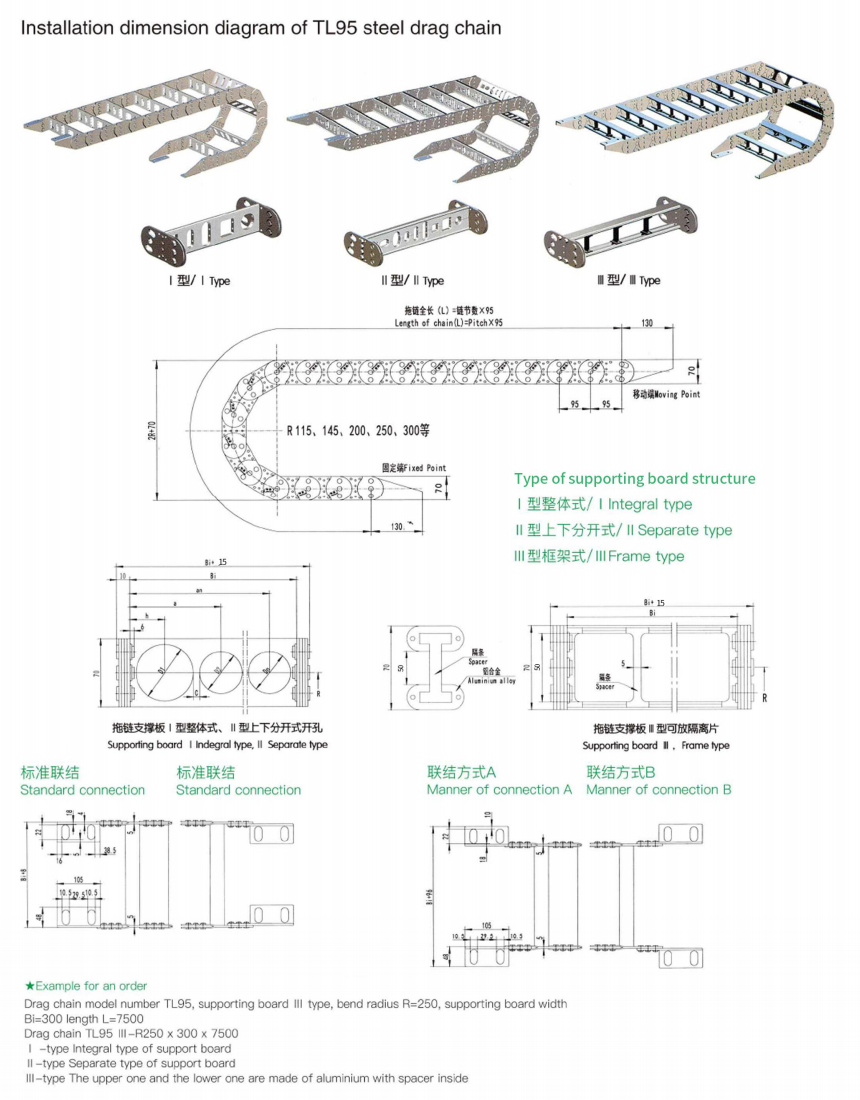

TL95 Drawing

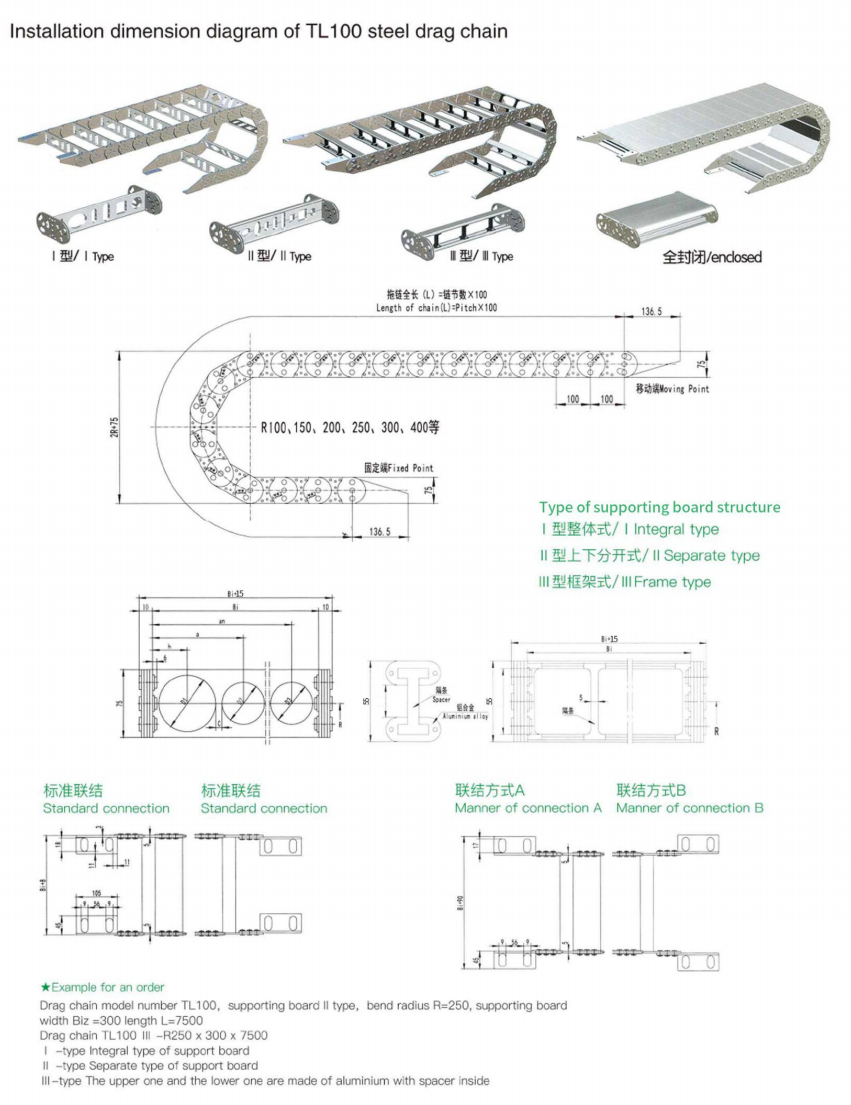

1. TL100 Drawing
2.

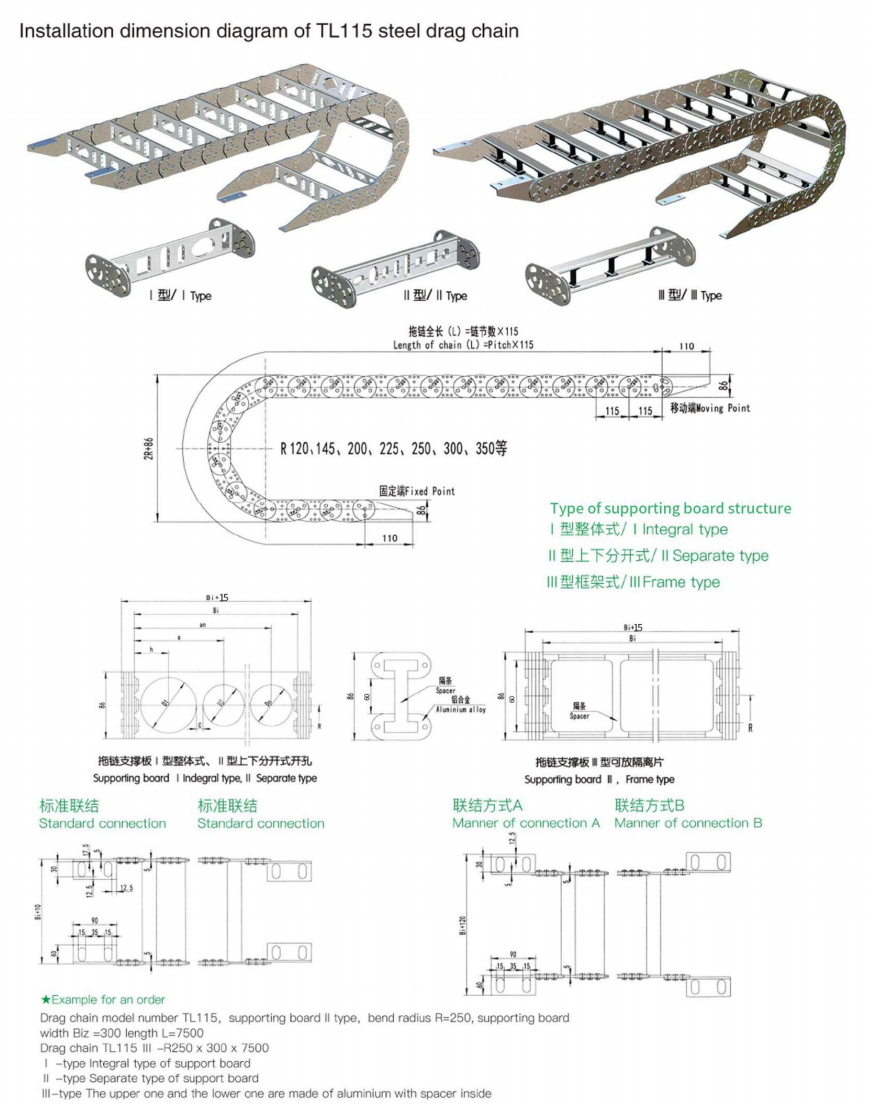

3. TL115 Drawing
4.

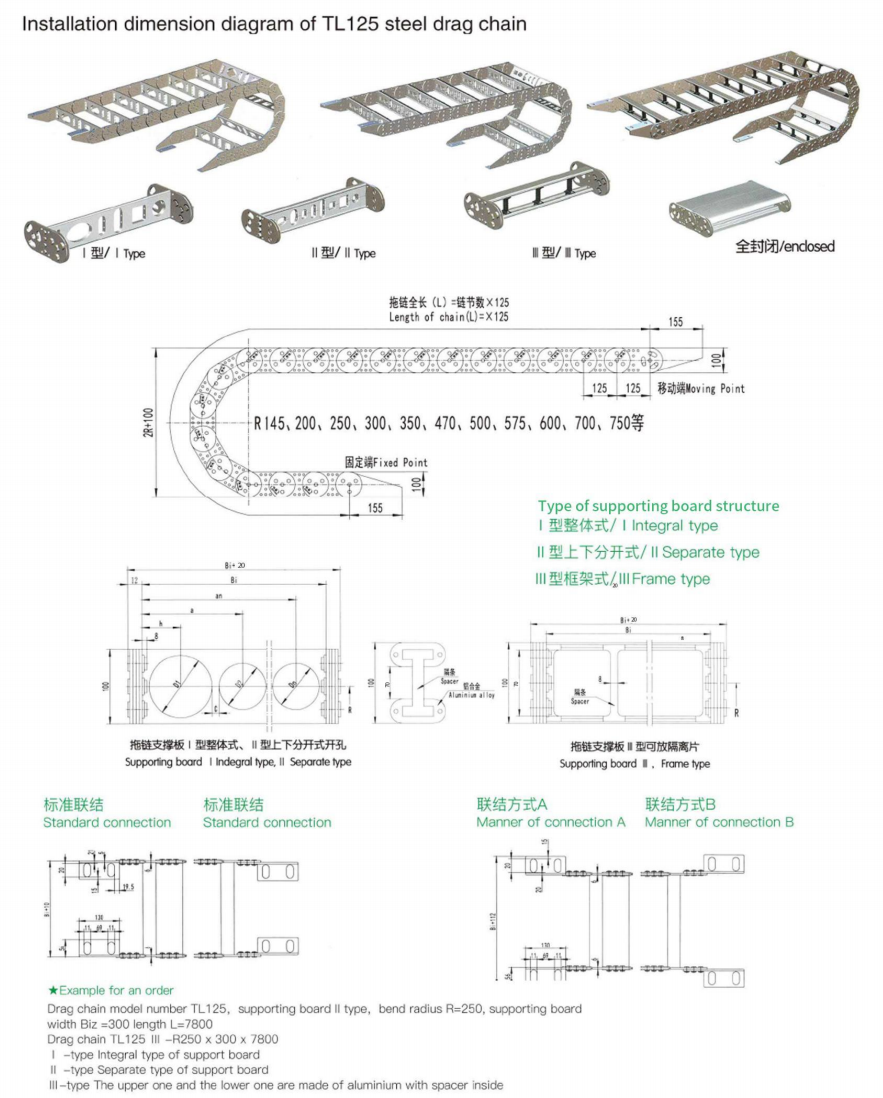

5. TL125 Drawing
6.

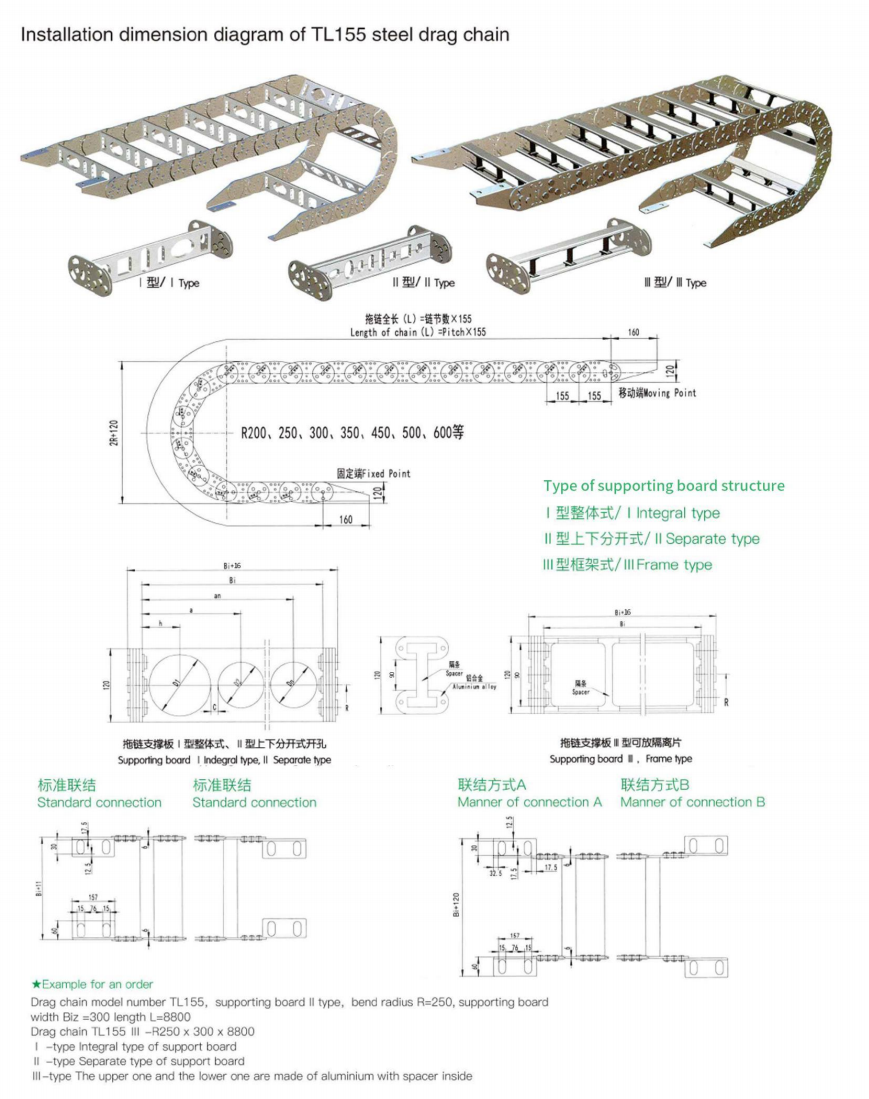

   1. TL155 Drawing
   2.

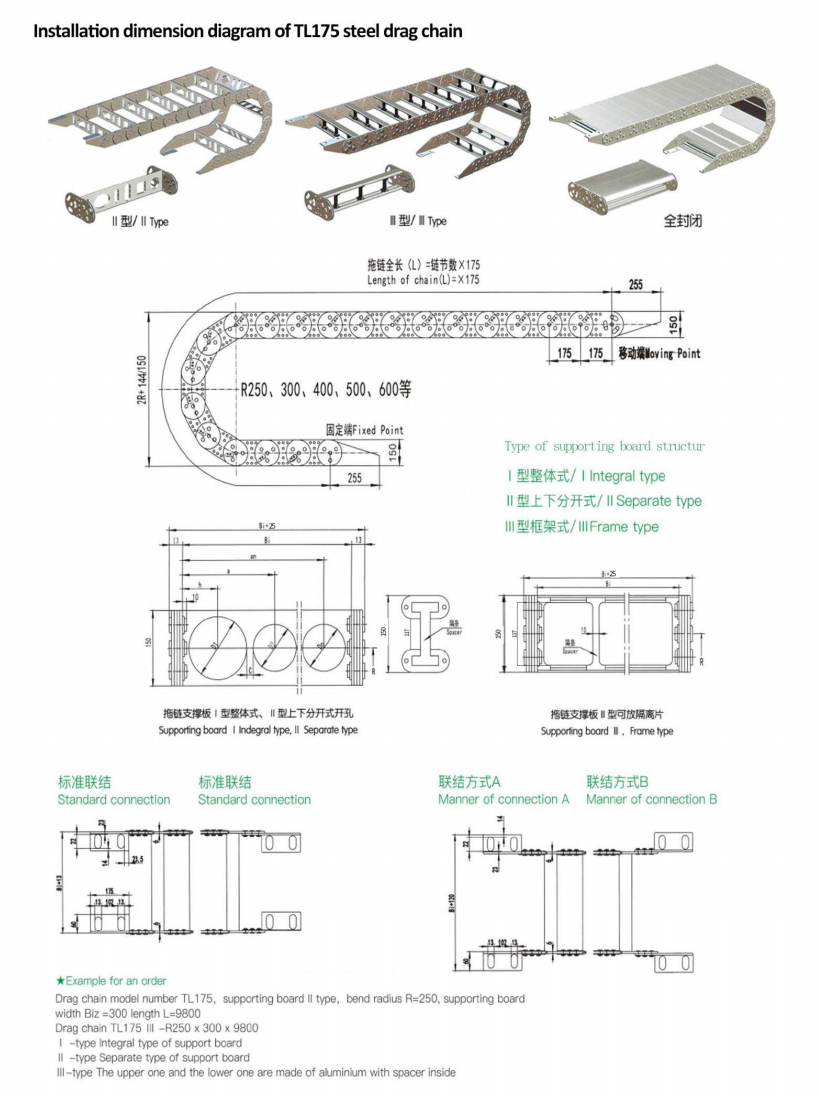

   3. TL175 Drawing
   4.

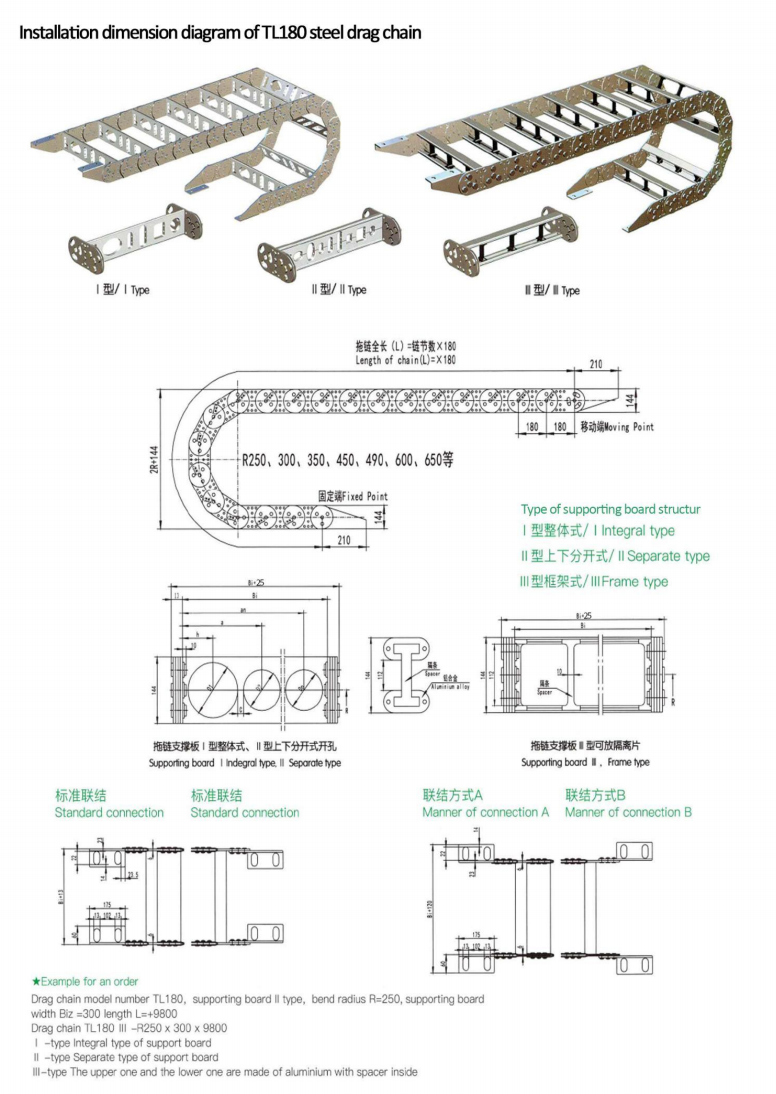

   5. TL180 Drawing
   6.

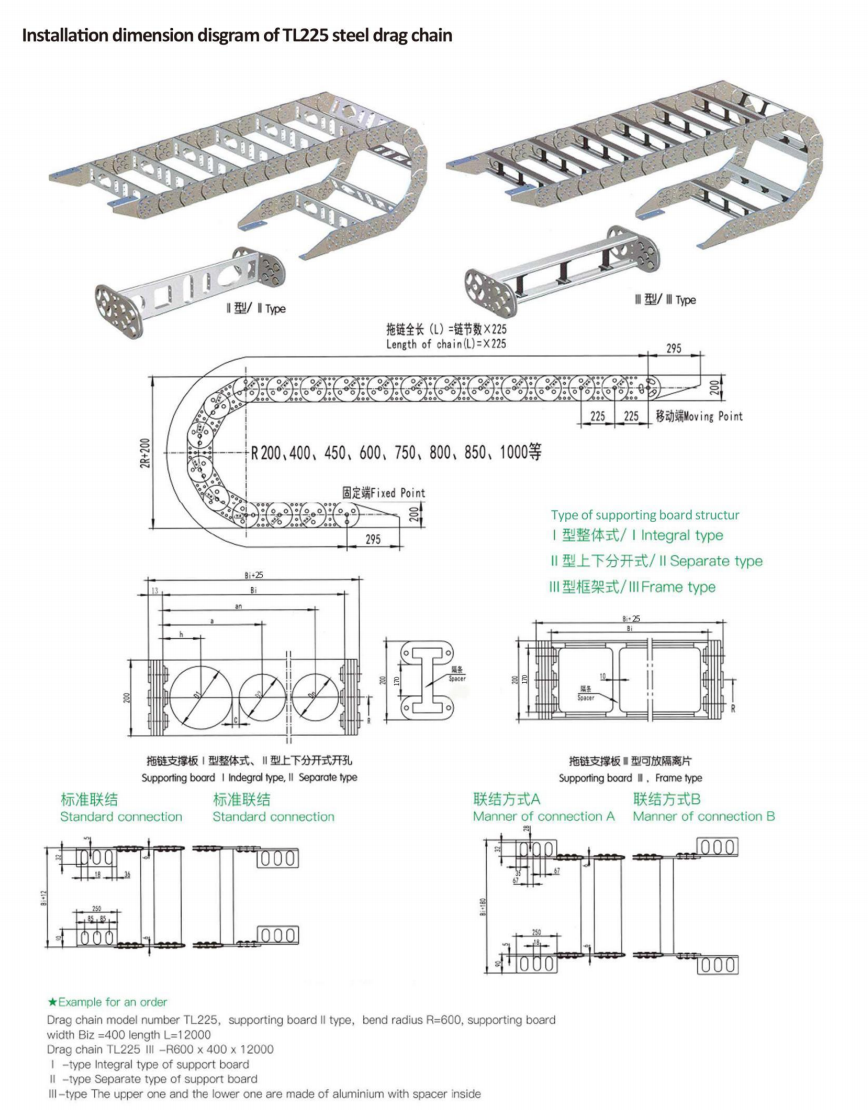

   7. TL225 Drawing
   8.

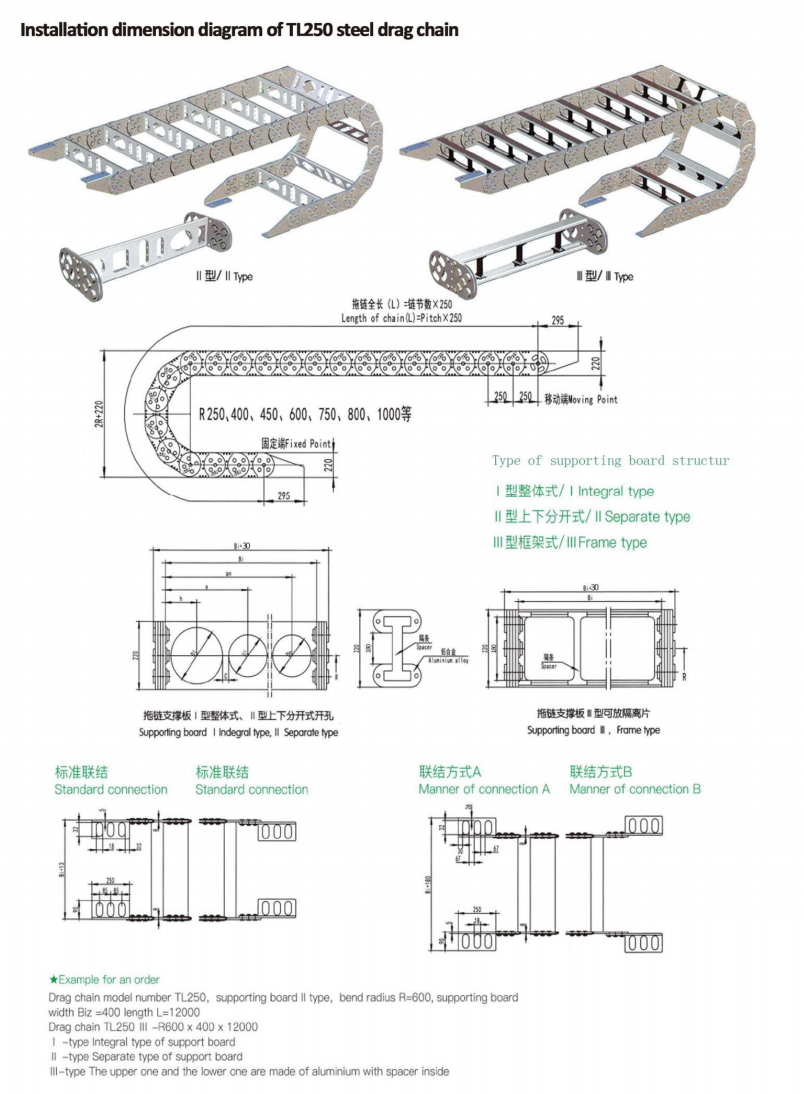

   9. TL250 Drawing
   10.

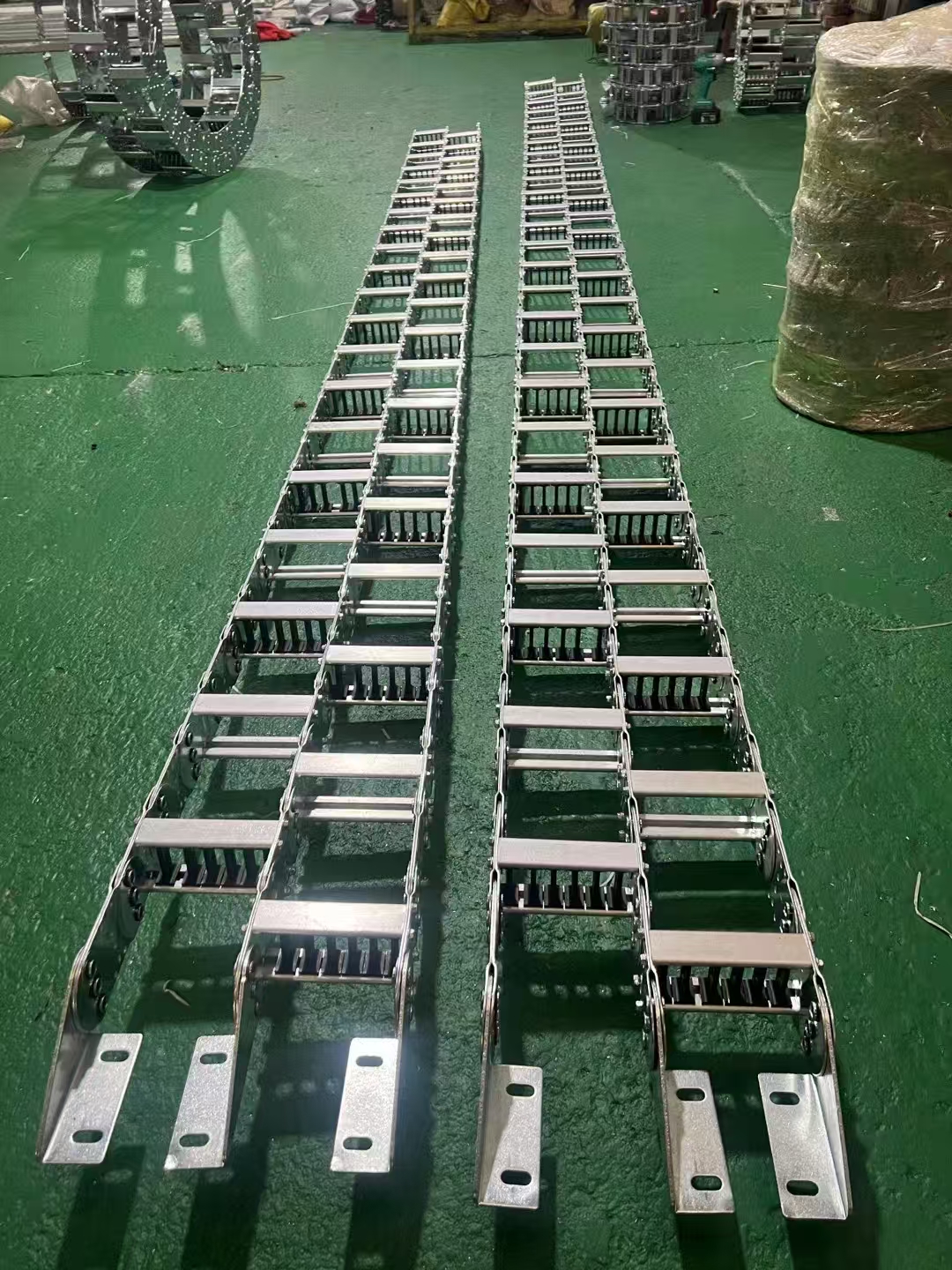

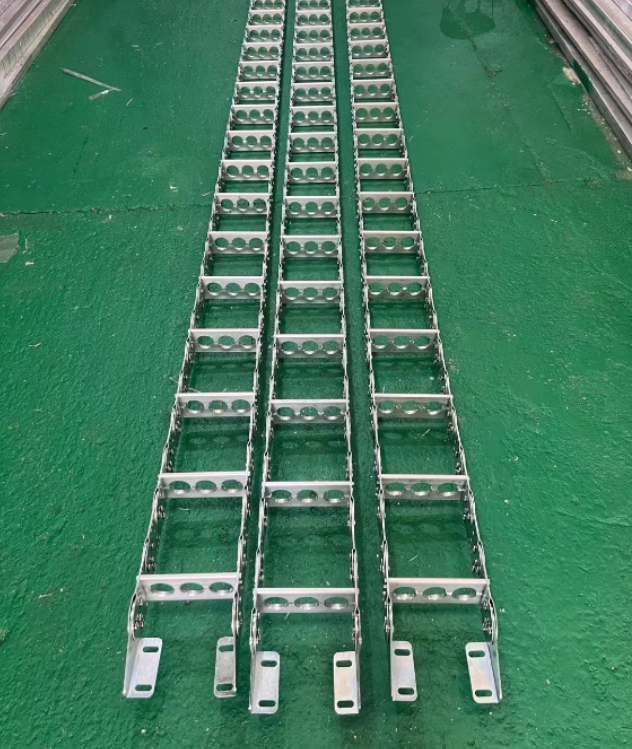

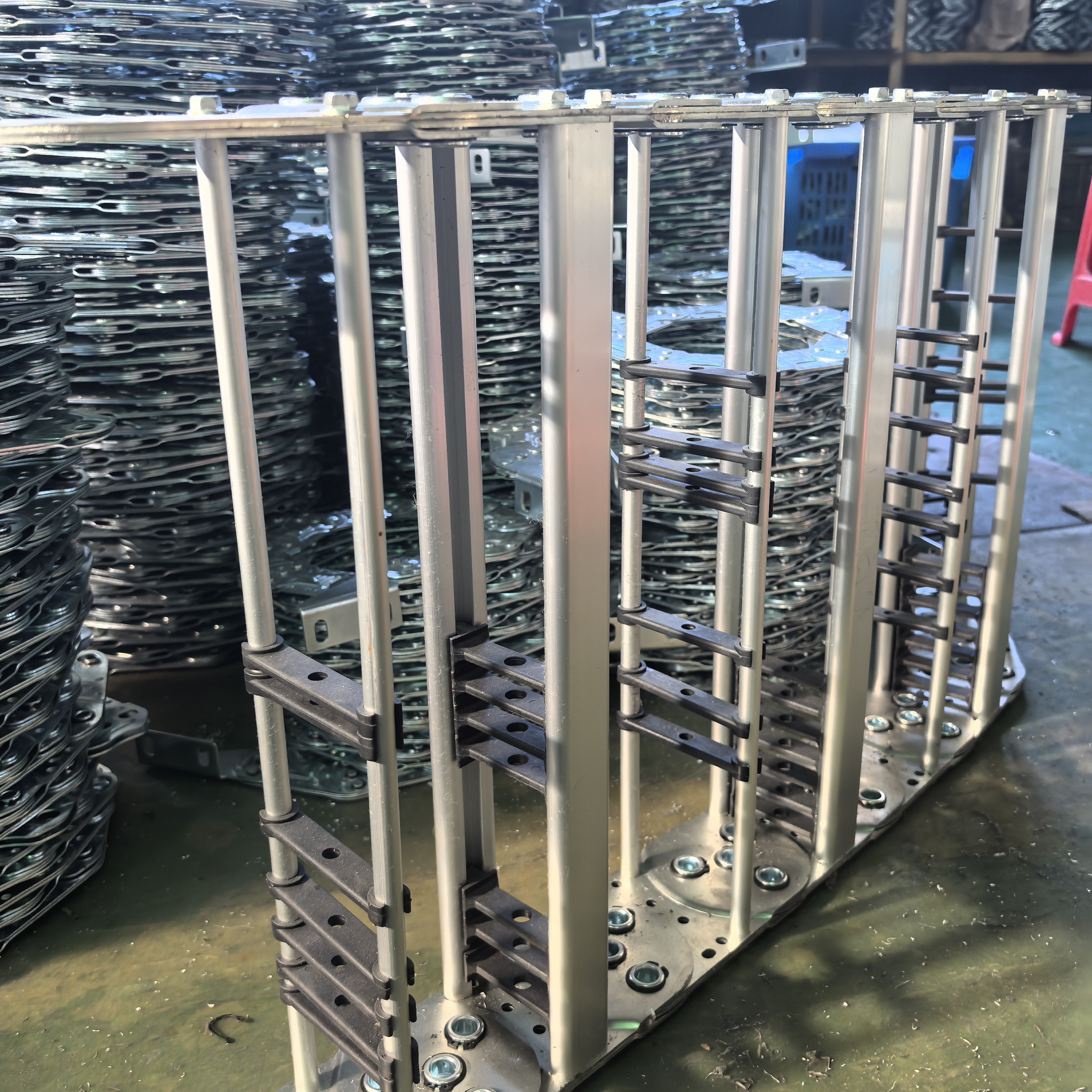

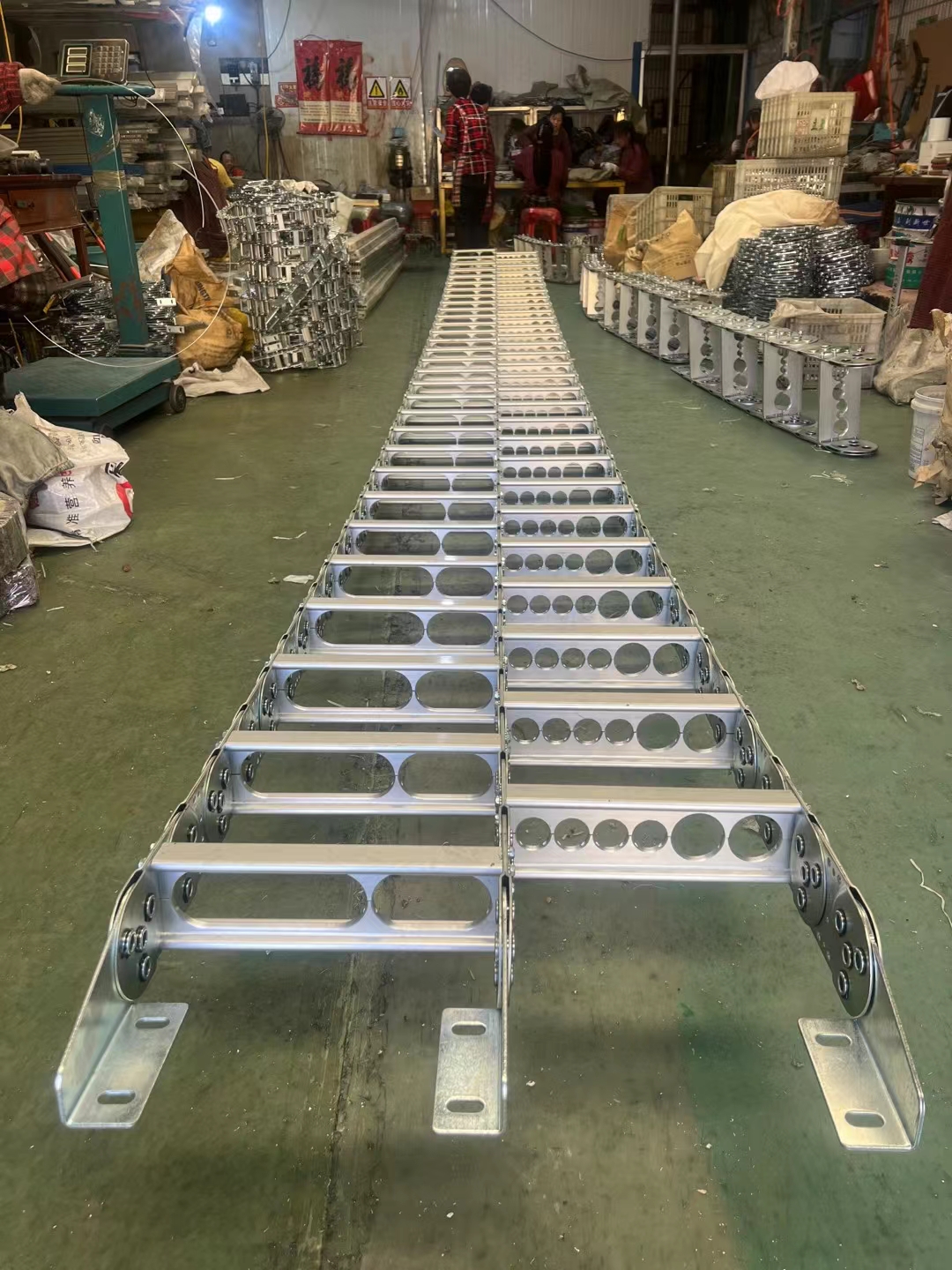

   11. Drag Chain Assembly – Drilled & With Separators
   12.
   13.
   14.

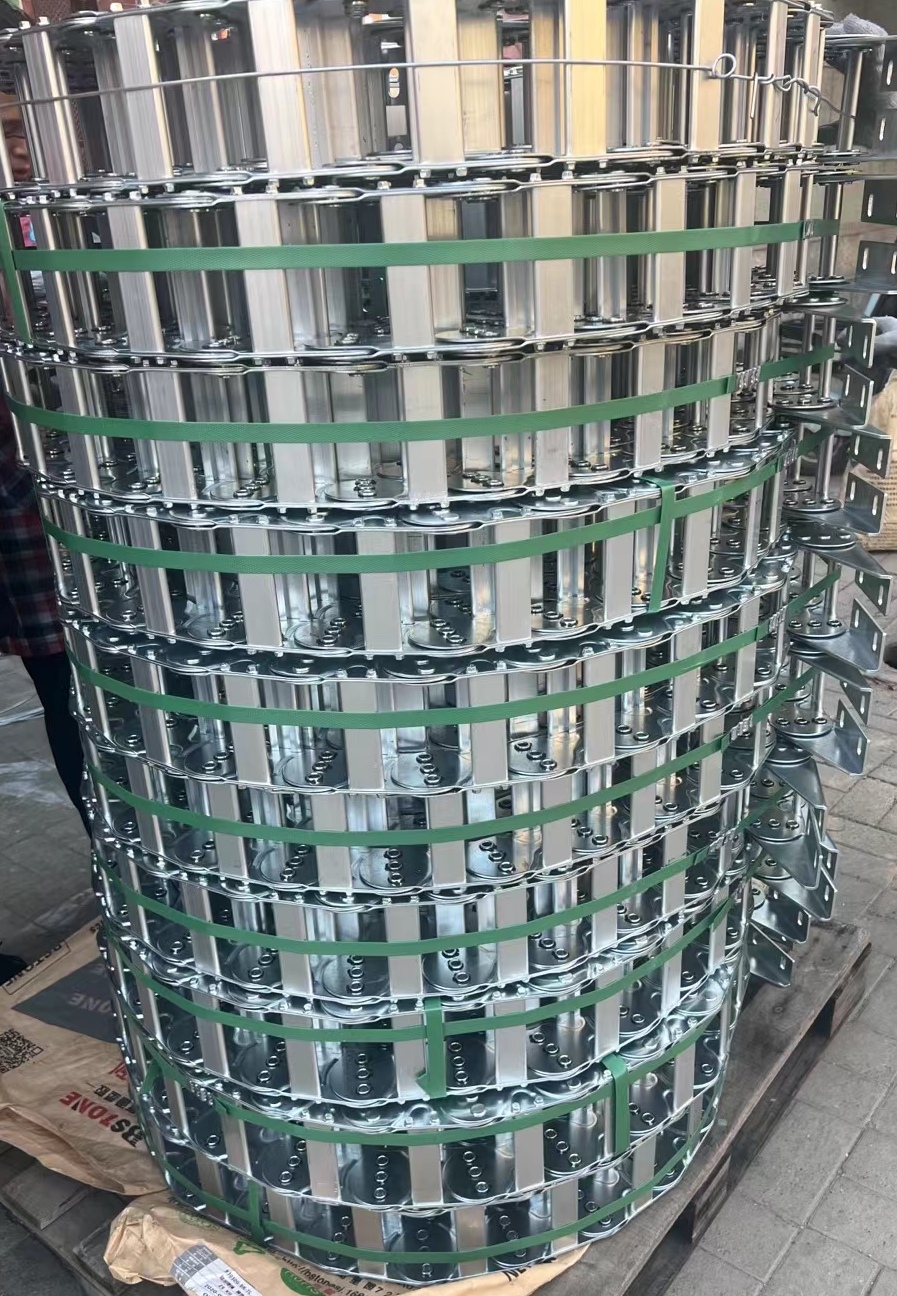

   15. Packaging before shipment: Wooden pallet or wooden case
   16.
   17.
7.
8. Applications
9.
10. TL Series Bridge-Type Steel Drag Chains are ideal for heavy-duty industrial equipment requiring reliable cable management during linear motion, including:
11. 1. CNC machine tools, machining centers, and lathes
12. 2. Automated production lines and industrial robotics
13. 3. Material handling equipment, cranes, and gantry systems
14. 4. Packaging machinery, textile equipment, and printing presses
15. 5. Mining machinery, port equipment, and offshore industrial systems
16. 6. Automotive manufacturing lines and heavy-duty automation systems
17. 7. Construction machinery and outdoor industrial equipment
18.

    1. Why Choose Yodel Steel Cable Carrier ?

       1.Professional Manufacturer with Rich Experience

       We are a professional drag chain manufacturer with nearly 20 years of production experience, ensuring stable quality, complete sizes and strong durability.

       2.High Cost-Effectiveness

       We offer factory-direct competitive pricing with reliable performance, bringing you great value and lower overall cost.

       3.Large Production & Efficient Delivery Service

       We have a large-scale production base and sufficient ready stock, ensuring on-time delivery. We also provide safe and reliable global transportation to guarantee your goods arrive smoothly.
