Product Description：

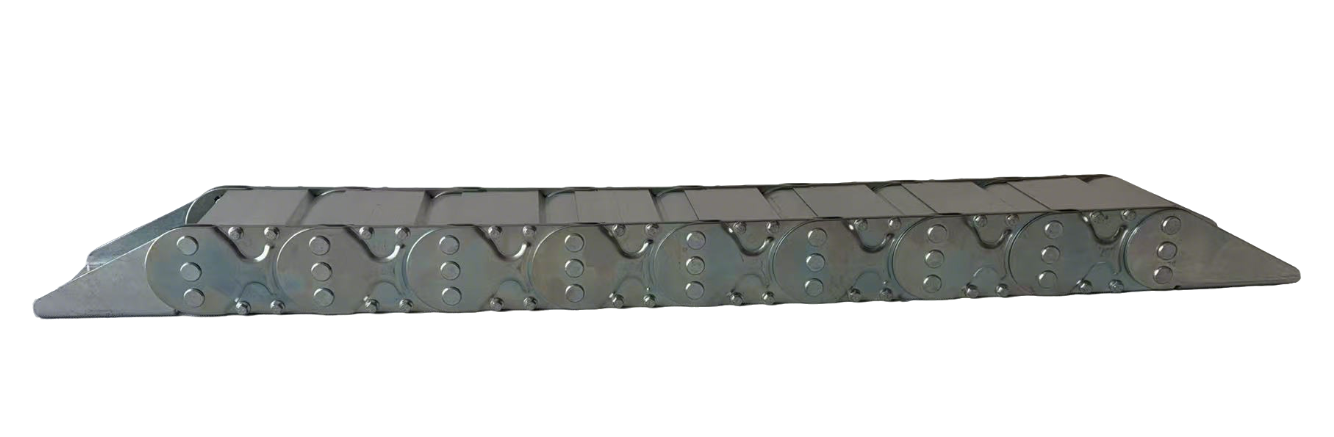

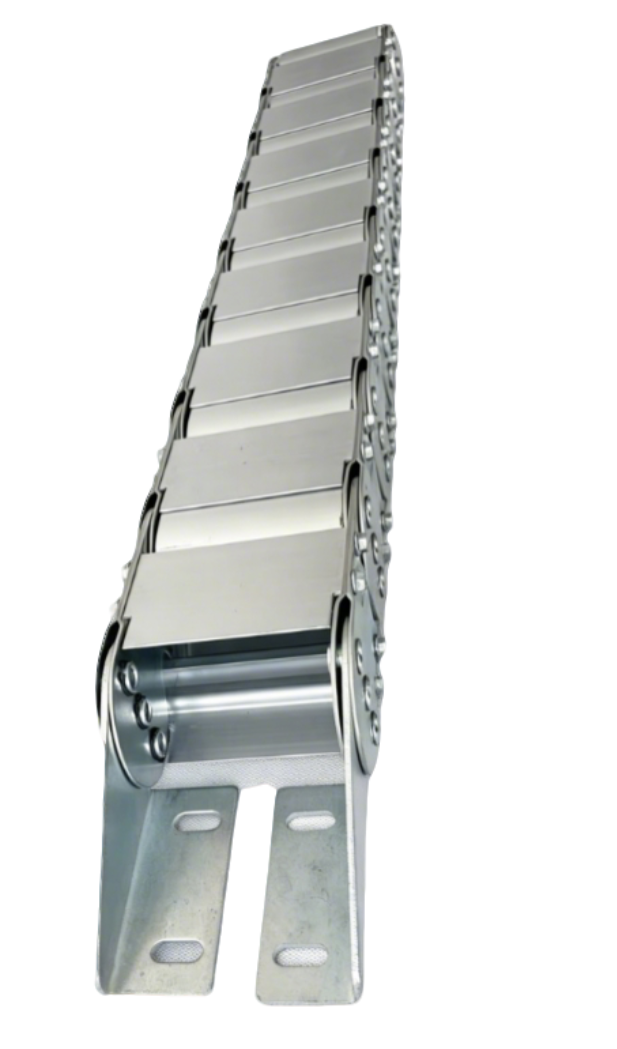

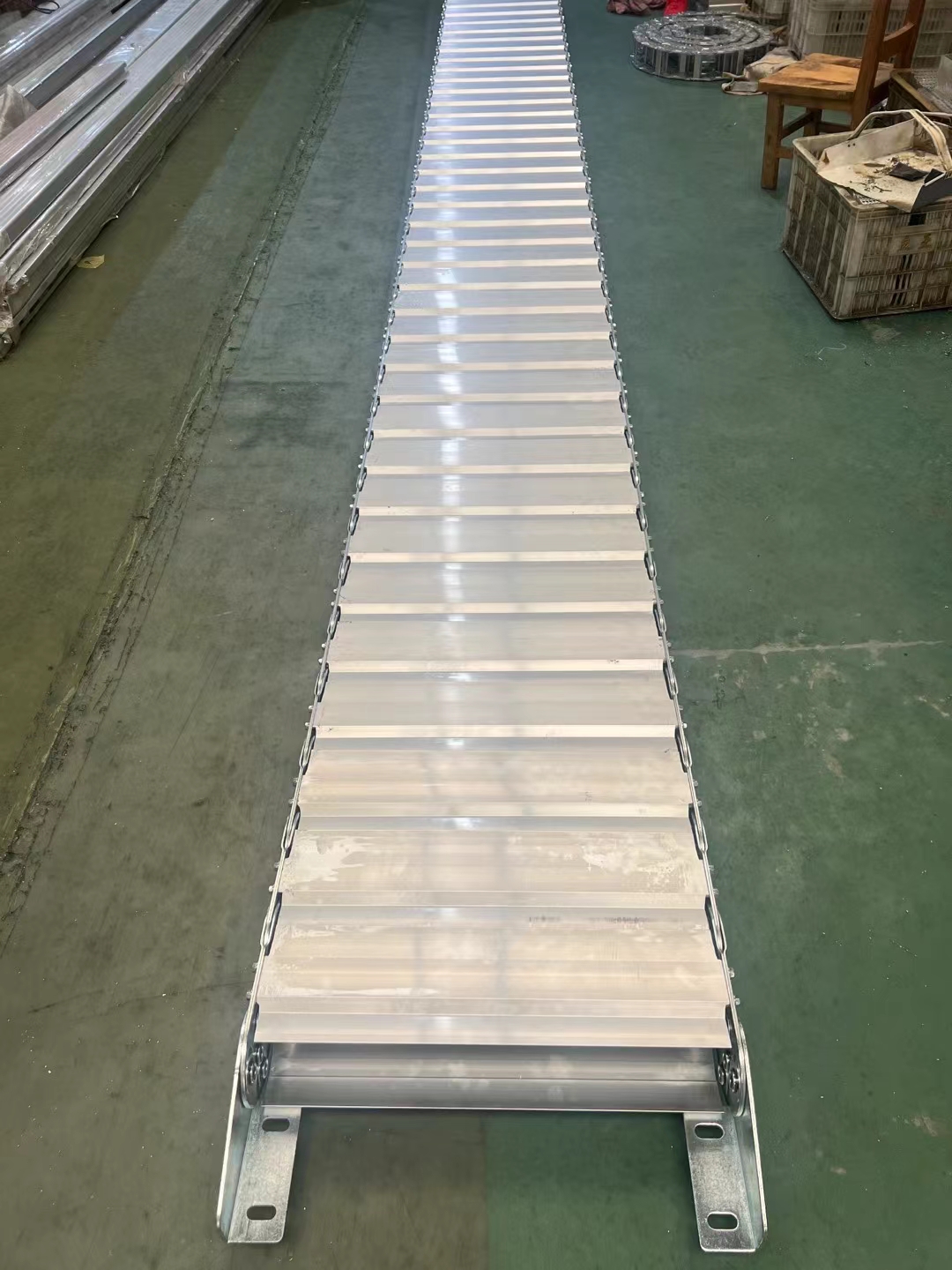

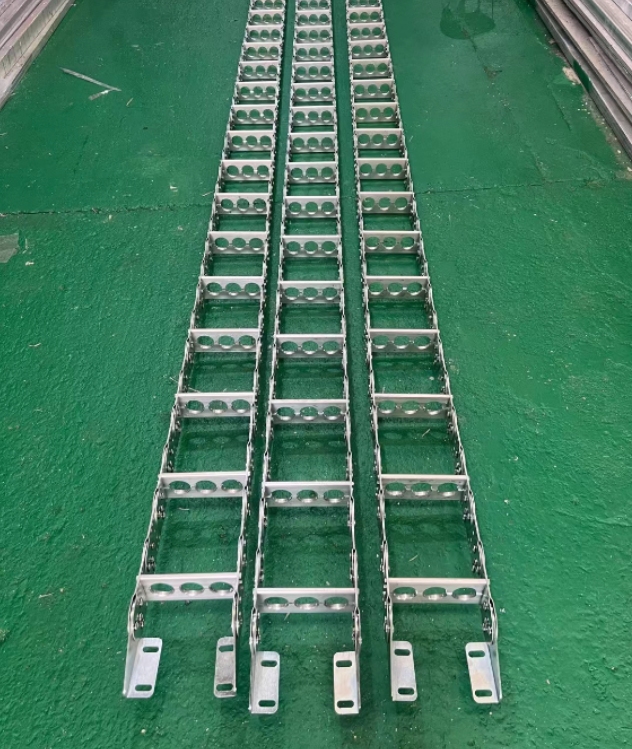

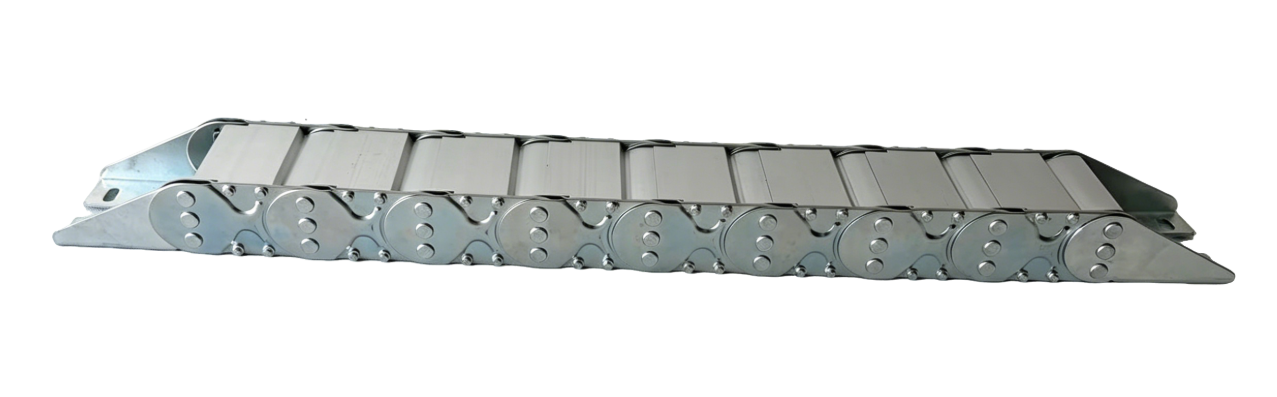

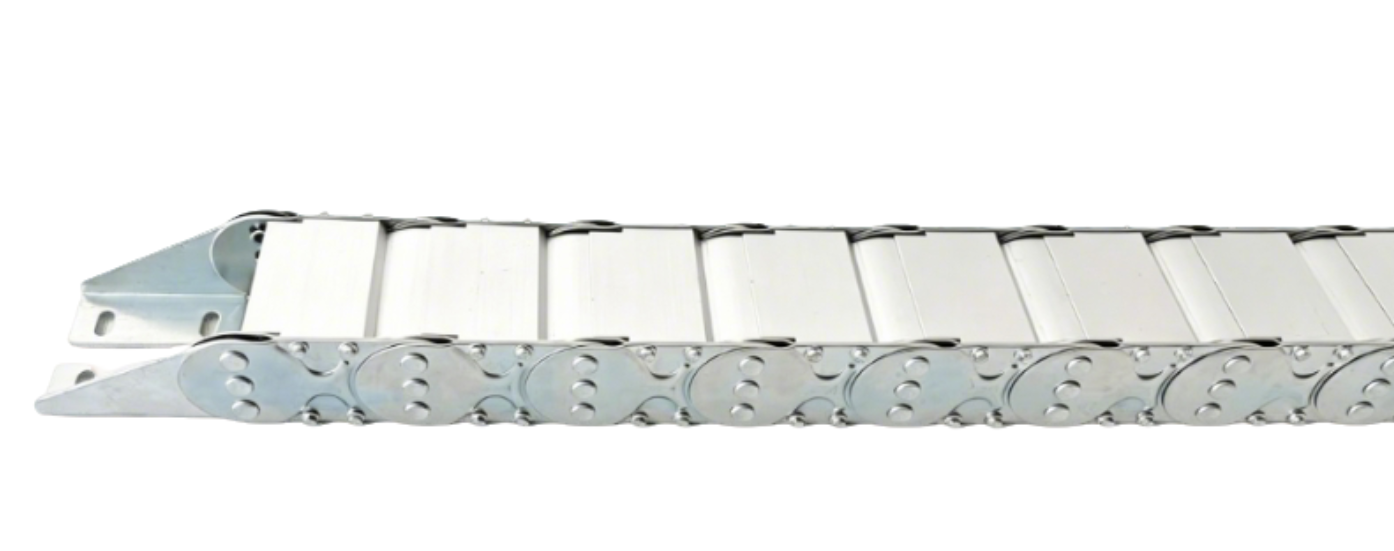

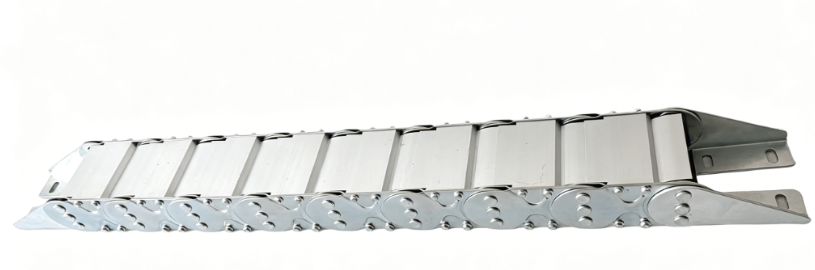

The TLG Series Fully Enclosed Steel Drag Chains are heavy-duty, all-metal cable management solutions engineered for the most demanding industrial environments. Constructed from high-grade galvanized steel or stainless steel side plates, paired with reinforced aluminum crossbars, these drag chains deliver exceptional structural rigidity, impact resistance, and long-term reliability.
The fully enclosed design provides complete protection for internal cables, hoses, and lines against debris, chips, dust, and harsh contaminants, making them ideal for machining, metalworking, and outdoor applications. The aluminum crossbars are fully customizable: they can be precision-drilled for secure cable/hose positioning or fitted with internal separators to organize multiple lines, preventing tangling, abrasion, and signal interference.
Designed for long-travel, high-speed, and heavy-load reciprocating motion, these drag chains ensure smooth, low-friction articulation while safeguarding critical power, data, hydraulic, and pneumatic lines from mechanical stress and environmental damage.
Key Features ：
1. Premium Material Construction
Chain Body: Made of galvanized steel (cost-effective rust protection for standard environments) or stainless steel (superior corrosion resistance for humid, corrosive, or outdoor conditions).
Crossbars: High-strength extruded aluminum alloy, offering a balance of rigidity and light weight to support heavy loads without sagging or deformation.
Fully Enclosed Structure: All-steel cover design provides complete protection against debris, contaminants, and impact damage.
2. Highly Customizable Design

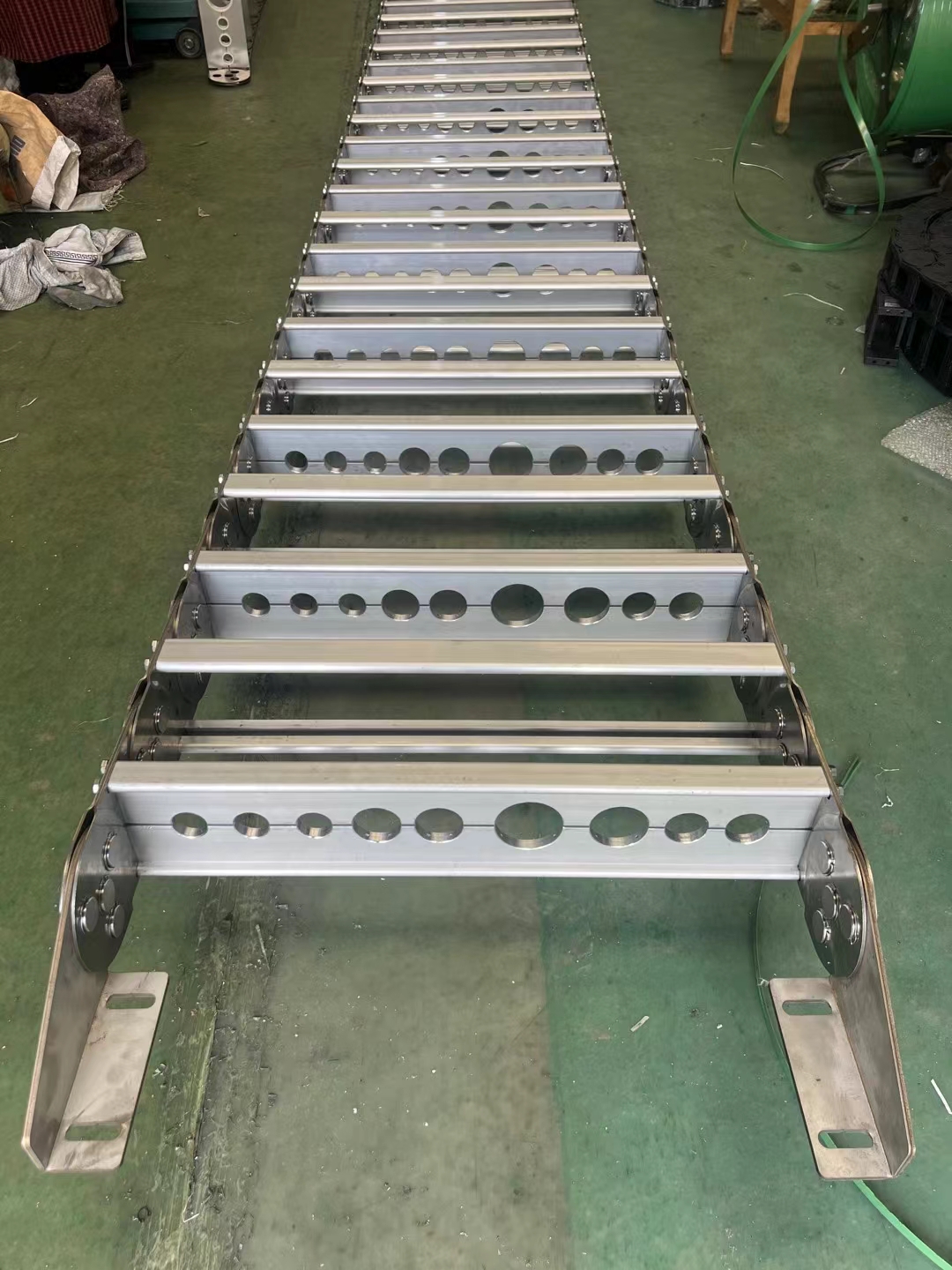

Drillable Aluminum Crossbars: Crossbars can be pre-drilled with custom hole patterns to secure cables and hoses in place, eliminating movement and reducing wear.
Internal Separator Compatibility: Modular separators/dividers can be installed to organize different lines into dedicated channels, preventing cross-contact, tangling, and signal interference.
3. Superior Performance & Durability
Precision Articulation: CNC-machined link connections ensure smooth, low-friction movement with minimal noise and wear, even under continuous high-speed operation.
Heavy Load-Bearing Capacity: The robust steel body supports heavy loads without permanent deformation, making it ideal for long-travel applications.
Low Maintenance: The enclosed design reduces debris buildup, and the galvanized/stainless steel construction eliminates the need for frequent lubrication or rust prevention, lowering long-term operational costs.
4. Enhanced Cable Protection
Shields internal components from metal chips, dust, coolant, and corrosive fluids.
Prevents cable tangling, kinking, and premature wear, extending the service life of your equipment’s critical lines.
Reduces downtime caused by cable damage in harsh machining or industrial environments.

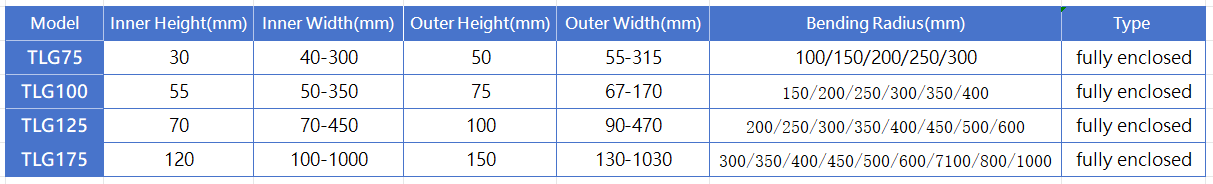

Technical Specifications & Dimension Table :

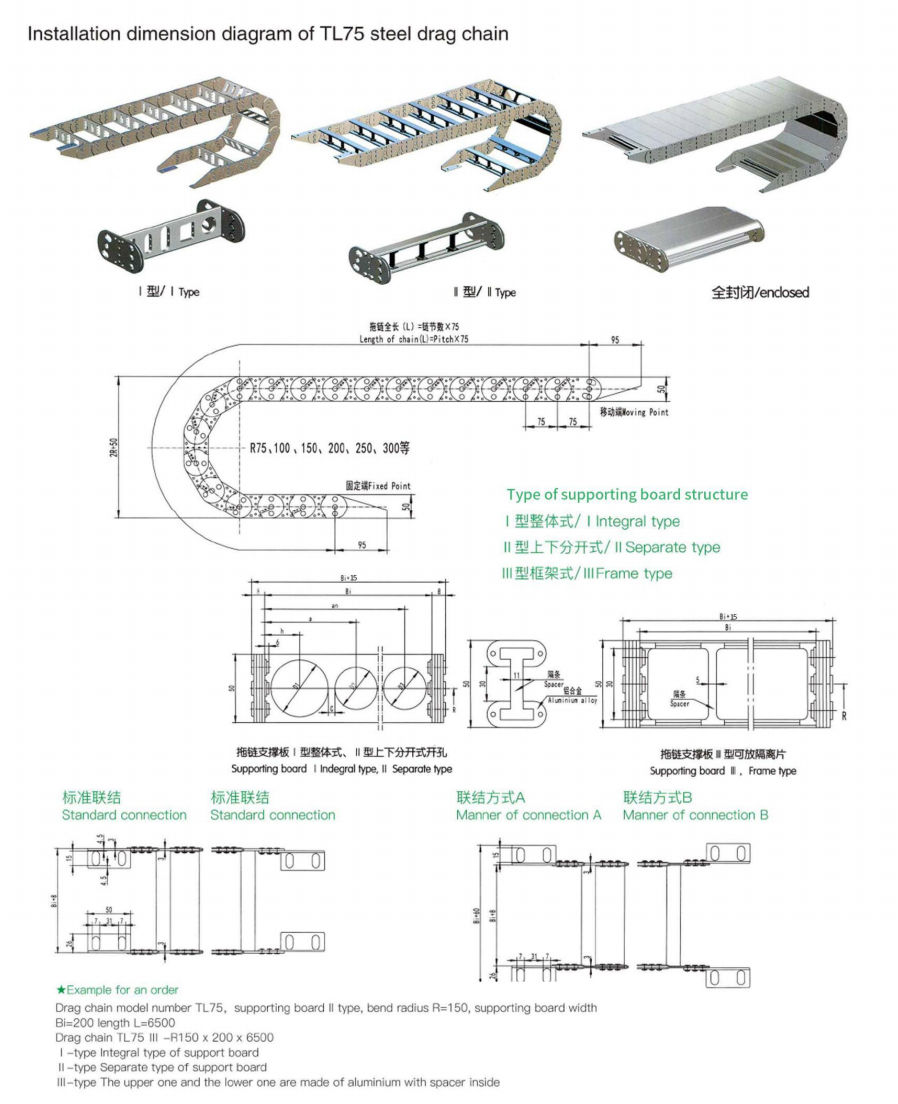

TLG75 Drawing

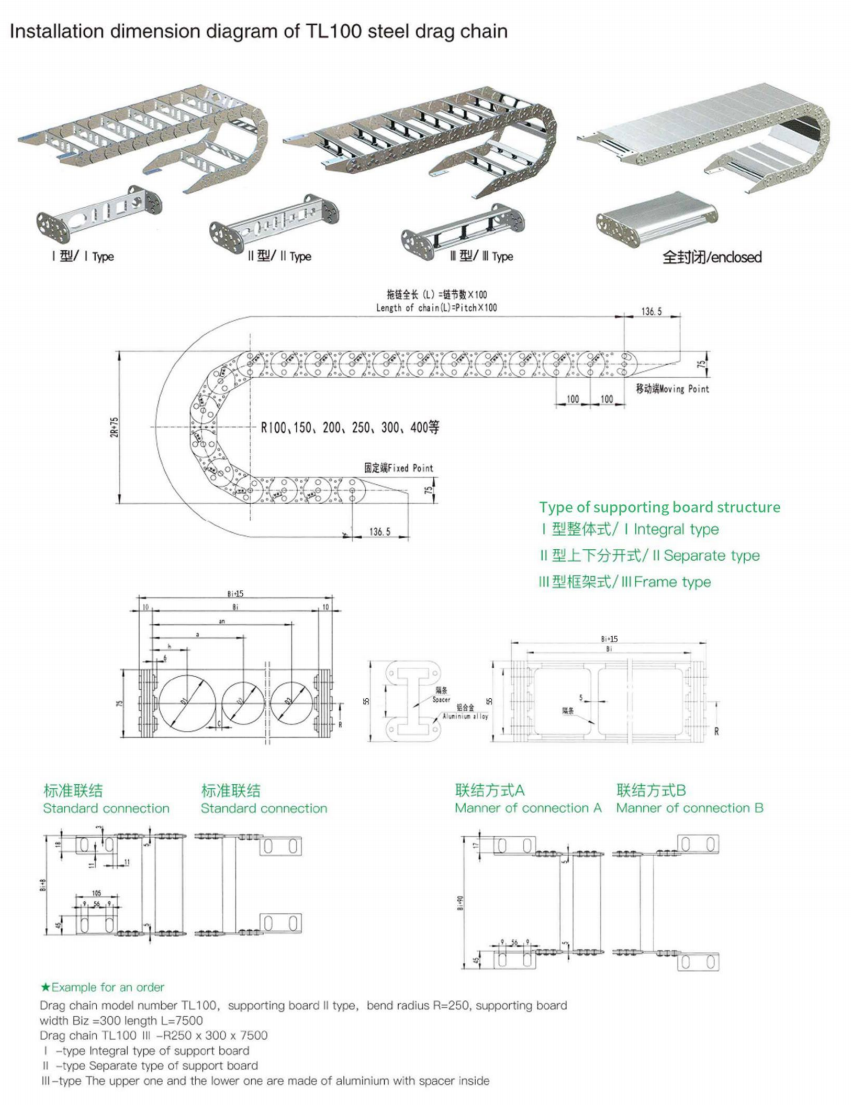

TLG100 Drawing

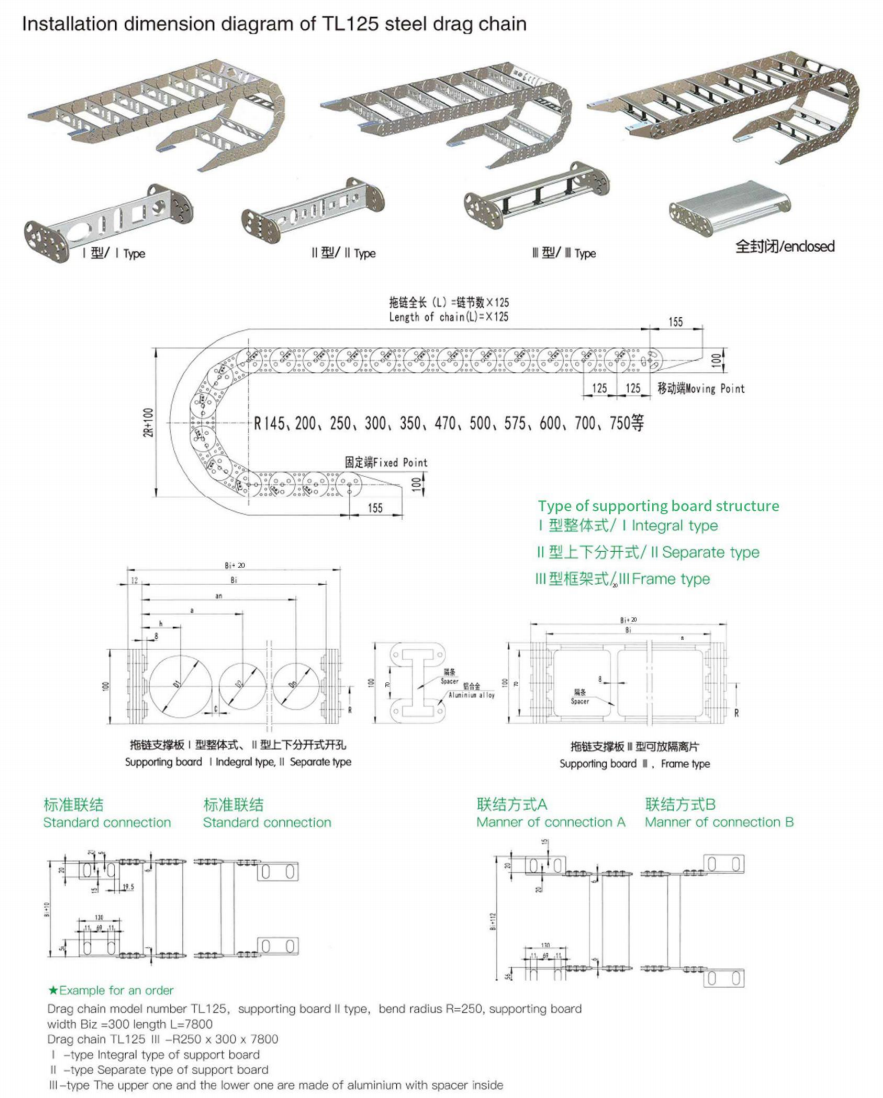

TLG125 Drawing

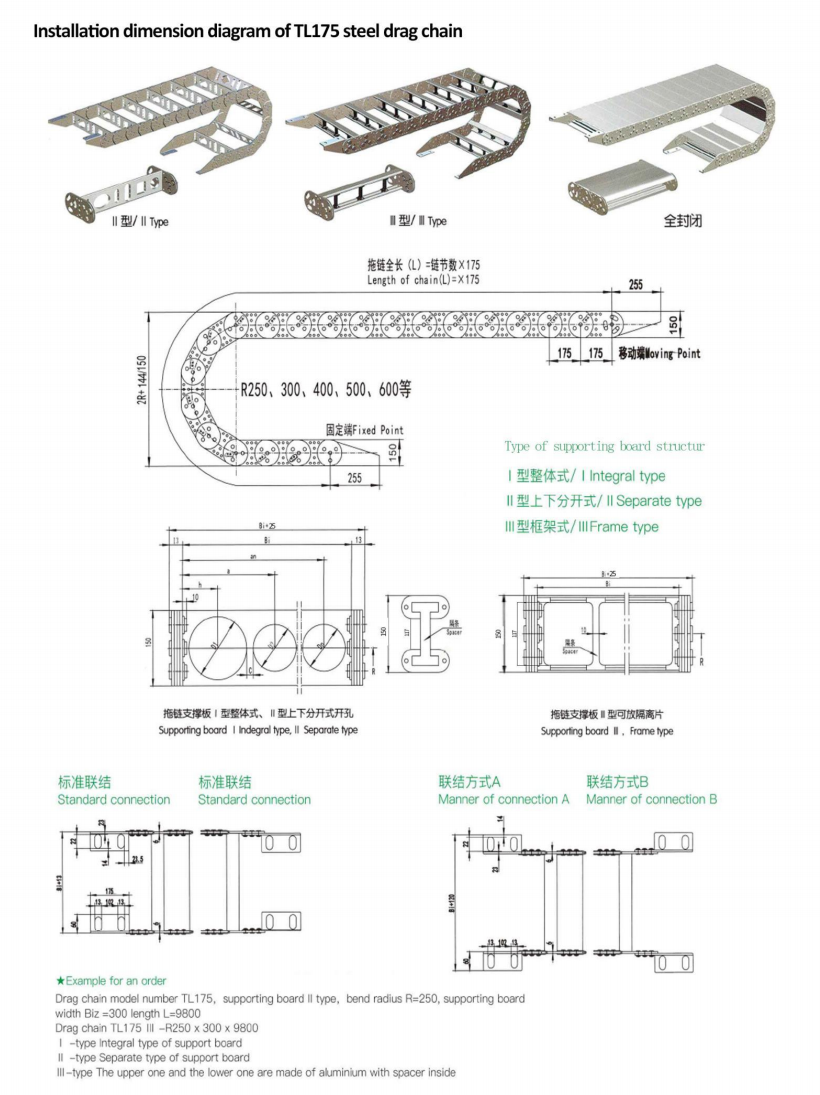

TLG175 Drawing
Applications :
Why Choose Yodel Steel Cable Carrier ?
1.Professional Manufacturer with Rich Experience
We are a professional drag chain manufacturer with nearly 20 years of production experience, ensuring stable quality, complete sizes and strong durability.
2.High Cost-Effectiveness
We offer factory-direct competitive pricing with reliable performance, bringing you great value and lower overall cost.
3.Large Production & Efficient Delivery Service
We have a large-scale production base and sufficient ready stock, ensuring on-time delivery. We also provide safe and reliable global transportation to guarantee your goods arrive smoothly.
