58mm Side-Opening Heavy-Duty Cable Carrier – Yodel | PA66+30% Glass Fiber

Product Description：

Yodel sells this 58mm inner height cable carrier for machines that carry heavy loads and move long distances. The side opens up. You flip the panel, put cables in, close it. No need to pull cables through from one end. No need to take the chain apart. Two body styles. Bridge type has an open top. Put rollers under the chain and it slides with low friction over long travel. Fully enclosed type seals all sides. Dust, metal chips, and water splashes stay out. The material is PA66 nylon with 30% glass fiber. Stiff. Strong. Does not bend under heavy cable bundles. Inside you can add dividers. Separators keep power cables away from signal lines and air hoses. Less rubbing. Less wear.

Key Features：

1. Side-opening design

Side panel opens by hand. Put cables in any section. Close it. No threading from one end. Saves time on installs and maintenance.

2. PA66 + 30% glass fiber

Glass fiber makes the nylon stiff. The carrier holds its shape under heavy loads. Does not sag or warp after thousands of cycles.

3. Bridge type with rollers

Open top. Add rollers underneath. The chain rolls instead of slides. Low friction. Good for long travel applications like gantries and laser tables.

4. Fully enclosed type

All sides closed. Keeps dust out. Keeps metal chips out. Keeps water splash out. Good for dirty job sites and automated warehouses.

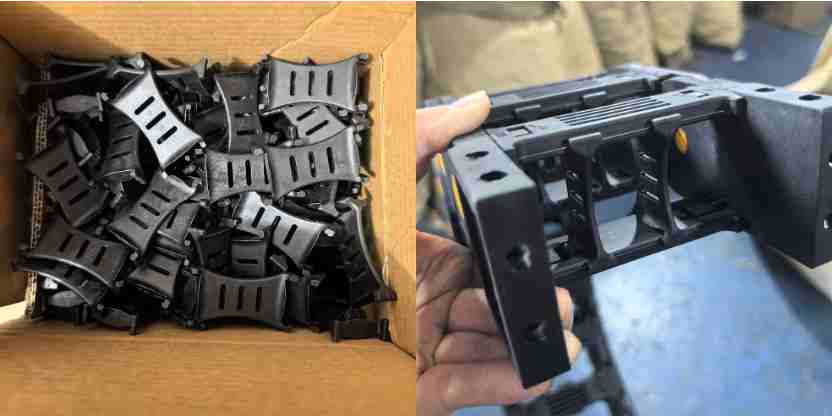

5. Dividers inside

Optional separators clip inside the carrier. Create separate lanes for power cables, signal wires, and air hoses. No tangling. Less friction.

Application：

Gantry CNC & machine tools ：
Gantry CNC machining centers, large machine tools, planer mills, gantry mills.
Side-opening helps when the carrier is mounted high. No climbing to thread cables. Bridge type with rollers cuts friction on long X-axis moves.

Laser & plasma cutting ：
Automated laser cutting systems, plasma cutting tables, fiber laser cutters, CO2 laser tables.
Cutting tables run fast and far. Rollers keep the carrier moving smooth. Side-opening lets you swap cables without stopping production for hours.

Automated warehousing ：
Automated warehousing systems, logistics handling systems, ASRS shuttles, stacker cranes.
Fully enclosed keeps dust off cables. Warehouses run 24/7. Dividers keep power and signal lines separate. Less electrical noise.

Heavy robotics & material handling ：
Heavy-duty robotics, material handling equipment, palletizers, transfer units.
Robots move in tight spaces. Side-opening makes cable changes quick. No need to remove the whole chain.

Large automation lines ：
Large-scale automation production lines, assembly lines, extended stroke systems.
Lines run long hours. Bridge type with rollers reduces wear. Fully enclosed protects against oil and coolant

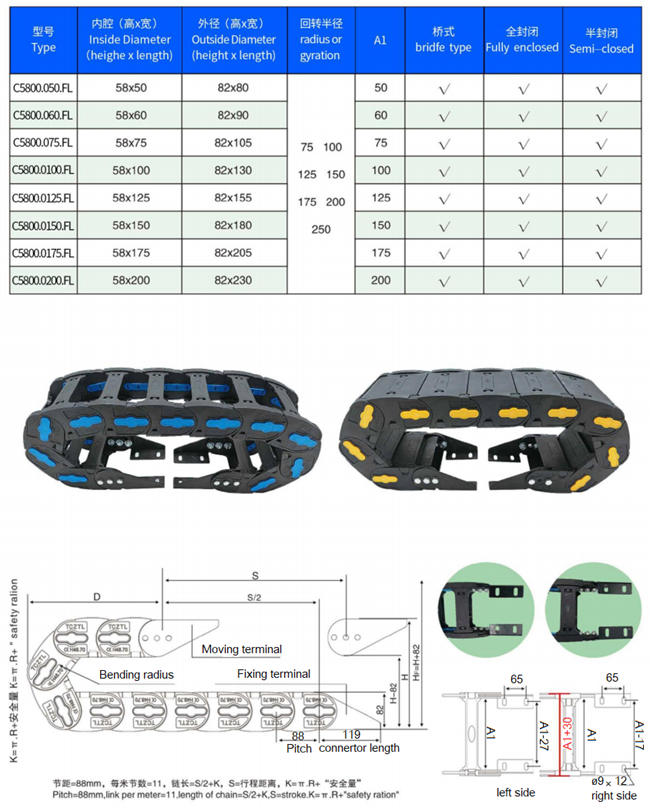

Technical Specifications & Dimension Table :

The heavy-duty cable carrier with an inner height of 58mm can be equipped with separators.

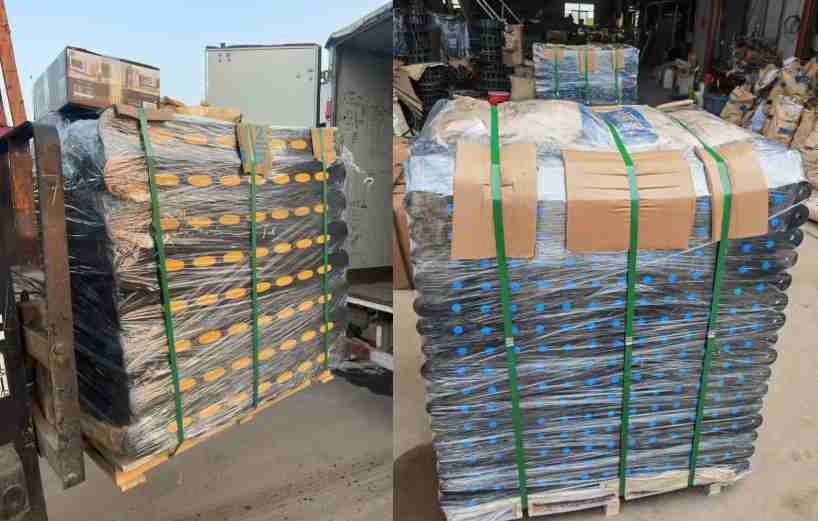

Packaging: Export carton，wooden case or wooden pallet.

Why Choose Yodel Heavy Duty Cable Carrier ?

Yodel Technology Development Co., Ltd. – your reliable partner in nylon cable carrier solutions.

1. 15+ Years of Manufacturing Experience

We are a professional drag chain manufacturer with 15+ years of hands-on experience. Our nylon cable carriers offer stable quality, full size range, and excellent durability.

2. High Cost-Effectiveness

Factory-direct pricing with solid performance. You get great value and lower total cost without compromising reliability.

3. Large Capacity & Fast Delivery

Large-scale production base + sufficient ready stock ensure on-time delivery. We also provide safe global shipping to protect your goods along the way.
