Yodel HD35 Series – 35mm Inner Height Heavy-Duty Cable Carrier with 30% Fiberglass Reinforcement

Product Description：

Here's the thing with heavy-duty industrial automation: standard cable carriers aren't built for it.

They flex too much under load. Crossbars bow. Side plates twist. And eventually, cables get pinched or chafed.

The Yodel HD35 changes that baseline.

This 35mm inner height carrier starts with a different material spec: PA66 nylon loaded with 30% fiberglass. That fiber content isn't a marketing number — it measurably boosts tensile strength, creep resistance, and rigidity. When your machine runs high-frequency cycles with heavy cable bundles, the carrier holds its shape.

Then look at the dimensions. For the same 35mm inner height, the crossbar thickness hits 15mm. Compare that to standard carriers (typically 12mm). The side plates and connecting links are scaled up too. That extra material translates directly into higher load capacity and less deflection under stress.

You also get a real choice in protection level. Bridge type leaves the top open — easier cable access, better heat dissipation. Fully enclosed type seals the top against metal chips, coolant spray, and stone dust. Pick what fits your floor.

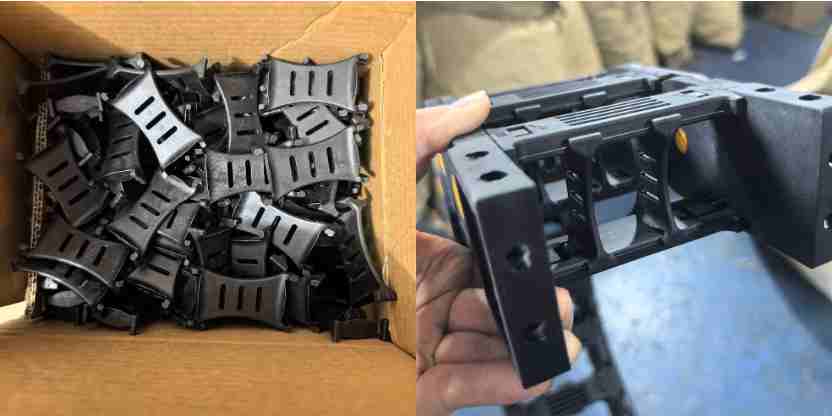

Inside, optional separators keep individual cables and hoses from rubbing against each other. No tangling. No unexpected wear at the 10,000th cycle.

One more thing: no side opening design. That might sound like a limitation, but for heavy-duty use, it's intentional. Side openings weaken the structure. Removing them keeps the whole chain rigid under high-intensity back-and-forth motion.

Bottom line: if your machines run heavy cable loads in hot, dirty, or non-stop conditions, the HD35 is built differently because standard carriers weren't made for you.
