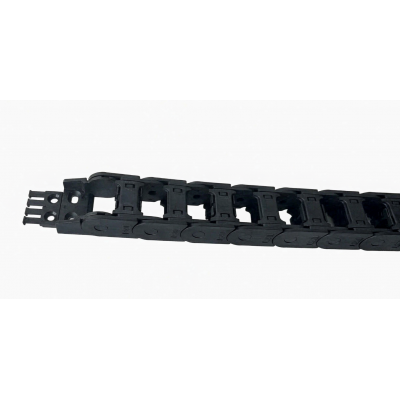

Are you searching for a durable, high-precision plastic cable drag chain engineered specifically to accommodate compact dynamic motion while eliminating cable pull-out at connection points? As a premier China factory and specialized motion control manufacturer, we proudly present our 25 series beveled joint plastic cable drag chain featuring integrated strain relief. Built from industrial-grade Nylon PA66 material, this advanced cable carrier delivers smooth linear articulation, low operational noise, and robust physical protection for high-speed automated equipment.

Innovative Beveled Joint Structure for Superior Motion Stability

The defining highlight of this 25 series plastic cable drag chain lies in its precision-engineered beveled joint architecture. Unlike standard right-angle link stops, the specially angled interlock surfaces reduce mechanical impact during continuous bending cycles. This beveled link design smoothly distributes dynamic stress across the joint pins, resulting in reduced dynamic vibration, lower operating noise, and significantly extended service life during high-acceleration strokes. Molded from high-rigidity glass-fiber reinforced Nylon PA66 composite polymer, each plastic cable drag chain exhibits exceptional tensile strength, impact resistance, and long-term dimensional stability under demanding machine room conditions.

Integrated Strain Relief Comb for Terminal Cable Protection

In fast-cycling industrial automation, dynamic cables and hydraulic hoses within a moving carrier tend to creep or pull against fixed electrical connectors. Our 25 series plastic cable drag chain solves this challenge by incorporating built-in strain relief tie-wrap teeth directly into the end mounting brackets. Machine builders and field technicians can easily anchor power conductors, sensor cables, and pneumatic lines using standard cable ties before exiting the chain chamber. This integrated strain relief setup absorbs dynamic tension, prevents terminal block loosening, and guarantees stable electrical conductivity across millions of dynamic bending cycles.

Optimum 25 Series Dimensions & Easy Shop-Floor Maintenance

Featuring a versatile 25 series inner height profile, this plastic cable drag chain offers the ideal space envelope for multi-core control cables and medium-duty flexible hoses. Fitted with snap-open crossbars along the inner or outer bending radius, the carrier structure allows maintenance technicians to swiftly unclip crossbars using standard flathead tools. Field staff can inspect wiring, insert new control lines, or adjust vertical and horizontal compartment separators without dismantling the primary machine mount or disconnecting active wiring harnesses.

Broad Application Across Modern Automated Equipment

Our 25 series beveled joint plastic cable drag chain is widely deployed across diverse automated platforms, including small-to-medium CNC engraving routers, pick-and-place packaging gantries, automated testing instruments, textile machinery, 3D printing equipment, semiconductor handlers, and multi-axis linear robotic arms.

Factory-Direct Engineering Customization & Wholesale Supply

We provide fully customizable factory-direct wholesale solutions for our 25 series plastic cable drag chain line, including flexible inner widths, multiple bending radii options, specialized internal dividers, and durable PA66 end mounting brackets with built-in tie-wrap combs. Contact our technical engineering support team today to request 3D CAD files, product specification datasheets, and direct factory quotation pricing for your dynamic cable protection requirements.
