Multi-Axis 3D Robotic Arm Flexible Cable Chain: High-Torsion Nylon PA66 Protection Matrix

Engineering Overview & Kinematic Paradigm (The Hook)

Modern 6-axis articulation robots and multi-axis gantries require power tracks that can handle more than just linear motion. When standard flatbed carriers twist through complex 3D paths, they experience severe torsional fatigue, which can lead to stress cracking and snapped internal lines. Our specialized flexible cable chain solves this problem. It is engineered specifically for non-linear, multi-axis spatial movements, providing omnidirectional shielding for high-speed automated systems.

Constructed entirely from premium, virgin Polyamide 66, this high-grade nylon cable drag chain exhibits exceptional structural memory, low coefficients of friction, and high tensile resilience. Engineered to function as a rugged heavy duty cable carrier, its round, multi-link interlocking design allows for smooth bending and twisting across all three dimensions. Whether you are running sensitive fieldbus data lines or utilizing it as a robust hydraulic hose drag chain, this system prevents cable kinking, whipping, and external abrasion in the most demanding factory environments.

Why This 3D System Eliminates Legacy Carrier Failures

Standard tracks are limited to a single bending radius along a flat 2D plane. Forcing them into robotic twist configurations causes the links to jam and fail. This 3D circular interlocking matrix addresses these issues directly:

True Omnidirectional Flexibility: Enables seamless complex bending and continuous axial rotation along any coordinate axis.

Nylon PA66 Molecular Fortification: Pure Polyamide 66 delivers high impact resistance and structural stability under rapid 3G acceleration forces.

Stress-Isolating Ball-and-Socket Joints: Distributes complex torsional loads evenly across each link joint, preventing localized shearing failure.

Smooth Internal Cavity: The rounded inner wall prevents jacket wear on moving lines, keeping your internal conductors in optimal condition.

Real-World Application Case Study

Application Context: 6-Axis Material Handling Robot (Foundry Line)

An tier-1 automotive manufacturing plant faced recurring downtime on a heavy-duty pick-and-place robot line. The mechanical stress at Axis 4 and Axis 5 subjected the power supply lines to sharp twisting forces. The generic cnc cable drag chain previously installed would frequently buckle and crack, tearing the outer jackets of the pneumatic supply lines.

The Solution Implementation

The facility retrofitted the robotic gantry with our 3D flexible cable chain (57mm ID model).

[Standard Track] ===> Linear Hinge Rigid Links ===> High Torsional Stress ===> Joint Snapping

[Our 3D Interlock] ===> Circular Ball-Socket Joints ===> Distributed 3D Vector Forces ===> Smooth Motion

The Outcome: The new nylon cable drag chain smoothly absorbed the complex 3D rotational movements. By serving as an isolated, low-friction hydraulic hose drag chain, the system achieved zero tracking bind through 8 million continuous operational cycles, eliminating unexpected line maintenance.

Exact 3D Dimensioning & Sizing Guide

To prevent line stress and ensure a long service life for your cnc cable drag chain, choose your inner diameter (ID) using this exact engineering formula:

Step 1: Calculate the Combined Cross-Sectional Bundle

Gather the outer diameters (d) of all electrical, data, and fluid lines that will run together through the bundle.

Step 2: Apply the Safety Clearance Threshold

Cables must never pack tightly inside a 3D track, as spatial twisting requires extra room for shifting.

Data/Electrical Cables: The minimum required inner space must be at least 10% larger than the cable diameter.

Fluid/Pneumatic Hoses: Hoses expand under pressure. When used as a hydraulic hose drag chain, maintain at least a 20% clearance safety margin.

Step 3: Match with Our Standard ID Catalog

Choose the closest inner diameter that accommodates your calculated bundle plus clearance:

ID 37mm / 47mm: Ideal for compact handling robots, encoders, and small pneumatic lines.

ID 57mm / 65mm: Perfect for medium-payload welding, dispensing, and standard cnc cable drag chain configurations.

ID 70mm / 80mm: Built for high-volume automotive assembly lines, heavy fluid hoses, and thick power cables.

Key Search Terms Integration (H2 Features)

High-Velocity CNC Cable Drag Chain Performance: Designed to integrate with multi-axis automated CNC machining centers and high-speed robotic arms.

Rugged Heavy Duty Cable Carrier Architecture: The robust Nylon PA66 body withstands heavy external impacts, abrasive friction, and high mechanical tension.

Advanced Energy Chain Cable Carrier Longevity: Built for smooth, continuous movement, lowering total system operating costs over long shifts.

High-Torsion Flexible Cable Chain Kinetics: Provides reliable, multi-axis protection along complex three-dimensional travel paths without structural lockup.

Isolated Hydraulic Hose Drag Chain Routing: Safely encloses high-pressure hoses and sensitive signal lines, preventing cross-contamination and jacket wear.

Industrial Procurement FAQ

Q: Why choose pure Nylon PA66 for 3D robotic tracks instead of cheaper polymers?

A: Standard plastics lack the tensile elasticity needed to handle multi-axis twisting. Pure Nylon PA66 provides excellent fatigue strength and flexibility, allowing the heavy duty cable carrier links to twist repeatedly without stretching or splitting under high rotational stress.

Q: Can this 3D flexible cable chain handle mixed payloads of data links and power lines?

A: Yes, easily. The circular internal cavity is designed to keep lines moving smoothly together. For complex layouts, we recommend running cables through the center and placing heavier hoses toward the outer edge of the bundle to balance inertial forces.

Q: How can I replace my old energy chain cable carrier with this 3D model?

A: Our heavy-duty mounting brackets match standard industrial patterns. This allows you to upgrade your current linear setups to full 3D robotic motion without modifying your existing machine frame.

Dimension Table :

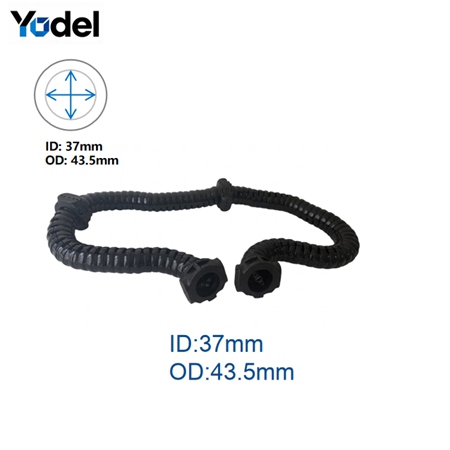

Inner diameter 37mm (side-opening)

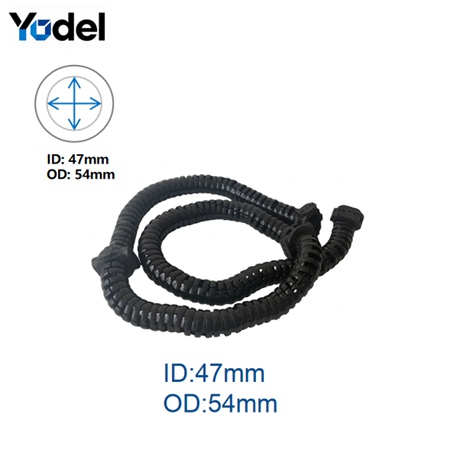

Inner diameter 47mm (side-opening)

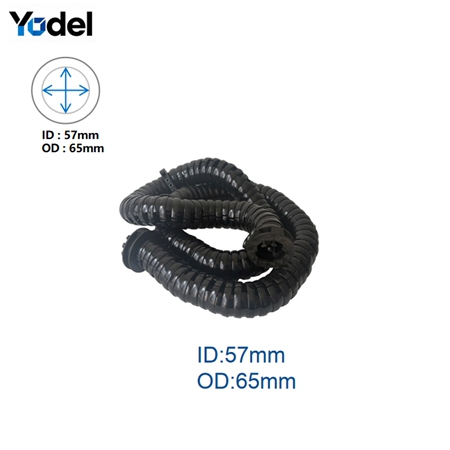

Inner diameter 57mm (side-opening)

Inner diameter 65mm (side-opening)

Inner diameter 70mm (side-opening)

Inner diameter 80mm (fully-enclosed)

connector type :

Connector A is compatible with all multi-axis cable carriers with an inner diameter ranging from 37mm to 80mm.

and the multi-axis cable carrier with an inner diameter of 57mm is also compatible with Type C connector.

Packaging: Export carton wooden case or wooden pallet.
