High-Flexibility Cable & Hose Protection for Advanced Motion Automation

In automated industrial environments, maintaining continuous power delivery and signal integrity across dynamic linear axes is vital for preventing unscheduled downtime. Designed for high-speed reciprocating machinery, our 35mm series cable drag chain collection offers a versatile, modular dynamic line protection system engineered to withstand dynamic vibration, high acceleration, and long-term surface friction. Manufactured exclusively from raw PA66 nylon (polyamide 66), each cable carrier chain within this product category delivers optimal tensile strength, operational silence, and broad chemical resistance, keeping dynamic cabling setups operating smoothly over millions of stroke cycles.

Openable Bridge Design for Efficient Heat Management & Quick Lay-In

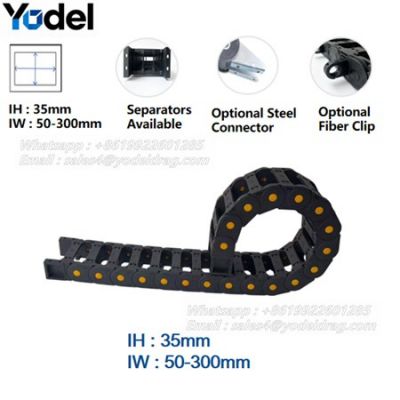

The core design advantage of our 35mm series cable drag chain lies in its double-sided snap-open bridge structure. Unlike fully enclosed plastic channels that trap frictional heat and particulate debris, this open-bridge layout promotes constant thermal ventilation around high-amperage motor lines. The open crossbars allow technicians to visually inspect dynamic cabling effortlessly and execute rapid cable lay-in or field maintenance without dismantling the entire guide channel assembly. Engineered with a generous 35mm (1.38 in) internal height clearance, this adaptable cable carrier chain guards flexible control cables and pneumatic hoses against surface abrasion, torsional strain, and material fatigue.

Broad Bending Radii Spectrum (75mm to 300mm / 2.95 in to 11.81 in)

To match diverse machinery mounting footprints and dynamic cable bending requirements, our 35mm series cable drag chain line provides an extensive range of bending radii configurations, including R75 (2.95 in), R100 (3.94 in), R125 (4.92 in), R150 (5.91 in), R175 (6.89 in), R200 (7.87 in), R250 (9.84 in), and R300 (11.81 in). Whether your automated gantry requires a tight curvature for low overhead clearances or a smooth, larger radius to protect thick pneumatic lines and high-flex signal wiring, this flexible cable carrier chain series guarantees precise dynamic compliance across all stroke lengths.

Fully Modular Customization & Accessories

Industrial motion platforms demand tailored cable routing solutions. Our 35mm series cable drag chain platform is engineered with comprehensive modular flexibility to meet exact operational parameters:

• Custom Travel Lengths & Widths: Custom-assembled to exact link counts and overall travel strokes, with adjustable internal widths ranging from 50mm to 300mm+ (1.97 in to 11.81 in+).

• Multi-Channel Internal Separators: Modular vertical and horizontal snap-in dividers isolate high-voltage power lines, low-voltage control circuits, and air supply tubes, eliminating dynamic entanglement and line friction during directional reversals.

• Specialized Fiber Optic Cable Buckles: Custom optical retention clips hold fragile glass-fiber cables securely centered, keeping them protected against bend-radius distortion and signal loss during rapid acceleration.

• Interchangeable Steel End Connectors: While standard reinforced PA66 nylon brackets handle general automation setups, optional steel mounting brackets provide maximum anchoring rigidity and dynamic torque absorption at machine mounting interfaces.

Versatile Industrial Applications

As a dedicated supplier, we engineer our 35mm series cable drag chain line to support high-performance industrial machinery worldwide, including CNC routing equipment, automated laser cutters, robotic transfer gantries, semiconductor packaging systems, woodworking machinery, and automated material handling conveyors. Browse our complete selection of 35mm inner height bridge-type drag chains below or contact our technical team to assemble custom lengths, separator configurations, and mounting connector hardware for your specific automated production line.
