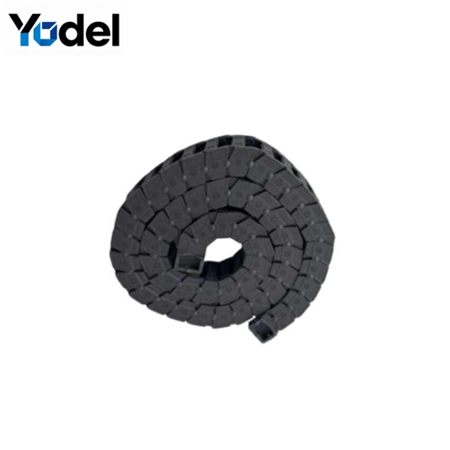

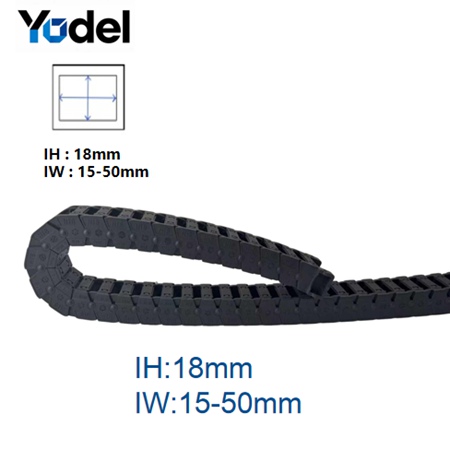

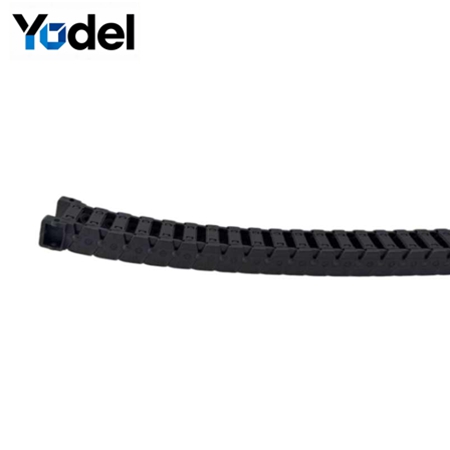

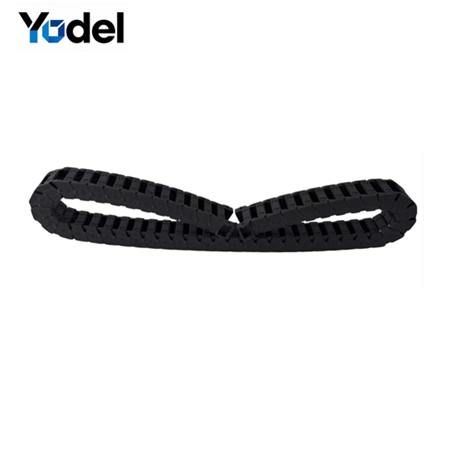

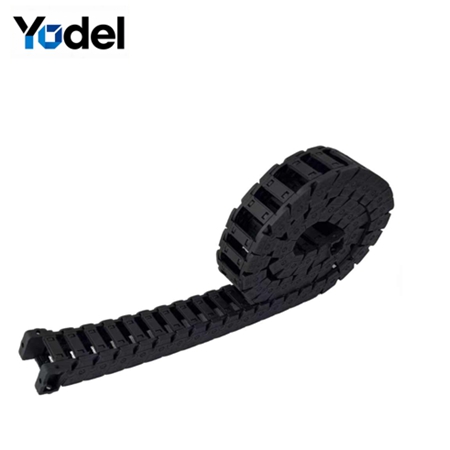

18mm Inner Height Plastic Cable Drag Chain: Low-Noise Bridge Type Track for High-Speed Automation

 1: The Engineering Reality

Every engineer knows the headache of the "clicks and whistles." When a standard machine cable track accelerates past 1.5m/s, the rigid joint collisions transform your automation floor into a noisy workshop, registering between 70-85 dB—the acoustic equivalent of an industrial vacuum cleaner running next to your ear.

That is where our 18mm series plastic cable drag chain changes the game. Molded entirely from premium, wear-resistant Nylon PA66, this bridge type cable track is purpose-built to silence the motion of modern, compact machinery. By replacing aggressive flat-joint slaps with micro-pitch, curved articulation, we have brought running noise down to a library-grade 55-65 dB, with high-performance configurations hitting ≤30 dB.

The Micro-Pitch Advantage

Traditional carriers use large links that create huge polygon effects during rotation. Our mini cable carrier features a significantly reduced pitch distance. The smaller the pitch, the smoother the radius curve—effectively eliminating the whipping effect during high-speed travel of 3-5m/s.

2. Field Case Study: Eliminating Jitter in Desktop CNCs & Medical Labs

Case: The Unstable Laser Engraver & Lab Pipette A precision medical automation manufacturer integrated a standard 18mm chain on a high-speed liquid handling robot. At 2 m/s, the structural vibration (jitter) caused by the cable chain joints transferred directly to the optical sensors, leading to diagnostic errors.

The Solution: By swapping to our cnc drag chain structure, the micro-vibrations were absorbed inside the PA66 curved knuckles. The bridge-type open design allowed immediate heat dissipation for the data cables, stabilizing the machine's accuracy while achieving near-silent operation in a clean, clinical laboratory environment.

3.  Interactive Size & Bending Radius (R) Selection Guide

Choosing the right plastic cable drag chain is about protecting your dynamic payload. With an inner height of 18mm, this series is optimized for thin power cables, pneumatic hoses, and signal wires.

Step 1: Calculate Your Internal Clearance

Rule of Thumb: Your cables/hoses should never occupy more than 60-70% of the chain's inner cross-section.

For our 18mm inner height, the maximum single cable diameter should ideally not exceed 12mm to allow free axial movement.

Step 2: Match Your Bending Radius (R)

We offer three precision-engineered radius options to match your machine’s physical footprint:

R28 (Ultra-Compact): Best for tight enclosures, compact 3D printers, and short-stroke medical equipment where vertical space is heavily restricted.

R38 (Balanced Performance): The go-to standard for small cnc cable track setups, balancing space-saving curves with smooth cable bending stress.

R48 (Extended Lifetime): Ideal for high-speed automated lines. A larger radius minimizes the mechanical bending stress on your internal wiring, significantly extending cable lifecycle.

4. Application Landscapes

Where does this specialized bridge type cable track belong?

Medical & Laboratory Devices: Blood analyzers, automated pipetting stations, and diagnostics requiring ultra-low noise levels.

Precision CNC & Electronics Assembly: High-speed Pick-and-Place SMT machines where frame vibration ruins yield rates.

Office Automation & Cleanrooms: 3D printers and low-noise, dust-free manufacturing environments.

Size Table :

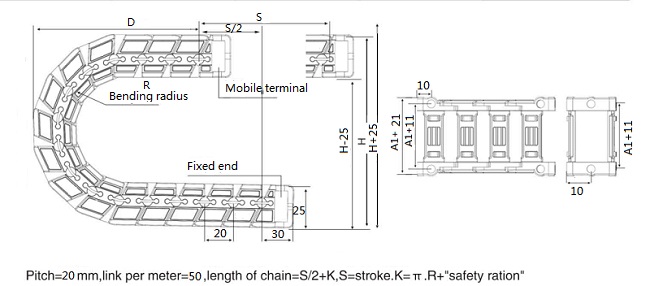

Drawing：
