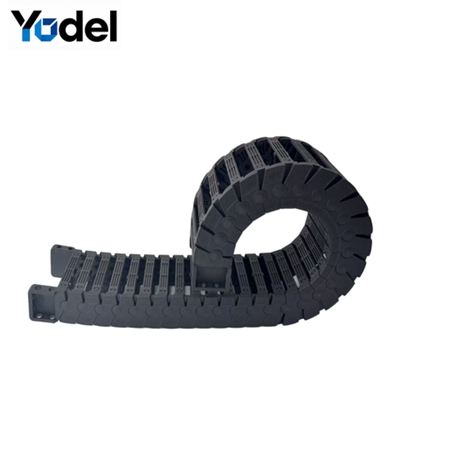

55mm Inner Height Silent Cable Carrier | High-Speed Bridge Type Plastic Cable Drag Chain Track for Precision CNC

Eliminate Acoustic Harshness in High-Speed Automation

In modern precision manufacturing, traditional cable tracks often limit performance through relentless mechanical noise and vibration. Standard carriers operating at high speeds generate a sharp 70–85 dB "click-clack" clatter, caused by rigid link impacts and unbuffered friction. This isn't just an acoustic nuisance—it signals accelerated wear, micro-vibrations, and structural fatigue.

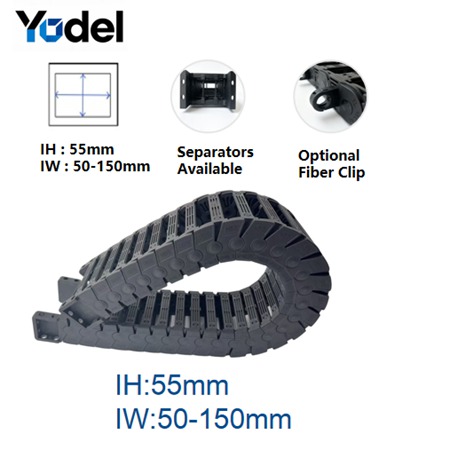

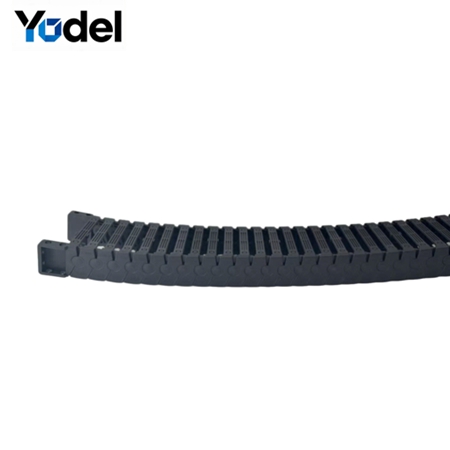

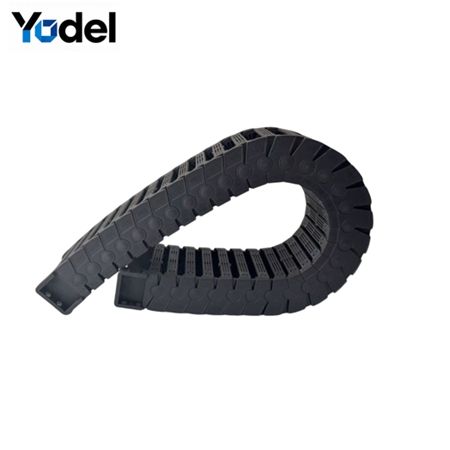

Our 55mm inner height Bridge Type Cable Chain Track solves this friction point. Engineered specifically for precision-critical environments, this specialized Nylon Drag Chain utilizes advanced acoustic dampening geometry to lower operational noise to 55–65 dB (with premium setups achieving ≤30 dB). By replacing harsh, straight-edge joints with continuous curved/arc-faced hinges and a reduced pitch profile, this Silent Cable Carrier ensures fluid, whisper-quiet motion even under high-velocity dynamics.

Engineering Breakdown: Standard vs. Silent Architecture

1. Acoustic Signature Reductions

Standard Profiles: Rigid chain links slam into each other upon extension, producing a high-frequency whistle and loud impact sounds at high speeds.Our Low Noise Cable Chain: Features an integrated radius brake and interlocking arc-joints. The impact energy is distributed across a curved surface rather than asharp point, transforming harsh mechanical impact into quiet, rolling transitions.

2. Micro-Pitch Optimization

By shortening the individual link pitch, the polygon effect (the chordal action that causes chain whipping) is drastically minimized. This results in a highly linear travel profile, eliminating the structural harmonic vibrations that typically ruin the surface finish of parts processed on a high-speed CNCCable Track.

3. Advanced Nylon PA66 Formulations

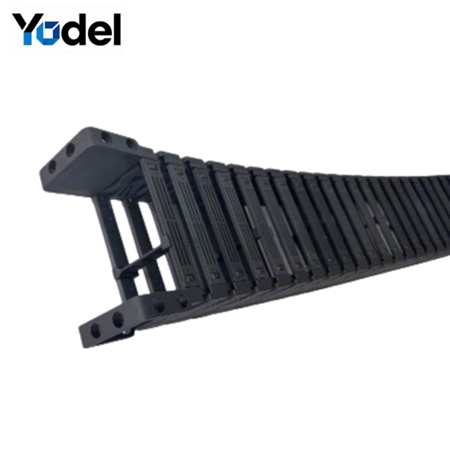

Molded under extreme pressure using premium Nylon PA66, the material exhibits high tensile stability and exceptional surface smoothness. The bridge-type open framework allows maximum airflow to dissipate heat around your data and power cables, extending both cable and chain life cycles.

Real-World Application & Case Study

Application Case: High-Precision 3-Axis Cartesian Robotic Arms

A manufacturer of high-speed electronic pick-and-place equipment faced frequent sensor signal calibration failures due to structural vibrations caused by traditional open-style carriers vibrating at 2.5 m/s.

By retrofitting their systems with our 55mm inner height Bridge Type Cable Chain Track (R125), the factory achieved two critical milestones:

1. Vibration Dampening: Micro-vibrations dropped by over 40%, protecting sensitive optical sensors from displacement.

2. Decibel Management: Ambient noise levels directly next to the machine dropped from an irritating 78 dB down to a comfortable 58 dB, creating an OSHA-compliant, quiet workspace environment.

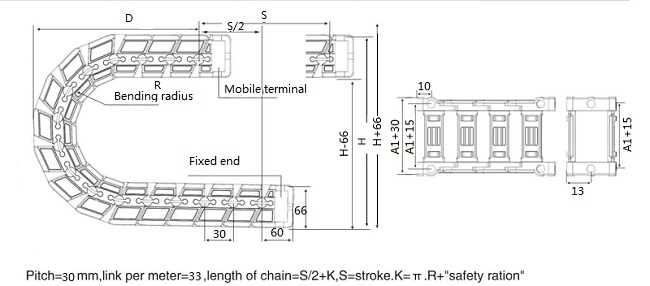

Sizing & Bending Radius (R) Selection Guide

Choosing the correct bending radius (R) is critical to avoiding premature cable failure. Follow this engineering formula to determine your optimal setup:

The 10x Cable Rule

Ensure your bending radius is at least 10 times the outer diameter (OD) of your thickest enclosed cable.
