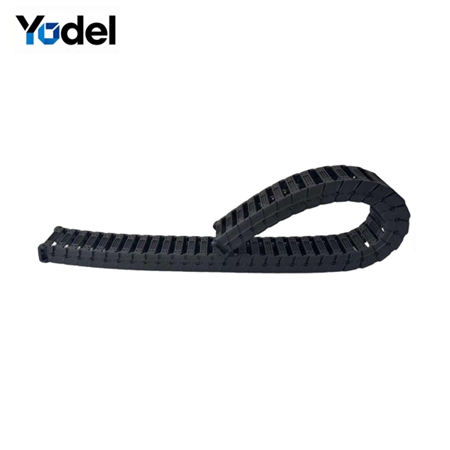

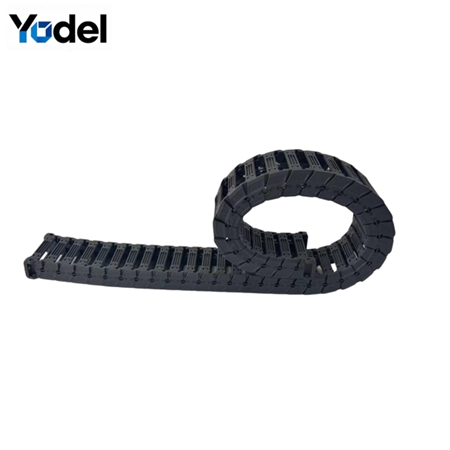

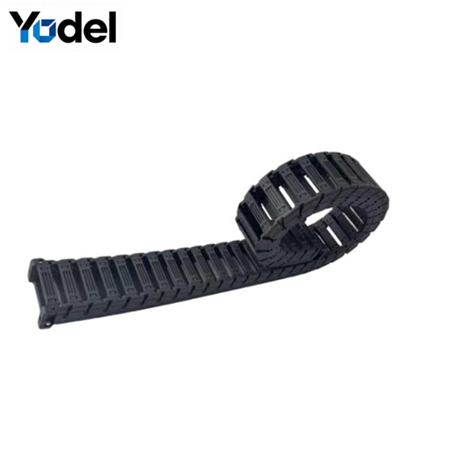

25mm Inner Height Silent Plastic Cable Drag Chain – High-Speed Bridge Type Nylon Cable Track

Product Overview & Core Value Proposition

In high-precision manufacturing, standard cable tracks turn automated workshops into noisy, high-vibration environments. Traditional chain links generate sharp clicking sounds, friction-induced squeals, and harsh vibrations when accelerating past 1.5 m/s. This continuous mechanical impact accelerates wear on your internal cables, causing unexpected downtime.

Our engineered silent cable chain solves this problem at the structural level. Designed with a specialized 25mm inner height and a high-performance open bridge configuration, this nylon cable drag chain replaces harsh link collisions with optimized acoustic dampening. Molded entirely from premium, wear-resistant Nylon PA66, this flexible cable carrier dampens noise levels down to 55–65 dB (and under 30 dB in low-speed setups)—delivering a library-quiet environment even during intensive high-speed operations.

Key Technical Specifications

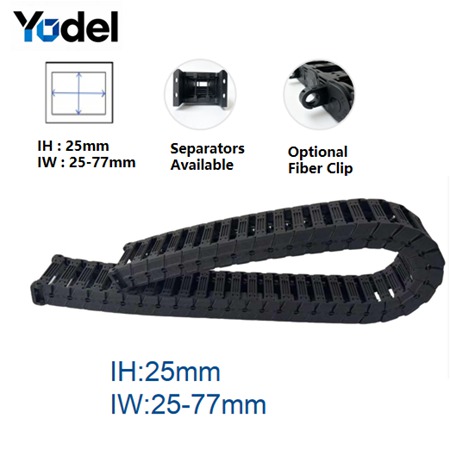

Inner Height (Hi): 25mm

Material Composition: 100% Pure Virgin Nylon PA66 (Zero recycled regrind for maximum tensile strength)

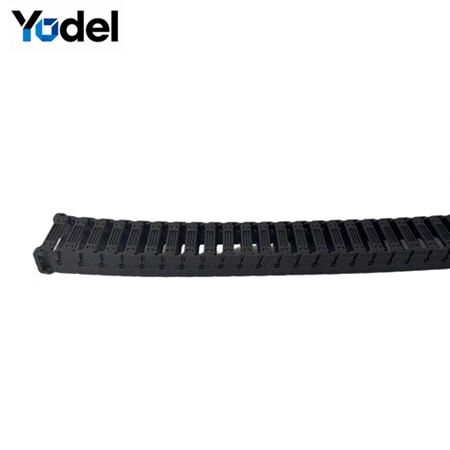

Structural Design: Open bridge type cable track configuration (allows rapid cable inspection and superior heat dissipation)

Bending Radii (R) Options: 75mm, 100mm, 125mm, 150mm, 175mm, 200mm

Maximum Velocity: 3.0 – 5.0 m/s

Maximum Acceleration: up to 40 m/s²

Acoustic Profile: 55–65 dB (Standard chains operate at a disruptive 70–85 dB)

Engineering Breakdown: Why This Silent Cable Chain Outperforms Standard Carriers

1. Acoustically Optimized Joint Architecture

Standard carriers rely on straight-edge, loose-tolerance hinges that forcefully slam together at every pivot point. Our silent cable chain utilizes a micro-pitch layout combined with curved, radius-mating joints. This eliminates the harsh "clacking" sound by distributing impact forces smoothly along a continuous arc, dropping noise by up to 25 dB.

2. Premium Nylon PA66 Wear Resistance

Lower-grade plastic carriers incorporate recycled materials that degrade under continuous flexing, producing micro-dust and structural sagging. This premium nylon cable drag chain is injected with premium PA66 polymer, providing an exceptional strength-to-weight ratio, high fatigue resistance, and self-lubricating properties across millions of cycles.

3. High-Velocity Stability for Advanced CNCs

When a standard tracking system runs at high speeds, it generates harmonic oscillations that show up as surface ripples on CNC-machined parts. Operating as a highly stable cnc cable track, our bridge design minimizes system jitter at velocities up to 5 m/s, protecting delicate data lines and fiber-optic links from structural stress.

Real-World Application Case Study

Context: A precision automated electronics assembly plant in West Java, Indonesia, was experiencing frequent signal errors on their multi-axis pick-and-place robots. The culprit was high-frequency cable vibration caused by standard 80 dB plastic tracking lines running at 2.5 m/s.

The Solution: The plant retrofitted their systems with our 25mm bridge type cable track running at a 100mm bending radius.

The Result: Noise levels immediately dropped to 58 dB. More importantly, the smooth, low-vibration transit of the flexible cable carrier eliminated data packet drops across the control lines, extending cable operational life by 300% and stabilizing machine output.

Sizing and Selection Guide: Finding Your Perfect Radius

Choosing the correct bending radius (R) is critical to avoiding cable tension and optimizing your footprint. Use our engineering guidelines below to select the right variant for your machine:

Bending Radius Options: R75 | R100 | R125 | R150 | R175 | R200

Measure Your Largest Cable Diameter (d): To ensure a long service life for your internal hoses and wires, the bending radius of your plastic cable drag chain should be at least 8 to 10 times the outer diameter of your thickest cable.

R125 / R150: Optimized for standard industrial automation lines, pick-and-place gantries, and mid-sized machine tools.

R175 / R200: Recommended for thick, less flexible multi-core data cables or pneumatic hoses that require a gentle, sweeping turn to prevent internal kinking.

Ordering Information & Customizations

We specialize in high-performance tracking systems for demanding production floors. Whether you are outfitting a single precision cnc cable track or configuring an entire automated factory line, our 25mm silent series provides the exact tolerances your machinery requires. Contact our engineering team today to receive quotation files, specific layout calculations, or bulk wholesale pricing for your production environment.

Size Table :

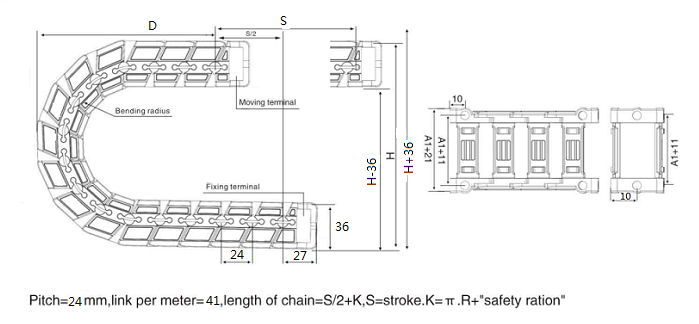

Drawing :
