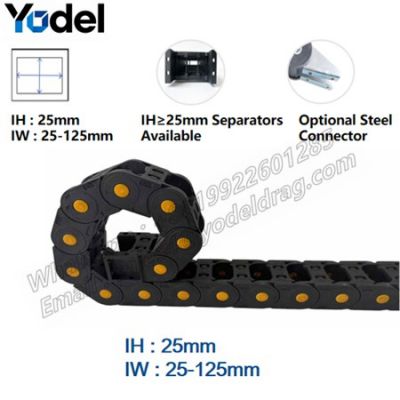

Industrial Cable Management: Premium PA66 25mm Cable Drag Chain

Modern automated assembly lines, high-speed multi-axis gantries, and industrial robotics demand robust wire routing solutions that eliminate cable binding, friction wear, and unexpected dynamic fatigue. Our 25mm inner-height 25mm cable drag chain series is custom-molded from 100% virgin Polyamide 66 (PA66) engineering nylon. Engineered to withstand continuous multi-shift operation, every 25mm cable drag chain in this product line maintains structural memory, tensile toughness, and wear resistance across working environments ranging from -40°C up to +120°C.

By replacing low-grade recycled plastics with high-rigidity nylon, these carriers prevent mid-span sagging during extended horizontal travel, ensuring clean, predictable cable movement even under rapid directional changes.

Maintenance-Friendly Design: Tool-Free Openable Bridge Frame

Complex electrical panels and automated workstations frequently require wire swaps, field inspections, or retrofits. Threading pre-terminated connectors through closed plastic channels wastes valuable technician hours. Built with a snap-open bridge structure, this 25mm cable drag chain features hinged crossbars along both the inner and outer radius profiles.

• Accelerated Wire Lay-In: Technicians can pry open individual crossbar links using a basic screwdriver, laying fully harnessed cables and pneumatic tubes directly into the carrier cavity.

• Effective Heat & Debris Management: The open bridge geometry allows ambient air to circulate freely around heavy power leads, preventing heat trapping while giving swarf or light dust room to fall through.

• Rapid On-Machine Service: Perform line checks or swap broken pneumatic hoses without detaching the whole 25mm cable drag chain assembly from the machine gantry.

Modular Upgrades: Steel End Brackets, Separators, & Fiber Clips

Standard plastic mounting points can sheer or warp under high acceleration forces (10m/s^2) or heavy multi-cable bundles. To deliver unyielding anchorage, our 25mm cable drag chain system accommodates optional heavy-duty steel end brackets, precision-machined to absorb shear torque at extreme connection points.

To keep complex internal routing organized and extend cable lifespan, we offer two modular internal accessories:

1. Snap-In Vertical Separators: Prevent heavy servomotor power lines from twisting around delicate sensor cables. By establishing dedicated vertical compartments inside the 25mm cable drag chain, internal friction and line entanglement are completely eliminated.

2. Integrated Fiber Optic Clips: Sensitive fiber optics and delicate signal lines require controlled bend radii and zero compression. Our specialized fiber clips hold delicate glass-fiber lines in place, protecting them from mechanical pinching during high-flexure movements.

Optimal Sizing & Internal Clearance Guide

Achieving maximum operational lifespan with your 25mm cable drag chain relies on proper sizing parameters:

1. Maximum Cable Outer Diameter:

   • Formula: Max Cable Diameter = Inner Height (25mm)×85%

   • Result: The maximum outer diameter for any individual cable or pneumatic hose should not exceed 21.25mm (recommended max 21mm).

2. Clearance Buffer: Maintain a 10% to 15% radial clearance around all enclosed lines to allow thermal expansion and uninhibited sliding along the bending curve.

3. Weight Distribution: Place heavier motor leads toward the outer edges of the 25mm cable drag chain and lighter signal conduits near the center, using vertical separators to balance horizontal weight.

Primary B2B Industrial Applications

This industrial-grade 25mm cable drag chain category is actively deployed across demanding sectors:

• Medium to heavy CNC machining tools, laser beds, and routing centers

• Automated packaging machinery, cartoners, and palletizing gantries

• Multi-axis industrial robotics and automated pick-and-place systems

• Woodworking machinery, textile automation, and automated logistics tracks
