Hybrid Heavy Duty Cable Carrier (38mm/48mm/58mm ID) – Extra-Thick Side-Opening Nylon Drag Chain with Customizable Aluminum Bars & Steel End Brackets

The Hybrid Paradigm Shift: Beyond Standard Nylon

When automation gantries extend past standard operating envelopes, uniform plastic tracking loops become liability factors. Under heavy payload concentrations, long-travel linear motion induces massive structural whipping, dragging down execution velocities. Traditional thin-walled plastic frames flex laterally, leading to pin elongation, tracking misalignment, and ruptured internal delivery lines.

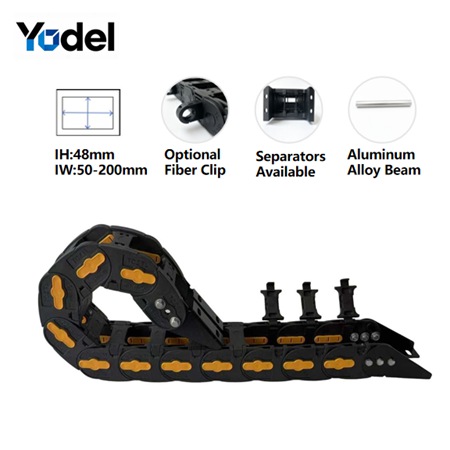

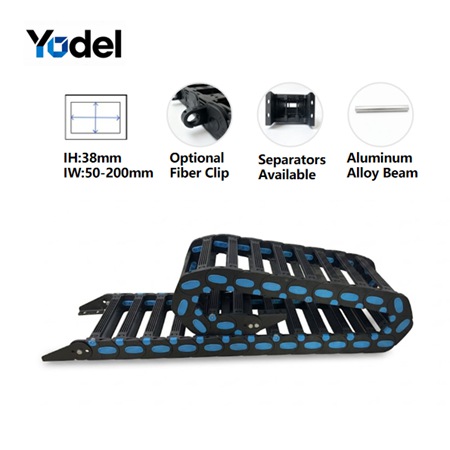

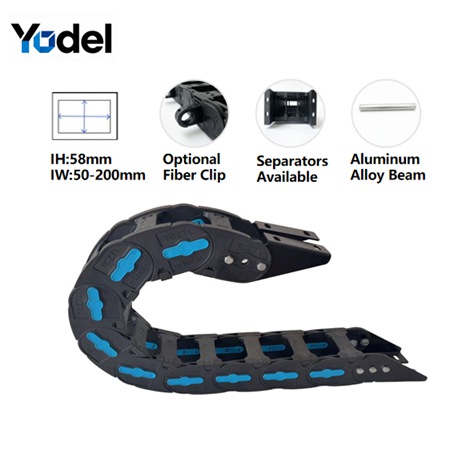

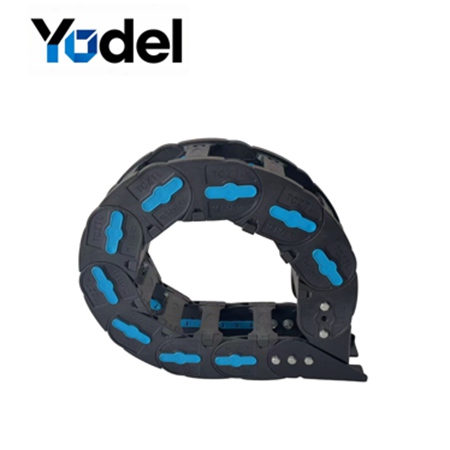

Our elite heavy duty cable carrier series—calibrated in 38mm, 48mm, and 58mm inner heights—introduces a high-rigidity hybrid framework engineered to handle continuous mechanical stress. Molded from premium, ultra-dense Nylon PA66 embedded with over 30% structural high-fiber reinforcement, we have completely transformed the link topography.

The Kinematic Gauge Leap: Where an ordinary 38mm track relies on standard thin plastic walls, our high-fiber frame utilizes specialized extra-thick link plates to resist structural distortion.

More importantly, this premium series features a transformative structural adaptation: the standard nylon crossbars can be completely swapped for high-tensile, custom-width aluminum alloy bars. Backed by standard, precision-machined steel end brackets at the anchoring points, this system counteracts multi-axis torque, allowing for unprecedented unsupported horizontal travel (Lf) even under aggressive start-stop acceleration curves.

Modular Rigidity & Severe Operational Adaptability

By merging thick-walled structural composites with customizable metal components, this flexible cable carrier network delivers unrivaled field longevity.

Massive Thick-Walled Link Kinematics: The scaled-up link plate thickness prevents horizontal bowing over long-travel paths, keeping your tracking loop perfectly linear.

Interchangeable Aluminum Alloy Crossbars: Need specific widths or extreme resistance to abrasive chips? Swap our nylon crossbars for premium aluminum bars, customized to your exact volumetric layout requirements.

Rapid Side-Opening Access: Maintenance overhead shouldn't choke factory output. The heavy-duty crossbars snap open seamlessly from the side, allowing field engineers to lay down thick power lines or pneumatic lines laterally without decoupling terminal connections.

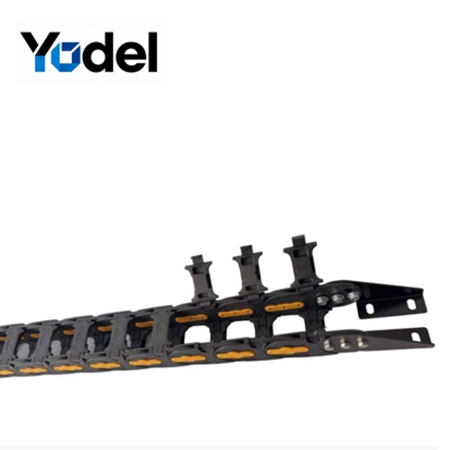

Standard High-Load Steel Brackets: Forget flimsy plastic mounting tabs. This series is anchored by default via heavy-duty integrated steel connectors, absorbing massive inertial shearing forces at the towing arm.

Pure Vertical Cavity Segregation: To maintain dynamic weight balance, the inner chamber integrates heavy vertical separators. Note: Horizontal cross-tabs are excluded to preserve the raw structural thickness of the side-walls.

High-Sensitivity Fiber-Optic Clips: Protect delicate data-transmission lines. Custom optical clips can be locked onto the neutral axis of the links, ensuring zero-pinch routing for sensitive glass fiber cables.

Optimized Thermal Open-Bridge Profile: The open-bridge construction acts as an efficient, highly ventilated cable hose carrier, preventing thermal expansion in dynamic high-voltage motor lines.

Engineering Case Study: 15-Meter High-Velocity CNC Laser Portal

To understand the operational advantage of a thick-walled hybrid carrier, let's analyze an actual industrial retrofitting execution for an automated heavy-duty industrial CNC laser cutting portal.

The Application Parameters: The machine operated over a continuous 15-meter horizontal travel line with an acceleration rate of 2.0G, transporting a complex bundle of heavy fiber laser power conduits, cooling water lines, and sensitive data feedback wires.

The Mechanical Failure: The system previously utilized a standard, thin-walled cnc drag chain. Because the plastic links were thin and lacked steel anchoring, the massive 15-meter linear pull caused the track to twist laterally and snake across the guide trough. This structural twisting pinched the internal data cables, resulting in continuous laser signal dropouts and thousands of dollars in weekly scrap material loss.

Our Engineered Solution: We integrated our L38 Hybrid Thick-Walled Series (38mm inner height), customized with:

1. Over 30% high-fiber reinforced PA66 links with upgraded 16mm wall thickness to eliminate structural snaking.

2. Custom-width aluminum alloy crossbars to handle the heavy fluid weight of the cooling lines without flexing.

3. Heavy-duty steel end brackets to rigidly lock the towing points against the 2.0G acceleration shocks.

4. Internal vertical separators paired with integrated fiber-optic clips to completely isolate sensitive laser data lines from the thermal radiation of the primary power cables.

The Performance Result: The combination of thick-walled links and aluminum crossbars completely stabilized the 15-meter stroke, achieving zero lateral deflection. The cnc cable drag chain maintained pristine alignment throughout high-speed cycles. Thanks to the side-opening drag chain architecture, the entire initial line layout took less than 45 minutes, saving the factory hours of installation downtime.

Geometric Sizing Blueprint & Kinematic Calculation

Avoid structural failure by utilizing our precise 3-step geometric formula to configure your 38mm, 48mm, or 58mm hybrid tracking system:

Step 1: Calculate the Inner Height (Hi) Requirement

Map the outer diameters of all electrical lines and hydraulic hoses intended for the cnc cable drag chain. Identify the absolute thickest element (dmax).

The Safety Clearance Axiom: To account for dynamic centrifugal forces during high-speed bending, you must preserve a 10% to 15% clearance gap above your largest conduit.

Formula: Hi ≥ dmax ×1.15

Largest conduit diameter ≤ 33mm →Choose our 38mm Series (Massive 16mm Link Wall Thickness).

Largest conduit diameter ≤ 41mm→Choose our 48mm Series (Upgraded 19mm Thick-Walled Architecture).

Largest conduit diameter ≤ 50mm→Choose our 58mm Series (Maximum Thickness Hybrid Frame).

Step 2: Establish the Total Internal Width (Bi)

Cables must never be stacked loosely or allowed to twist over one another inside a heavy-duty plastic drag chain cable carrier.

Sum the outer diameters of all internal conduits, add the 3mm material thickness of each vertical separator, and add a 10% lateral safety clearance.

If your internal line requirements are exceptionally wide, specify our custom-width aluminum alloy crossbars to expand the internal width (Bi) capacity without sacrificing horizontal rigidity.

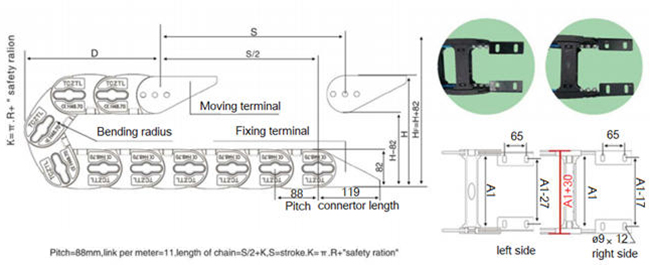

Step 3: Align with the Minimum Bending Radius (R)

Check your cable technical datasheet for the dynamic bending threshold (typically 10× to 12× the outer diameter).

Select the bending radius R of the carrier that matches or exceeds this limit. A larger radius drastically reduces internal cable stress but requires a taller vertical clearance envelope (HF) within your machine housing layout.

Engineered for Extended Travel. Reinforced with Steel and Aluminum to Defy Sag. Do not risk your automated infrastructure on thin-walled generic tracking loops. Whether you are outfitting a fleet of long-travel cnc drag chain industrial networks or searching for a highly rigid cable hose carrier with customizable aluminum bars to hold thick pneumatic bundles, our engineering division is ready to audit your blueprints. Contact us today with your travel lengths, payloads, and clearance parameters—we will provide a verified 3D CAD layout and custom configuration within 24 hours.
