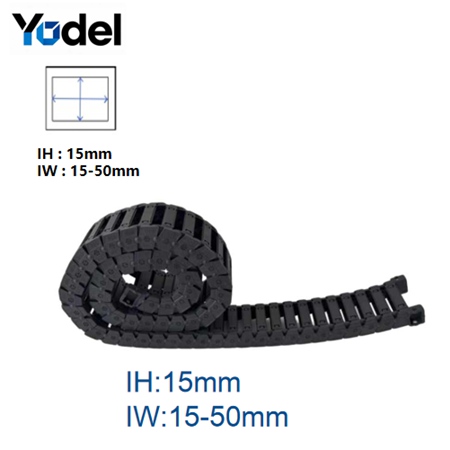

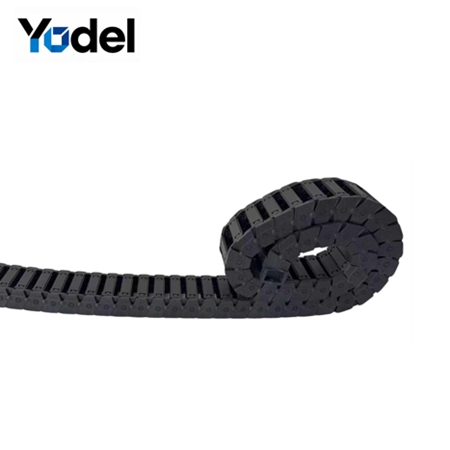

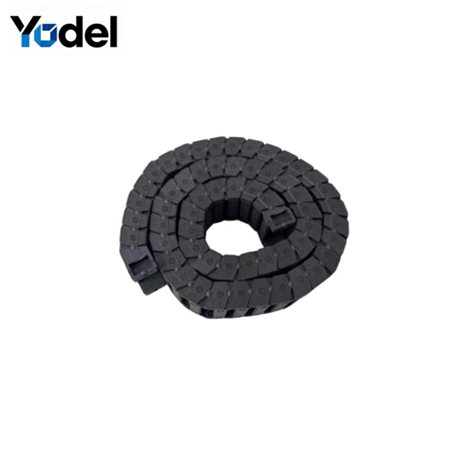

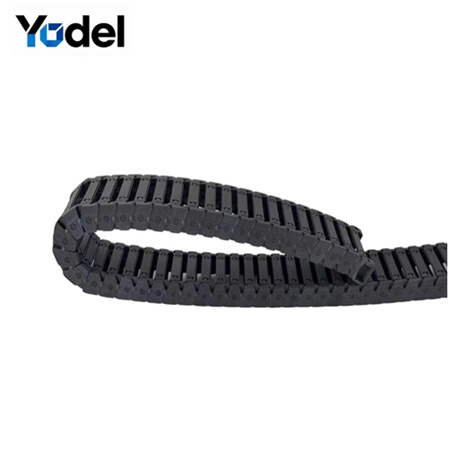

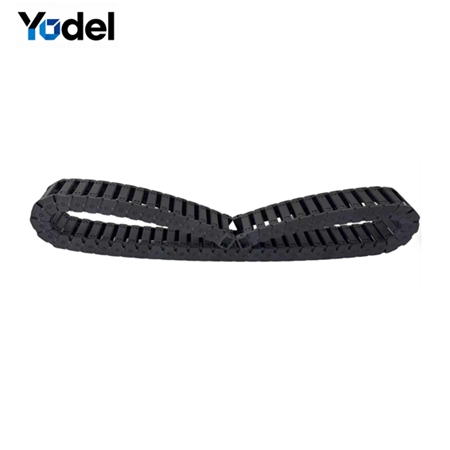

15mm Inner Height Low-Noise Nylon Cable Drag Chain – High-Speed Silent Series for Precision CNC and Automation

Section 1: The Acoustic Revolution (Product Overview)

Are you still tolerating the irritating 80 dB "clicking and whistling" of traditional cable carriers in your precision workshop?

Standard cable tracks rely on rigid, square-joint configurations. When running at high speeds, they suffer from heavy mechanical impact, generating noise levels between 70-85 dB—equivalent to a loud vacuum cleaner running inside your machine cabinet.

Our 15mm inner height bridge-type silent nylon cable drag chain redefines motion control stability. Engineered with Premium Nylon PA66 and an innovative curved-joint damping architecture, it dampens the "chordal effect" during high-speed rotation. The result? A dramatic drop in acoustic output to 55-65 dB, with premium setups achieving an ultra-quiet ≤30 dB. It transforms your machinery from a noisy workshop distraction into a library-quiet, vibration-free system.

Section 2: Engineered to Move Better (Technical Deep-Dive)

Why choose this plastic energy chain over generic alternatives? The secret lies in the structural physics of the link joints:

1. Short-Pitch Curved Joints vs. Rigid Right Angles

Traditional carriers slam link-to-link, causing instant wear and friction. Our silent series utilizes an arc-shaped, curved joint nesting design that reduces the physical impact surface area during articulation. Combined with a significantly shorter pitch, the chain rolls with a fluid, continuous motion rather than a series of micro-collisions.

2. High-Speed Velocity Without the Vibration

Standard chains start to shudder, whip, and generate resonant noise once velocities cross 1.5 m/s. This flexible cable carrier is built for high-acceleration environments, comfortably handling velocities of 3 m/s to 5 m/s. By eliminating joint backlash, it ensures your delicate data lines, laser fibers, and power cables experience zero sudden jerks.

Section 3: Professional Sizing & Bending Radius Selection Guide

Choosing the correct dimension for your cnc drag chain prevents premature cable failure and tracking friction. Follow our industrial engineering checklist to select the perfect fit for your setup:

Step 1: Calculate Your Cable Bundle Clearance (Inner 15mm Fitment)

Height Rule: The maximum outer diameter (OD) of your thickest cable must not exceed 12mm (leaving at least a 20% safety clearance within the 15mm inner height cavity).

Width Rule: Sum up the diameters of all cables/hoses, add a 10% spacing margin, and choose the corresponding inner width.

Step 2: Select the Correct Bending Radius (R)

We provide multiple standard radius options (R28, R38, R48) to match your machine’s physical footprint and cable flexibility requirements.

R28 (Ultra-Compact Layout): Perfect for short-stroke, space-constrained multi-axis CNC routers, compact 3D printers, and tight medical laboratory equipment.

R38 (Balanced Performance): The go-to standard for automated picking arms and electronic component assembly lines.

R48 (Large Loop, Minimum Stress): Ideal for highly sensitive fiber optic cables or high-speed data bus lines that require a wider turn to completely eliminate internal bending fatigue.

Engineering Formula for Installation Height:

Total required clearance height for the chain installation is calculated as:

Hspace = 2R +Chain Outer Height

Ensure your machine frame offers enough vertical clearance for the chosen radius loop to travel without rubbing against the top casing.

Section 4: Real-World Case Study: 3-Axis Precision Pick-and-Place Axis

The Problem: A high-speed semiconductor sorting machine manufacturer was using a standard wire drag chain on their X-axis. Running at 2.5 m/s, the chain generated a sharp 78 dB whistling noise and micro-vibrations that caused the optical alignment cameras to misread component positions, resulting in a 4.2% rejection rate.

The Solution: The engineering team swapped out the rigid carrier for our 15mm inner height silent nylon cable drag chain (R38 Radius).

The Outcome:

Noise Reduction: Sound levels dropped instantly to 58 dB, restoring a comfortable operating environment.

Vibration Elimination: The smooth arc articulation completely eliminated micro-shuddering. Optical camera positioning errors dropped to 0%, maximizing production yield.

Lifespan Extension: Thanks to the self-lubricating properties of Premium Nylon PA66, the replacement cable hose carrier showed zero particle dusting or link wear even after 5 million continuous cycles.

Section 5: Applications & Where to Deploy

This specialized low-noise cnc cable track is purpose-built for environments where precision cannot be compromised by noise or dust contamination:

High-End CNC & Automation: Laser cutters, engraving machinery, and automated tool changers demanding smooth linear motion.

Cleanrooms & Electronics: Semiconductor handling equipment, PCB soldering stations, and automated testing rigs requiring zero friction-dust emission.

Medical & Laboratory Diagnostics: Silent-running laboratory fluid samplers, scanning beds, and automated pharmacy dispensers where patient peace and sensor

accuracy are paramount.

Size Table :

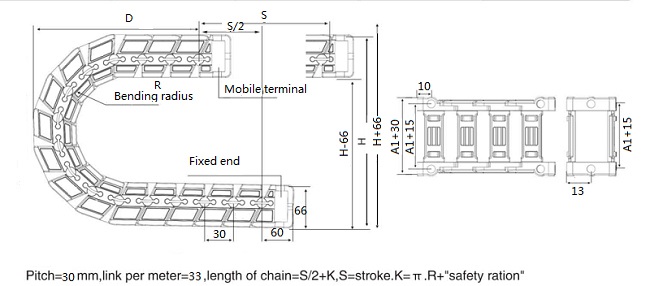

Drawing ：
