35mm Inner Height Silent Bridge Type Cable Drag Chain Premium PA66 Low-Noise Flexible Cable Carrier for High-Acceleration CNC & Automation

Why Acoustic Control Matters in Modern Automation

Standard engineering links rely on rigid, flat-surface joints. At operational speeds exceeding 1.5m/s, these standard carriers generate a harsh, metallic "clicking" and high-frequency whistling—peaking between 70 dB and 85 dB. That is equivalent to running a vacuum cleaner directly next to your precision instruments, causing structural micro-vibrations that degrade CNC accuracy.

Our 35mm Inner Height Silent Bridge Type Cable Track fundamentally changes this dynamic. By re-engineering the joint mechanics and leveraging premium polymer chemistry, this flexible cable carrier drops running noise down to a library-grade 55–65 dB, with ultra-premium configurations operating at or below 30 dB.

Advanced Design Physics: What Makes It "Silent"?

1. Arc-Surfaced Micro-Pitch Joint Architecture

Instead of traditional block-shaped links that collide violently during articulation, our low noise flexible cable carrier utilizes curved, radius-optimized hinge points. The rolling contact design minimizes the impact area, dampening mechanical shock waves before they manifest as acoustic noise.

2. High-Purity Virgin Nylon PA66 Composition

We manufacture these tracks exclusively from premium Nylon PA66. This specific molecular structure provides exceptional internal mechanical dampening, a lower coefficient of friction against internal jackets, and superior tensile strength without relying on abrasive structural additives.

3. High-Speed, Low-Vibration Stability

The reduced pitch length means the chain forms a tighter, truer circle around the bending radius (R). This eliminates the "polygonal effect" common in cheap CNC cable tracks, allowing smooth transitions at high velocities (3 m/s to 5 m/s) without dynamic whipping or snaking.

Application Synergy: Where This Carrier Excels

This isn't just another plastic track; it is a high-performance component designed for environments where dynamic stability and quiet operation are critical:

Precision CNC Router & Laser Cutting Beds: Eliminates high-speed chain chatter to prevent surface finish artifacts on machined parts.

Semiconductor & Electronics Assembly: Near-zero friction means minimal particulate shedding, keeping cleanrooms cleaner.

Robotic Articulations & Pick-and-Place Gantries: Supports rapid deceleration and acceleration cycles without mechanical whip.

Medical Diagnostic & Laboratory Equipment: Keeps automated testing environments quiet and stable for precise sensor calibration.

Sizing & Configuration Blueprint: Internal Dimension 35mm

Selecting the correct profile ensures a long service life for both the nylon cable drag chain and the internal lines.

Step 1: Calculate Your Internal Clearance

Inner Height (Hi): Fixed at 35mm. Your largest internal cable or hose diameter must not exceed 28mm (leaving a 20% safety clearance).

Inner Width (Bi): Total the diameters of all cables/hoses, add a 10% structural buffer between each, and choose the matching width profile.

Step 2: Determine Your Bending Radius (R)

To prevent core fatigue in your cables, calculate your minimum bending radius based on your thickest cable:

Available standard bending radii for our 35mm series accommodate a wide range of tight enclosures and dynamic clearance curves.

Real-World Case Study: Eliminating Harmonic Ripple in CNC Milling

Application Context: A high-end automated cabinet manufacturer integrated a standard bridge-type carrier on a 3-axis CNC router running at 2.2 m/s.

The Problem: The standard chain created a regular clicking cadence that synchronized with the stepper motor harmonics, producing visible ripple patterns along acrylic sheets and driving shop floor noise past 78 dB.

The Solution: The team replaced the stock tracks with our 35mm Silent Bridge Type Cable Track.

The Result: Ambient noise dropped instantly to 58 dB. More importantly, the micro-vibrations vanished, eliminating the surface ripples and saving the client hours of manual post-processing work.

Size Table :

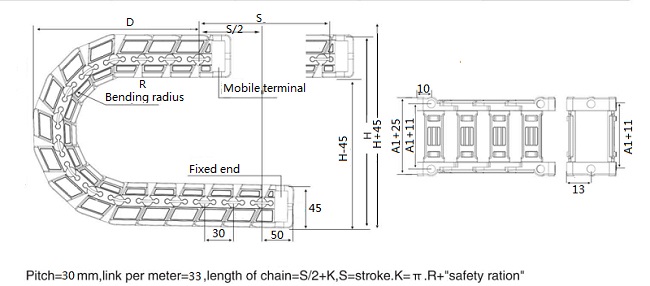

Drawing :
