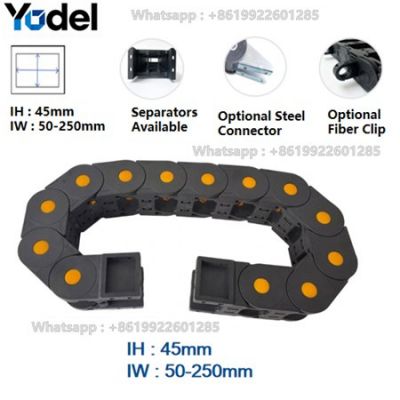

45mm Inner Height Cable Track Chain Series

Streamline your motion control systems with our versatile 45mm inner height cable track chain collection. Specially engineered for industrial dynamic guidance, this series delivers robust structural protection and smooth movement for electric cables, pneumatic hoses, and control lines across multi-axis automated machinery.

Featuring an ergonomic bridge-type openable architecture, each cable track chain in this category allows rapid access along the inner or outer radius. Maintenance teams can easily perform wire routing, routine checks, or line replacements without dismantling the full carrier track setup, minimizing operational downtime and maximizing productivity.

Advanced Cable Track Chain Architecture for Industrial Automation

When dynamic equipment undergoes high-speed continuous displacement, internal cables require non-stop physical shielding and organized support. Our 45mm cable track chain lineup is manufactured from premium-grade PA66 nylon fortified with high-density glass fiber reinforcement. This specialized composite formula grants extraordinary mechanical endurance, excellent wear resistance, and long-term dimensional stability even under challenging factory conditions.

Modular Customization & Functional Accessories

• Bridge-Type Snap-Open Design: Crossbars quick-release effortlessly, providing seamless cable installation and efficient field troubleshooting.

• Customizable Vertical Dividers: Partition internal compartments efficiently inside the cable track chain to segregate high-voltage power leads from delicate control wiring, preventing friction wear and tangling.

• Optical Fiber Retention Clips: Integrate specialized fiber optic clips to securely isolate and cushion fragile communication cables against vibration and acceleration.

• Interchangeable Steel Connectors: Upgrade from standard reinforced nylon mounts to high-rigidity steel terminal joints for maximum anchoring endurance at fixed and moving ends.

• Comprehensive Bending Radius Spectrum: Choose from a broad variety of bending radius configurations to perfectly match your specific machine enclosure boundaries and movement trajectories.

Ideal Application Environments

1. CNC Machining Centers & Milling Systems: Shields dynamic motor leads and coolant lines from abrasive debris, metal swarf, and fluid exposure during multi-axis machining.

2. Industrial Robotics & Automated Gantries: Guides high-flex sensor cables along dynamic robotic joints and pick-and-place linear motion axes.

3. Laser & Plasma Cutting Machinery: Secures gas supply hoses and fiber optic delivery tubes during high-acceleration gantry movement.

4. Automated Packaging & Logistics Conveyors: Maintains quiet, reliable continuous movement across high-frequency material handling equipment.

Frequently Asked Questions (FAQ)

Q1: What makes the 45mm inner height cable track chain suitable for dynamic machinery?

A: With a 45mm internal clearance and glass-fiber reinforced PA66 nylon construction, this cable track chain accommodates medium-to-large cable bundles while maintaining high tensile strength and fatigue resistance during continuous dynamic cycles.

Q2: How do vertical dividers and fiber optic clips enhance cable longevity inside the cable track chain?

A: Vertical dividers create physical separation channels inside the cable track chain to prevent friction and twisting. Optical fiber clips clamp sensitive communication lines firmly in place, mitigating strain and micro-bending wear during high-speed displacement.

Q3: Can I replace standard nylon end brackets with steel connectors on this cable track chain?

A: Yes. We offer interchangeable steel mounting brackets that integrate seamlessly with the 45mm cable track chain series, delivering superior anchoring stability under demanding dynamic loads and structural stresses.
