China Factory 45x100mm Drag Chain Bridge Type Cable Carrier for CNC Machinery & Automation

Premium 45x100mm Drag Chain with Openable Bridge Design

Optimize your dynamic cable management with our precision-engineered drag chain 45x100. Designed for continuous linear motion, this 45mm inner height cable carrier provides maximum physical protection and smooth guidance for power lines, pneumatic hoses, and control wiring. Featuring an openable crossbar structure, the drag chain 45x100 allows quick interior access from either side. Maintenance technicians can easily route cables, perform inspections, or substitute lines without dismantling the complete track assembly, drastically shortening system setup times and operational downtime.

Technical Specifications (45mm Series Bridge Type Cable Carrier Chain)

Advanced Material Strength & Modular Interior Architecture

Constructed from premium PA66 nylon blended with high-density glass fiber reinforcement, this drag chain 45x100 achieves exceptional tensile strength, wear resistance, and long-term mechanical stability. The specialized polymer composition withstands continuous mechanical friction, oil splatters, and dynamic impacts across high-speed industrial environments.

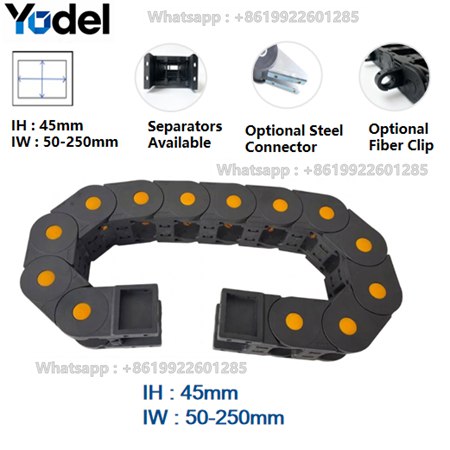

To maintain internal cable integrity during intense travel, the drag chain 45x100 supports versatile interior separation accessories:

• Customizable Vertical Dividers: Partition the internal channel of your drag chain 45x100 to isolate high-voltage power cables from sensitive control wires, avoiding friction-induced abrasion and tangling.

• Specialized Optical Fiber Retention Clips: Integrate tailored fiber optic clips inside the drag chain 45x100 to lock delicate signal cables securely in place, dampening dynamic vibration and preventing stress damage.

• Interchangeable Steel Connectors: Upgrade standard nylon end brackets to high-rigidity steel terminal connectors for maximum mounting stability on high-load machinery.

• Versatile Bending Radius Range: Choose from a wide selection of bending radii from 75mm to 300mm to perfectly fit your machine enclosure footprint and movement limits.

Versatile Applications Across Industrial Machinery

The drag chain 45x100 serves as a vital component in multi-axis motion equipment across various sectors:

1. CNC Milling & Laser Cutting Systems: Shields dynamic power leads and gas supply tubes against metallic debris, flying swarf, and coolant spray in high-acceleration environments.

2. Automated Packaging Machinery: Delivers quiet, smooth guidance for pneumatic lines along continuous conveyor sorting units.

3. Robotic Arms & Dynamic Gantries: Ensures clean articulated motion for sensor lines and power feeds along multi-axis automated assembly lines.

4. Material Handling Equipment: Protects traveling electrical cables across automated storage, retrieval, and transfer systems.

Flexible OEM Customization & Branding Options

Every motion control system demands unique physical configurations. We provide tailored manufacturing options for the drag chain 45x100, including custom chain lengths tailored to your exact travel distance and optional custom logo stamping on the outer chain links to enhance your corporate brand identity.

Frequently Asked Questions (FAQ)

Q1: What are the main dimensional specifications of this drag chain 45x100?

A: The drag chain 45x100 features an inner height of 45mm and an inner width of 100mm, offering optimal clearance for medium-to-large cable bundles while supporting a versatile bending radius spectrum from 75mm up to 300mm.

Q2: How does the openable bridge design benefit daily operations on the drag chain 45x100?

A: The bridge-type openable crossbars allow operators to snap open the frame quickly along either the inner or outer radius. This eliminates the need to thread long cables through the chain from end to end, making cable installation, replacement, and field maintenance fast and straightforward.

Q3: Can I customize the length and mounting end brackets for the drag chain 45x100?

A: Yes. We offer fully customizable chain link lengths to match your machinery stroke length. Additionally, you can choose between standard glass-fiber reinforced nylon mounting brackets or upgrade to interchangeable steel connectors for high-stress anchoring. Custom logo engraving is also available upon request.
