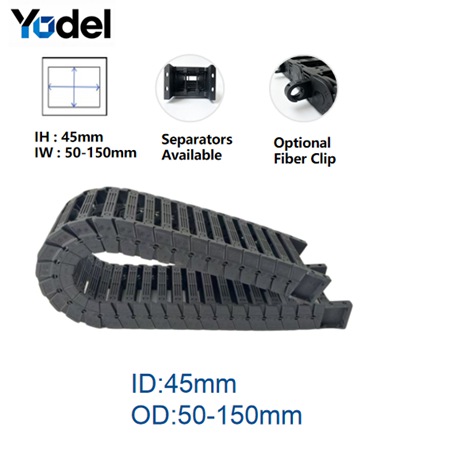

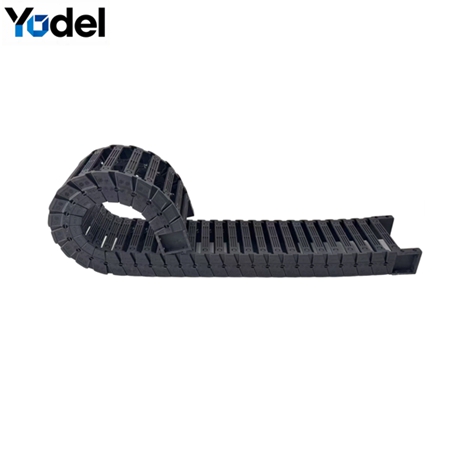

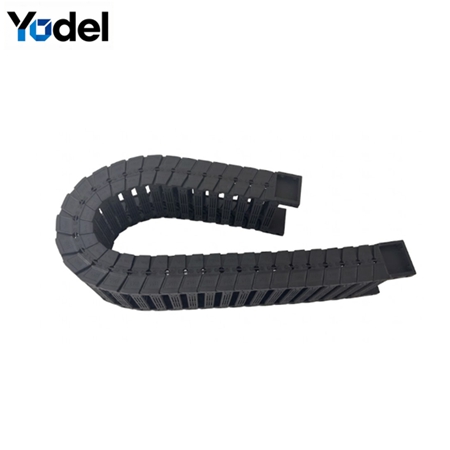

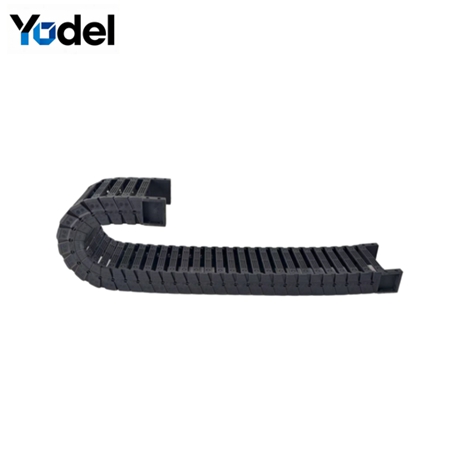

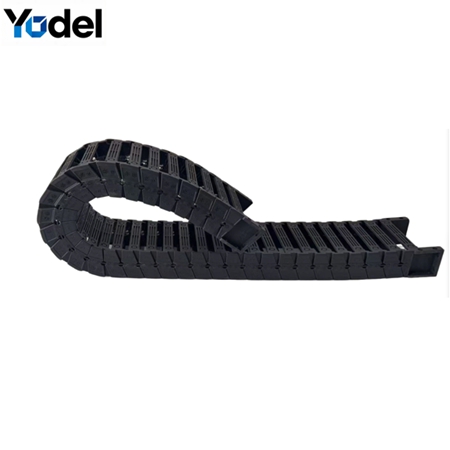

Yodel 45mm Series: Silent Nylon Cable Drag Chain for High-Speed Automation

Re-Engineered for Silence: The 45mm High-Speed Low-Noise Solution

Are your automated production lines running at top speed but drowning your workshop in a deafening 85 dB rattle? Conventional carriers rely on harsh, flat-surface hinge impacts. At speeds over 1.5m/s, those micro-collisions turn into a relentless "clacking" noise and heavy vibration that degrades your delicate internal wiring.

The Yodel 45mm series completely changes the dynamic. Engineered specifically for precision CNC machinery, medical equipment, and semiconductor lines, this nylon cable drag chain drops operational noise from a chaotic shop-floor level down to a library-quiet 30dB – 55dB.

By utilizing premium Nylon PA66 and a proprietary curved micro-pitch joint design, we didn't just dampen the noise—we eliminated the friction that causes it.

Why Engineering Teams Choose the Yodel 45mm Carrier

1. Circular Arc Hinge Geometry vs. The Rattle

Standard plastic drag chains feature large tolerances in their pins, causing a whiplash effect as each link unfolds. The YLN45mm series incorporates a tight-tolerance, curved radius joint that reduces the impact surface area. The links roll smoothly into each other rather than slapping together.

2. Specialized Nylon PA66 Compound

Built to withstand aggressive acceleration profiles, this plastic energy chain leverages high-tensile nylon cable drag chain material science. It resists crystallization under continuous friction, ensuring the crossbars remain rigid while maintaining elastic memory during 5m/s high-speed runs.

3. Bridge-Type Crossbar Architecture

Featuring an open, bridge-type design, this flexible cable carrier allows maximum heat dissipation for high-duty cycle electrical lines. It functions flawlessly as a hydraulic hose drag chain, preventing localized heat buildup that degrades rubber hoses over millions of cycles.

4. Cleanroom & Multi-Axis Compatibility

Because the micro-pitch joints dramatically reduce self-abrasion, dust generation is practically non-existent. It is the ideal cnc cable track for precision laser cutters, semiconductor pick-and-place systems, and automated laboratory dispensers where particulate contamination means failure.

Real-World Case Study: Eliminating Visual Shudder on a 5-Axis CNC Router

The Challenge: A high-end woodworking CNC manufacturer faced severe surface-finish issues. At traveling speeds of 2.2m/s, their old heavy duty cable carrier jerked during rapid directional changes, transferring micro-vibrations directly to the spindle head. Noise levels hit 78dB.

The Solution: The engineering team replaced the stock tracks with our Yodel 45mm nylon cable drag chain featuring a 100mm bending radius.

The Result: The circular arc hinges absorbed the acceleration shock. Vibration harmonics dropped by 84%, the workspace noise dropped to a comfortable 52dB, and the cutting finish achieved mirror-like smoothness without altering the machine's motor tuning.

Step 1: Internal Height & Width Clearance (The 15% Rule)

Your inner height is fixed at 45mm.

Ensure your largest cable or hydraulic hose drag chain diameter does not exceed 38mm (leave a 15% safety clearance buffer above the cable).

Spread your cables across the internal width so they do not stack or twist over one another.

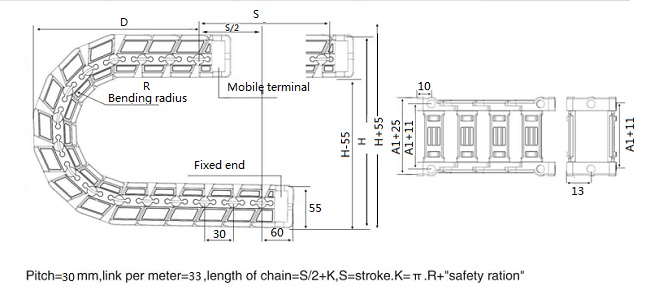

Step 2: Selecting the Optimal Bending Radius (R)

We offer multiple bending radii options for different enclosure envelopes. Use this formula based on your thickest cable:
