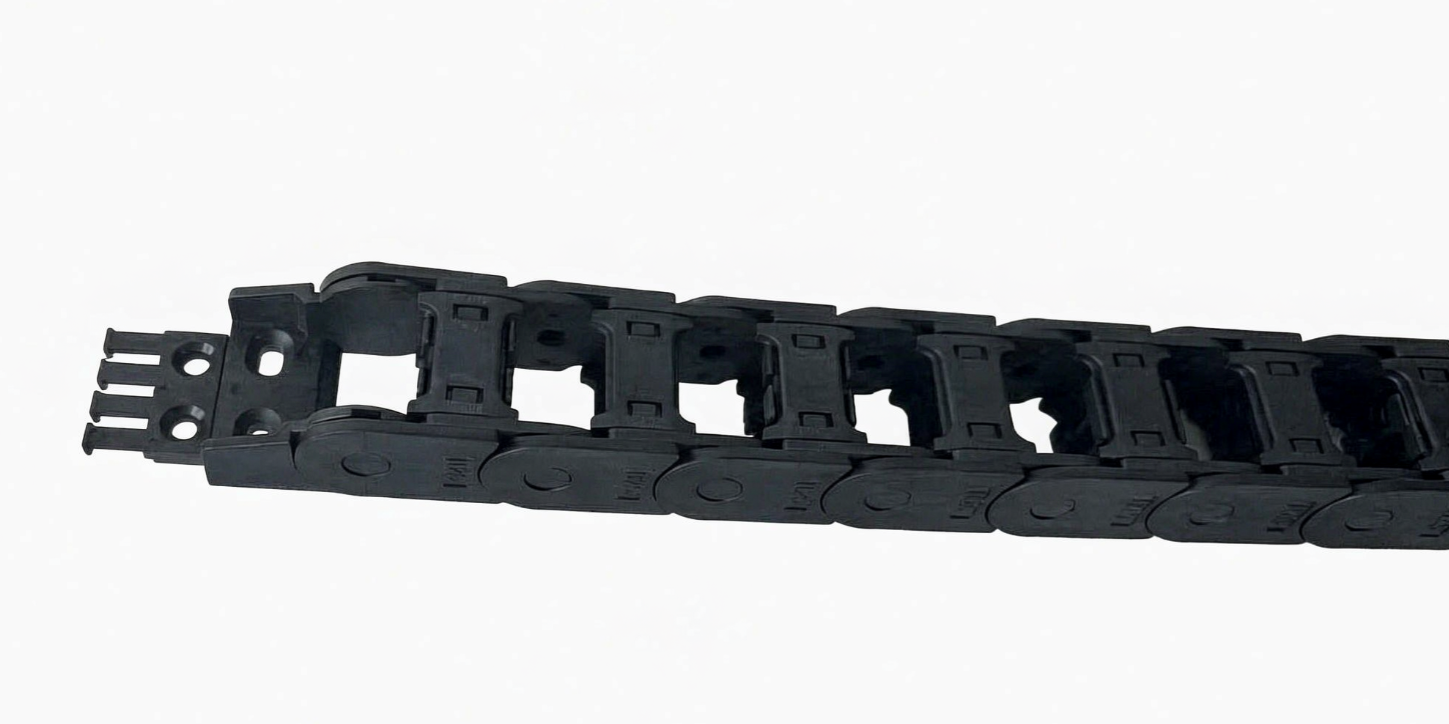

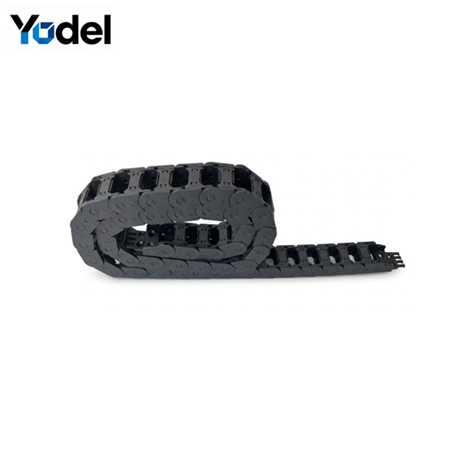

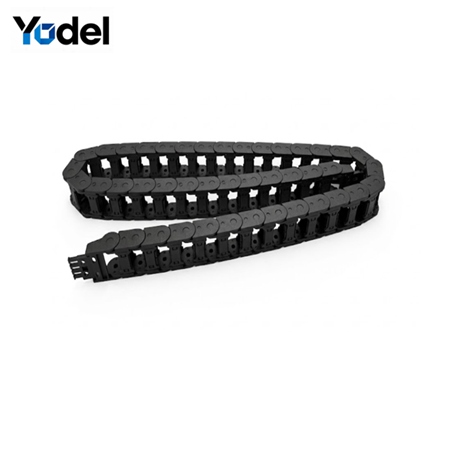

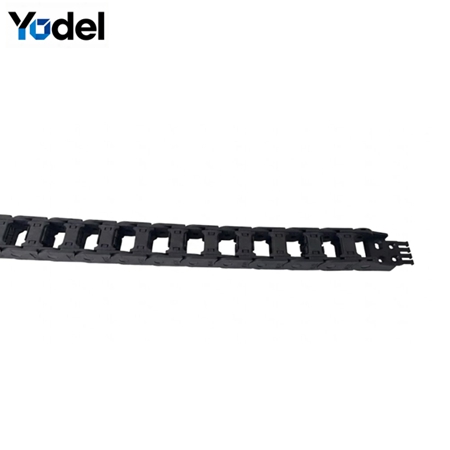

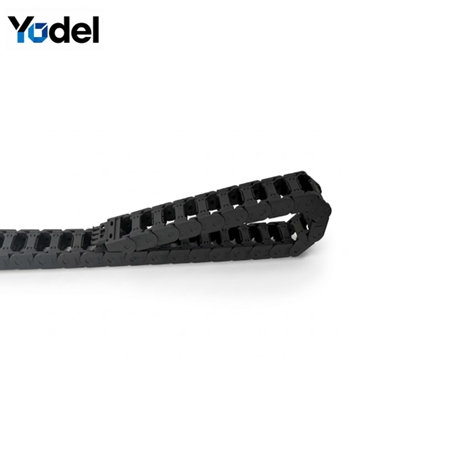

25mm Plastic Cable Drag Chain for Desktop CNC Engravers
25mm Plastic Cable Drag Chain for Desktop CNC Engravers 25mm Plastic Cable Drag Chain for Desktop CNC Engravers 25mm Plastic Cable Drag Chain for Desktop CNC Engravers 25mm Plastic Cable Drag Chain for Desktop CNC Engravers 25mm Plastic Cable Drag Chain for Desktop CNC Engravers

25mm Plastic Cable Drag Chain for Desktop CNC Engravers

Product ID : B25
Product Attributes :

Material Composition:Nylon PA66

Internal Height (H):25 mm

Internal Width (W):25mm / 38mm / 50mm / 57mm / 77 mm

Pitch:46.3 mm

Chain Links Density:22 links per meter

Maximum Cable OD:Up to 22.5 mm

Bending Radius (R):R40, R55, R75, R100, R125, R150 mm

Color Finish:Standard Industrial Matte Black

Available Structures:Bridge Type (Open Links) & Fully Enclosed Type

Connection Type:Nylon Beveled Joint (Angled Mounting Bracket)

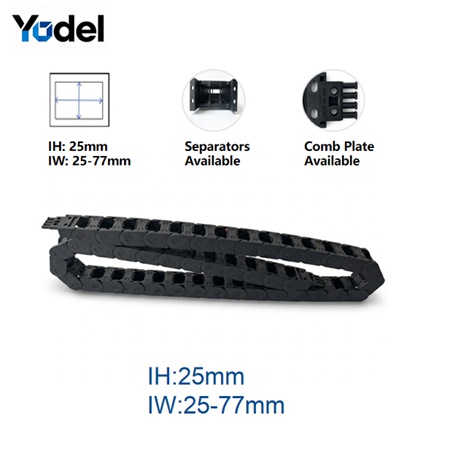

Cable Management:Optional Strain Relief Comb Plates (Cable Tines)

Product Description

Precision Beveled Joint Architecture

Compact automation equipment requires sophisticated connection stability to prevent mechanical binding at travel termination points. Designed with an innovative nylon beveled joint configuration, our sleek black plastic cable drag chain delivers seamless angular alignment during rapid reciprocating motion. This specialized plastic cable drag chain interfaces securely with machine frames while offering optional strain relief combs to organize and lock internal energy lines firmly in place.

Premium PA66 Polymer Foundation

Uncompromising structural endurance stems directly from advanced material chemistry and precision polymer manufacturing. Every single segment of our plastic cable drag chain is precision-molded from virgin Polyamide 66 material, finished in a professional deep black aesthetic. This specialized engineering composite delivers exceptional tensile resilience, superior impact absorption, and long-term thermal stability under continuous workshop operation without structural degradation.

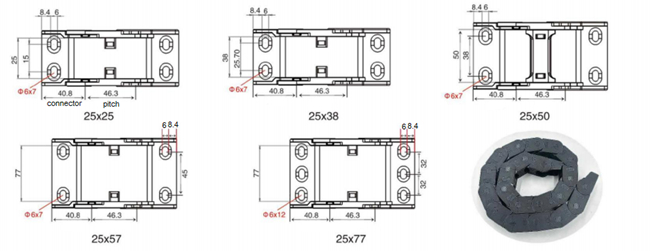

Technical Specifications (25 Series Black Angled Mounting Bracket with Strain Relief Comb)

Model Internal Dimension
(H×W) mm
External Dimension
(H×W) mm
Bending Radius
mm
Pitch
mm
Chain Links per Meter
pcs
Max Cable OD
mm
Opening Method
B25.25 25×25 35×40 R40
R55
R75
R100
R125
R150
46.3 22 22.5 Bridge/closed type
B25.38 25×38 35×53
B25.50 25×50 35×64
B25.57 25×57 35×72
B25.77 25×77 35×92

Flexible Style Configurations

Every automated assembly line presents distinct environmental protection and cable visibility requirements. To accommodate diverse engineering layouts, this versatile plastic cable drag chain is available in two distinct operational styles:

  • Bridge Style Open Links: Providing maximum ventilation and effortless visual inspection of inner conduits.

  • Fully Enclosed Covers: Offering complete 360-degree shielding against flying debris, dust, and liquid splashes.

Core Technical Parameters

Engineered for precision miniature machinery, our 25mm inner height plastic cable drag chain ensures optimal spatial efficiency. Key technical parameters include:

  • Internal Height: 25mm vertical clearance designed for compact control wiring.

  • Bending Radius: Flexible dynamic radius options spanning from 40mm to 150mm.

  • Pitch & Density: Precision 46.3mm pitch architecture requiring 22 links per meter.

  • Max Cable Size: Safely accommodates individual lines up to 22.5mm outer diameter.

Compact Automation Equipment Applications

Built to endure relentless motion cycles in confined spaces, our specialized plastic cable drag chain excels across modern compact machinery sectors:

  • Small 3D Printers: Guiding sensitive extruder wiring smoothly across rapid print axes.

  • Desktop CNC Engravers: Protecting spindle power leads from repetitive bending fatigue.

  • Medical Diagnostic Devices: Ensuring reliable internal cable routing during diagnostic movements.

  • Miniature Pick-and-Place Robots: Delivering fluid low-profile energy transport in tight frames.

Global Laboratory Equipment Upgrade

A prominent European laboratory automation developer recently retrofitted their compact liquid-handling robots with our 25mm black plastic cable drag chain systems. By integrating nylon beveled joints alongside custom strain relief combs, the client eliminated cable tangling entirely. The sleek black composite links maintained flawless flexibility over millions of high-speed cycles, significantly enhancing overall instrument reliability.

Direct Factory Customization Options

As an independent direct-source manufacturing plant in China, we maintain extensive ready-to-ship inventory of this plastic cable drag chain series to fulfill urgent global dispatches immediately. We provide comprehensive OEM and ODM capabilities, including custom-cut segment lengths, pre-installed comb plates, and laser-engraved corporate branding. Contact our engineering support group today to secure instant factory-direct pricing and professional CAD technical drawings!

Frequently Asked Questions Overview

Q: What are the benefits of the nylon beveled joint?
A: The beveled joint design ensures superior angular alignment and secure mounting stability at the moving machinery termination points.
Q: Can I order this series with comb plates attached?
A: Yes, optional strain relief comb plates can be integrated to organize, separate, and lock internal wires securely.
Q: Are both bridge and enclosed styles available in stock?
A: Yes, as a direct factory manufacturer, we maintain comprehensive ready stock for both styles in standard black finish.
