48mm Side-Opening Roller Cable Carrier for Long Travel – Yodel | PA66+30% Glass Fiber

Product Description：

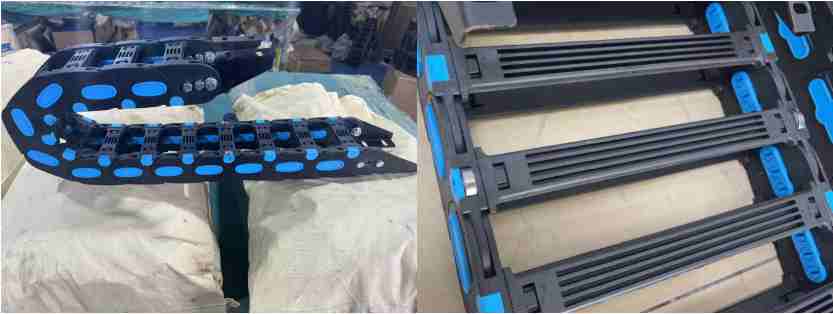

Yodel makes this 48mm inner height cable carrier for equipment that travels far and runs long hours. The carrier has small wheels built into the links. Those wheels roll instead of sliding. Less friction means less wear, less noise, and less motor effort to pull the cables. The side opens without tools. Flip the side panel open, drop cables in, close it. No threading through the whole chain. No taking the chain apart. Great for long runs where threading would take forever. The material is PA66 nylon with 30% glass fiber. Stiff and strong. The frame is thickened. Holds up under heavy cable bundles. Works for 48mm inner height — fits multiple thick power cables, hoses, and signal lines together.

Key Features :

1. Built-in roller wheels

Small wheels sit between links. Rolling friction instead of sliding friction. Less wear on the chain. Less noise. Less power draw from the machine motor.

2. Side-opening design

Side panel flips open by hand. No tools needed. Lay cables into any section. Close it. No threading from one end. No disassembling the chain. Cuts installation time by a lot.

3. 48mm inner height

Big enough for multiple thick cables and hoses. Not too tall. Fits medium-to-large machinery without wasting space.

4. PA66 + 30% glass fiber

Plain nylon creeps under load. Glass fiber stops that. The material stays stiff and resists bending after thousands of cycles.

5. Thickened frame

Side plates and crossbars are thicker than standard carriers. Holds up under heavy cable bundles and long travel distances.

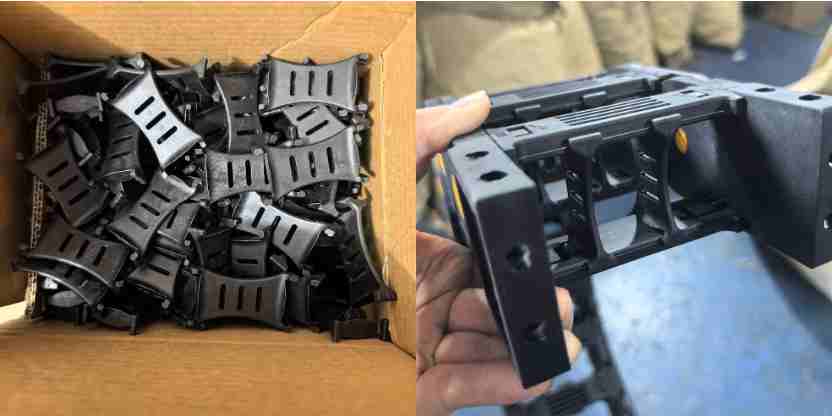

6. Separators available

Optional plastic dividers go inside. Keep power cables away from signal wires. Less friction. Less electrical noise.

Application：

Long-travel CNC & laser ：

CNC gantry machines, laser cutting tables, plasma cutters, waterjet cutters, large routers.

Machine head travels far across the table. Rollers reduce drag. Side-opening lets you swap cables without pulling the whole line.

Gantry systems ：

Gantry robots, pick-and-place gantries, 3D printing gantries, inspection gantries.

Long X-axis travel. Side-opening helps when the gantry is high off the ground. No need to climb and thread.

Industrial robotics ：

Large robotic arms, palletizing robots, material handling robots, robotic transfer systems.

Robot reaches far across a work cell. Rollers make the carrier move easier. Less strain on robot motors.

Automated production lines ：

Assembly lines, transfer systems, automated guided vehicles (AGVs), linear transfer systems.

Line runs 24/7. Rollers reduce wear over millions of cycles. Side-opening speeds up cable changes during line stops.

Logistics & warehousing ：

Automated storage and retrieval systems (ASRS), shuttle systems, sorting systems, long conveyors.

Carrier travels deep into racks. Rollers keep movement smooth. No jamming halfway.

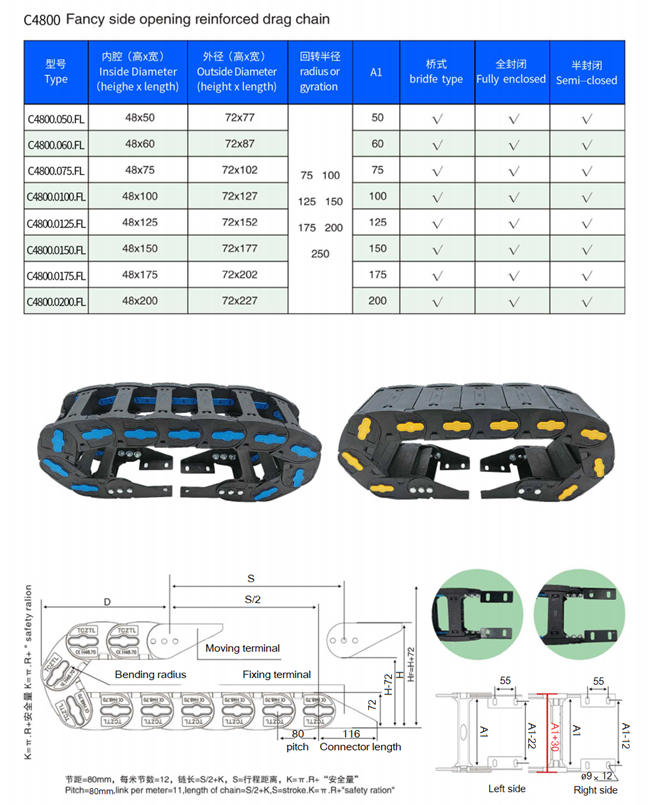

Technical Specifications & Dimension Table :

The heavy-duty cable carrier with an inner height of 48mm can be equipped with separators.

It can be equipped with a roller structure, ensuring this heavy-duty cable carrier remains stable and reliable during long-travel operation.

Packaging: Export carton，wooden case or wooden pallet.
