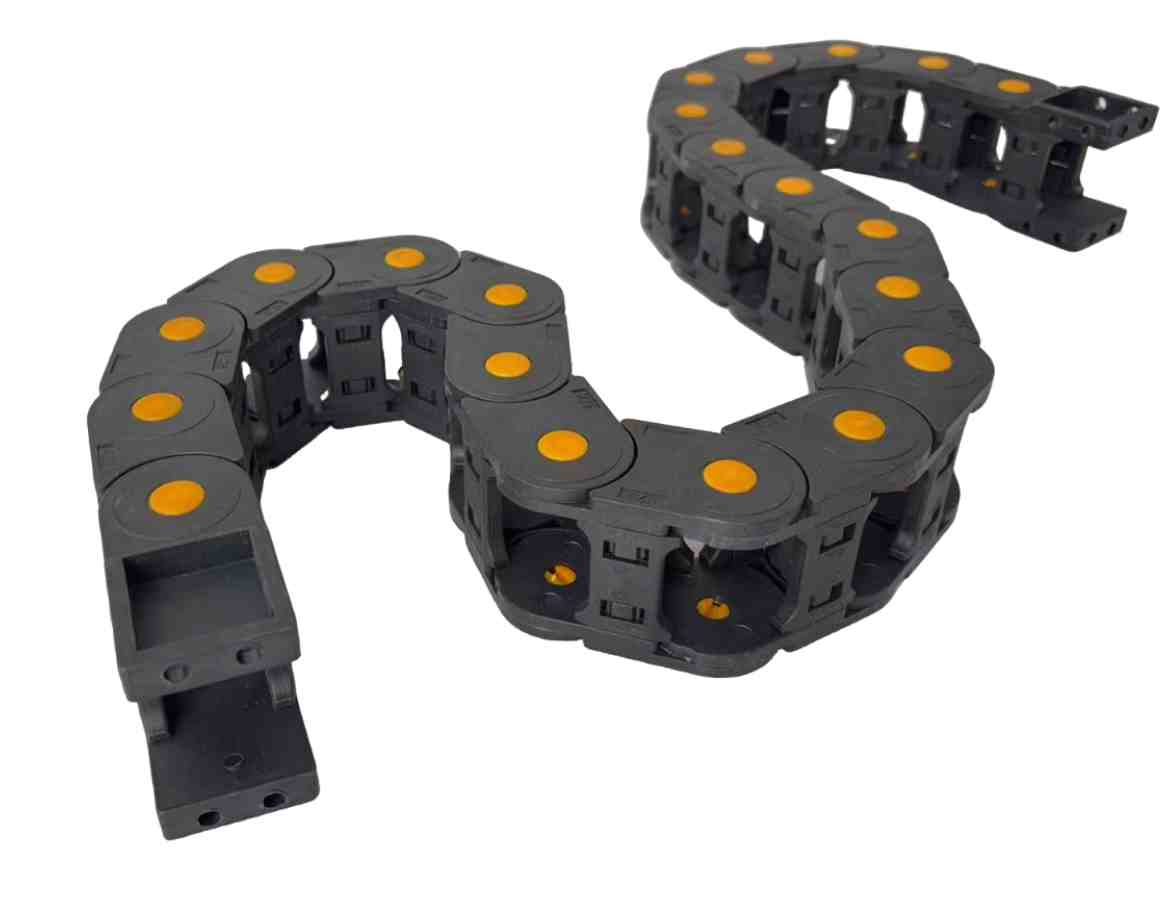

S-Type Bidirectional Bridge Cable Carrier – 20mm to 80mm Inner Height

Product Description：

Yodel S-type bridge cable carrier is designed for industrial equipment requiring bidirectional motion. Available in inner heights from 20mm to 80mm, this series accommodates a wide range of cable and hose bundle sizes.

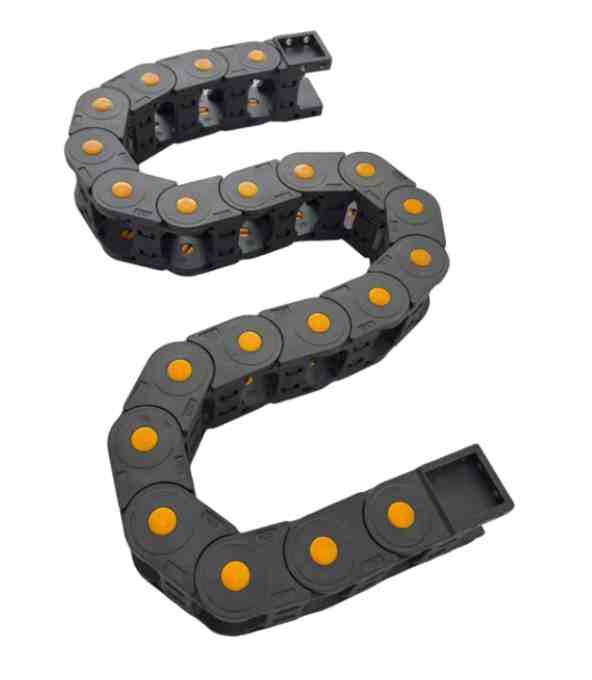

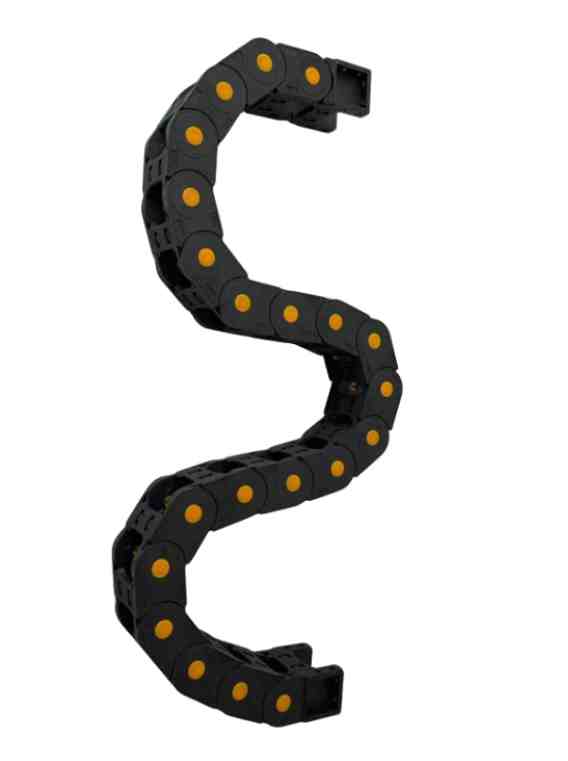

Unlike conventional drag chains that bend in only one direction, the S-type carrier features a unique dual-directional bending design. It moves smoothly forward and reverse, making it suitable for complex machinery layouts with bidirectional movement requirements.

The carrier is molded from premium reinforced PA66, offering excellent strength, wear resistance, and chemical resistance. It operates reliably from -40°C to +120°C, handling oil, dust, and coolant exposure in harsh workshop environments.

Key features ：

1. Dual-Directional Bending Flexibility
Bends smoothly in both forward and reverse directions. Eliminates the constraints of single-direction chains. Adapts to complex mechanical transmission paths and bidirectional motion systems.

2. Easy Installation & Maintenance
Integrated bridge-style upper cover allows quick cable and hose arrangement. No complex tools or full disassembly required. Simplifies initial setup, future adjustments, and emergency repairs.

3. High Durability in Harsh Conditions
PA66 material resists oil, dust, and coolant. Temperature range from -40°C to +120°C. Performs reliably in high-speed, high-cycle applications.

4. High Load-Bearing Stability
Reinforced link structure prevents sagging or deformation. Provides stable support for cables and hoses during high-frequency movement.

Applications ：

CNC Machine Tools & Machining Centers

Cable protection for lathes, mills, grinders, and vertical/horizontal machining centers with bidirectional motion.

Robotic Arms & Automated Production Lines

Supports forward and reverse bending for articulated robots, gantry systems, and assembly line equipment.

Laser Cutting & Stone Processing Machinery

Ideal for high-frequency motion systems exposed to dust, water, and debris.

Packaging, Printing & Woodworking Equipment

Suitable for cartoners, labelers, CNC routers, and edge banders in dusty or tight-space environments.

Injection Molding Machines & Automated Logistics

Manages hydraulic hoses on molding machines and cables on stacker cranes, shuttles, and sorting systems.

Technical Specifications & Dimension Table :

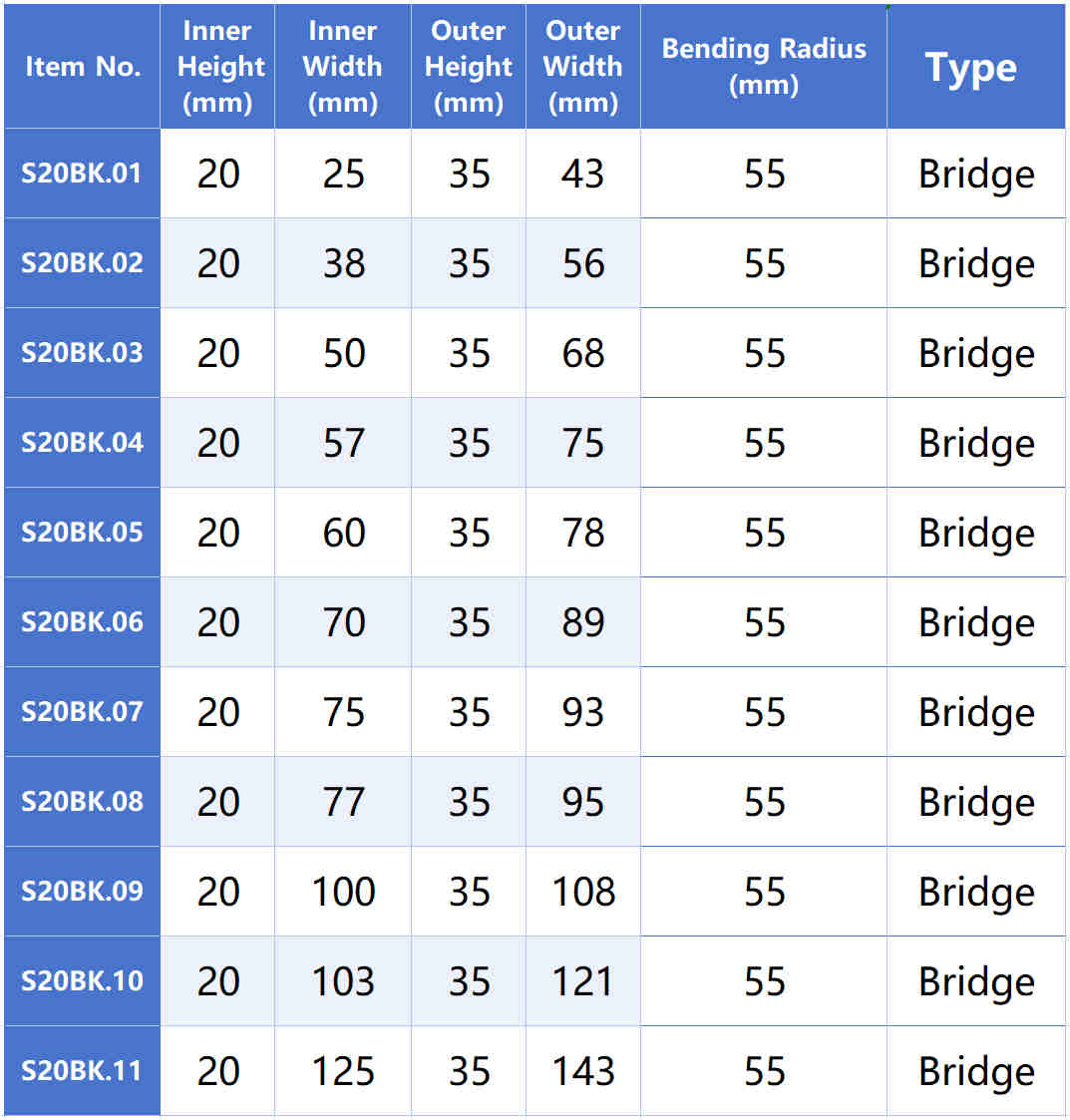

Inner height 20mm series :

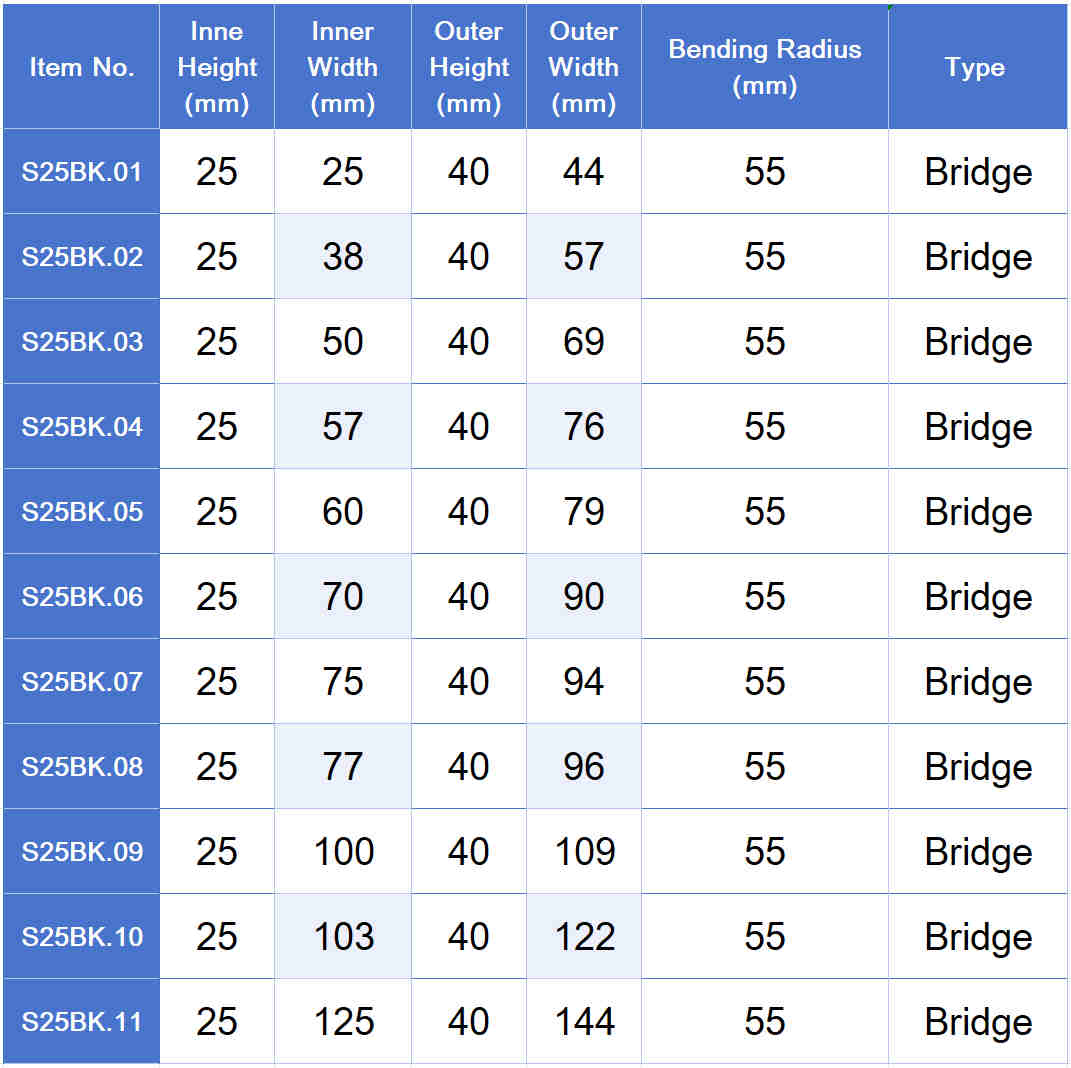

Inner height 25mm series :

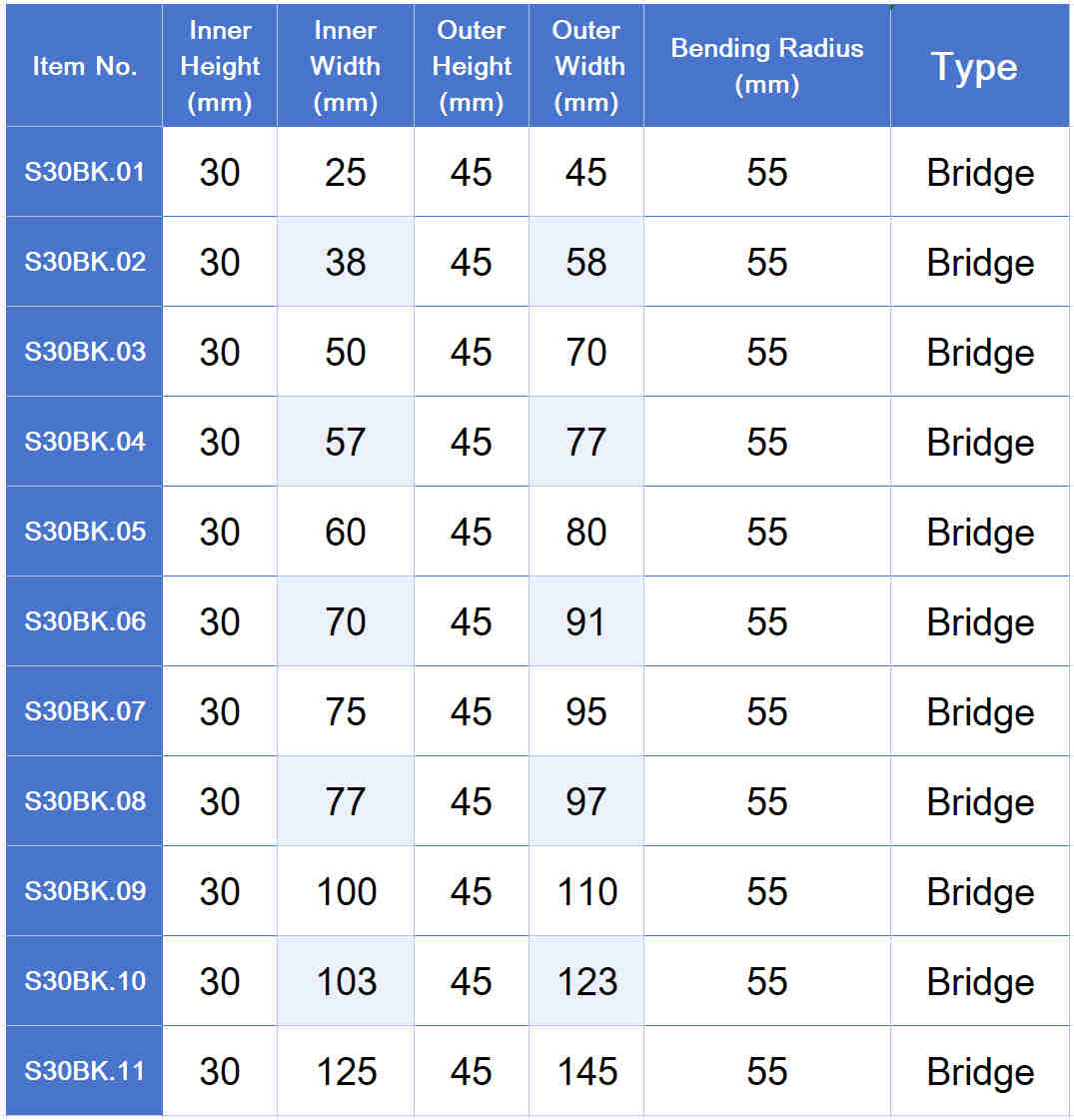

Inner height 30mm series :

Inner height 35mm series :

Inner height 45mm series :

Inner height 55mm series :

Inner height 65mm series :

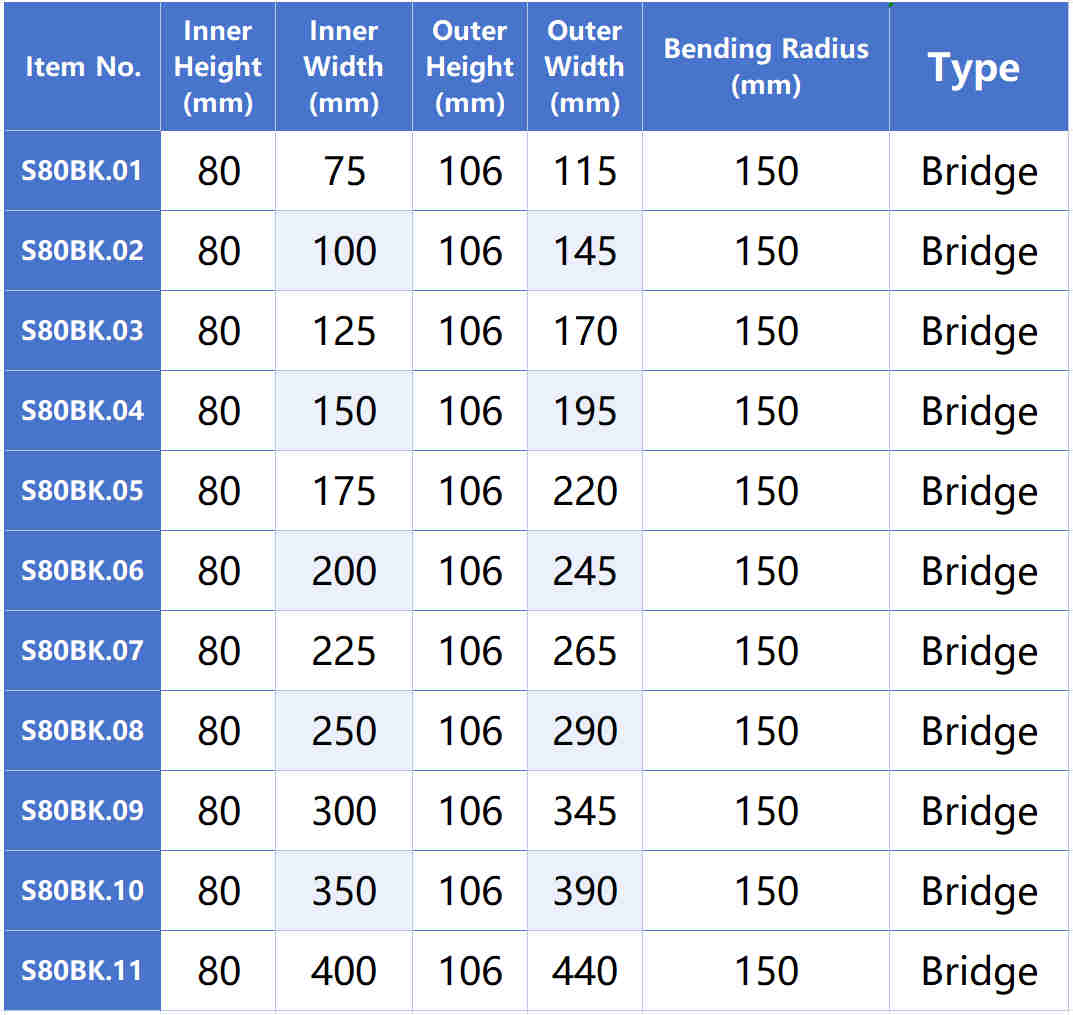

Inner height 80mm series :

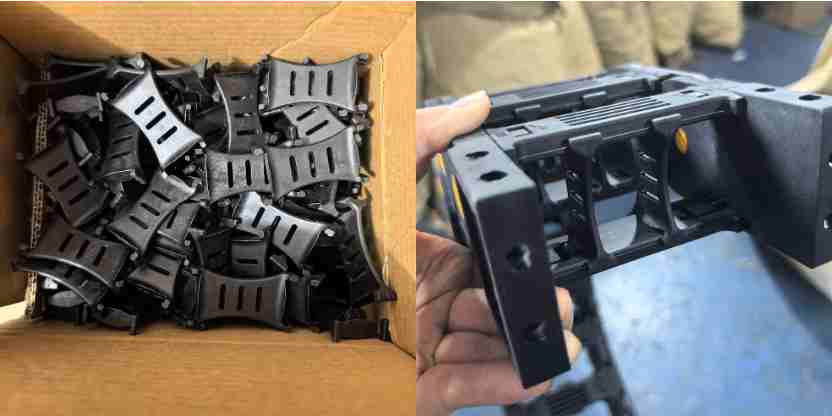

Dividers: Available as per customer requirements.

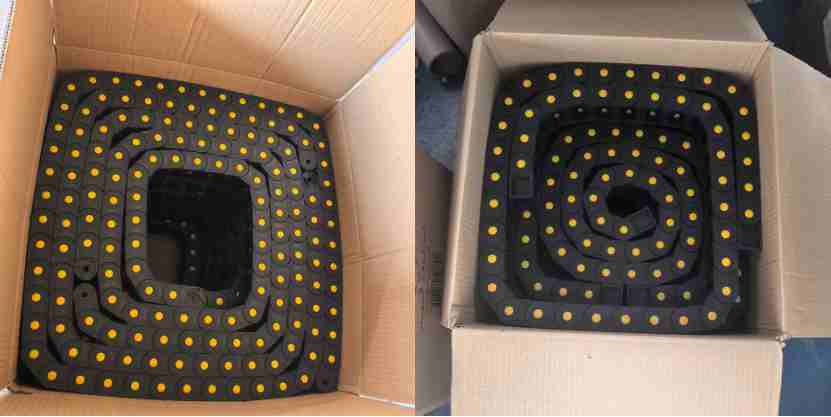

Packaging: Export carton，wooden case or wooden pallet.

Why Choose Yodel S-Type Bridge Cable Carrier ?

Yodel Technology Development Co., Ltd. – your reliable partner in nylon cable carrier solutions.

1. 15+ Years of Manufacturing Experience

We are a professional drag chain manufacturer with 15+ years of hands-on experience. Our nylon cable carriers offer stable quality, full size range, and excellent durability.

2. High Cost-Effectiveness

Factory-direct pricing with solid performance. You get great value and lower total cost without compromising reliability.

3. Large Capacity & Fast Delivery

Large-scale production base + sufficient ready stock ensure on-time delivery. We also provide safe global shipping to protect your goods along the way.
