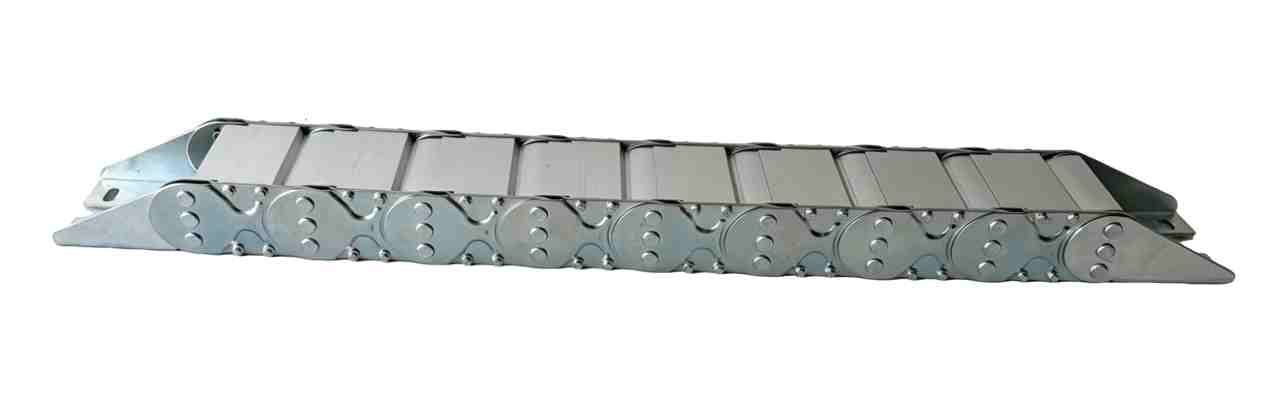

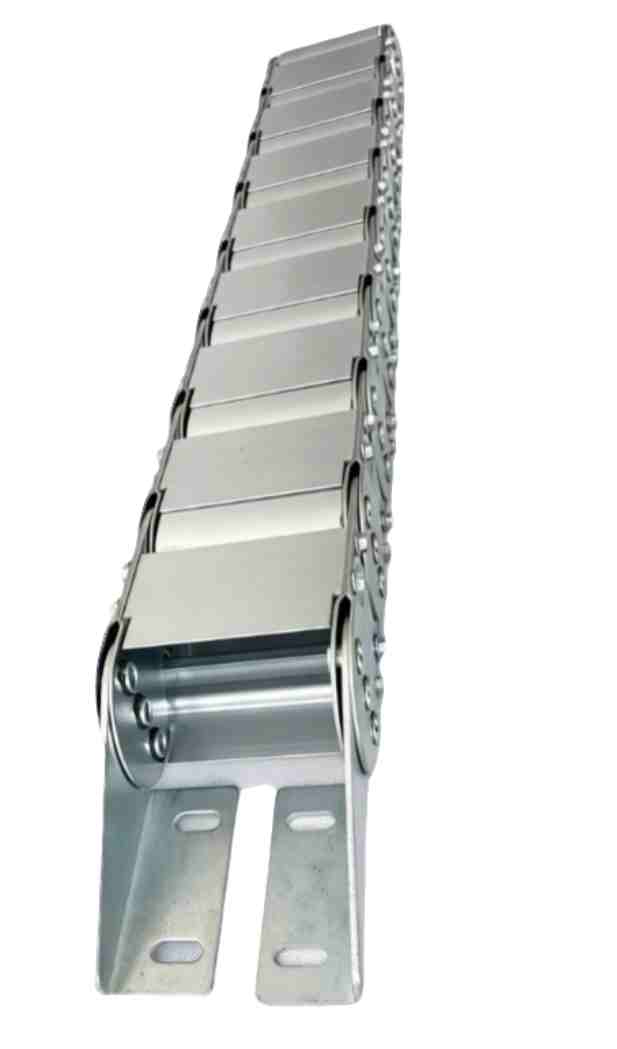

TLG Series Fully Enclosed Steel Drag Chain

Product Description：

In a CNC shop floor, metal chips fly everywhere. Coolant splashes. Dust from grinding settles into every gap. If you use an open plastic drag chain, those debris will work their way inside – jamming links, cutting into cable jackets, and eventually causing a short circuit or a stopped machine.

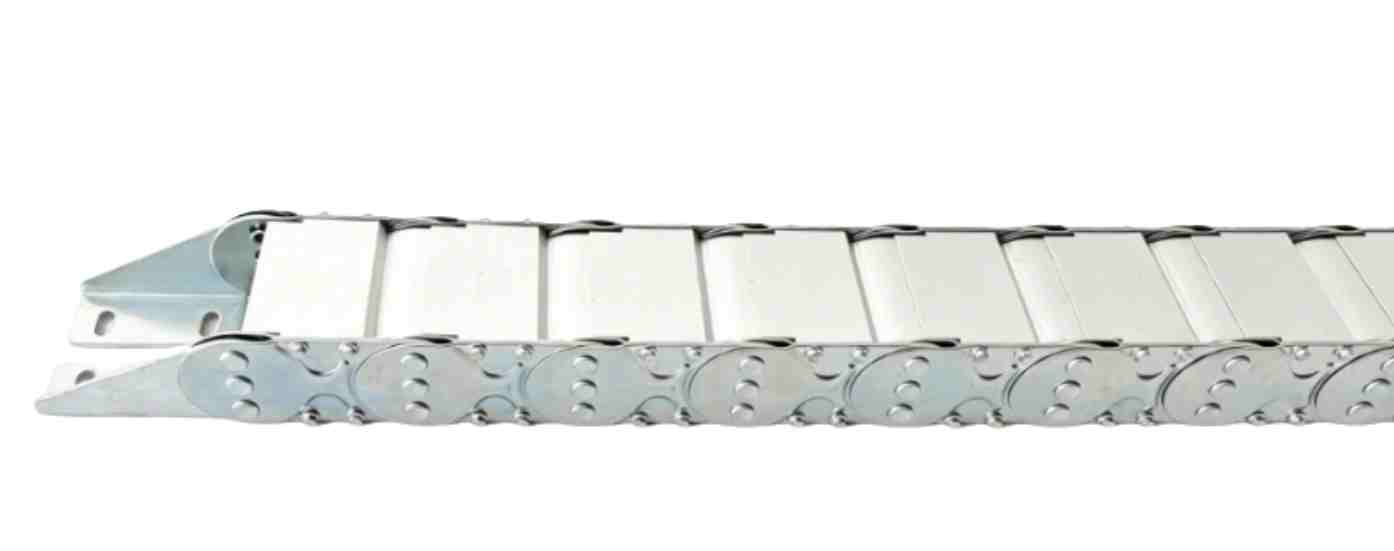

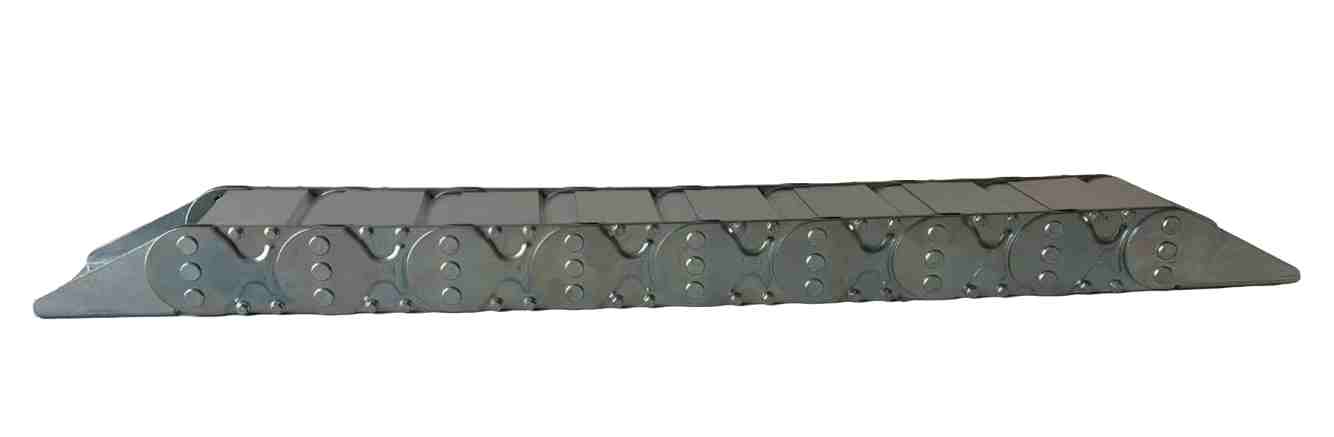

The Yodel TLG Series solves that with a fully enclosed steel body. The side plates are made from either galvanised steel (for general factory use) or 304 stainless steel (for wet, corrosive, or outdoor conditions). The top and bottom covers are steel as well, sealing the interior from falling chips and airborne dust. Inside, you still get the same aluminium crossbars as our bridge‑type chain – but now they sit inside a closed tunnel.

What makes this chain practical, not just protective? The crossbars can be pre‑drilled to match your exact cable and hose layout. Or you can snap in internal plastic separators to keep power cables away from signal lines. Once installed, you never have to worry about a stray piece of cast iron embedding itself into a moving link. The chain just runs – month after month – with less cleaning, less maintenance, and fewer unexpected stops.

For equipment that lives in the toughest part of your plant – next to a laser cutter, under a gantry mill, or outside on a port crane – the TLG fully enclosed steel drag chain is the last cable carrier you will need to buy.

Key Features ：

1. Fully enclosed with steel side plates + aluminium covers

Side plates are galvanised or stainless steel for structural strength. Top and bottom covers are lightweight aluminium alloy. No exposed gaps. Keeps metal chips, abrasive dust, coolant, and hydraulic fluid away from your cables.

2. Two steel grades for real environments

Galvanised steel: cost‑effective, suitable for most machine shops and fabrication plants.

304 stainless steel: stands up to salt water, chemical washdown, food processing, and outdoor humidity.

3. Aluminium crossbars with custom drilling

Crossbars are extruded aluminium. You can order them with pre‑drilled holes at exact positions to clamp each cable or hose individually – no loose bundling, no rubbing.

4. Internal separators (optional)

 Dividers fit inside the crossbars or between links. Create separate lanes for power, data, pneumatic, and hydraulic lines. Eliminates cross‑talk and chafing.

5. Heavy load & long travel capable

The steel body supports far higher cable weights than nylon chains of the same size. Works with support rollers for travel distances exceeding 20 meters.

Applications ：

1. CNC machining centers and metalworking equipment rely on the TLG chain to keep power cables and coolant hoses safe from hot chips, oil residue, and vibration. The sealed steel body stops debris from jamming links or cutting cable jackets.

2. Laser, plasma, and waterjet cutting machines produce fine dust, molten spatter, and water mist. The all-steel enclosed design keeps these contaminants out, while drilled aluminium crossbars hold each line in place during rapid movement.

3. Automated production lines and industrial robotics need 24/7 uptime. The TLG chain requires no lubrication, and optional internal separators prevent electrical interference between power and signal cables.

4. Meterial handling, cranes, and gantry systems often travel over 20 meters in dusty or wet conditions. With support rollers, the steel chain rolls smoothly and handles heavy cable bundles that would sag or snap a nylon chain.

5. Mining machinery, port equipment, and offshore systems face salt spray, abrasive dust, and extreme temperatures. The 304 stainless steel version resists corrosion, and the enclosed cover keeps grit out of articulation points.

6. Construction machinery, outdoor equipment, and automotive lines benefit from the steel body's impact resistance. Dropped tools or accidental bumps won't crack the chain, and pre-drilled crossbars allow quick reconfiguration.

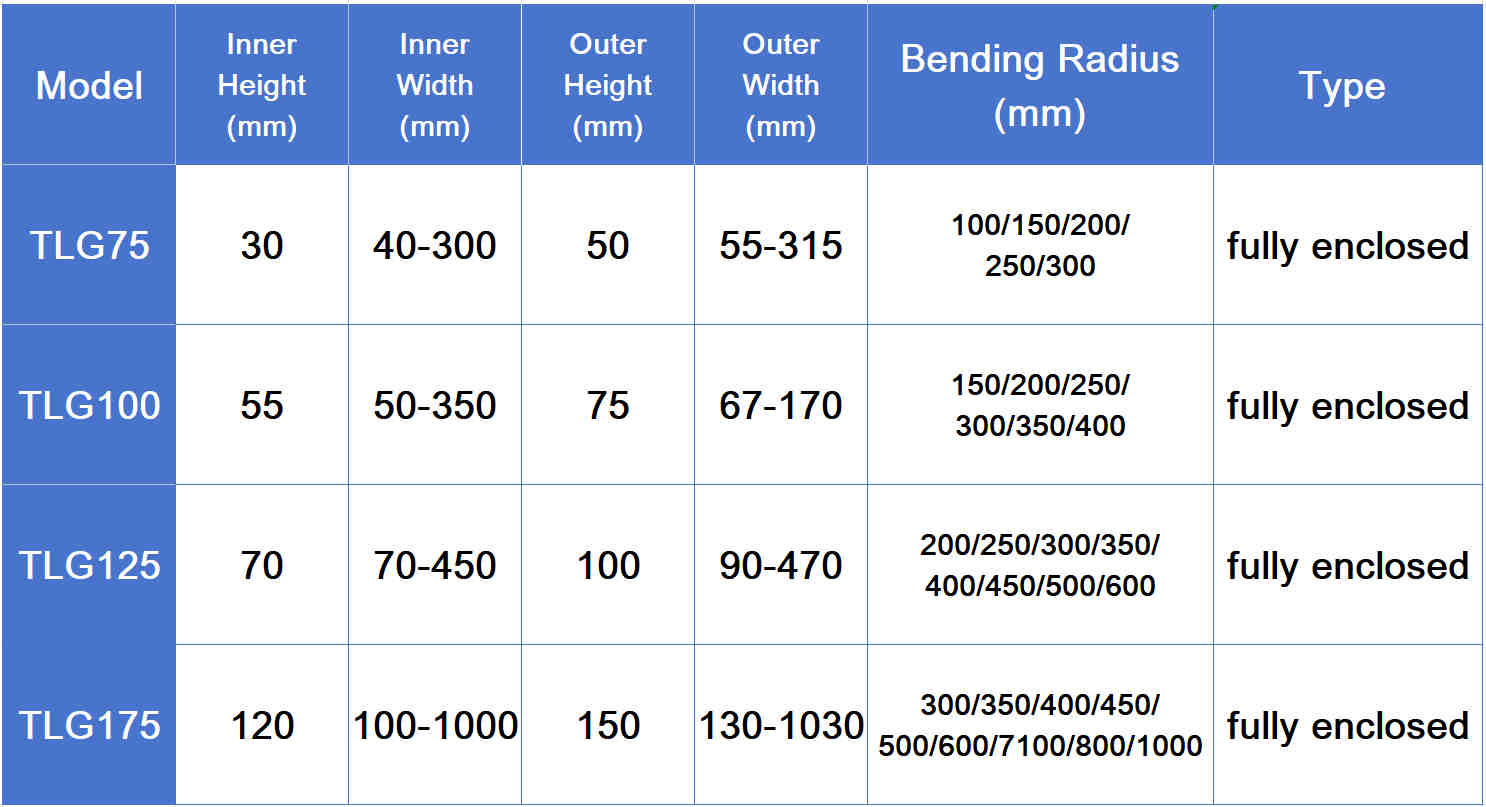

Technical Specifications & Dimension Table :

TLG75 Drawing

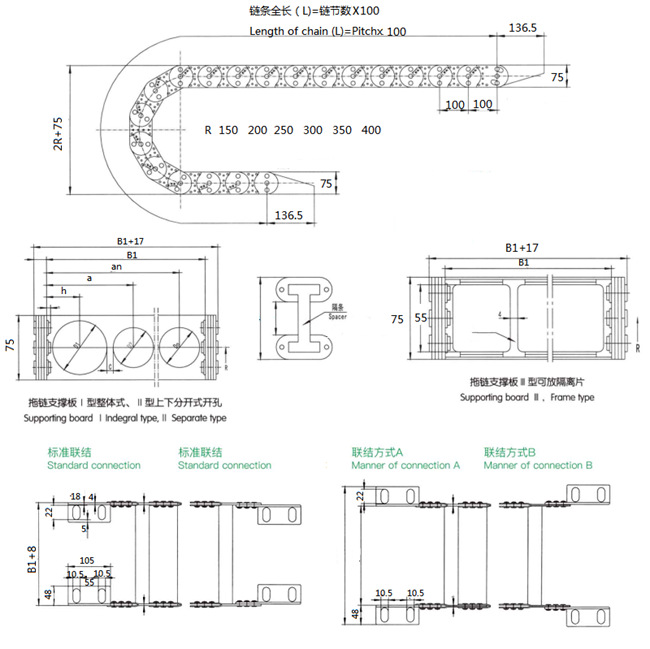

TLG100 Drawing

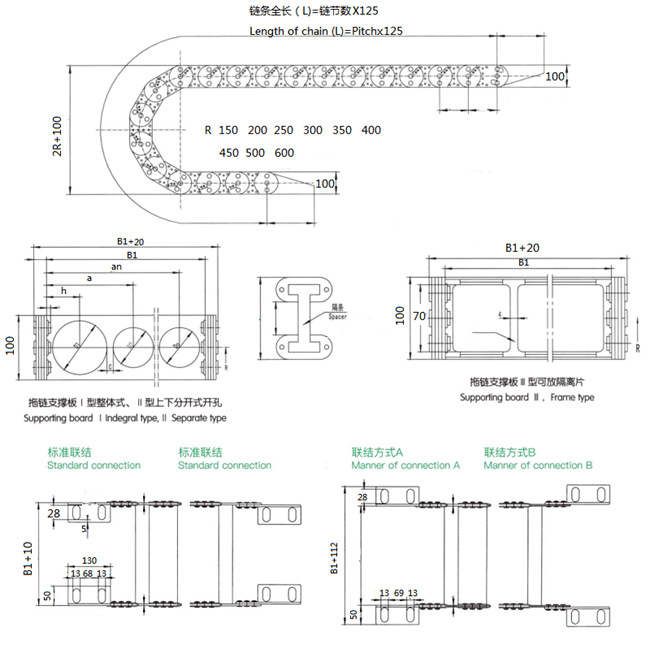

TLG125 Drawing

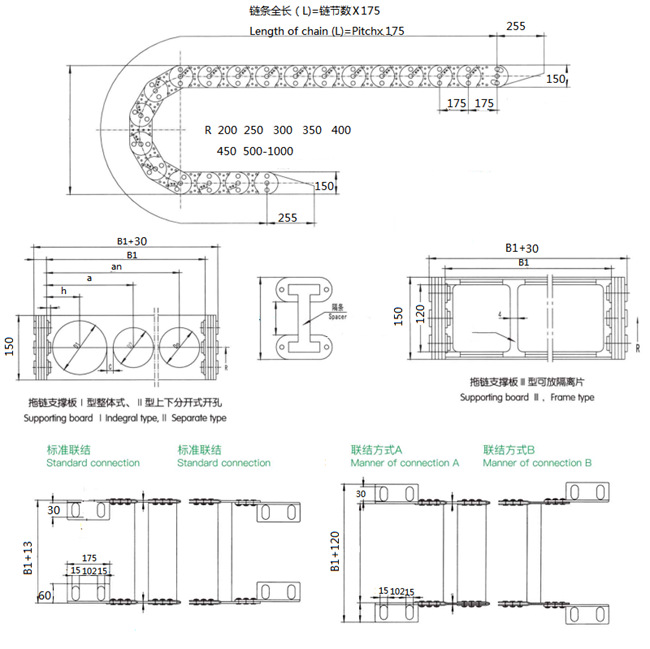

TLG175 Drawing

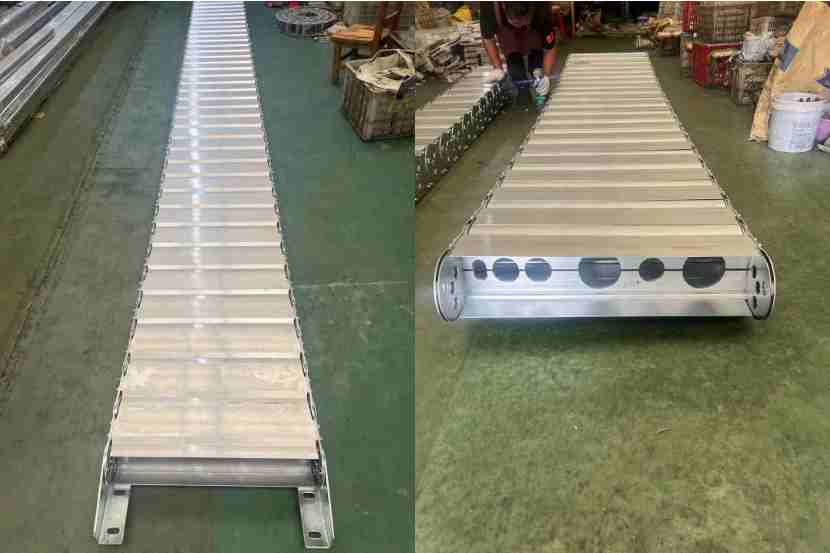

Drag Chain Assembly – Drilled & With Separators

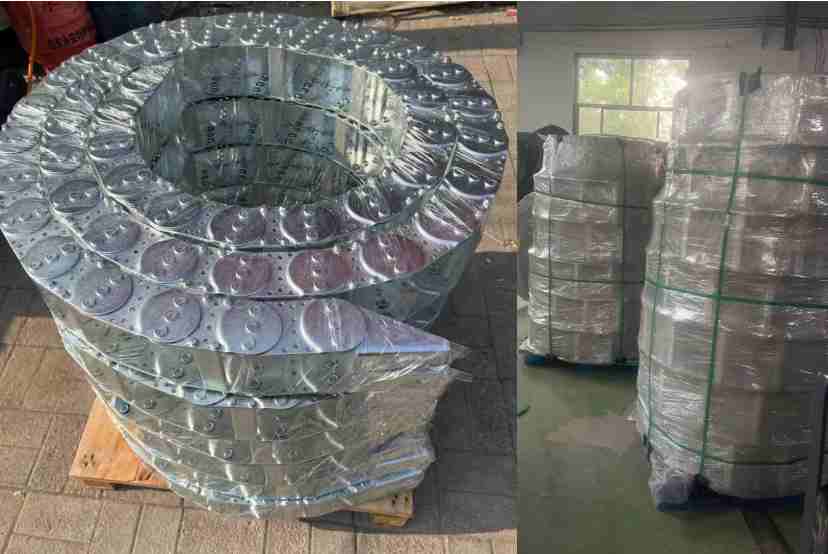

Packaging before shipment: Wooden pallet or wooden case

Why Choose Yodel Steel Cable Carrier ?

1. Seasoned Manufacturer & Proven Expertise

Yodel Technology Development Co., Ltd. has focused on cable carrier production for close to two decades. As a seasoned industrial supplier, we leverage deep manufacturing know-how to deliver products with consistent quality, full size options and outstanding long-term durability for diverse industrial applications.

2. Excellent Value for Money

All items are supplied directly from our factory, so you get fair and competitive pricing without extra middleman fees. Every steel cable carrier is built for steady performance, helping you cut down operational expenses and maximize your return on investment.

3. Mass Production Capacity & Dependable Shipping

Equipped with large manufacturing facilities and adequate inventory reserves, we stick strictly to agreed lead times for every order. We also partner with trusted global logistics providers, offering secure shipping solutions to make sure your shipments reach destinations worldwide safely and punctually.
