Multi-Axis Omnidirectional Cable Carrier – 37mm to 80mm Inner Diameter

Product Introduction :

Yodel multi-axis omnidirectional cable carrier is engineered for robotic arms and articulated motion systems requiring cable protection in all directions. Available in inner diameters from 37mm to 80mm, this series solves cable management challenges in complex, multi-axis movement applications.

Unlike standard drag chains that bend on a single plane, this carrier bends freely in 360° without dead angles. It follows the natural motion path of robotic arms and flexible machinery, preventing cable twisting, snagging, or fatigue failure.

The carrier is molded from high-strength reinforced PA66, offering excellent resistance to oil, dust, corrosion, and extreme temperatures from -40°C to +120°C. It maintains stable performance even under high-frequency, high-speed operation in harsh factory environments.

Key features ：

1. 360° Omnidirectional Flexibility
Bends freely in all directions without dead angles. Designed for complex multi-axis motion of robotic arms and flexible mechanical systems. Applies to all models from 37mm to 80mm.

2. Easy Installation & Maintenance
37mm to 70mm models feature a side-opening snap-on design for quick cable routing, inspection, and replacement. The 80mm model is fully enclosed for maximum protection.

3. Superior Industrial Durability
Resists oil, dust, corrosion, and extreme temperatures from -40°C to +120°C. Ensures long-term stable performance in harsh factory environments under high-frequency, high-speed operation.

4. High Load-Bearing Stability
Reinforced segmented structure prevents sagging, twisting, or internal cable damage. Provides reliable support for cables, wires, and hoses during continuous multi-axis movement.

Applications :

CNC Machine Tools & CNC Engraving Machines
Provides 360° flexible protection for cables, hoses, and optical fibers in complex multi-axis motion paths during precision cutting and engraving operations.

Laser Processing Equipment
Manages delicate fiber optic cables and power lines on laser cutters and engravers with omnidirectional head movement.

Robotic Arms & Automated Production Lines
Withstands multi-directional bending and torsion. Prevents cable wear and entanglement during continuous robotic arm operation and automated assembly cycles.

Packaging Machinery
Ensures reliable cable routing on high-speed packaging equipment with complex, changing motion trajectories.

3D Printers & Medical Devices
Perfect for equipment with limited installation space. Maintains stable cable routing in any direction for precision instruments.

Conveying Systems & Woodworking Machinery

Extends service life of cables and hoses through all-directional flexible protection in dusty or high-vibration environments.

Automotive Production Equipment & Precision Testing Instruments

Supports repetitive multi-axis testing and assembly motions without cable fatigue or failure.

Dimension Table :

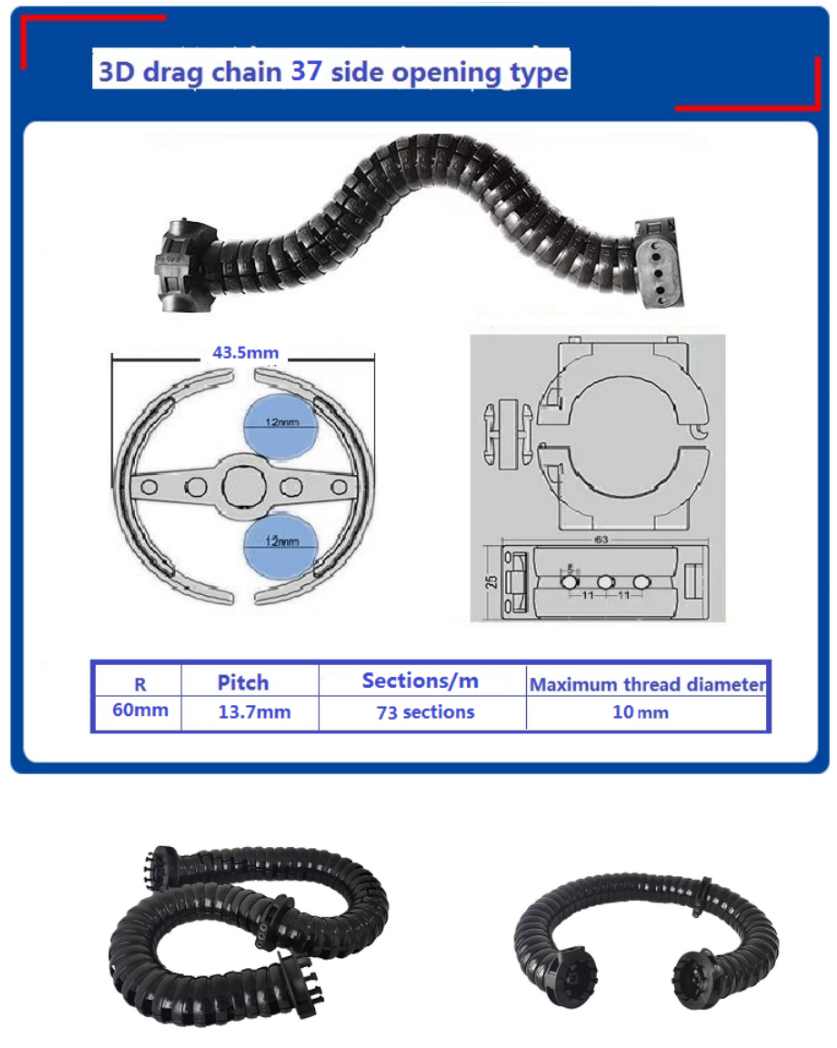

Inner diameter 37mm (side-opening)

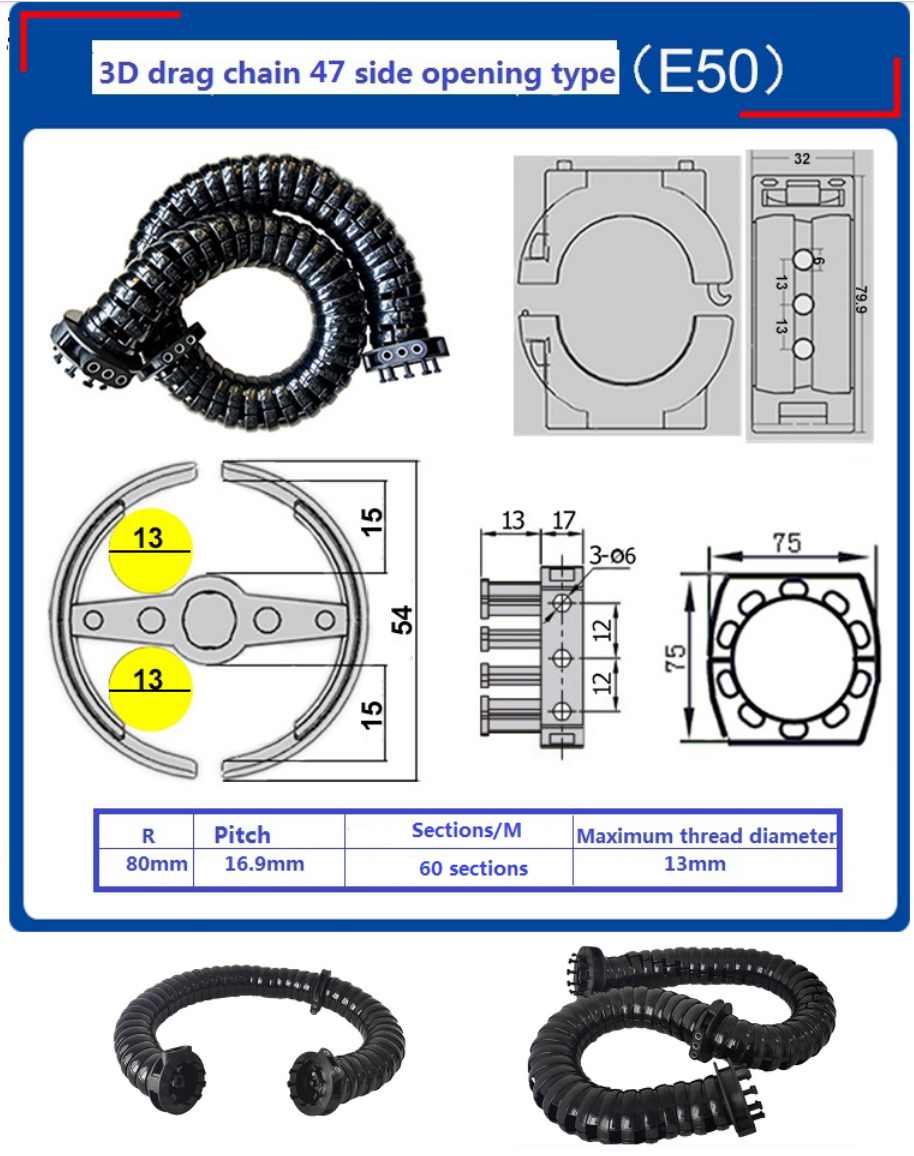

Inner diameter 47mm (side-opening)

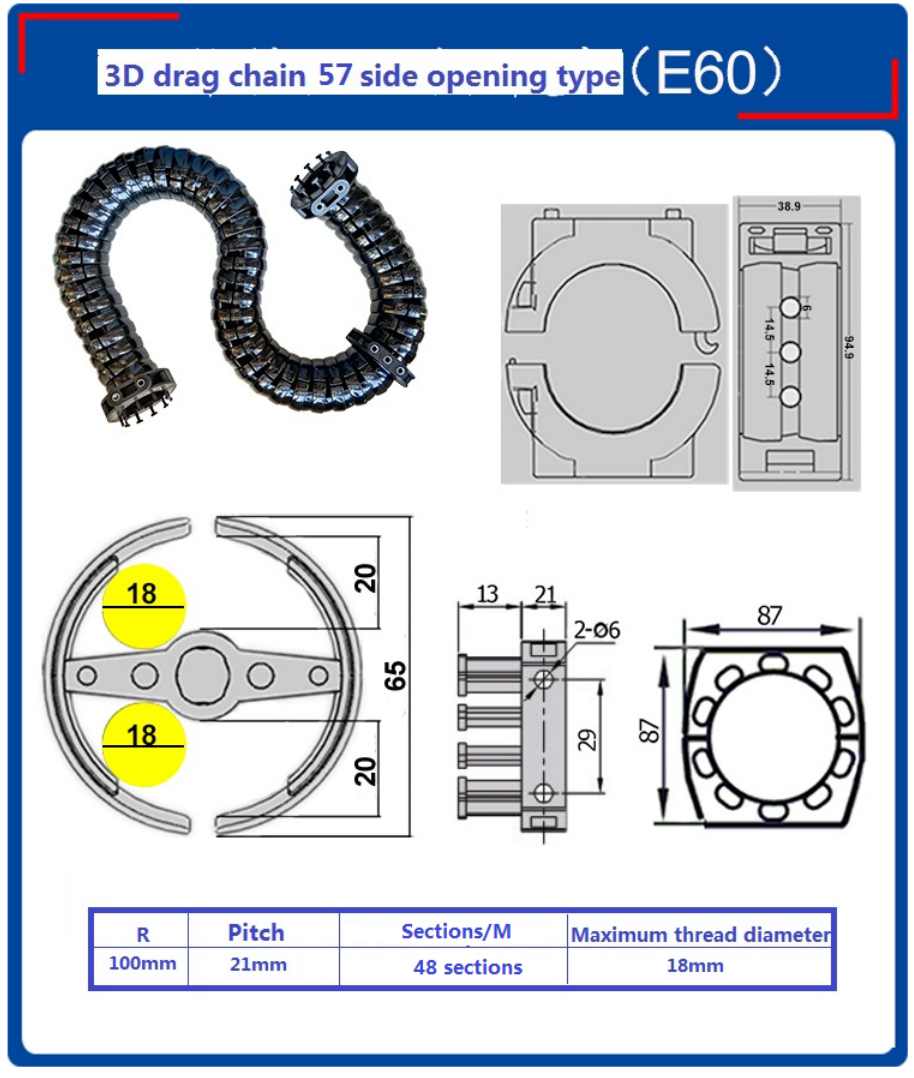

Inner diameter 57mm (side-opening)

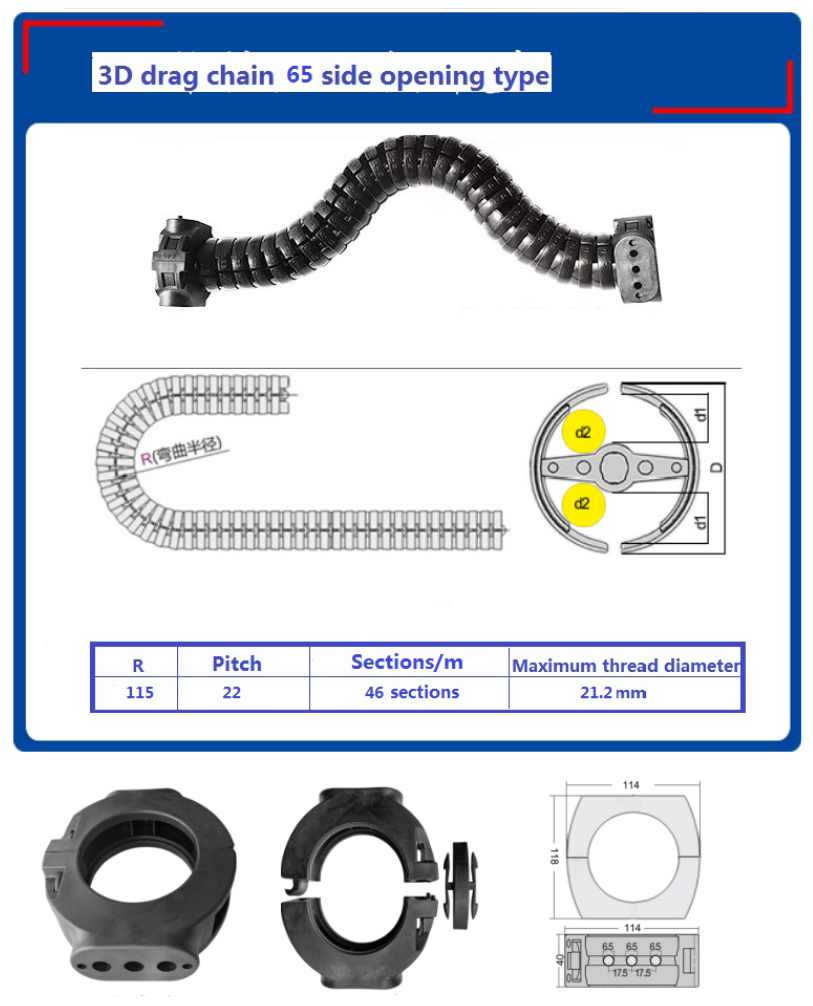

Inner diameter 65mm (side-opening)

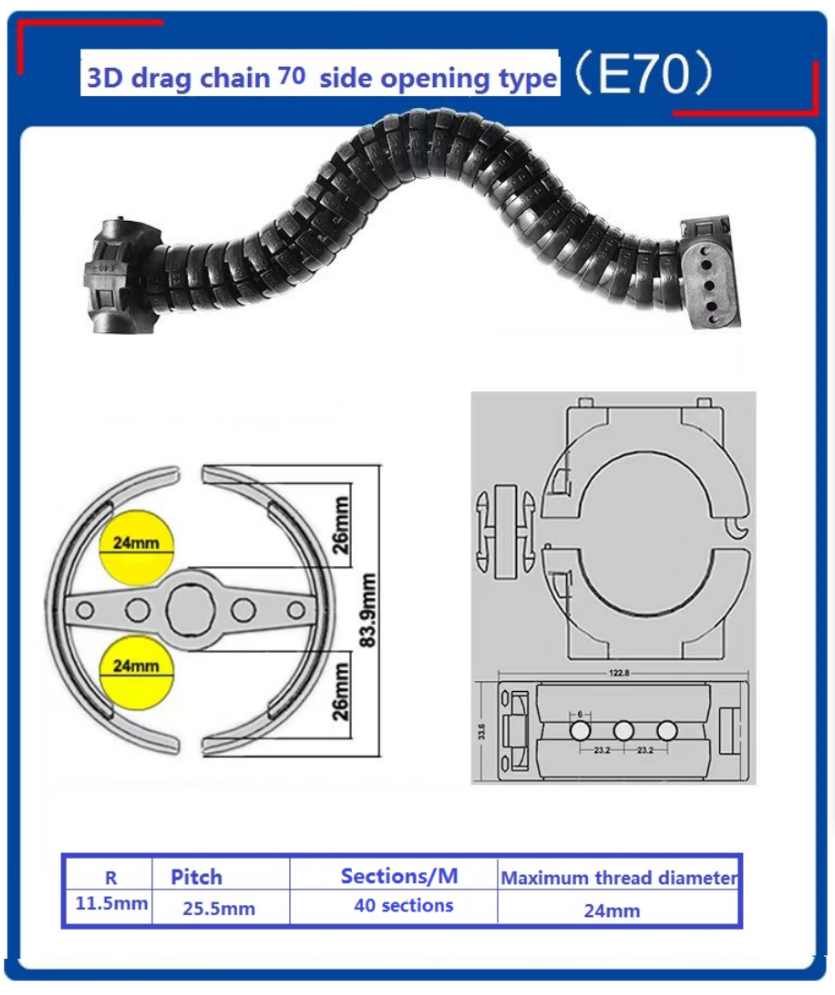

Inner diameter 70mm (side-opening)

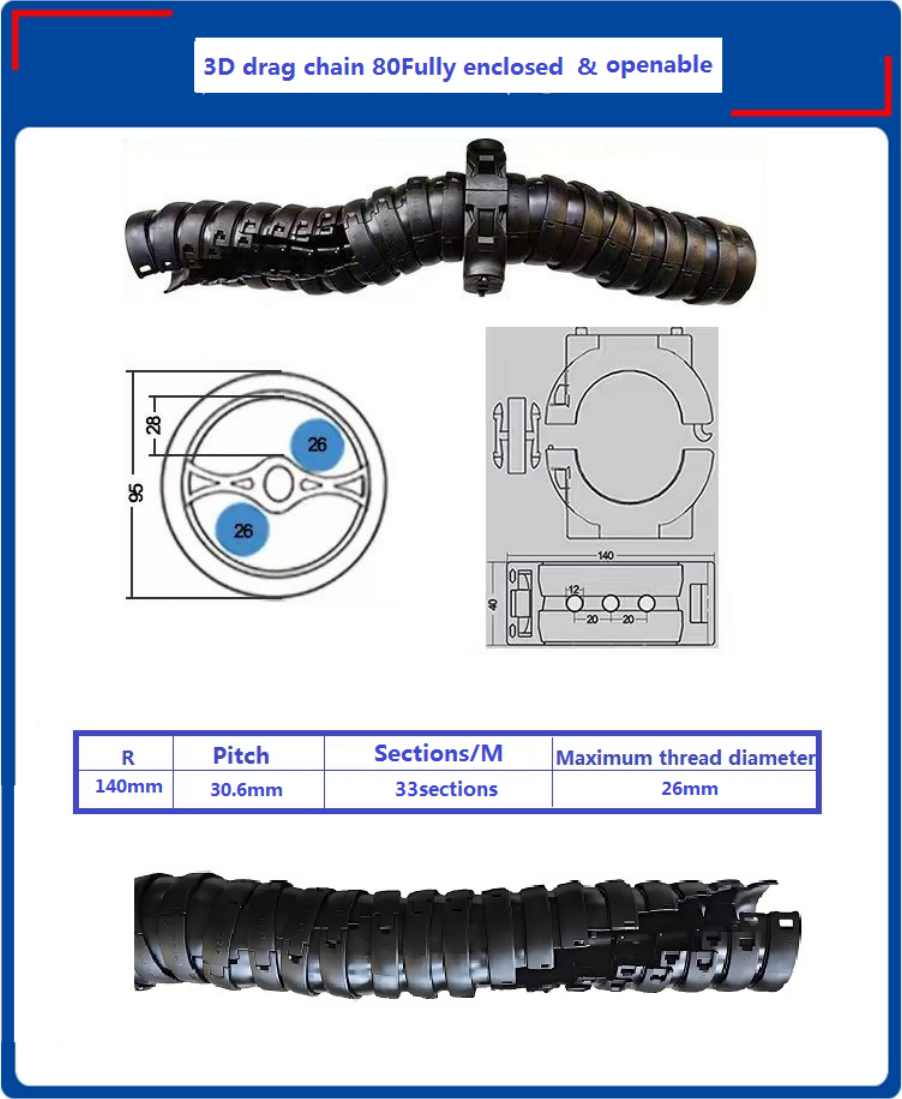

Inner diameter 80mm (fully-enclosed)

connector type :

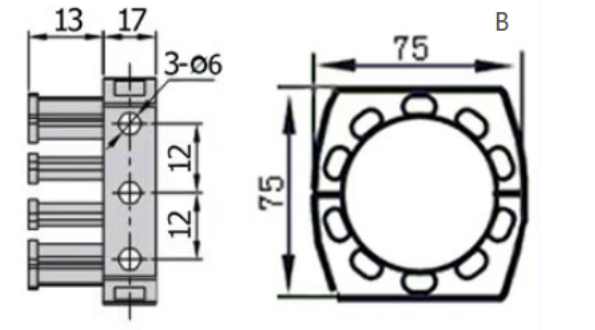

Connector A is compatible with all multi-axis cable carriers with an inner diameter ranging from 37mm to 80mm.

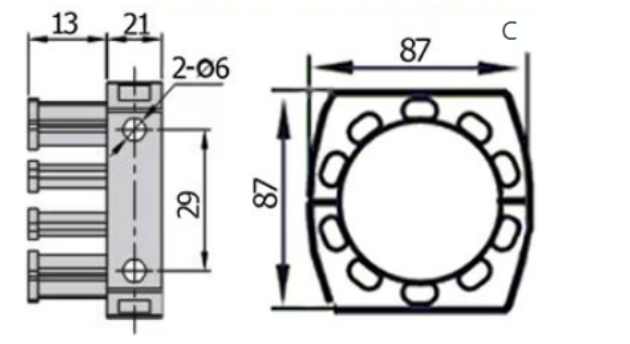

and the multi-axis cable carrier with an inner diameter of 57mm is also compatible with Type C connector.

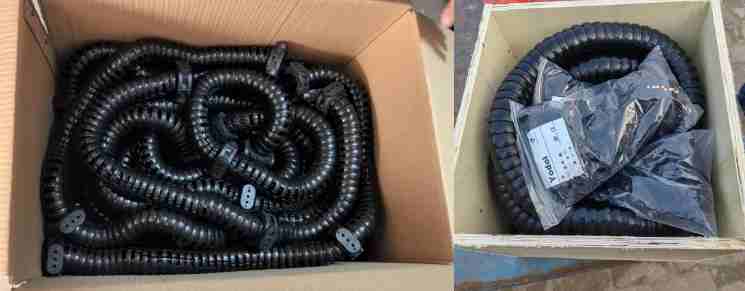

Packaging: Export carton wooden case or wooden pallet.
