25mm Silent Cable Carrier – Low Noise Drag Chain for Precision Automation

Product Description ：

Yodel 25mm inner height silent cable carrier is engineered for industrial automation where noise control is critical. The carrier is molded from PA66+GF — PA66 reinforced with glass fiber — which provides higher strength, better heat resistance, and improved dimensional stability compared to standard nylon.

This carrier uses an open-frame structure that keeps cables accessible while maintaining quiet operation. Arc-shaped hinge joints reduce contact surfaces between links, minimizing friction and impact noise. Standard units operate at 55 to 65 decibels — similar to normal conversation or a quiet library. Premium versions run at ≤30 dB, making them suitable for noise-sensitive environments like medical labs and semiconductor cleanrooms.

The PA66+GF material enables the drag chain to resist wear and handle speeds of 3 to 5 meters per second with low vibration. The open-frame design supports cables and hoses firmly, preventing sagging or tangling during long-term continuous operation.

Key features ：

1. Ultra-Low Noise Output
Standard models run at 55-65 dB, equivalent to a quiet conversation. High-grade versions reach ≤30 dB for sound-sensitive workplaces.

2. Arc Hinge Articulation
Curved hinge points minimize contact between links. Smaller pitch creates smoother, quieter motion with less friction and impact.

3. High-Speed Performance
Supports speeds up to 3-5 m/s under high acceleration. Delivers stable tracking, low vibration, and extended service life.

4. PA66+GF Material Strength
Glass fiber reinforced PA66 offers enhanced tensile strength, heat resistance up to 120°C, and excellent dimensional stability.

5. Open-Frame Sturdy Design
Provides firm support for cables and hoses. Prevents drooping or entanglement. Allows easy cable access without full disassembly.

Applications ：

Laser Engraving & Cutting Machines
Provides quiet cable guidance during high-speed reciprocating motion. PA66+GF material resists heat and wear. Ideal for laser systems in studio or office settings.

Semiconductor & Electronic Assembly
Delivers low-noise cable routing with 25mm clearance. Glass fiber reinforced construction ensures dimensional stability in cleanroom environments.

Medical Testing & Lab Automation
Meets quiet operation needs of diagnostic analyzers, liquid handlers, and lab robotic workstations. PA66+GF provides long-term reliability.

Small CNC Machines & Robotic Arms
Reduces cable movement noise on compact milling machines, engravers, and light-duty articulated arms. Reinforced material handles repeated motion.

Precision Measurement Instruments
Fits optical inspection systems and quality control stations where vibration and sound must stay low.

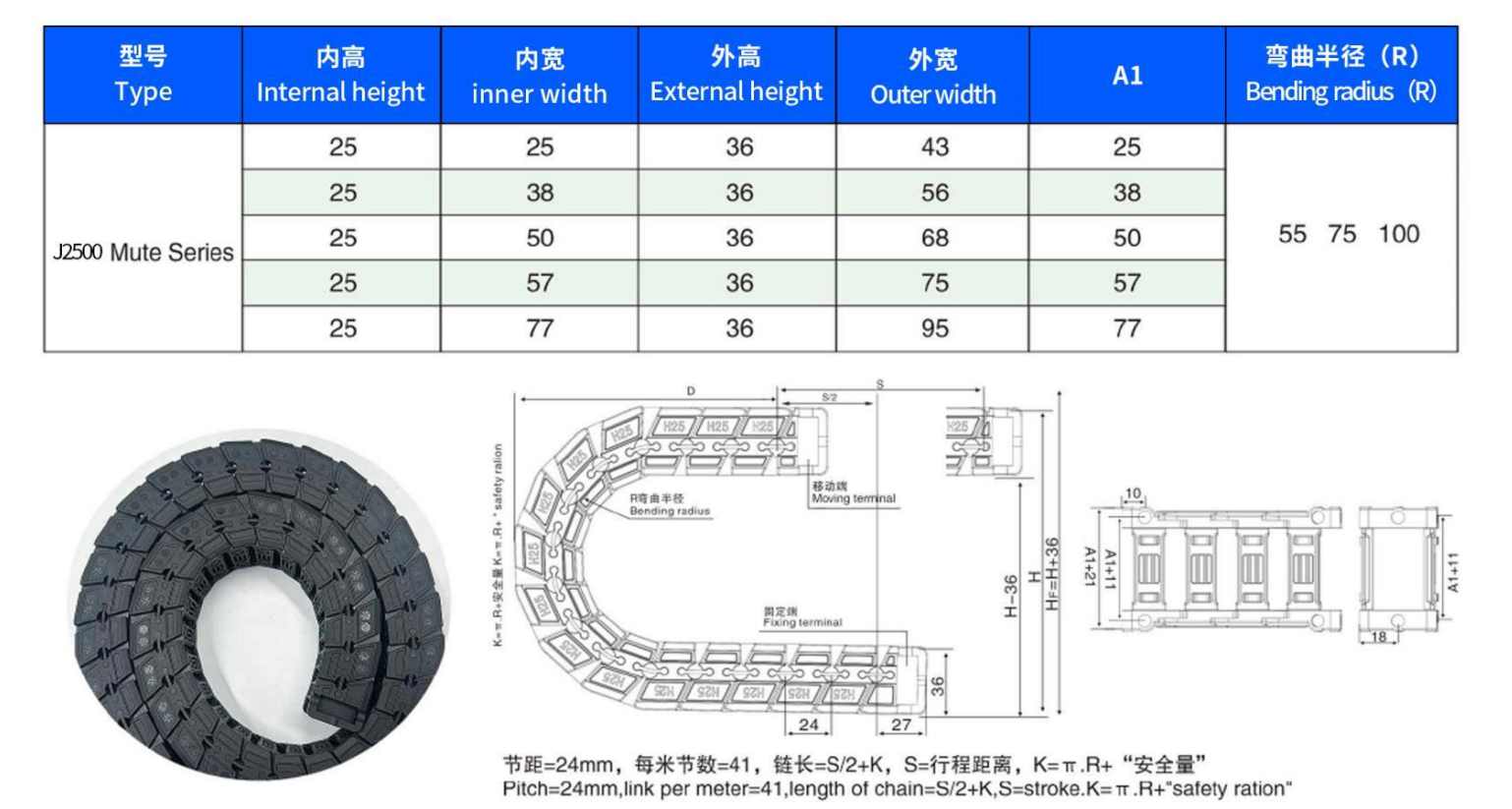

Technical Specifications & Dimension Table :

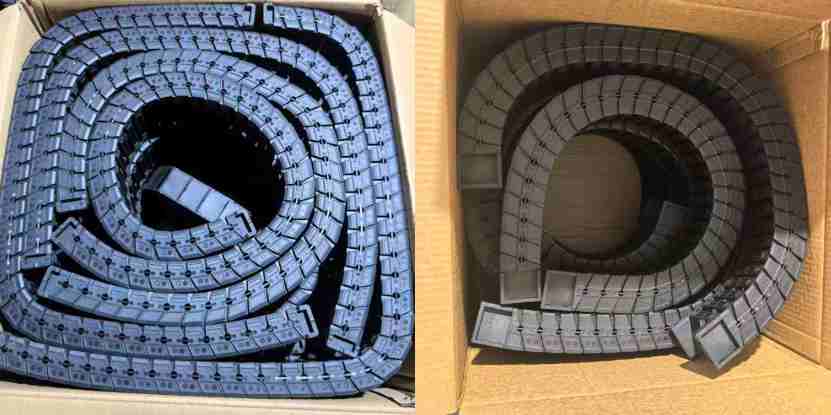

Packaging: Carton, wooden case or wooden pallet.

Why Choose Yodel Low Noise Cable Carrier ?

Yodel Technology Development Co., Ltd. – your reliable partner in nylon cable carrier solutions.

1. 15+ Years of Manufacturing Experience

We are a professional drag chain manufacturer with 15+ years of hands-on experience. Our nylon cable carriers offer stable quality, full size range, and excellent durability.

2. High Cost-Effectiveness

Factory-direct pricing with solid performance. You get great value and lower total cost without compromising reliability.

3. Large Capacity & Fast Delivery

Large-scale production base + sufficient ready stock ensure on-time delivery. We also provide safe global shipping to protect your goods along the way.
