80mm & 100mm Large PA66+GF Nylon Cable Carrier – Glass Fiber Reinforced Drag Chain | Yodel Technology

Key Features ：

• Two inner height options – 80mm and 100mm – to accommodate different cable and hose diameters

• Three structure types for 80mm series – bridge (all sizes), fully enclosed, and semi-enclosed (partial sizes)
• 100mm series – bridge type only, offering easy access and good thermal dissipation
• Excellent wear resistance – glass fiber reinforcement reduces surface friction and extends service life
• High dimensional stability – minimal expansion or contraction under temperature fluctuations
• Low-noise operation – optimized pitch design reduces vibration and noise during movement
• Wide temperature tolerance – performs reliably from -40°C to +120°C
• Easy maintenance – snap-open crossbars (on bridge type) allow quick cable installation and replacement
• Tool-free assembly – modular design enables fast assembly without specialized equipment

Applications ：

• Heavy-duty CNC machine tools & large machining centers – 80mm enclosed version effectively resists metal chips and cutting fluids

• Industrial robots & automated handling systems – provides reliable cable guidance for multi-axis motion

• Heavy-duty material handling & logistics equipment – supports continuous flexing in conveyor and sorting systems

• Woodworking machinery – semi-enclosed 80mm carrier prevents dust accumulation

• Injection molding machines – handles hydraulic hoses and control cables with stable performance

• Dusty or coolant-rich environments – recommended to use fully enclosed or semi-enclosed 80mm carriers

• Clean assembly lines – 100mm bridge type offers easy maintenance and good heat dissipation

• High-temperature workshops – PA66+GF provides better heat resistance than standard PA66

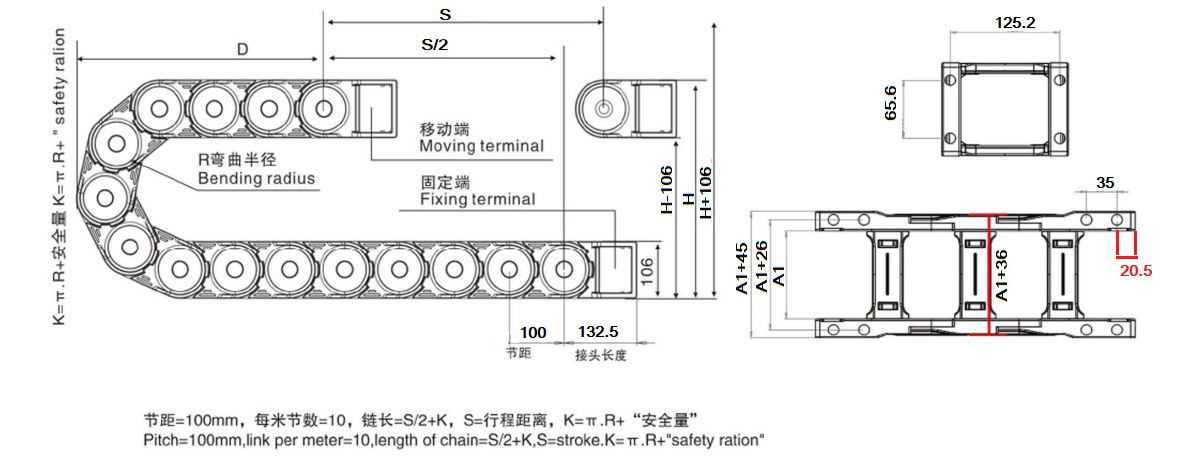

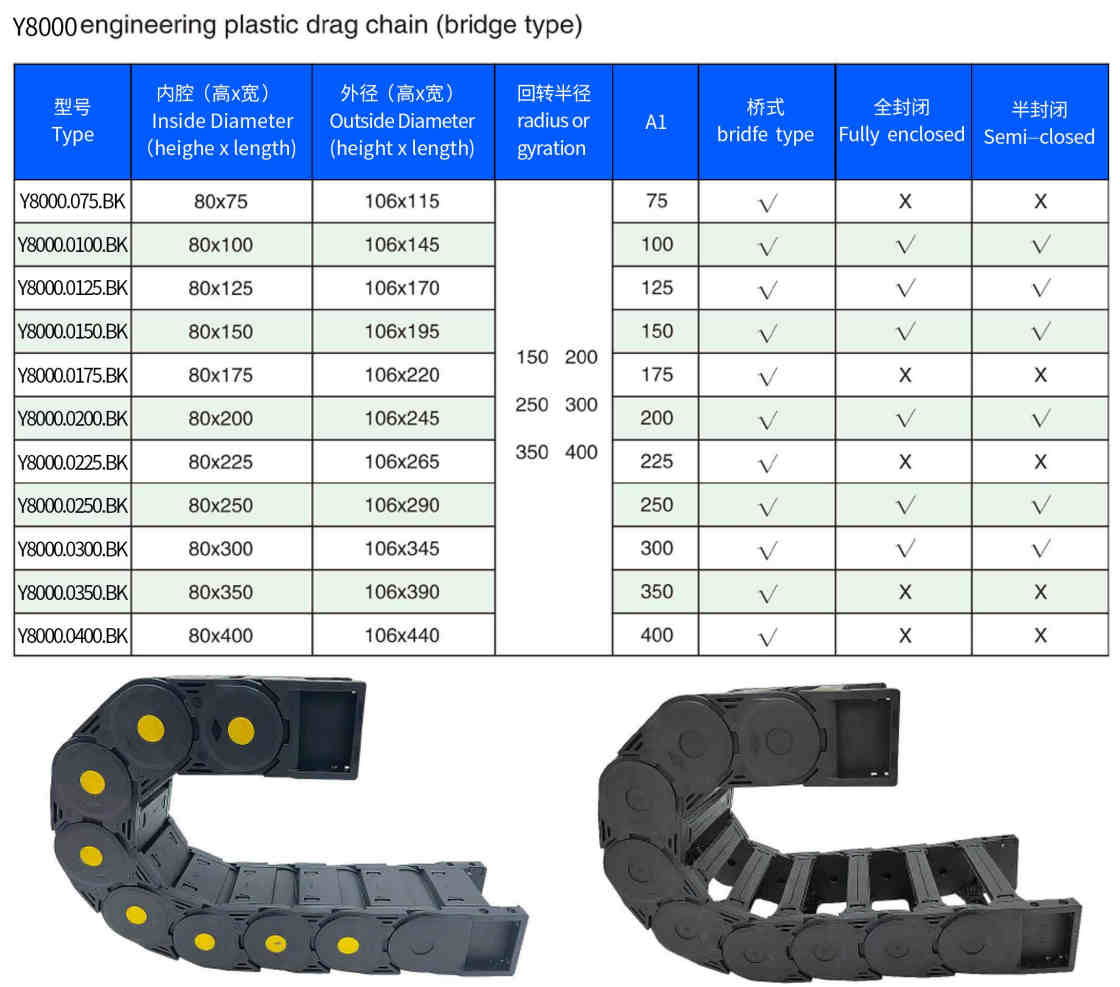

Inner height 80mm series

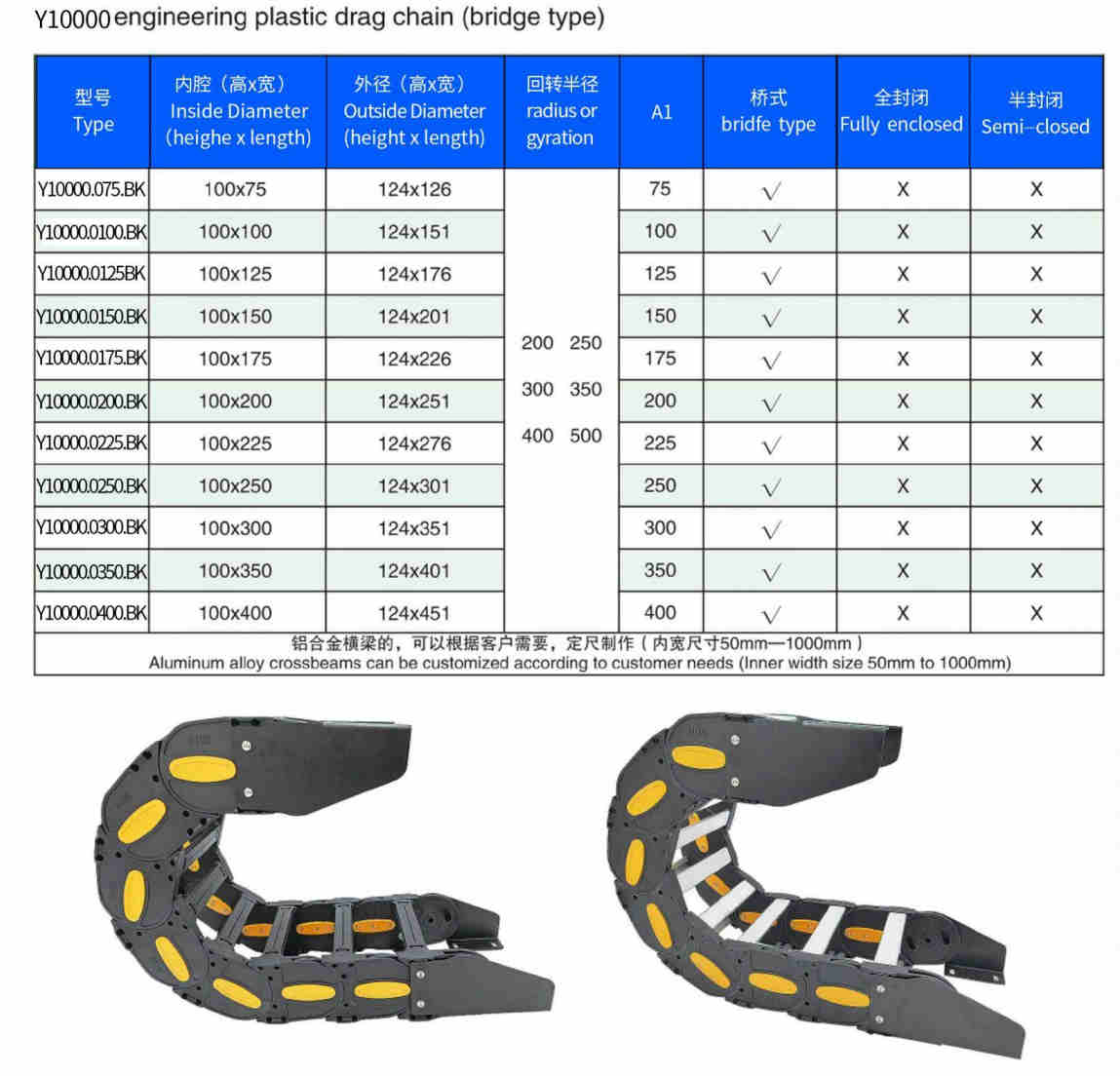

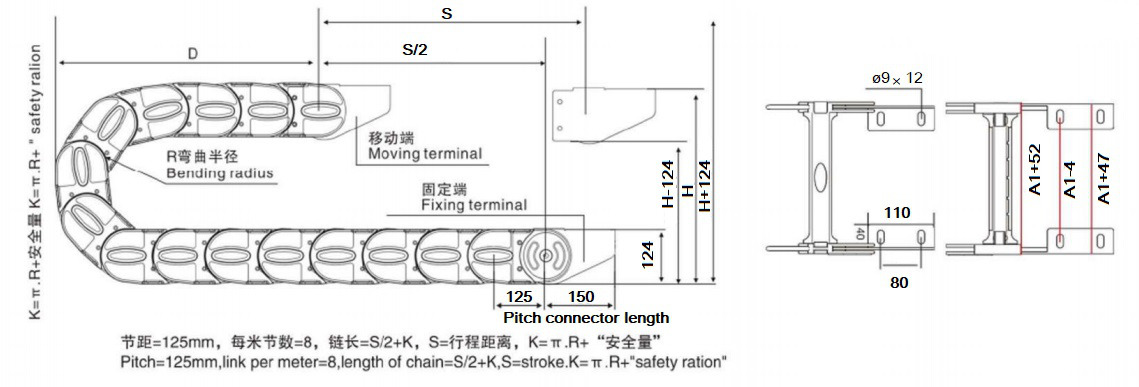

Inner height 100mm series

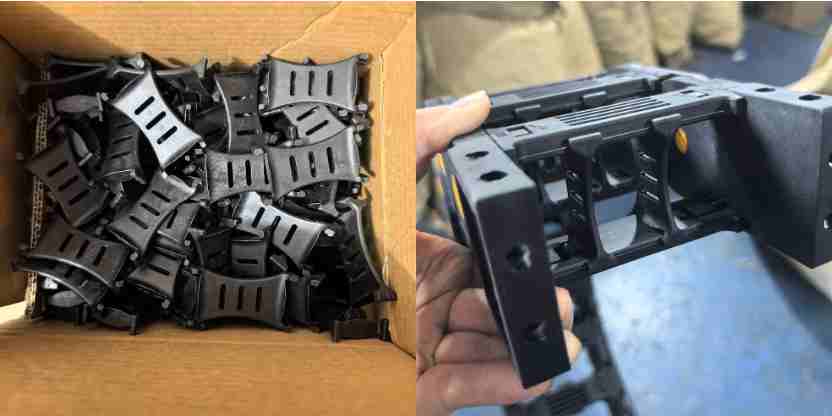

Dividers: Available as per customer requirements.

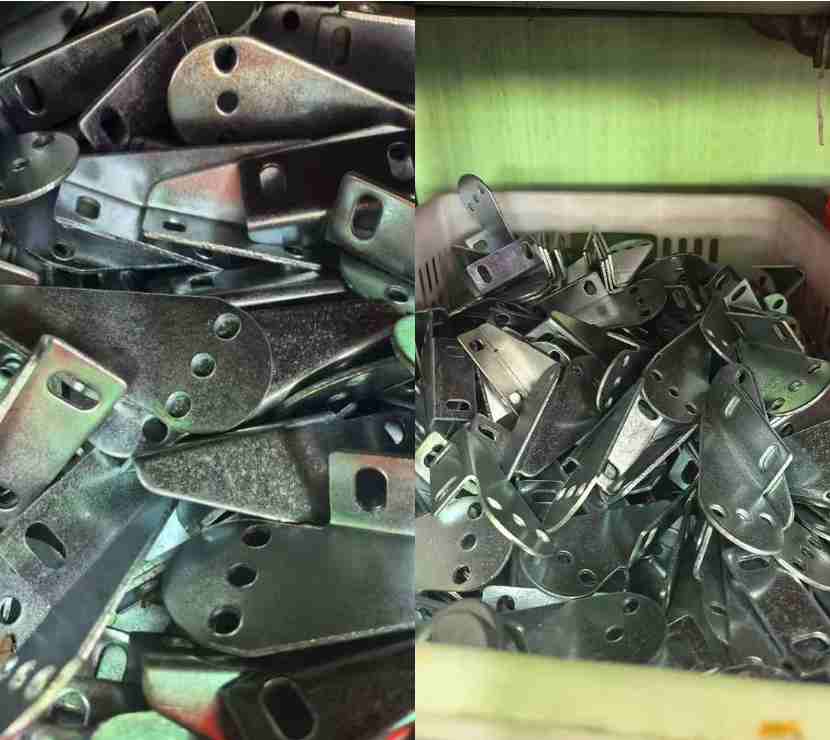

Connectors：Nylon Connectors and Steel Connectors Available

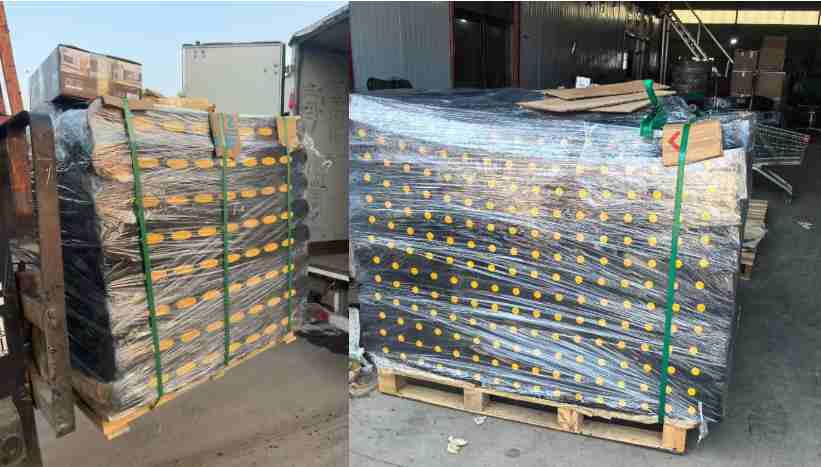

Packaging: wooden case or wooden pallet.

Why Choose Yodel Nylon Cable Carrier ?

Yodel Technology Development Co., Ltd. – your reliable partner in nylon cable carrier solutions.

1. 15+ Years of Manufacturing Experience

We are a professional drag chain manufacturer with 15+ years of hands-on experience. Our nylon cable carriers offer stable quality, full size range, and excellent durability.

2. High Cost-Effectiveness

Factory-direct pricing with solid performance. You get great value and lower total cost without compromising reliability.

3. Large Capacity & Fast Delivery

Large-scale production base + sufficient ready stock ensure on-time delivery. We also provide safe global shipping to protect your goods along the way.
