Product Introduction

Yodel Technology Development Co., Ltd. offers a compact cable carrier series sized for equipment that needs more internal clearance than miniature chains provide but cannot accommodate full-sized industrial drag chains. Internal height options stand at 20mm, 25mm, 30mm, and 35mm.

The base material is PA66 reinforced with glass fiber. This composite delivers mechanical strength while keeping the carrier operational between -40°C and +120°C, covering cold storage applications and machinery near heat sources.

Bridge-type construction applies across all four sizes. Fully enclosed and semi-closed covers are available on select sizes.

Key Features

Temperature Resilience – The PA66 + fiberglass compound does not turn brittle at -40°C nor soften at +120°C. This wide window suits outdoor installations, freezer-bound equipment, and production lines adjacent to ovens.

Motion Behavior – Link geometry reduces vibration during travel. Sliding surfaces stay flush, which keeps noise low and prevents uneven wear on the carrier or the cables inside.

Oil and Chemical Resistance – Glass-reinforced PA66 resists degradation from lubricants, coolants, and solvents commonly found on automated assembly floors.

Customizable Dividers – Internal separators can be added or repositioned based on how many cables, wires, or hoses run through the chain. Each bundle stays in its own lane, reducing mutual rubbing.

Enclosure Choices – Bridge-type (open top) is standard for all four heights. Fully enclosed (complete cover) and semi-closed (partial cover) are available for selected sizes.

Long Service Life – The glass fiber reinforcement improves creep resistance and dimensional stability, helping these compact drag chains outlast the cables they protect.

Applications

CNC Machining – Routers, mills, engravers, plasma cutters, PCB engravers

3D Printing – Large-format printers, filament feeders, gantry systems

Robotics – Small robotic arms, SCARA, Delta, cobots, linear modules

Laser Equipment – Engravers, cutters, marking machines, cleaning heads

Electronics Manufacturing – PCB assembly, SMT feeders, automated test equipment

Automated Assembly – Transfer systems, indexing conveyors, screwdriving modules

Precision Instruments – Vision inspection, CMM, laser calibration, microscope stages

Medical Devices – Sample handlers, diagnostic analyzers, lab automation

Semiconductor – Die bonders, wire bonders, wafer handlers, probe stations

Packaging Machinery – Bagging machines, labelers, fillers, cartoners

Textile Machinery – Embroidery heads, cutting tables, quilting gantries

Woodworking – CNC routers, edge banders, carving machines

Dimension Table:

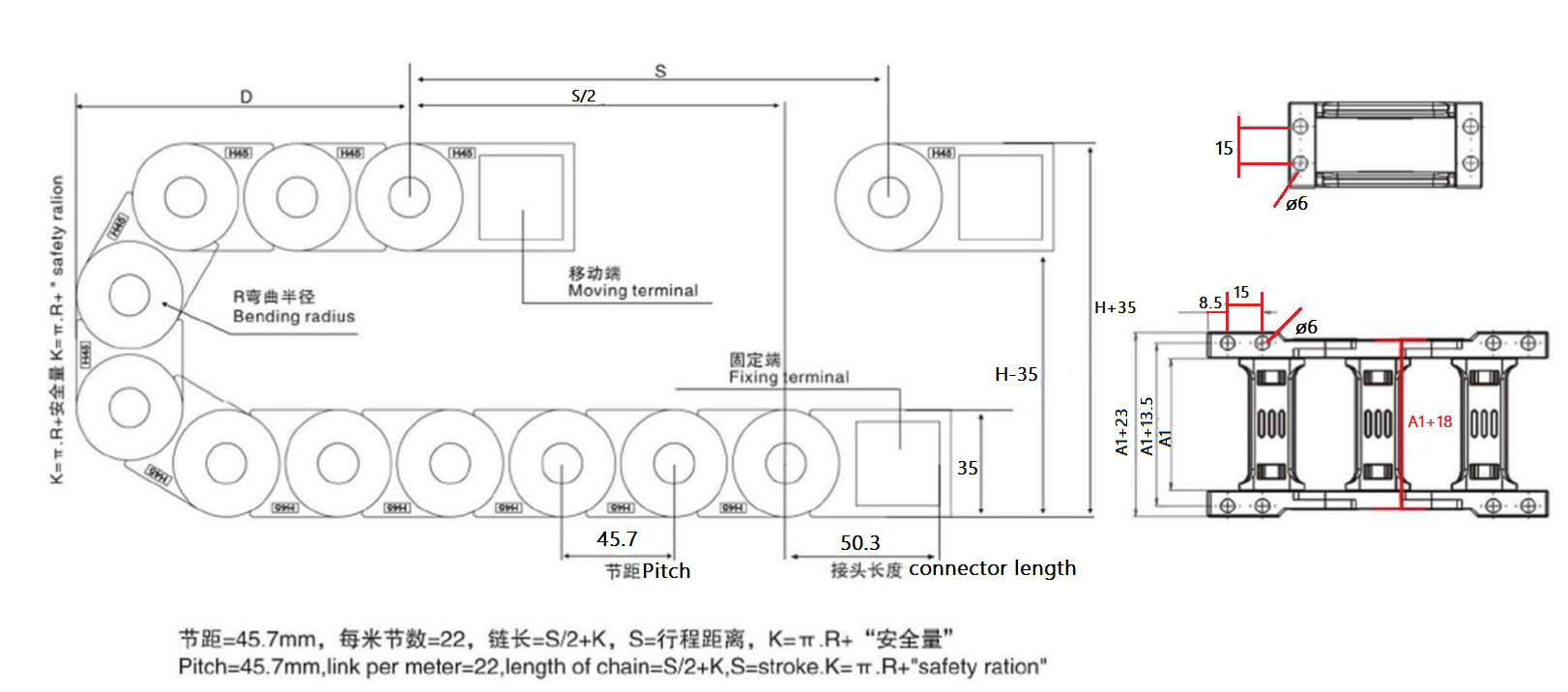

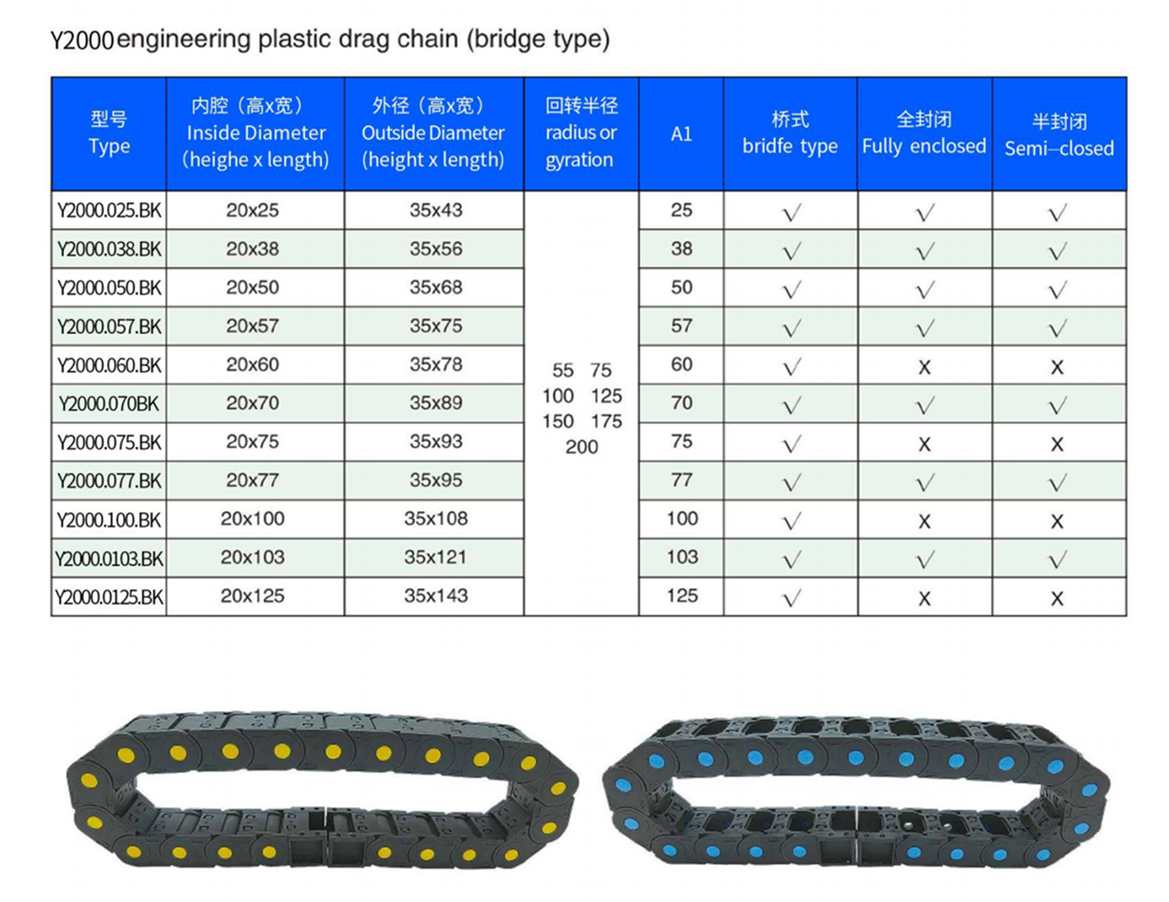

Inner height 20mm series

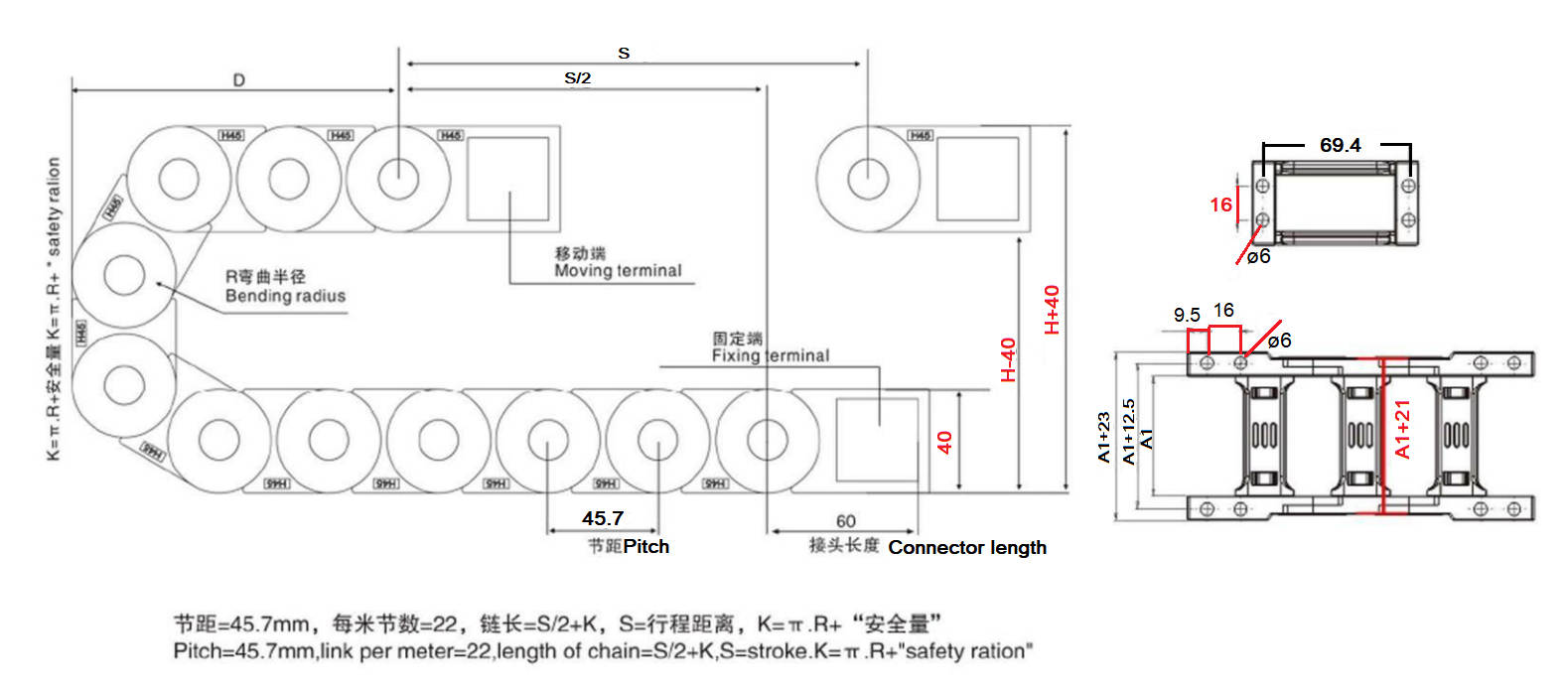

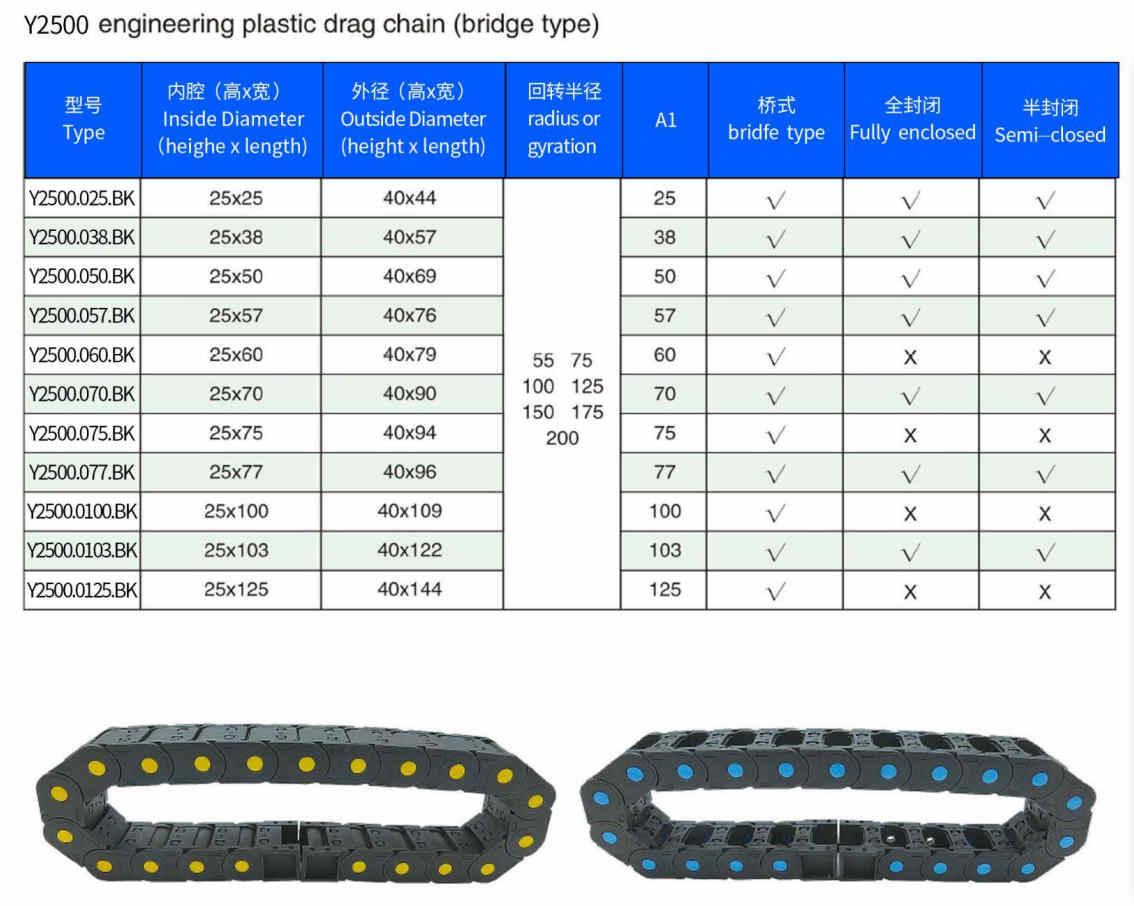

Inner height 25mm series:

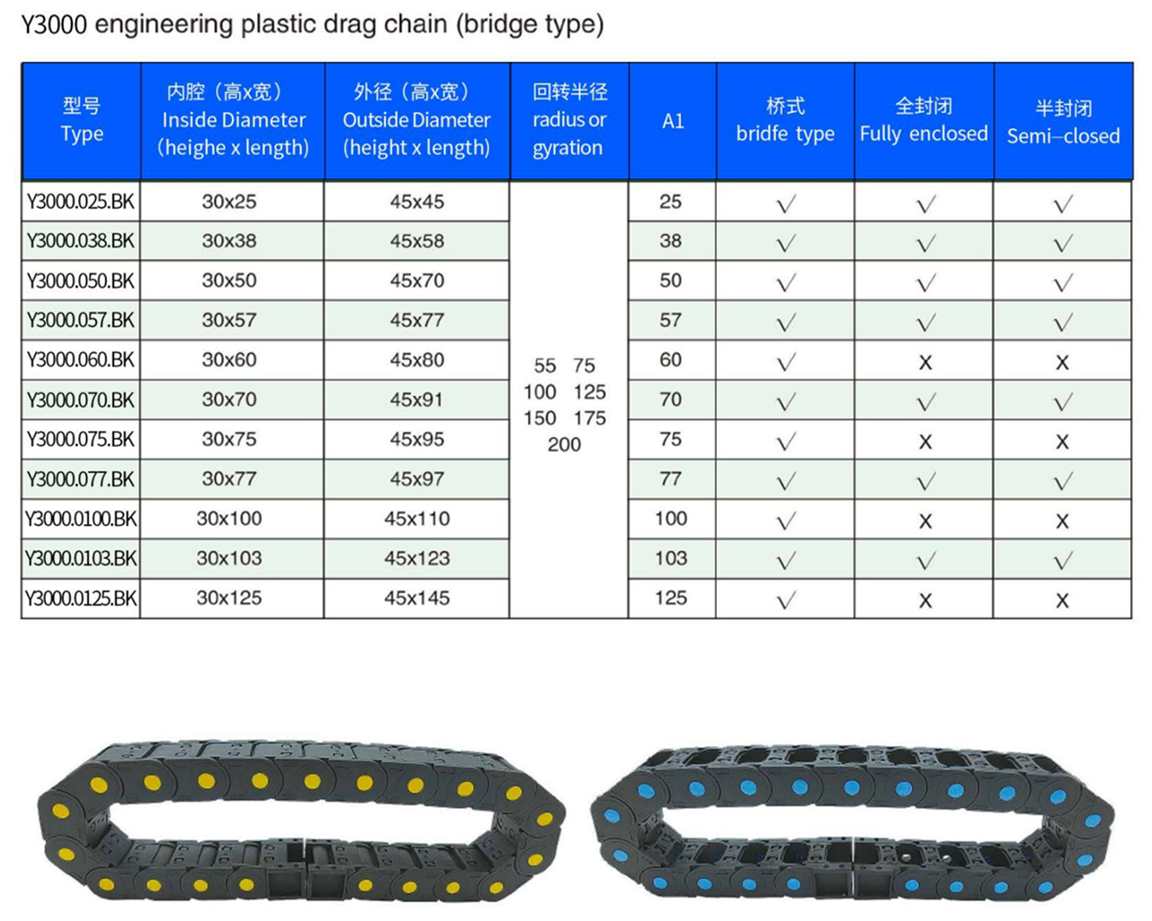

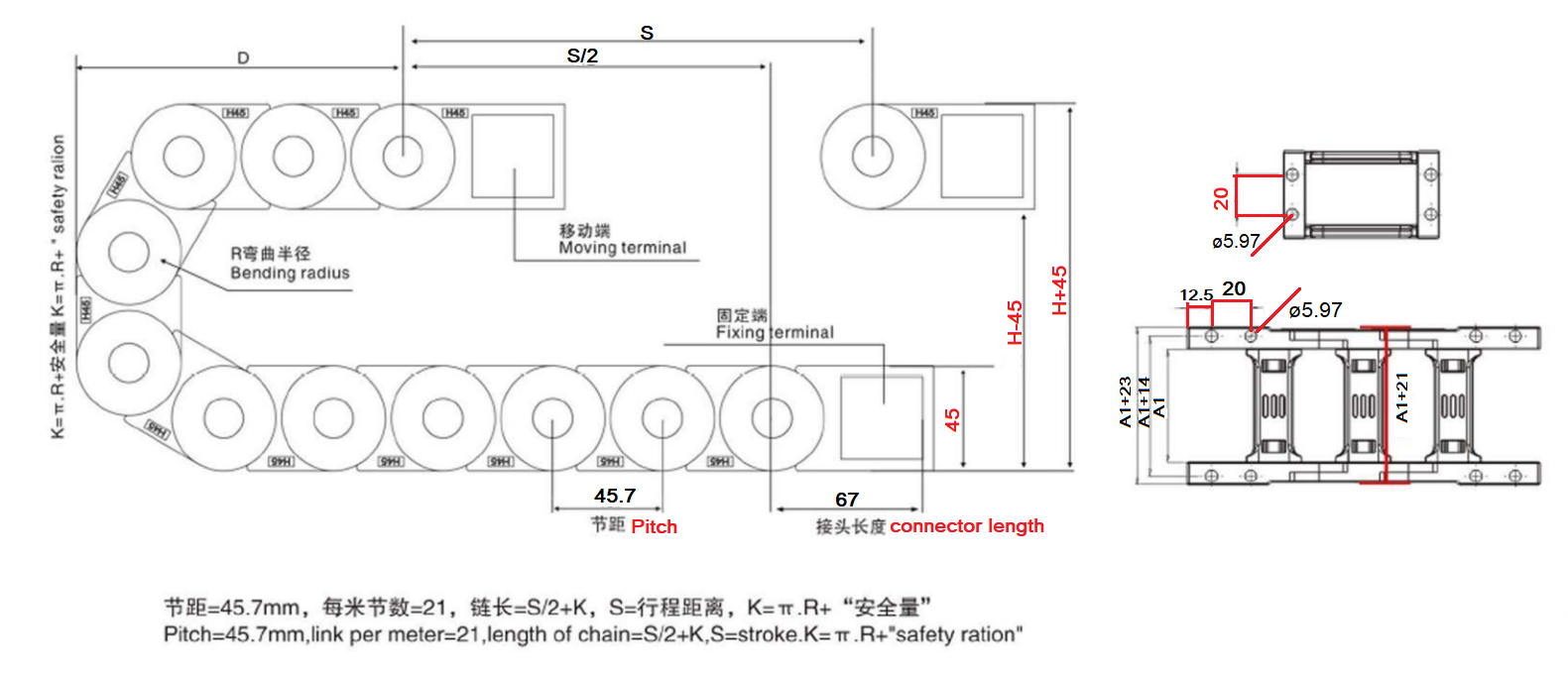

Inner height 30 series :

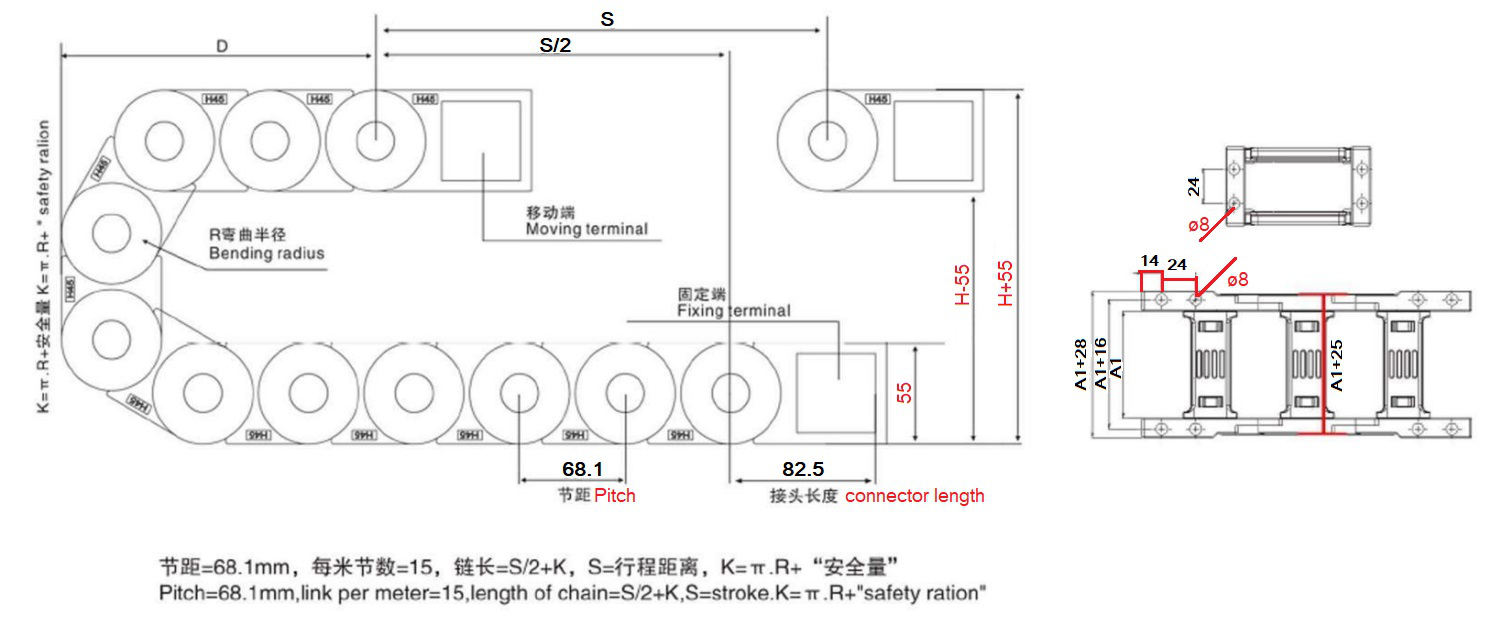

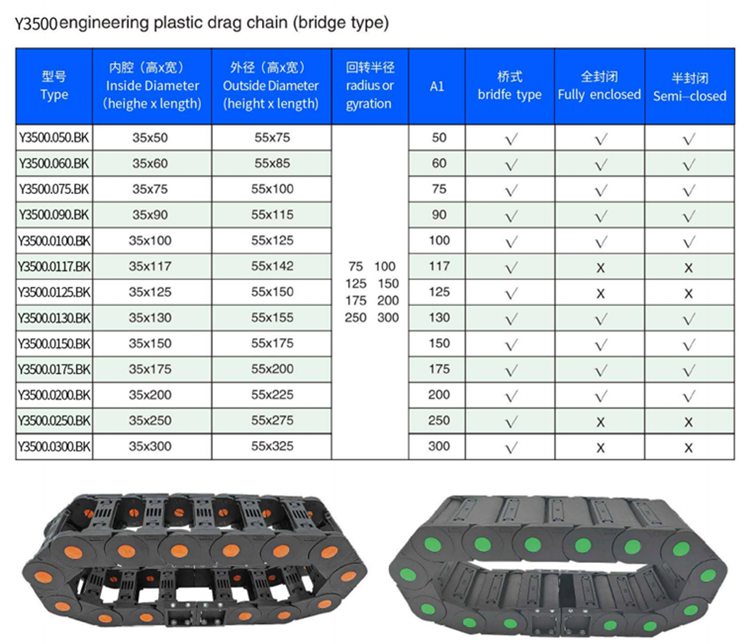

Inner height 35mm series:

8

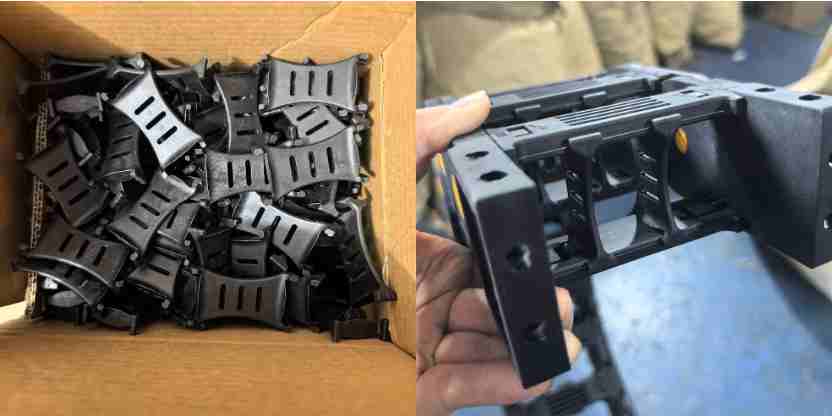

Dividers: Available as per customer requirements.

Connectors:

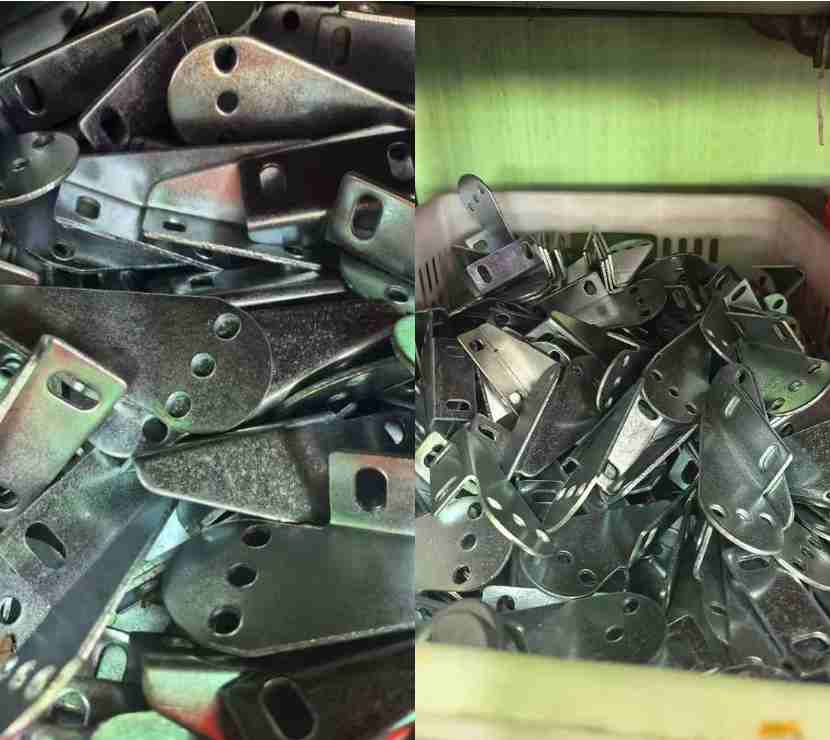

Steel connectors can be customized for series with internal height of 25mm and above.

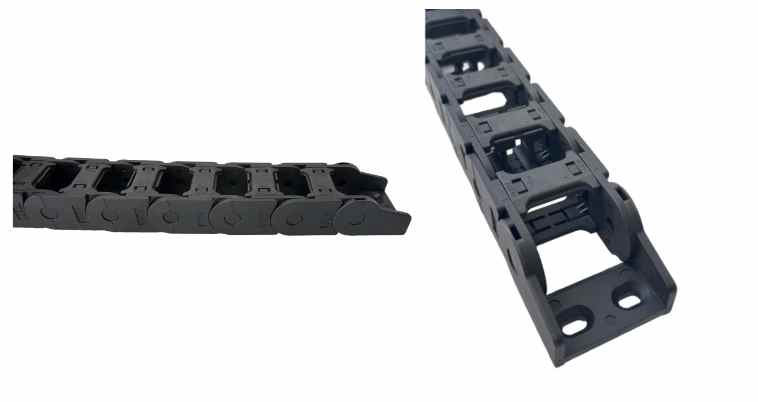

The 25mm internal height series is also available in the all-black angled end connector style.

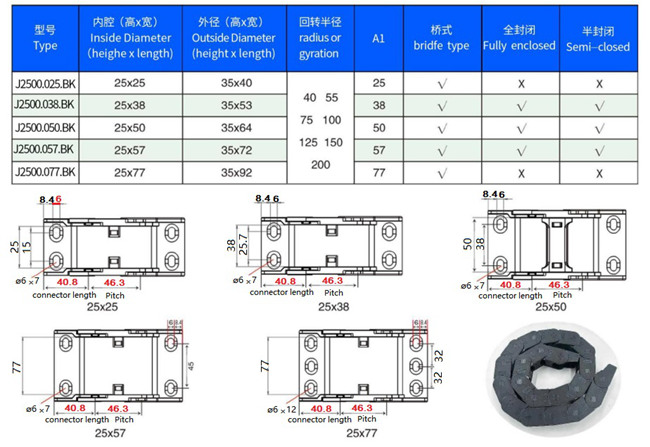

Size Table for IH 25mm all-black angled end connector cable carrier

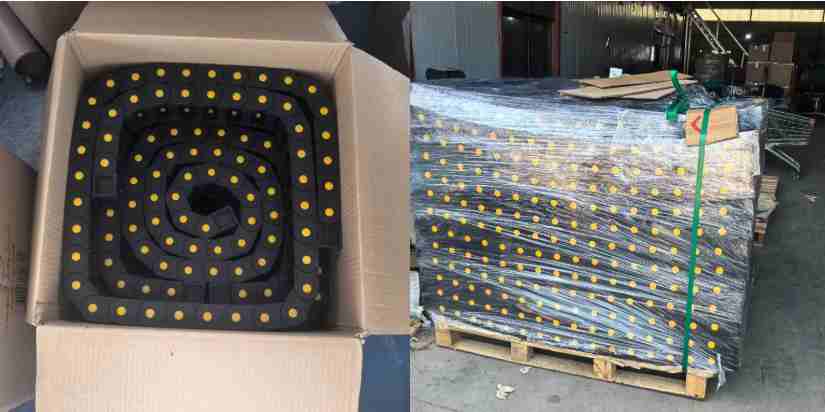

Packaging: Carton, wooden case or wooden pallet.

Why Choose Yodel Nylon Cable Carrier ?

1. 15+ Years of Manufacturing Experience

Yodel has spent over fifteen years producing PA66+glass fiber cable carriers and small drag chains. This means consistent quality, full size range from 20mm to 35mm, and long-lasting durability.

2. Factory-Direct Pricing

We sell directly to equipment builders, cutting out distributor markups. You get reliable performance at competitive prices – high cost-effectiveness with lower total cost.

3. Ready Stock & On-Time Delivery

We maintain inventory for 20mm, 25mm, 30mm, and 35mm sizes. Large production capacity plus global shipping ensures your compact cable carriers arrive on time.
