Yodel YLN35 Series – 35mm Inner Height Low-Noise Cable Carrier for Compact Automation

Product Description：

For automation equipment where space is tight but noise cannot be overlooked, the Yodel 35mm internal height cable carrier offers a clean solution.

This low-noise carrier uses a curved hinge design that softens contact between links, cutting down friction buzz and collision thud during back-and-forth motion. Field tests place running noise between 30 and 65 dB — quiet enough for open lab benches or clinical environments.

Speed-wise, it holds steady from 3 to 5 m/s without cable whip or excessive shaking. The 35mm inner height hits a sweet spot: roomy enough for several standard cables and a pneumatic hose, yet compact enough to fit inside narrow machine frames or moving gantries.

Material-wise, high-grade wear-resistant compounds reduce internal scuffing over long cycles. Less dust, less drag, longer life. Whether you're wiring a pick-and-place head, a diagnostic instrument stage, or a small assembly robot, the Yodel YLN35 keeps things quiet, stable, and serviceable.

Key features ：

1. Runs at 30–65 dB

Quiet enough for shared workspaces, library-level noise without special enclosures.

2. Curved hinge cuts collision sound

Arc-shaped link surfaces spread out impact energy, noticeably softening direction-change noise.

3. Handles 3–5 m/s travel

Tested for high-speed shuttling with low vibration and smooth cable response.

4. Self-lubricating wear-resistant body

Low-friction composite reduces internal dust and extends service intervals.

5. True 35mm usable inner height

Balanced internal space for standard cable bundles and small hoses without over-sizing.

6. Low vibration protects internal lines

Stable link stack reduces cable jacket abrasion during long-stroke reciprocation.

Applications ：

Electronics assembly lines
For PCB conveyors, soldering robots, and component inserters where space is limited and noise control matters. The 35mm height fits standard control cables and sensor lines without bulk.

Medical diagnostic devices
Blood analyzers, patient monitors, and lab sample handlers run in quiet clinical settings. This carrier stays under 65 dB while protecting delicate signal cables during repeated positioning.

Small CNC & laser engraving machines
Desktop CNC routers and laser markers need compact cable management. The 35mm inner height is large enough for stepper motor cables and air assist tubing but small enough to fit inside tight machine frames.

Laboratory automation
Liquid handling robots, microplate stackers, and tube sorters operate in open lab benches. Low noise prevents distraction, and low vibration keeps pipetting accuracy intact.

Semiconductor handling equipment
Die bonders, wafer sorters, and test handlers often run in cleanrooms where dust and noise are restricted. The wear-resistant material minimizes particle generation.

Pick-and-place heads
High-speed gantry pickers need light, quiet cable chains. The 35mm size suits the smaller cable bundles inside compact pick-and-place modules.

PCB assembly & SMT equipment
Screen printers, pick-and-place machines, and reflow oven loaders benefit from 30–65 dB noise levels and stable 3–5 m/s operation.

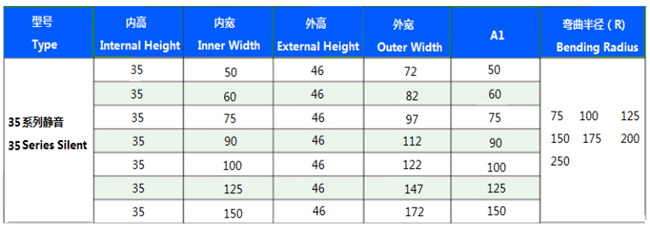

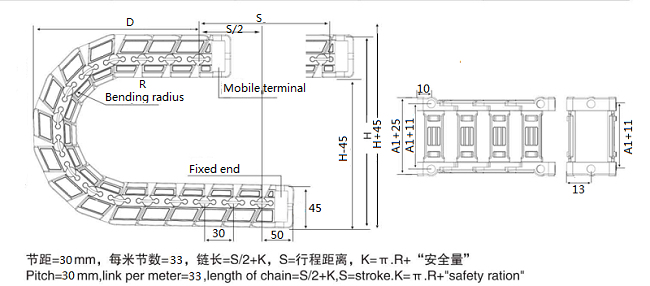

Technical Specifications & Dimension Table :

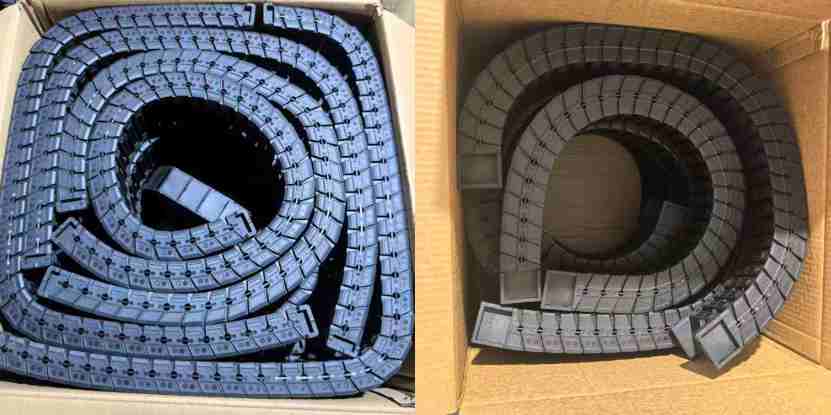

Packaging: Export carton，wooden case or wooden pallet.
