Yodel YLN45 Series – 45mm Inner Height Low-Noise Cable Carrier for Medium-Duty Automation

Product Description：

Medium-duty automation equipment faces a common problem: you need enough internal space for cables, but you don't want the noise that usually comes with larger carriers.

The Yodel 45mm internal height cable carrier solves both sides of that equation.

Its curved hinge geometry changes how links contact each other during direction changes. Less surface impact means less noise — measured between 30 and 65 dB during actual operation. That's quiet enough for open factory floors, cleanrooms, or medical device bays.

Speed capability hits 3–5 m/s without cable slap or side wobble. The 45mm inner height sits right between compact and bulky: roomy enough for several medium-gauge cables, pneumatic hoses, or small fluid lines, but not oversized for moderately sized machinery.

Materials are chosen for friction management. The high-grade wear-resistant compound self-lubricates over thousands of cycles, reducing dust and drag simultaneously.

Whether you're building electronic assembly lines, diagnostic imaging frames, or precision handling systems, the Yodel YLN45 keeps wiring organized, motion smooth, and noise out of the equation.

Key features ：

1. Runs 30–65 dB in real operation
Quiet enough for noise-sensitive workspaces without acoustic enclosures.

2. Curved hinge reduces impact noise
Link surfaces meet at an arc, not flat-to-flat, softening collision sound.

3. Stable at 3–5 m/s travel speeds
Low vibration profile prevents cable whip and sensor false triggers.

4. Self-lubricating wear-resistant body
Built from low-friction composite that maintains performance over long cycles.

5. True 45mm usable inner height
Generous for medium-duty cable bundles, compact enough for space-limited frames.

Applications ：

Electronic assembly lines

PCB conveyors, soldering stations, and component placement machines benefit from clean, quiet cable routing. The 45mm size handles typical control harnesses without overhang.

Medical imaging & diagnostic equipment
CT gantry positioners, MRI table movers, and X-ray system stages need sub-65dB noise for patient and staff comfort. This carrier delivers.

Precision machinery
Small milling machines, EDM units, and surface grinders where moderate cable loads meet tight spaces.

Laboratory automation
Sample sorters, plate handlers, and liquid dispensers operating on open lab benches require low vibration to maintain pipetting precision.

Semiconductor support equipment
Wafer handling modules and test interface units that need low particle generation and consistent cable protection.

Pick-and-place systems
Gantry robots and high-speed pickers where medium cable bundles move continuously at 3–5 m/s.

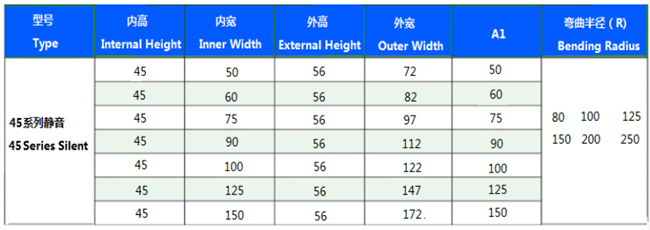

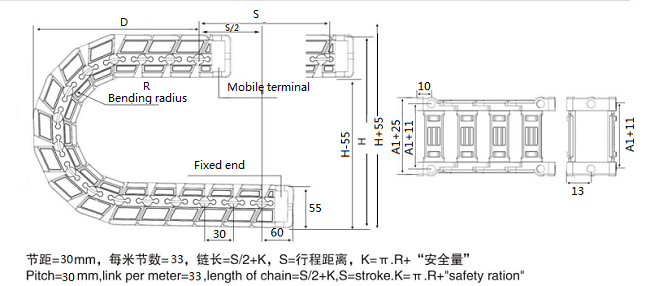

Technical Specifications & Dimension Table :

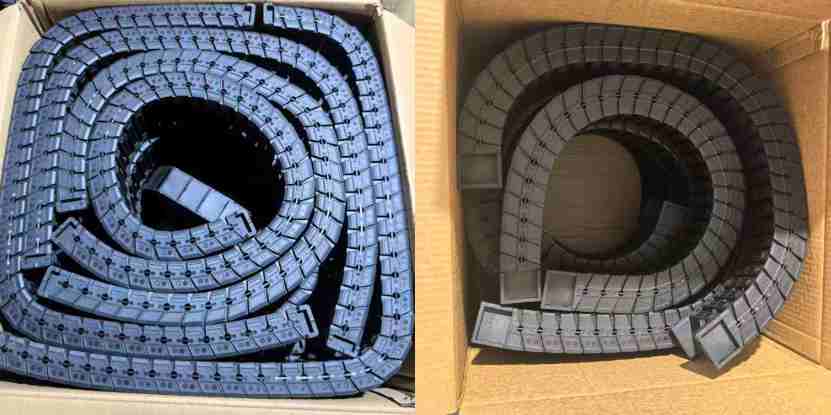

Packaging: Export carton，wooden case or wooden pallet.

Why Choose Yodel Low Noise Cable Carrier ?

Yodel Technology Development Co., Ltd. – your reliable partner in nylon cable carrier solutions.

1. 15+ Years of Manufacturing Experience

We are a professional drag chain manufacturer with 15+ years of hands-on experience. Our nylon cable carriers offer stable quality, full size range, and excellent durability.

2. High Cost-Effectiveness

Factory-direct pricing with solid performance. You get great value and lower total cost without compromising reliability.

3. Large Capacity & Fast Delivery

Large-scale production base + sufficient ready stock ensure on-time delivery. We also provide safe global shipping to protect your goods along the way.
