Yodel 45mm Heavy-Duty Cable Carrier – PA66+30% Glass Fiber, 15mm Thickened Crossbar

Yodel 45mm Heavy-Duty Cable Carrier – PA66+30% Glass Fiber, 15mm Thickened Crossbar

Product ID : HD45 series

Product Tags : Nylon Heavy duty

Product Attributes :

1. Inner Height : 45 mm

2. Crossbar Thickness : 15 mm (thickened)

3. Material ：PA66 Nylon + ≥30% Glass Fiber

4. Style Options ：Bridge (open) / Fully enclosed

5. Optional Accessories ：Built-in separators

6. Temperature Range ：-40°C to +120°C

7. Key Strengths ：Heavy load, anti-deformation, wear & corrosion resistant

8. Suitable Motion ：High-frequency reciprocating

Product Description

Product Description：

Engineered for equipment that demands both internal space and structural strength, this 45mm inner height cable carrier delivers reliable cable and hose management under continuous heavy-duty operation. The material is PA66 nylon with ≥30% high-fiber glass reinforcement, providing substantially higher tensile strength and rigidity than standard unfilled nylon. A 15mm thickened crossbar and reinforced body panels set this carrier apart from conventional models — reducing sag, resisting torsion, and extending service life in high-frequency reciprocating applications. Users can choose between an open bridge style for quick inspection and heat dissipation, or a fully enclosed style to block dust, metal chips, and coolant splash. Optional built-in separators keep power, signal, and fluid lines neatly arranged, while the entire system withstands extreme temperatures, vibration, and corrosive conditions.

Key Features :

1. 45mm Optimal Inner Height

Specifically sized for medium-sized cables and hoses — enough space without excess bulk, offering strong compatibility across power, signal, and pneumatic lines.

2. PA66 + ≥30% Glass Fiber Reinforcement

Exceeds standard nylon performance. The high glass-fiber content delivers exceptional tensile strength, creep resistance, and thermal stability under heavy load cycles.

3. 15mm Thickened Crossbar & Reinforced Body

A key upgrade over standard models. The extra thickness boosts load-bearing capacity, reduces bending fatigue, and significantly extends service life in demanding applications.

4. Dual Style Options

Bridge type – Open top for fast cable installation, inspection, and heat dissipation.

Fully enclosed type – Complete seal against dust, debris, metal shavings, and coolant fluids.

5. Built-in Separator Ready

Optional separators allow organized cable arrangement — prevents tangling, friction, and electromagnetic interference between different line types.

6. Extreme Environment Ready

Withstands high/low temperatures, continuous vibration, and corrosive exposure. Ideal for harsh industrial settings without performance degradation.

Applications :

1. CNC & Precision Machining

CNC machine tools, machining centers, heavy-duty lathes — protects control and power cables from chips, coolants, and repetitive motion.

2. Industrial Robotics & Automation

Industrial robots, robotic arms, automated production lines — ensures reliable cable guidance through complex, high-frequency paths.

3. Stone, Glass & Metal Processing

Stone cutting equipment, glass machinery, metal processing equipment — resists sharp debris, fine dust, and heavy vibration.

4. Logistics & Material Handling

Logistics conveyors, heavy-duty conveying systems, hoisting machinery — maintains cable integrity under continuous loading and travel.

5. Heavy Industry

Mining machinery, construction equipment, port machinery — handles extreme loads, dust, impact, and outdoor exposure.

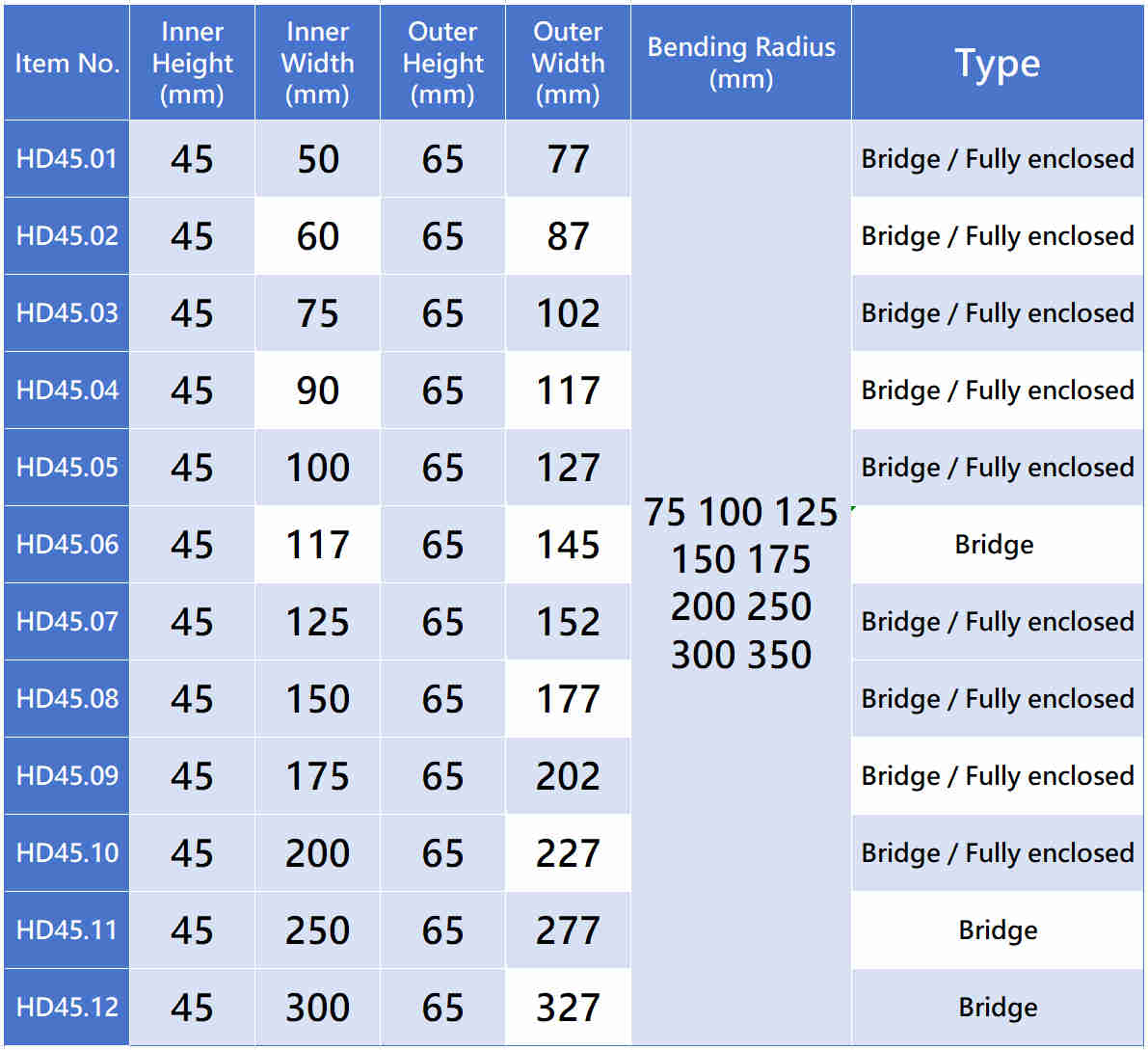

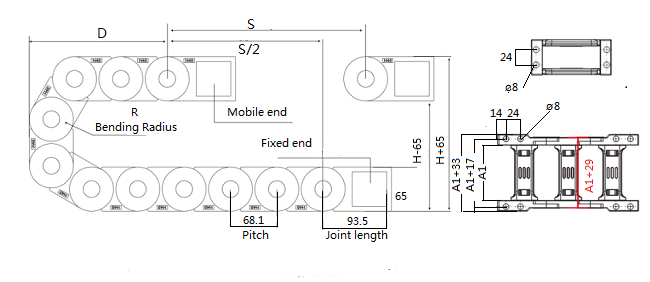

Technical Specifications & Dimension Table :

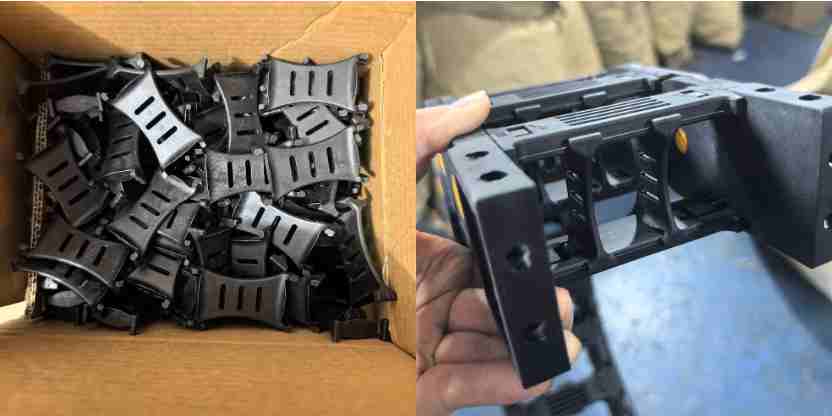

The heavy-duty cable carrier with an inner height of 45mm can be equipped with separators.

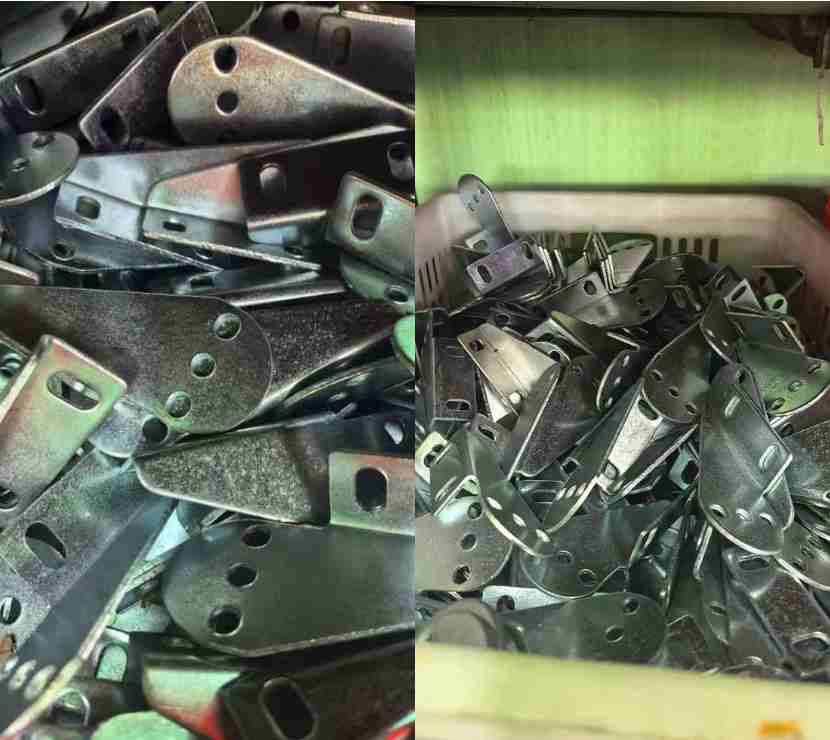

Steel connectors are also available as an option.

Packaging: Export carton，wooden case or wooden pallet.

Why Choose Yodel Heavy Duty Cable Carrier ?

Yodel Technology Development Co., Ltd. – your reliable partner in nylon cable carrier solutions.

1. 15+ Years of Manufacturing Experience

We are a professional drag chain manufacturer with 15+ years of hands-on experience. Our nylon cable carriers offer stable quality, full size range, and excellent durability.

2. High Cost-Effectiveness

Factory-direct pricing with solid performance. You get great value and lower total cost without compromising reliability.

3. Large Capacity & Fast Delivery

Large-scale production base + sufficient ready stock ensure on-time delivery. We also provide safe global shipping to protect your goods along the way.
