55mm Heavy-Duty Cable Carrier – Yodel | PA66+30% Glass Fiber, Reinforced Structure

Product Description：

Yodel makes this 55mm inner height cable carrier for big industrial machinery that pulls heavy cables over long strokes. The material is PA66 nylon with 30% glass fiber mixed in. That raises stiffness, tensile strength, and impact resistance well above what standard nylon gives you. The side plates and crossbar come thicker than typical carriers. That extra thickness stops bending and warping when the machine runs long hours or carries multiple thick cables and hoses at once. Pick between two layouts. Bridge style leaves the top open. You lay cables in from above without threading. Heat escapes out the top too. Fully enclosed closes all sides. Dust, metal chips, coolant mist, and oil spray stay outside. Add separators if you need to keep power cables away from signal lines or hydraulic hoses. Add steel joints if the carrier runs a long distance or shakes hard during operation.

Key Features :

1. PA66 + 30% glass fiber

Plain nylon creeps and deforms under heavy load. Glass fiber stops that. The material holds its shape even when the machine pulls multiple thick cables and runs all day.

2. Thickened side plates and crossbar

Most carriers skip extra material to save cost. Yodel adds thickness to both side plates and crossbar. The result is less bending, less warping, and longer life under high load.

3. Bridge version – open top

Top stays open. You drop cables in from above. No threading or pulling through. Hot air rises out so internal heat does not build up. Good for shops where crews need quick access.

4. Fully enclosed version – sealed body

All sides closed tight. No dust entry. No metal chips. No coolant or oil spray reaching your cables. Good for machining centers, mining, and dirty job sites.

5. Separators keep cables apart

Power cables rub against signal lines over time. Separators create dedicated lanes. Less friction. Less electrical interference.

6. Steel joints for long travel

Plastic joints work for short moves. Long travel or high vibration calls for steel. Steel joints handle the load better and do not loosen over time.

Application :

Large CNC machining ：

Large CNC machining centers, gantry machines, heavy-duty lathes, horizontal boring mills, planer mills.

Enclosed version keeps chips and coolant out. Thickened side plates stop twisting during rapid traverse.

Industrial robotics & automation：

Industrial robots, robotic welding equipment, automated assembly lines, palletizing systems, transfer robots.

Separators keep welding cables away from sensor wires. Carrier follows robotic motion without binding.

Mining & construction ：

Mining drills, drilling rigs, heavy construction equipment, earthmoving machinery, rock drills.

Fully enclosed seals out dust, mud, and vibration. Steel joints handle rough motion.

Port & lifting ：

Port cranes, container handling machinery, hoisting systems, gantry cranes, ship loaders, straddle carriers.

Fully enclosed blocks salt spray. PA66 with glass fiber does not rust. Steel joints survive long travel.

Logistics & storage：

Large logistics conveyors, automated storage and retrieval systems (ASRS), transfer cars, sortation systems.

Open bridge style lets crews spot worn cables during quick line checks.

Stone, metal & hydraulic machinery ：

Stone processing machinery, metal forming equipment, hydraulic machinery, press brakes, shears, stone cutters.

Fully enclosed body stops fine dust and hydraulic oil from reaching cables.

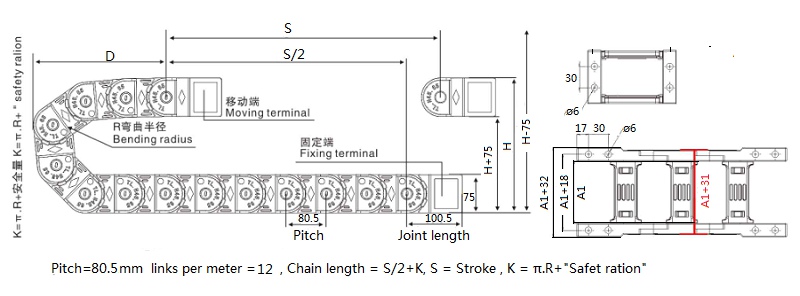

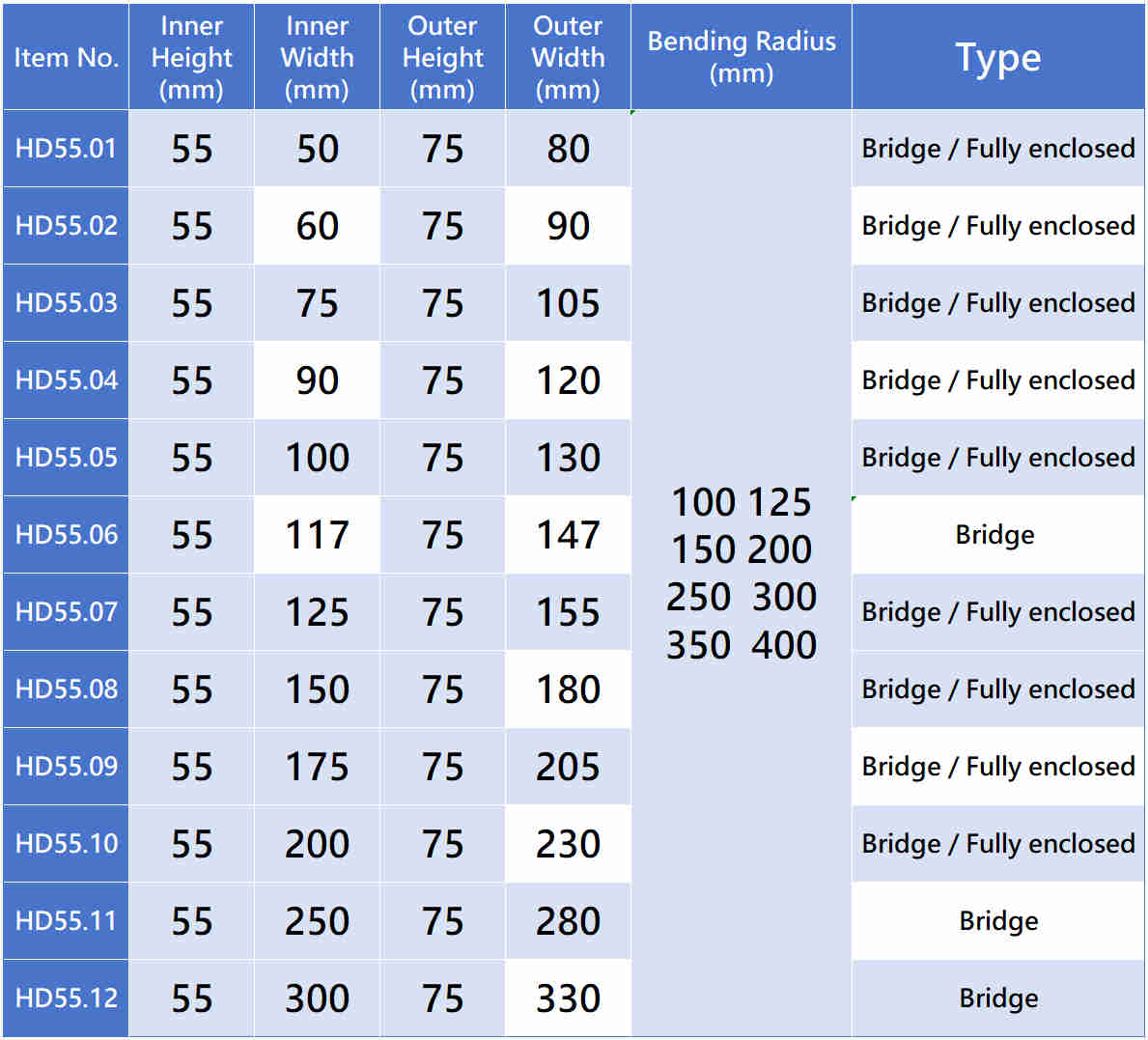

Technical Specifications & Dimension Table :

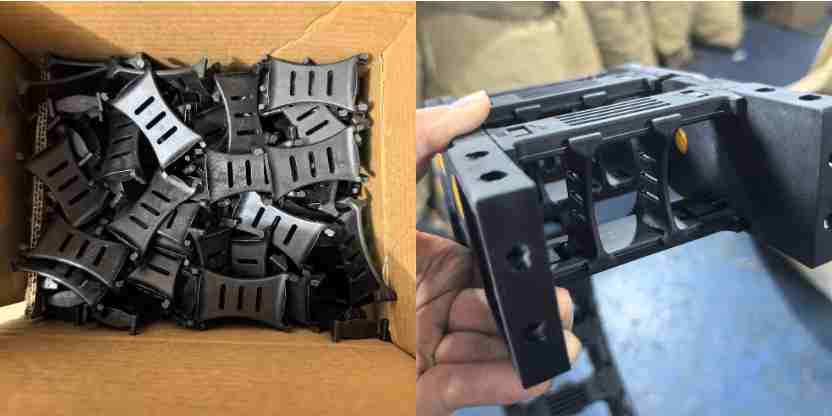

The heavy-duty cable carrier with an inner height of 55mm can be equipped with separators.

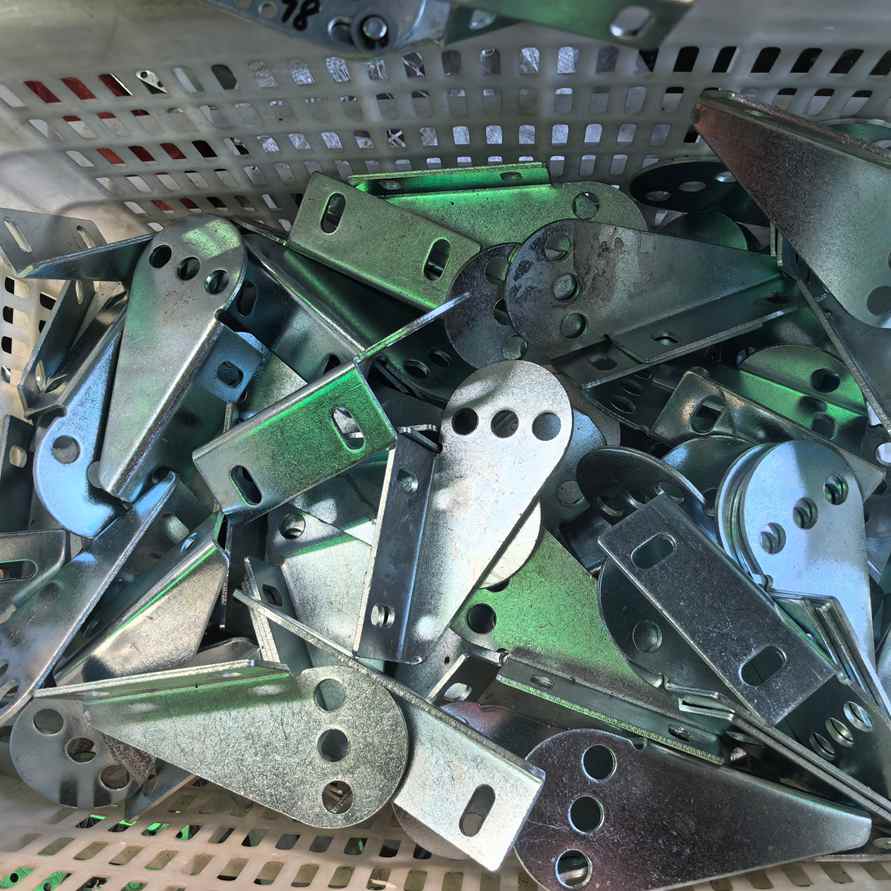

Steel connectors are also available as an option.

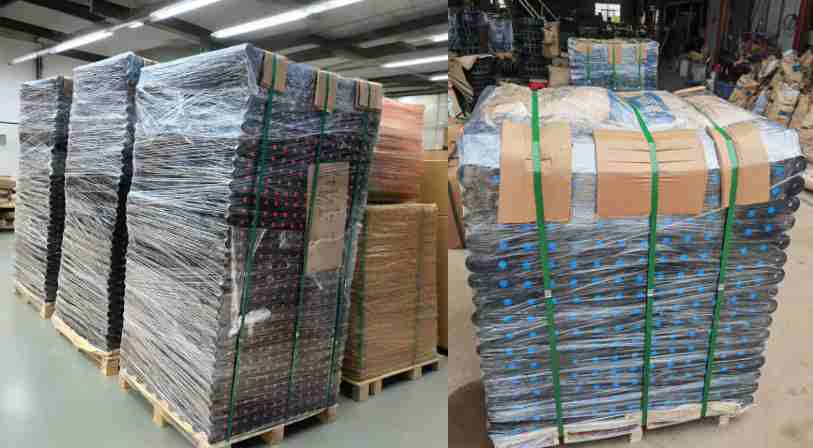

Packaging: Export carton，wooden case or wooden pallet.
