55mm Heavy‑Duty Side‑Open Cable Carrier

Product Description

When a machine runs long strokes day and night, you cannot afford to shut down for hours just to replace a single cable. Our 55mm inner height side‑open carrier solves that. One gentle press on the side unlocks the link, giving you instant access to every cable inside while the chain stays mounted. No unscrewing of crossbars, no dismantling of end brackets, no sweat.

The body is made from reinforced PA66 nylon – tough against oil, chips, and temperature swings. Each link moves smoothly on self‑lubricating joints, so long, fast traverses remain quiet and friction‑free. Whether you are retrofitting an old mill or designing a new gantry robot, this carrier keeps your lines safe and your maintenance time low.

Key Features

1. Side-Open Design for Easy Maintenance

The one-touch side-opening mechanism allows quick access to the cable compartment, enabling fast cable changes, inspections, or repairs without removing the entire chain. This drastically reduces downtime compared to traditional closed or non-openable chains.

2. Heavy-Duty Load Capacity & Durability

Reinforced link joints and thick-walled construction deliver exceptional resistance to tensile stress, impact, and abrasion, supporting heavy cable bundles and long travel distances. The high-grade PA66 material offers excellent resistance to oil, chemicals, and temperature fluctuations, ensuring long service life in harsh industrial conditions.

3. Smooth, Low-Noise Operation

Precision-machined articulation points and self-lubricating link surfaces minimize friction and vibration, resulting in quiet, smooth movement even at high speeds and long strokes. This reduces wear on both the chain and the enclosed cables, extending overall system lifespan.

4. Customizable Modular Construction

Fully modular links allow you to adjust the chain length to your exact travel needs, with optional internal dividers to separate power, signal, and hydraulic lines for enhanced organization and protection. The chain is compatible with standard mounting brackets and end connectors for easy integration into existing systems.

5. Wide Range of Bending Radius Options

Available in multiple standard bending radii (R75, R100, R125, R150, etc.) to accommodate different application space constraints and cable minimum bend radius requirements, preventing cable damage and fatigue.

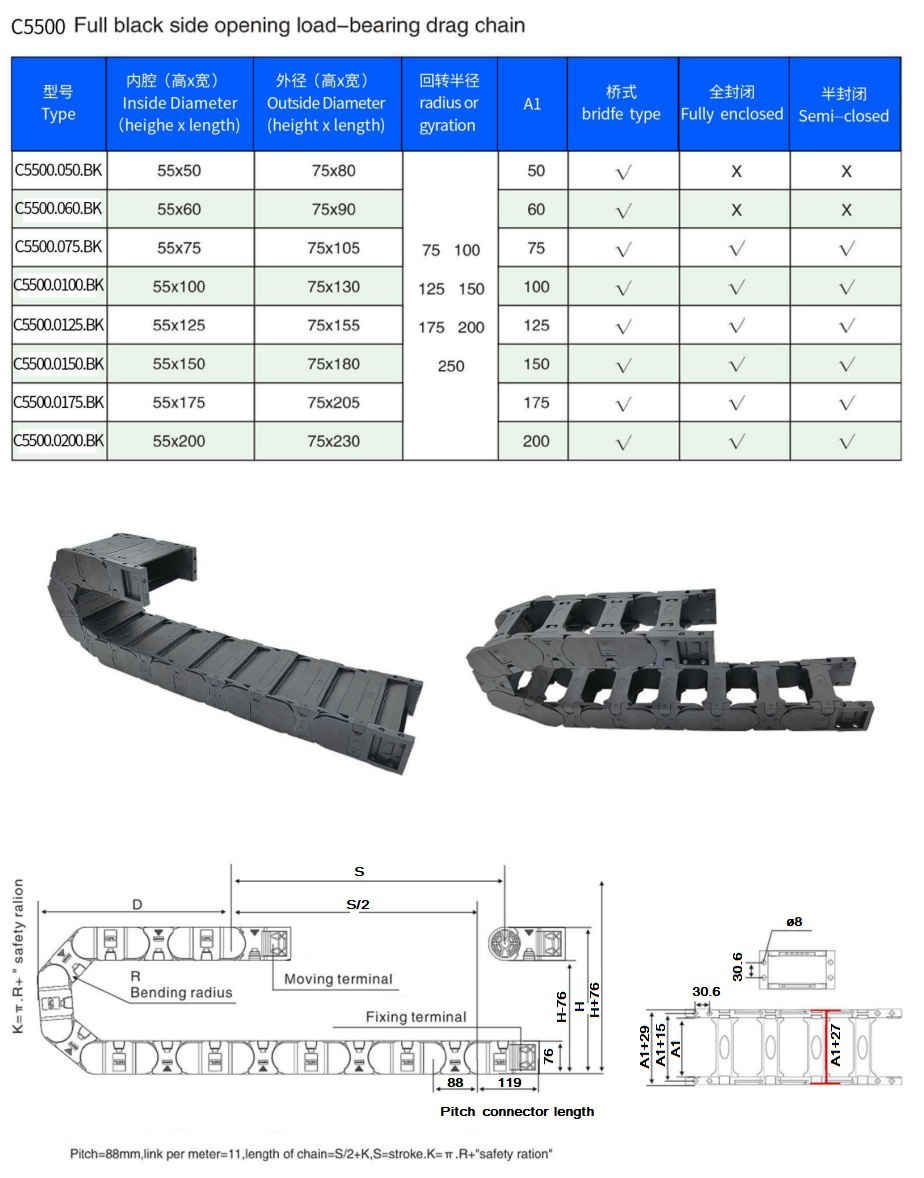

Technical Specifications & Dimension Table :

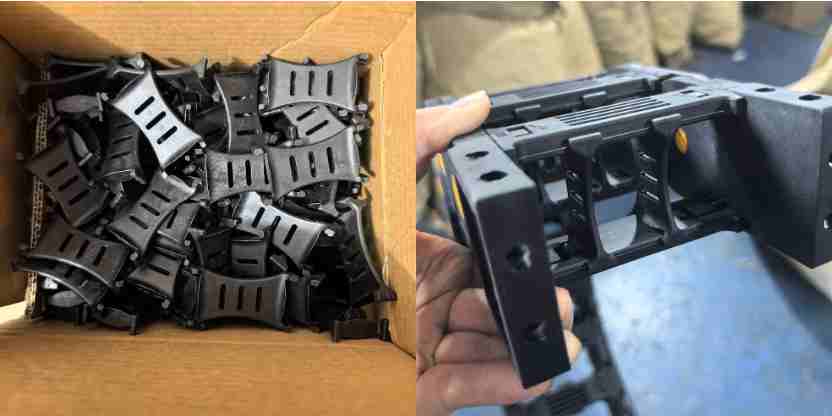

The heavy-duty cable carrier with an inner height of 55mm can be equipped with separators.

Applications ：
