80mm Heavy-Duty Cable Carrier – Yodel | PA66+30% Glass Fiber, Ultra-Thickened Structure

Product Description：

Yodel makes this 80mm inner height cable carrier for heavy industrial machinery that runs long strokes and carries thick cables. The material is PA66 nylon with 30% glass fiber mixed in. That raises stiffness, tensile strength, and impact resistance well above standard nylon. The chain links, crossbars, and side plates all come thicker than typical carriers. That extra thickness stops bending, twisting, and warping when the machine pulls multiple thick cables and hoses over long distances. Pick between two layouts. Bridge style leaves the top open. You lay cables in from above without threading. Heat escapes out the top too. Fully enclosed closes all sides. Dust, metal chips, coolant mist, oil spray, and saltwater stay outside. Add separators if you need to keep power cables away from signal lines or hydraulic hoses. Add steel joints if the carrier runs a long distance or shakes hard during operation.

Key Features :

1. PA66 + 30% glass fiber

Plain nylon creeps and deforms under heavy load. Glass fiber stops that. The material holds its shape even when the machine runs hot or carries high tension for years.

2. Ultra-thickened links and side plates

Most carriers skip extra material to save cost. Yodel adds thickness to links, crossbars, and side plates. The result is no bending, no twisting, and longer life under extreme load.

3. 80mm inner height

Big enough for multiple thick power cables, hydraulic hoses, pneumatic tubes, and signal lines all in one carrier. No need to split across two units.

4. Bridge version – open top

Top stays open. You drop cables in from above. No threading or pulling through. Hot air rises out. Good for shops where crews need quick access.

5. Fully enclosed version – sealed body

All sides closed tight. No dust entry. No metal chips. No coolant, oil, or salt spray reaching your cables. Good for mines, ports, and dirty job sites.

6. Separators keep cables apart

Power cables rub against signal lines over time. Separators create dedicated lanes. Less friction. Less electrical interference.

7. Steel joints for long travel

Plastic joints work for short moves. Long travel or high vibration calls for steel. Steel joints handle the load better and do not loosen over time.

Application ：

Large CNC machining：

Large CNC gantry machines, heavy-duty machining centers, large lathes, planer mills, horizontal boring mills.

Enclosed version keeps chips and coolant out. Thickened side plates stop twisting.

Heavy robotics & automation：

Heavy industrial robots, automated production lines, large robotic systems, robotic welding cells.

Separators keep welding power cables away from sensor wires.

Mining & construction：

Mining machinery, drilling equipment, crushers, excavators, rock crushers.

Fully enclosed seals out dust and mud. Steel joints handle vibration.

Port & lifting：

Port cranes, gantry cranes, ship loaders, container handling equipment, straddle carriers.

Fully enclosed blocks salt spray. PA66 does not rust. Steel joints survive long travel.

Logistics & warehousing：

Large logistics conveyors, automated warehousing systems (ASRS), hoisting machinery, transfer cars.

Open bridge style lets crews spot worn cables during quick checks.

Metallurgical & hydraulic：

Metallurgical equipment, hydraulic machinery, stone processing machines.

Fully enclosed body stops heat, oil leaks, and fine dust.

Heavy industry manufacturing：

Automotive manufacturing lines, shipbuilding equipment, long-stroke assembly lines.

Thickened structure prevents sagging over long distance.

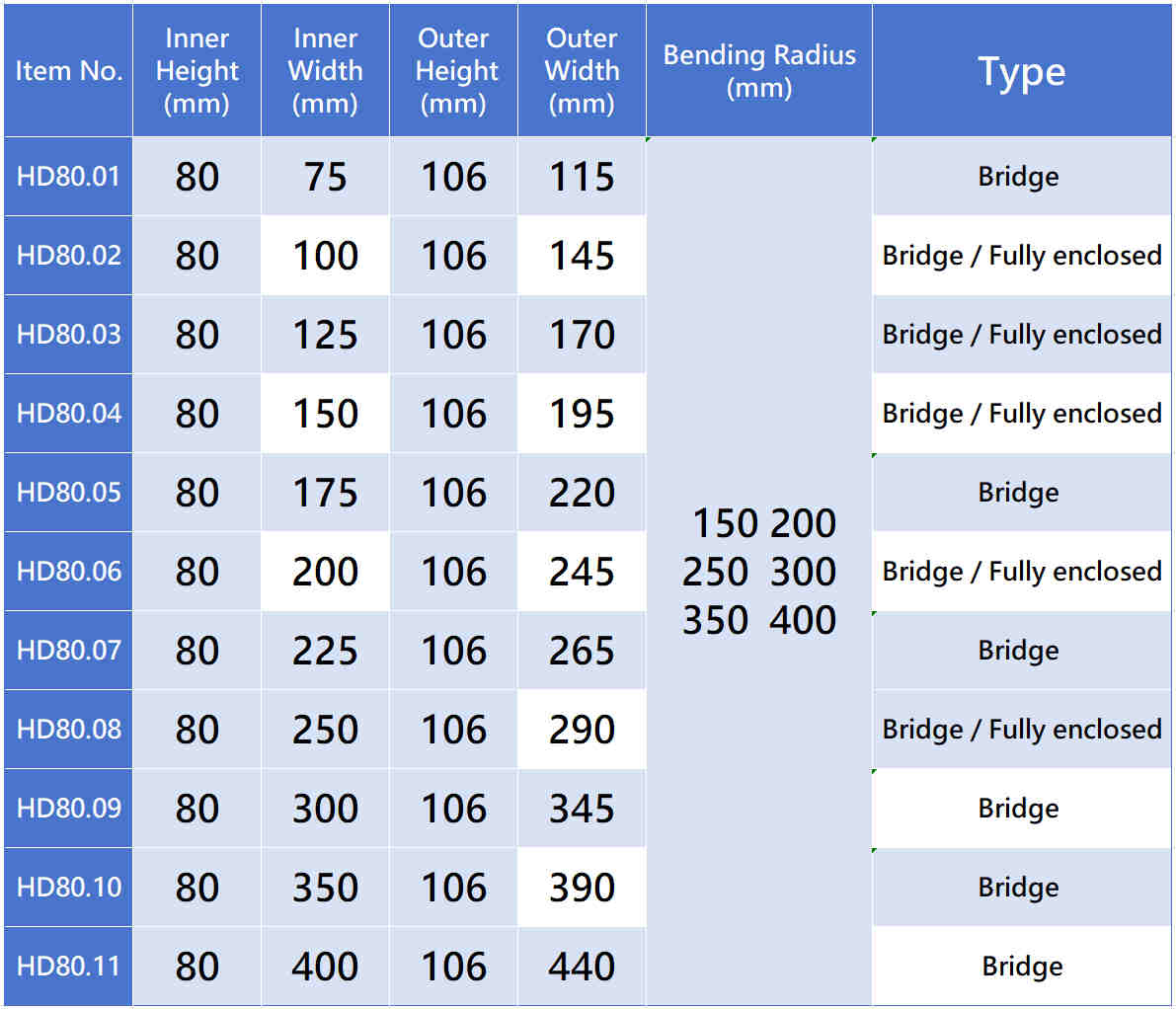

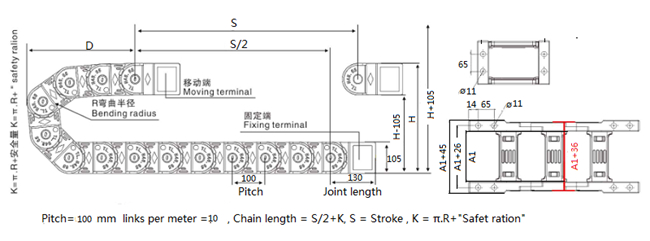

Technical Specifications & Dimension Table :

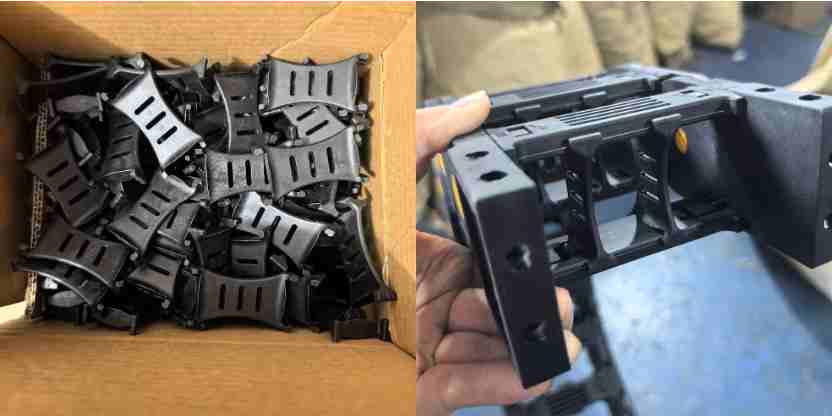

The heavy-duty cable carrier with an inner height of 80mm can be equipped with separators.

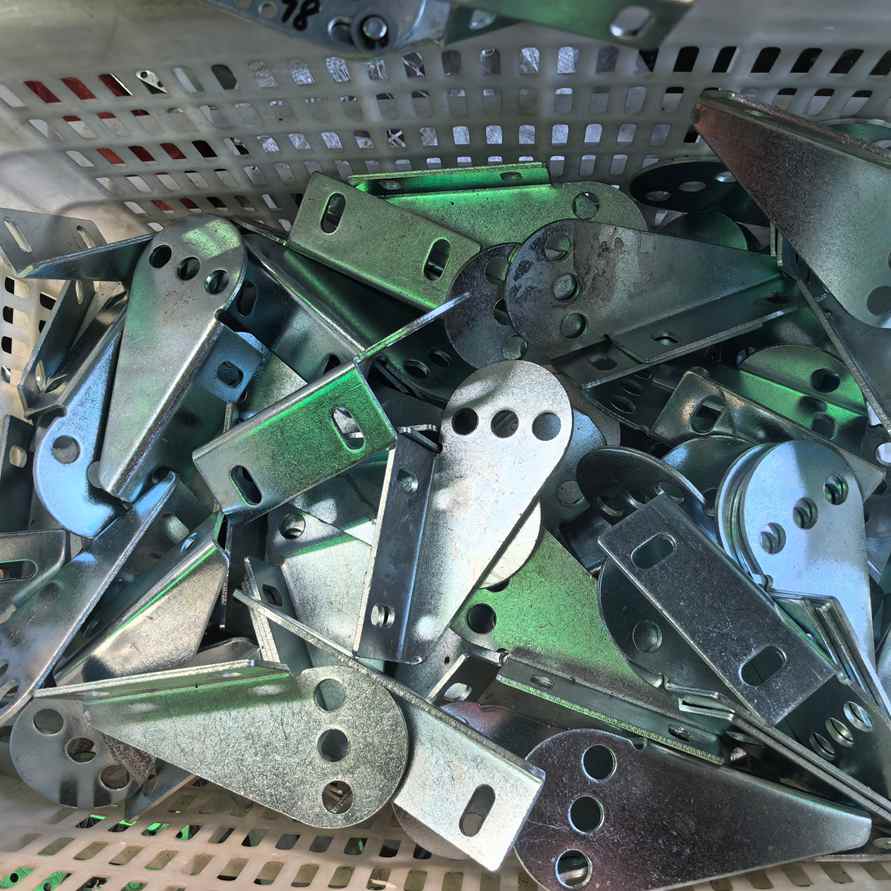

Steel connectors are also available as an option.

Packaging: Export carton，wooden case or wooden pallet

Why Choose Yodel Heavy Duty Cable Carrier ?

Yodel Technology Development Co., Ltd. – your reliable partner in nylon cable carrier solutions.

1. 15+ Years of Manufacturing Experience

We are a professional drag chain manufacturer with 15+ years of hands-on experience. Our nylon cable carriers offer stable quality, full size range, and excellent durability.

2. High Cost-Effectiveness

Factory-direct pricing with solid performance. You get great value and lower total cost without compromising reliability.

3. Large Capacity & Fast Delivery

Large-scale production base + sufficient ready stock ensure on-time delivery. We also provide safe global shipping to protect your goods along the way.
