Heavy Duty Cable Carrier: Heavy-Load Roller Series (Inner Height 38mm / 48mm) – The Long-Travel Track Solution

Product Highlights

Traditional sliding drag chains choke and wear out when pushed past 50 meters. Not this one.

By embedding precision-engineered rollers into both sides of the chain links, we transformed pure sliding friction into smooth rolling motion. Designed with a matrix of Nylon PA66 and premium >30% fiberglass reinforcement, this high-performance plastic drag chain cable carrier reduces structural drag, prevents sag, and multiplies your cable life expectancy in extreme industrial environments.

Friction Revolution: Built-in side rollers minimize towing resistance by up to 80%.

Heavy Load Ready: Heavy duty steel connectors secure both ends against high-inertia starts and stops.

Modular Cavity: Available with vertical separators and dedicated fiber optic clips for flawless cable isolation.

Why This Flexible Cable Carrier Changes Everything

1. Rolling vs. Sliding: The Engineering Math

On extended travels, standard nylon cable drag chain variations rub against themselves, causing heat build-up and material fatigue. Our integrated roller system ensures the upper run glides effortlessly over the lower run. The result? Lower motor power consumption and a cable hose carrier setup that operates quietly even at velocities exceeding 5m/s.

2. High-Fiber Reinforcement Matrix

We do not use recycled plastics. By compounding pure Nylon PA66 with more than 30% structural fiberglass, this flexible cable track chain achieves unmatched tensile strength and exceptional rigid stiffness, resisting deformation under heavy cable/hose loads.

3. Steel Connectors for Absolute Anchoring

Plastic brackets fail under extreme pulling forces. That is why this specific heavy duty cable carrier comes standard with heavy-duty steel end-links. They distribute stress evenly, ensuring your cable hose carrier stays locked to your machine bed during high-acceleration cycles.

Sizing Guide & Configuration

Choosing the correct plastic drag chain cable carrier dimension ensures zero downtime. Follow our quick sizing checklist below:

Step 1: Calculate Total Cable Weight & OD (Outer Diameter)

Step 2: Add 10% Clearance Safety Margin

Step 3: Match with Inner Height (38mm vs 48mm)

1. Inner Height Selection

Choose 38mm Series: If your maximum cable or pneumatic hose diameter is 31mm or less (leaves a 15-20% safety clearance).

Choose 48mm Series: If your thickest cable or conduit approaches 40mm.

2. Inner Width (Bi) and Bending Radius (R) Setup

Ensure you measure the total width of all cables laid out side-by-side.

Note on Bending Radius: A larger bending radius (R) reduces the mechanical stress on your internal lines, while a smaller R saves vertical installation space.

3. Smart Interior Layout

Vertical Separators: Prevent cables of different diameters from twisting or overriding each other.

Fiber Optic Clips: Delicate data lines require zero pressure. Use our specialized fiber optic clips to isolate sensitive data lines from heavy power cords.

Real-World Case Study

Project: 120-Meter Long-Travel Portal Crane System

The Challenge: A port logistics hub required a flexible cable track chain to carry heavy power cables over a continuous 120-meter run. Traditional plastic chains snapped due to massive friction coefficients.

The Solution: We deployed our Heavy Duty Roller Series (48mm Inner Height) equipped with steel connectors.

The Result: By switching from sliding to rolling dynamics, the towing force dropped significantly. The system has now logged over 18 months of continuous operation with zero structural sagging and zero cable jacket wear.

Frequently Asked Questions

Q: What makes a roller-type heavy duty cable carrier better for long travel?

A: Traditional sliding chains drag against themselves, creating friction that limits travel length and speed. A roller-equipped flexible cable carrier uses built-in wheels to eliminate this friction, allowing the system to handle travel lengths over 800 meters smoothly while drastically reducing motor wear.

Q: Can I mix hydraulic hoses and data cables in the same nylon cable drag chain?

A: Yes. However, you must use our vertical separators to isolate the high-pressure hoses from the data lines. For sensitive lines, clipping them into our proprietary fiber optic clips keeps them safe from mechanical pinch points.

Q: Why does this plastic drag chain cable carrier utilize steel connectors instead of nylon?

A: At travel lengths requiring a flexible cable track chain, the acceleration forces at the switching points are immense. Steel connectors prevent cracking at the anchoring points, ensuring the integrity of the entire machine interface.

Need a customized length, specific mounting brackets, or a bulk quote for your manufacturing facility? Don’t let cable failure slow down your machinery line.

Contact our technical support engineers today with your cable diameters and travel stroke length. We will configure the optimal nylon cable drag chain system to keep your operations smooth, fast, and completely silent.

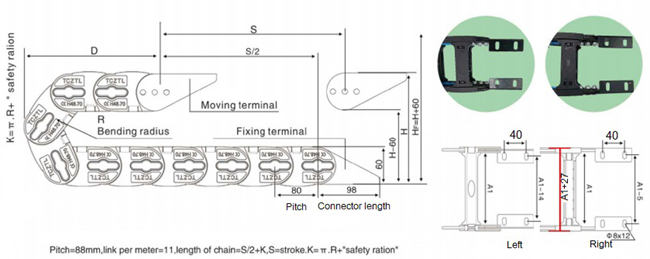

Size Table  & Technical Drawing​ :

Cable carrier roller system, internal height 38mm / 48mm
