25mm Heavy-Duty Cable Carrier – PA66+30% Fiberglass Reinforced

Product Description：

Designed for equipment where space is limited but loads are not, this 25mm inner height heavy-duty cable carrier delivers industrial-grade protection in a compact form. The body is injection-molded from PA66 nylon with ≥30% high-fiber glass reinforcement, offering significantly higher tensile strength and rigidity than standard nylon. A thickened crossbar and reinforced main structure prevent bending and fatigue even under high-frequency reciprocating motion. Choose between an open bridge style for easy cable access and heat dissipation, or a fully enclosed style to block dust, debris, and corrosive fluids. Optional built-in separators keep cables organized, while steel joints add extra stability for extreme conditions.

Key Features :

1. Reinforced PA66 + 30% Glass Fiber

Engineered beyond standard nylon. The high glass-fiber content delivers extreme rigidity, creep resistance, and thermal stability under continuous heavy loads.

2. Thickened Compact Structure

Despite only 25mm inner height, the crossbar and body are thickened to prevent sagging or fracture in tight automation or mobile equipment spaces.

3. Dual Design Options

Bridge type – Open top for quick cable changes, inspection, and cooling.

Fully enclosed type – Sealed against dust, sand, metal shavings, and coolants.

4. Cable Organization & Reinforced Joints

Optional separators prevent tangling and friction between power, signal, and hydraulic lines. Steel joint options provide extra anchoring strength for long-travel or high-vibration axes.

Applications ：

Mining Machinery
Withstands extreme dust, vibration, and shock loads. Protects control and power cables in drill rigs, conveyors, and crushers.

Construction Equipment
Resists debris, impact, and weather exposure. Ideal for excavators, loaders, and aerial work platforms.

Port & Marine Handling
Handles salt corrosion, continuous bending, and heavy pulls. Used in container cranes, ship unloaders, and STS systems.

General Industrial
CNC machine tools, automated assembly lines, material handling systems (conveyors, hoists, gantries) – anywhere compact height and high strength are required.

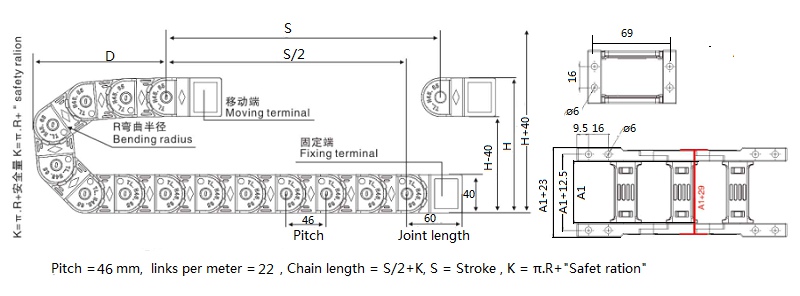

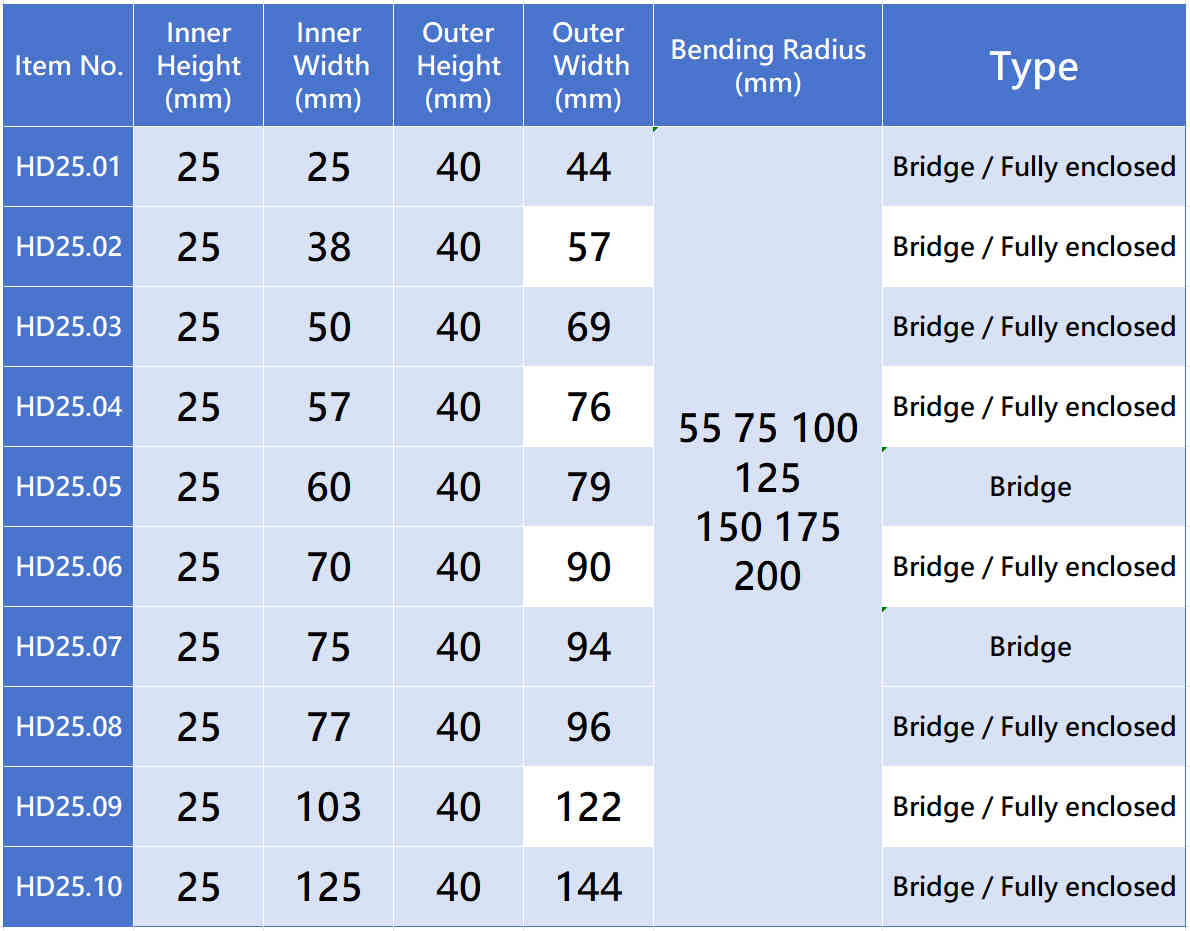

Technical Specifications & Dimension Table :

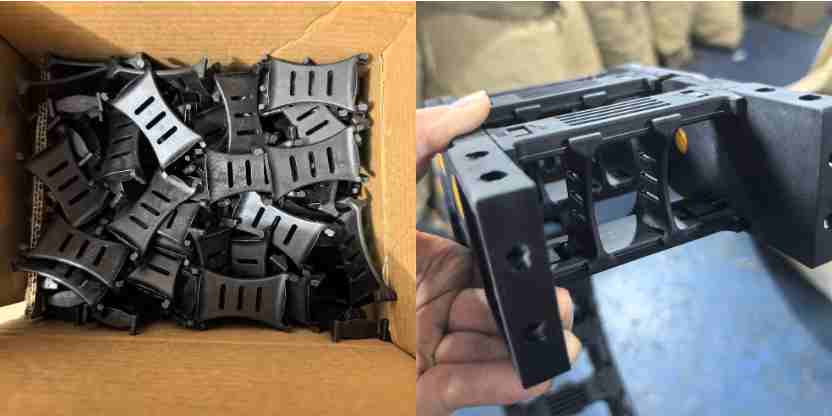

The heavy-duty cable carrier with an inner height of 25mm can be equipped with separators.

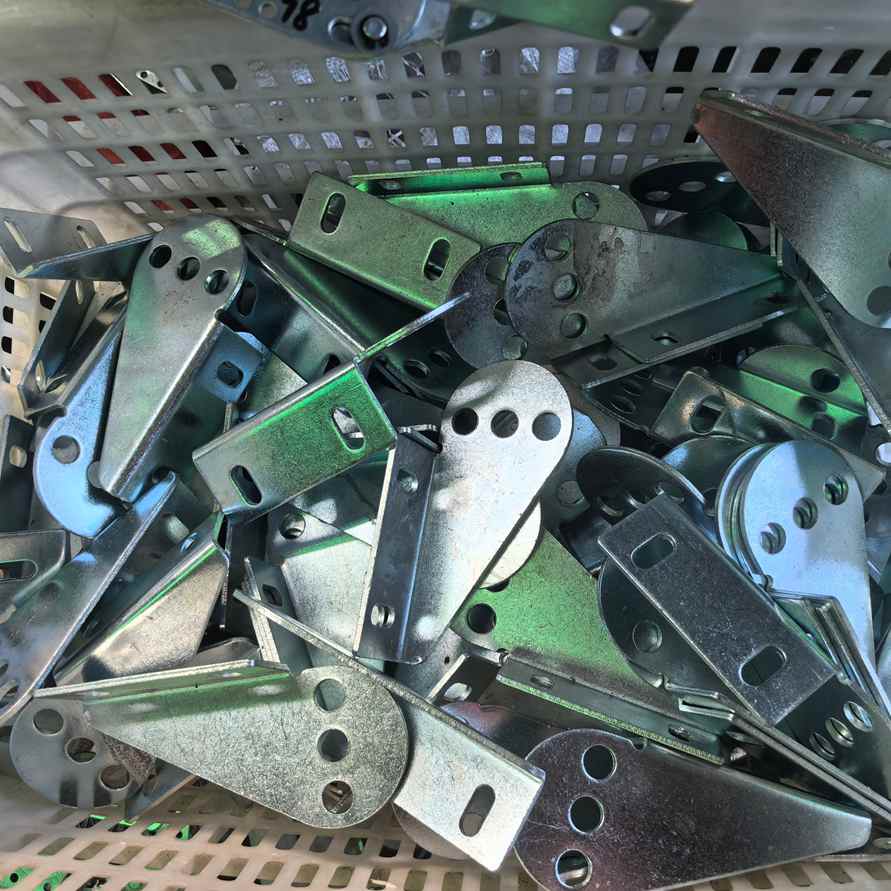

Steel connectors are also available as an option.

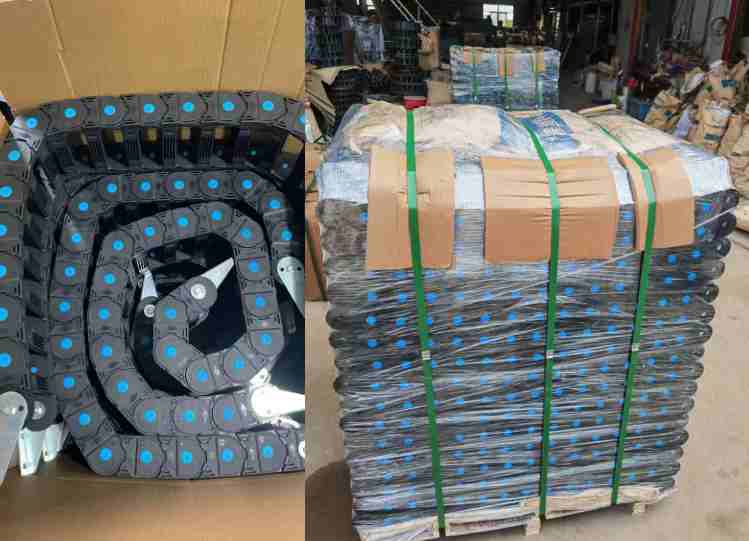

Packaging: Export carton，wooden case or wooden pallet.

Why Choose Yodel Heavy Duty Cable Carrier ?

Yodel Technology Development Co., Ltd. – your reliable partner in nylon cable carrier solutions.

1. 15+ Years of Manufacturing Experience

We are a professional drag chain manufacturer with 15+ years of hands-on experience. Our nylon cable carriers offer stable quality, full size range, and excellent durability.

2. High Cost-Effectiveness

Factory-direct pricing with solid performance. You get great value and lower total cost without compromising reliability.

3. Large Capacity & Fast Delivery

Large-scale production base + sufficient ready stock ensure on-time delivery. We also provide safe global shipping to protect your goods along the way.
