Yodel C4500 Series – 45mm Inner Height Heavy-Duty Cable Carrier with Side-Open Design, PA66+30% Fiberglass, All-Black Finish

Product Description：

Let's start with the side door.

Most heavy-duty cable carriers make you thread cables from one end. Pull. Adjust. Pull again. Waste half your shift.

The Yodel C4500 opens from the side.

You lay cables in from above, not through the tunnel. Snap the side panel closed. Done. Installation time drops. Inspection becomes a 10-second look, not a 10-minute fishing expedition.

Now the rest of the carrier.

Material. PA66 nylon with 30% fiberglass. That glass content changes everything. Tensile strength goes up. Creep goes down. When your machine runs 20 hours a day with heavy cable bundles, the carrier doesn't sag.

Thickness. Look at the crossbar: 15mm. Standard 45mm carriers? Usually 12mm. That extra 3mm is intentional — less bowing, more load capacity, longer life.

Color. All-black. That's not just looks. Black hides grease marks. Blends into industrial equipment. Doesn't show wear the way light gray does.

Two versions. Bridge type leaves the top open for heat dissipation and quick access. Fully enclosed seals against metal chips, stone dust, coolant spray. Your choice.

Inside. Optional separators keep cables from rubbing each other. No tangles. No chafing after 50,000 cycles.

Who needs this? CNC machining centers with heavy servo cables. Industrial robots swinging payloads. Stone cutting equipment eating dust all day. Mining gear that never shuts off.

The C4500 isn't a prettied-up standard carrier. It's a side-open machine built for people who install and maintain cables for a living.

Key Features：

1. Side-open for fast cable access

Snap open the side panel, lay cables in, close. No end-to-end threading. Cuts installation and maintenance time dramatically.



2. PA66 with 30% fiberglass

Glass-reinforced nylon delivers higher tensile strength and creep resistance. Stays rigid under continuous heavy loads.



3. 15mm thickened crossbar

Industry standard for this size is 12mm. The HD45S adds 3mm of extra material — a noticeable difference in anti-bow and load capacity.



4. All-black industrial finish

Hides grease, dust, and shop-floor wear. Looks uniform across different equipment brands and colors.



5. Bridge or fully enclosed

Bridge = open top for cooling and quick checks. Enclosed = sealed against chips, dust, coolant. Same carrier, two protection levels.



6. Optional internal separators

Keeps power cables away from signal lines and hoses. Prevents friction damage inside the carrier.



Applications ：

CNC machining centers and heavy lathes

Spindle cables, servo lines, coolant hoses — these bundles are heavy and move constantly. The HD45S carries them without sag. Side-open means you can swap a damaged cable in five minutes instead of an hour.

Industrial robots and robotic arms

Robot dress packs need secure guidance through every joint rotation. The 30% glass-filled PA66 resists the constant flexing. Enclosed version keeps weld spatter and paint mist off your cables.

Stone cutting and glass processing

Water, slurry, stone dust. Standard carriers fail fast here. The fully enclosed HD45S seals out debris. Side-open still lets you inspect without disassembly.

Metal fabrication shops

Chips fly. Coolant sprays. Forklifts bump into things. The all-black finish hides wear. The thick crossbar takes hits that would crack standard carriers.

Logistics and heavy conveyors
Long travel distances. High cycle counts. The HD45S handles both. Bridge type keeps cables cool during non-stop operation.

Mining, construction, port equipment
Outdoor. Dusty. Vibrating. Hot in summer, frozen in winter. The PA66+glass formulation holds up where commodity plastics crack.

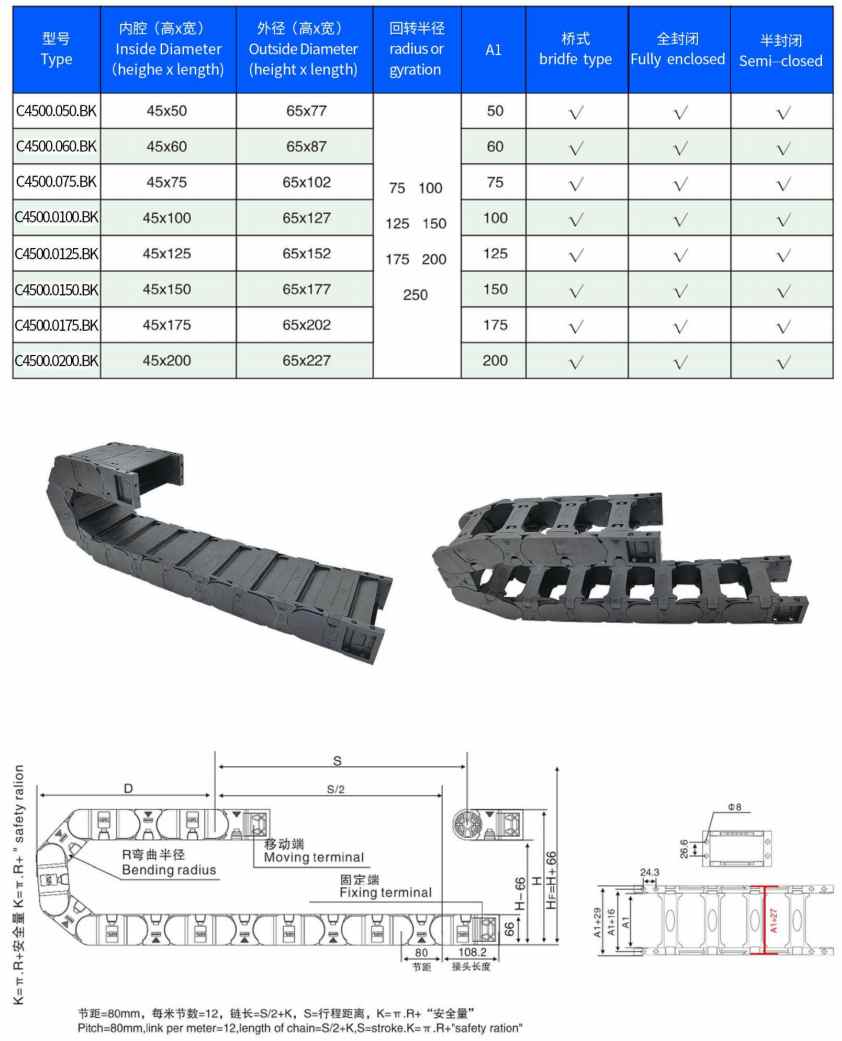

Technical Specifications & Dimension Table :

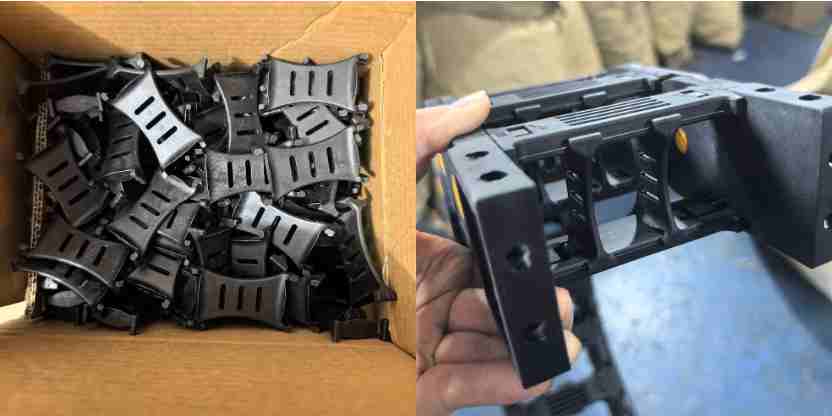

The heavy-duty cable carrier with an inner height of 45mm can be equipped with separators.

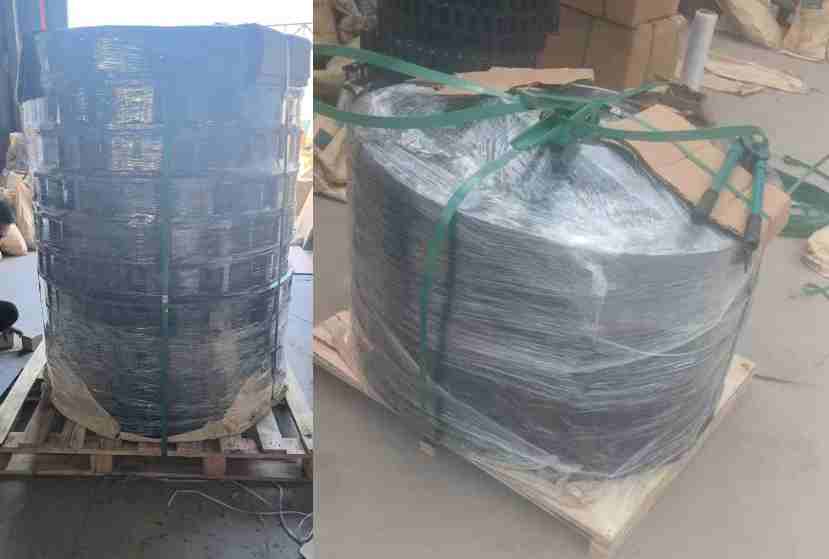

Packaging: Export carton，wooden case or wooden pallet.
