Yodel Heavy-Duty Reinforced Side-Open Cable Carrier – 38mm Inner Height (Bridge & Fully Enclosed Type)

Product Description：

When your industrial motion system requires a cable carrier that won’t sag, twist, or crack under repeated long‑stroke movement, the Yodel 38mm reinforced side‑open carrier delivers a field‑proven solution. Built from PA66 compounded with 30% glass fiber, this chain withstands heavy mechanical loads and sustained vibration in environments like CNC gantry routers, laser tables, and automated sorting lines.

Unlike ordinary drag chains that force you to thread cables from one end, our side‑opening design lets you access the interior from along the entire length. You can add, swap, or inspect cables and pneumatic hoses without disconnecting anything – a clear advantage for production uptime.

The series comes in two structural styles. The bridge type allows optional bolt‑on rollers, converting the carrier into a rolling chain that glides on a lower track for travel distances exceeding 20 meters. The fully enclosed type seals off chips, dust, and coolant, making it the safer choice for grinding or plasma cutting applications.

Inside, you can insert snap‑in dividers to separate power cables from signal wires or air tubes. This layered routing reduces friction, prevents electromagnetic interference, and extends the service life of your hoses and harnesses. Every link is molded with a reinforced stopper pin and side plates that resist fatigue after millions of bending cycles.

Whether you are retrofitting a long‑stroke gantry or building a new high‑speed palletizer, this cable carrier keeps your moving cables organised, protected, and silent during rapid traverse.

Key Features :

1. PA66+30% glass fiber structure
Offers twice the tensile strength of standard nylon carriers and low moisture absorption, ensuring dimensional stability in humid or oily shop floors.

2. Side‑opening crossbars (one‑side access)
Each crossbar can be flipped open from the side using a simple tool, allowing cable installation or maintenance at any point along the chain – no need to slide cables from the end.

3. Two separate mechanical lines

Bridge type (open top): Lightweight, easy to inspect, and the only version that accepts rollers.

Fully enclosed type (sealed tube): Keeps debris away from sensitive cables, ideal for abrasive or metal‑chip‑heavy environments.

4. Roller option for ultra‑long travel (bridge type only)
Rollers are mounted on extended pins between links. When placed on a steel track, rolling friction replaces sliding friction, reducing drive torque by up to 70% on strokes beyond 30 meters.

5. Modular divider system
Optional polypropylene dividers snap into grooves every 10mm. You can create 3‑5 separate chambers inside the same 38mm height to organise mixed cable/hose bundles.

6. Low‑noise stopper design
Integrated cushioned stoppers at each link end soften the impact during reverse bending, keeping noise below 65dB even at traverse speeds of 3–4 m/s.

Application：

• CNC gantry machines & large machining centers
  Manages power, encoder, and coolant hoses on X‑axis travels up to 25 meters. The fully enclosed version resists cast‑iron chips.

• Laser & plasma cutting tables
  High‑speed reciprocating motion (up to 60m/min) is handled smoothly with the bridge type + roller option. Side opening allows fast nozzle cable replacement.

• Automated production lines & pallet conveyors
  Reliable for continuous 24/7 operation. Dividers separate pneumatic tubes from sensor cables to avoid false signals.

• Logistics & material handling equipment
  Stacker cranes, shuttle carts, and telescopic belt conveyors benefit from the long‑stroke roller design without cable sagging.

• Special heavy automation machinery
  Any moving gantry or carriage requiring drag chain travel >15m under medium to heavy cable loads.

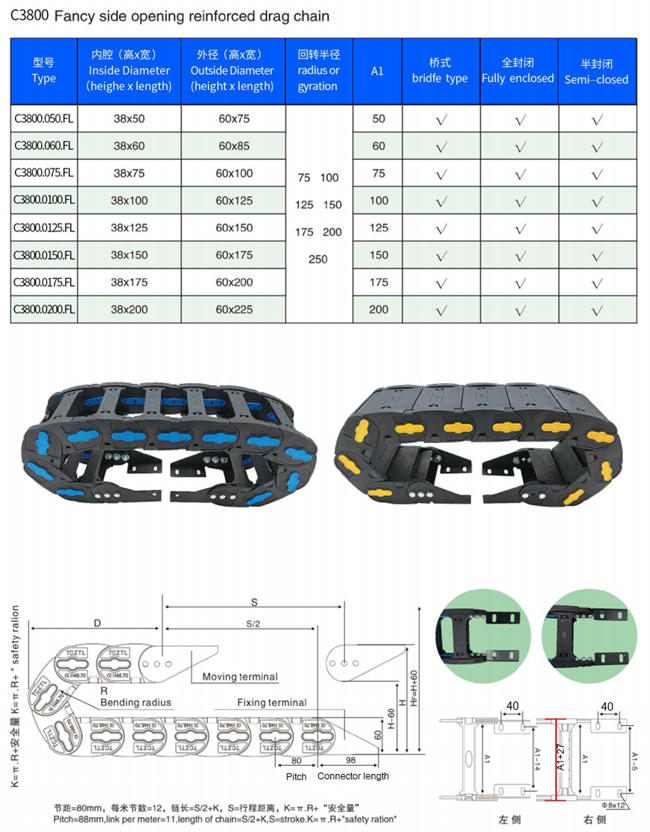

Technical Specifications & Dimension Table :

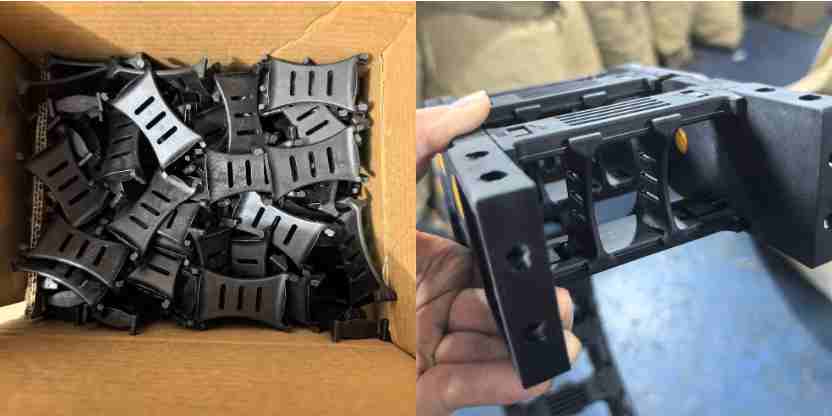

The heavy duty cable carrier with an inner height of 38mm can be equipped with separators.

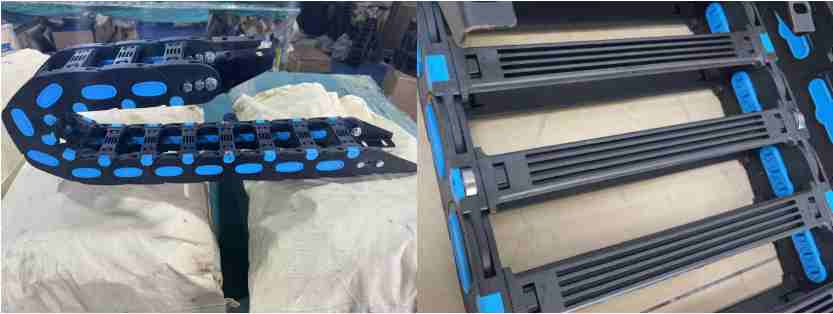

It can be equipped with a roller structure, ensuring this heavy-duty cable carrier remains stable and reliable during long-travel operation.

Packaging: Export carton，wooden case or wooden pallet.
