Yodel Mini Cable Carriers – Reinforced Nylon, 5–18mm Inner Height

Yodel Mini Cable Carriers – Reinforced Nylon, 5–18mm Inner Height

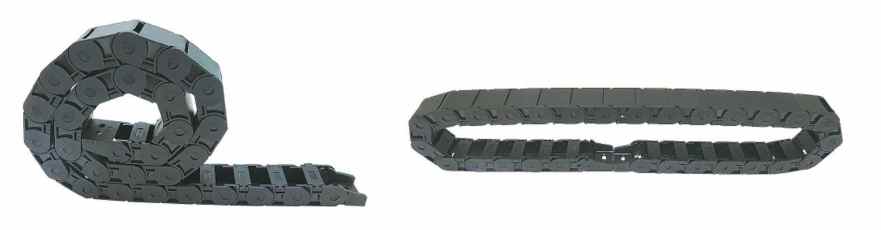

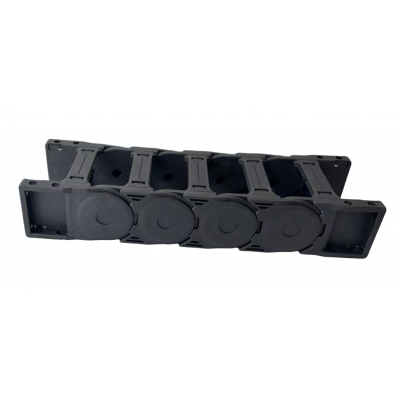

Made from high-strength reinforced nylon, Yodel miniature cable carriers combine bending flexibility, surface wear resistance, and extended operational life. Internal height options range from 5mm to 18mm, fitting compact machinery and clearance-limited installation zones. Choose between open and semi-enclosed styles with selectable bend radii. These small drag chains track smoothly under continuous reciprocating motion, preventing abrasion and tangling of cables, wires, or pneumatic hoses. Typical applications include 3D printers, small robotic arms, automation modules, benchtop CNC machines, laser engravers, and precision instruments. Quick to install, disassemble, and service for dependable cable management.

Features :

1. Material and Construction

Yodel Technology Development Co., Ltd. manufactures its mini cable carriers from reinforced nylon – a high-strength engineering polymer. This material gives the drag chain three properties that matter on the factory floor:

• Flexibility – Each link bends without cracking, even after millions of cycles.

• Abrasion resistance – The surface withstands sliding contact against machine frames or moving plates.

• Long service life – The nylon compound resists embrittlement from heat, dust, and continuous motion.

2. Dimensional Range – 5mm to 18mm Inner Height

The internal height of a miniature cable carrier directly determines which cables, wires, or pneumatic tubes fit inside. Yodel Technology Development Co., Ltd. manufactures its mini drag chains in five stepped internal height options: 5 mm, 7 mm, 10 mm, 15 mm, and 18 mm.

Each size targets a specific range of wire bundles and equipment types. The table below shows typical pairings based on field installations.

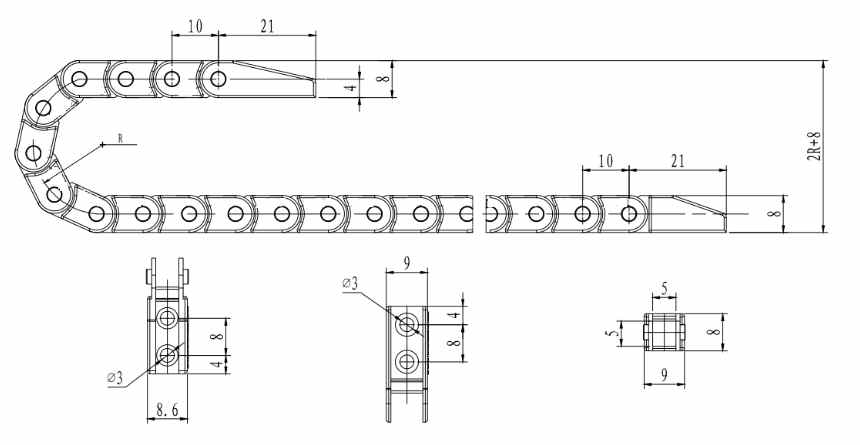

Internal height 5 mm – Fits single signal wires or 2 mm pneumatic tubes. Ideal for ultra-compact 3D printer heads.

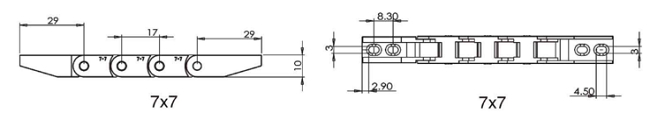

Internal height 7 mm – Accommodates USB cables, power wires, and limit switch lines. Commonly used in desktop laser engravers.

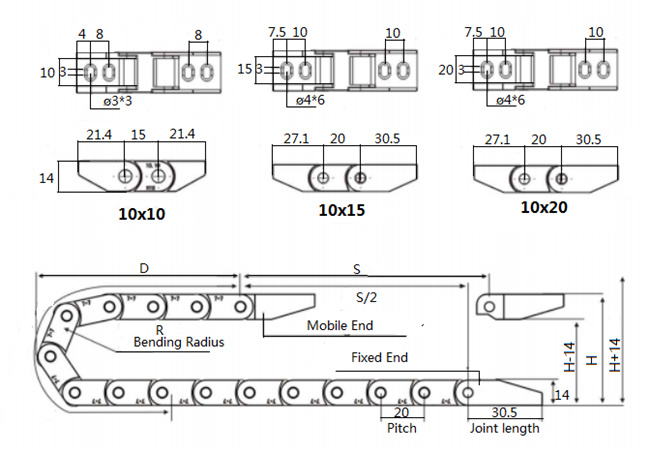

Internal height 10 mm – Holds stepper motor cables, endstop wires, and cooling fan lines. Suitable for small CNC mills.

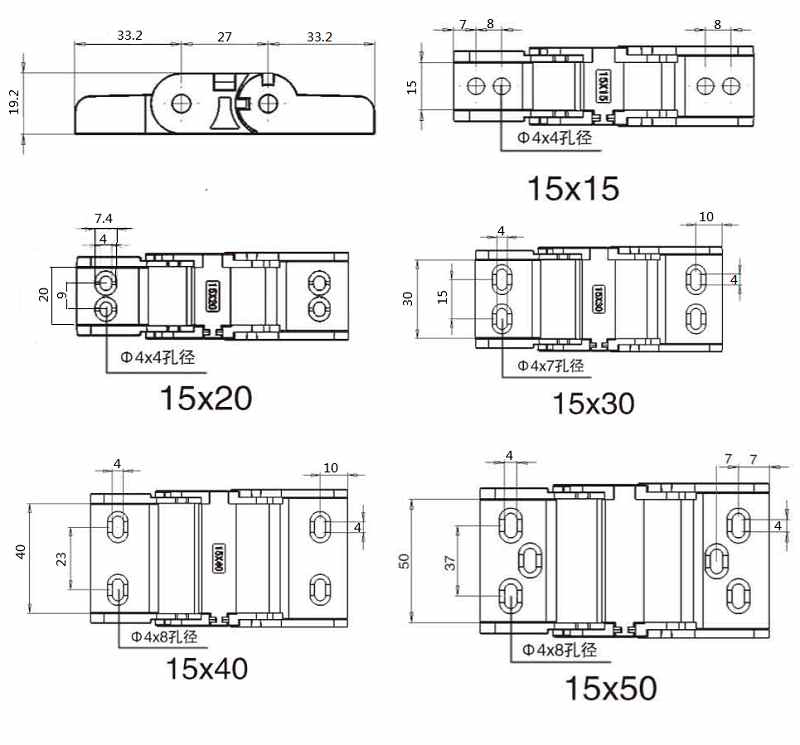

Internal height 15 mm – Routes motor power cables, encoder wires, and small air hoses. Found in automation pick-and-place modules and small robotic arms.

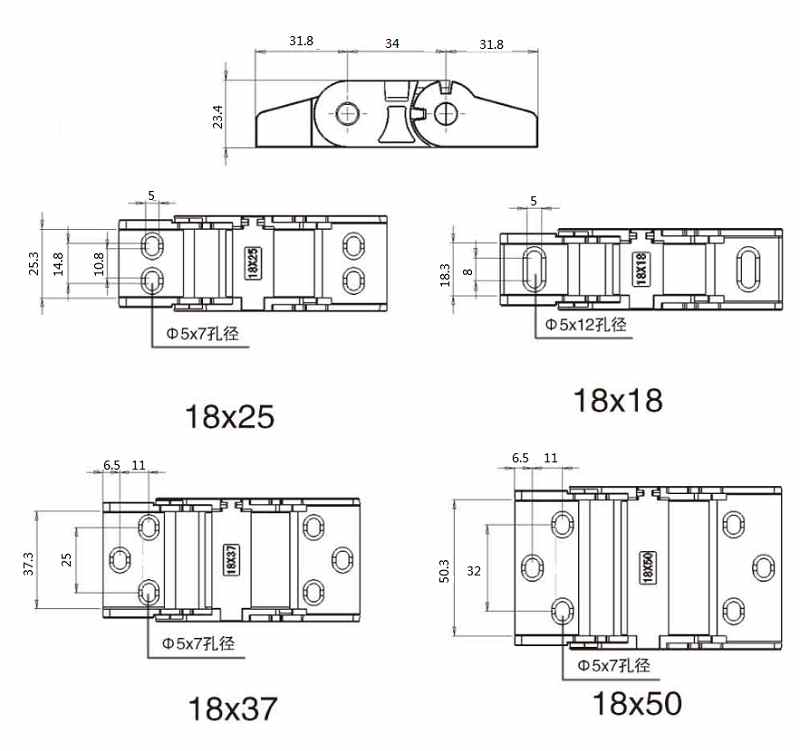

Internal height 18 mm – Carries composite harnesses with three to four different cables. Designed for precision instrument axes and multi-axis motion stages.

3. Enclosure Styles – Open and Semi-Closed

Yodel miniature cable carriers are available in two enclosure styles.

Open style （bridge）– The top of each link stays exposed. Operators drop cables directly in from above. No threading from one end is required. Best for setups where cables change often or wiring gets modified frequently.

Semi-closed style – A partial cover sits on top, blocking dust, plastic chips, and solder spatter. Side gaps remain open for cable inspection. Recommended for CNC machines, laser engravers, and similar debris-prone equipment.

Both styles support multiple bending radius options. Pick a smaller radius for short-stroke axes. Choose a larger radius when running thick or stiff cables to reduce bending stress.

Typical Applications ：

Yodel mini cable carriers are widely used across compact automation and precision equipment, including:

• 3D printers – Routing heated thermistor wires, stepper motor cables, and filament sensor lines on moving gantries.

• Small robotic arms – Guiding encoder cables and power lines through wrist and elbow joints with tight bend radii.

• Automation modules – Protecting hoses and wires on pick-and-place units, linear slides, and rotary indexers.

• Small CNC machines – Shielding spindle cables and coolant hoses from chips and cutting fluid using semi-closed carriers.

• Laser engravers and cutters – Keeping laser power cables and limit switch lines debris-free during gantry motion.

• Precision instruments – Managing delicate sensor wires on vision systems, measurement stages, and inspection equipment.

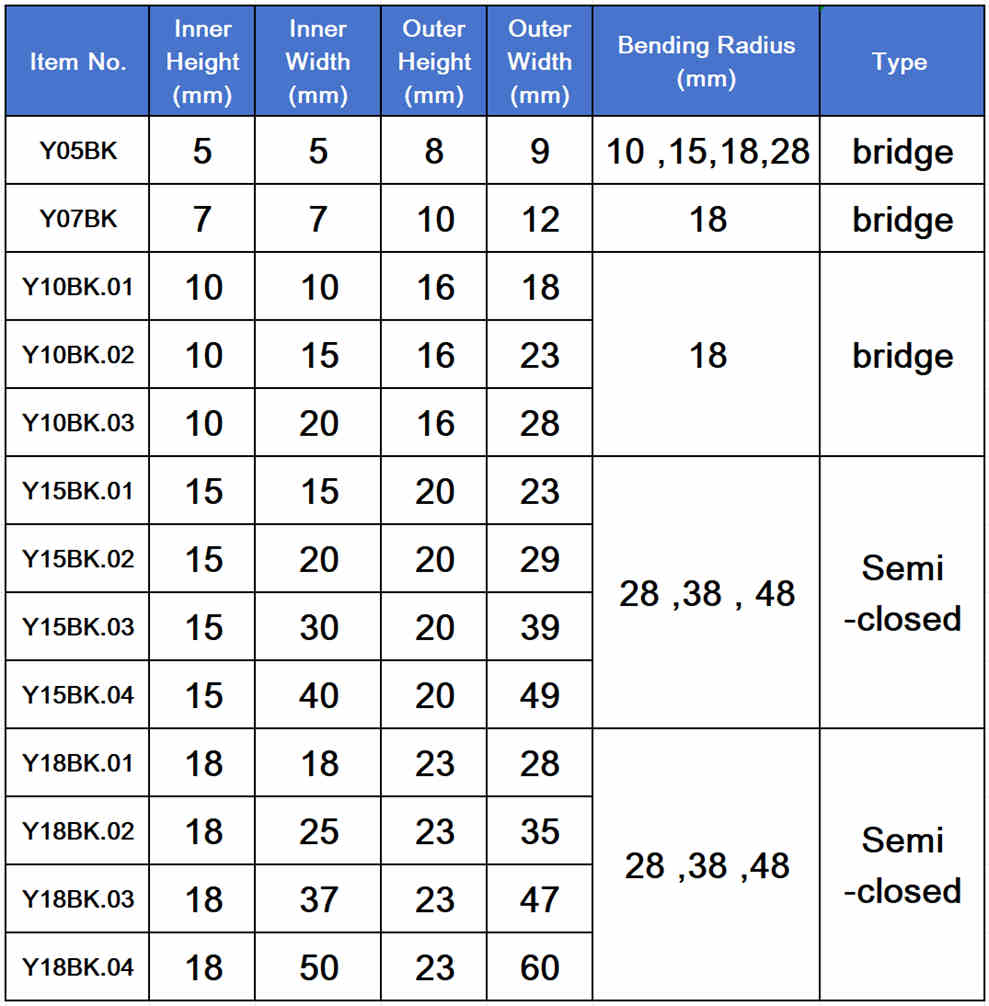

Dimension Table:
