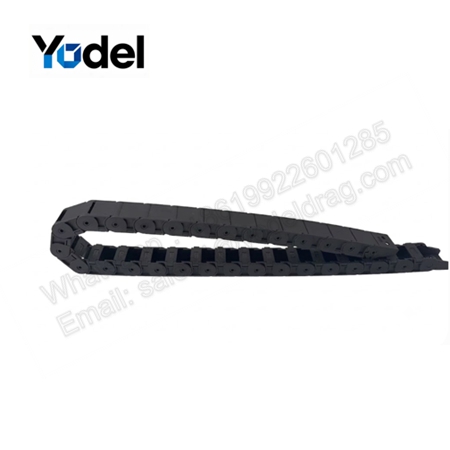

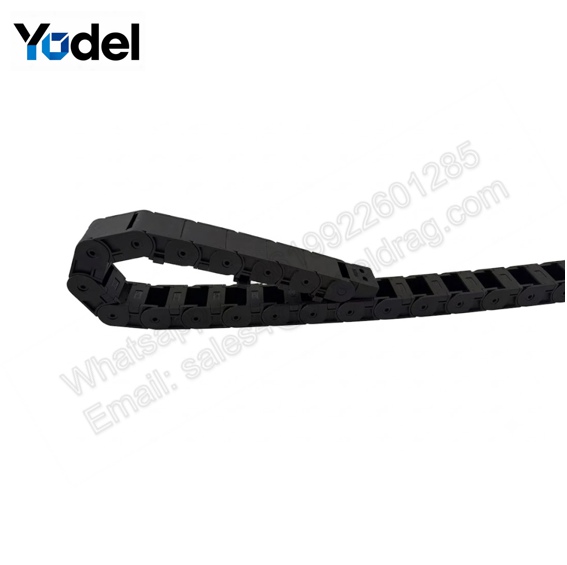

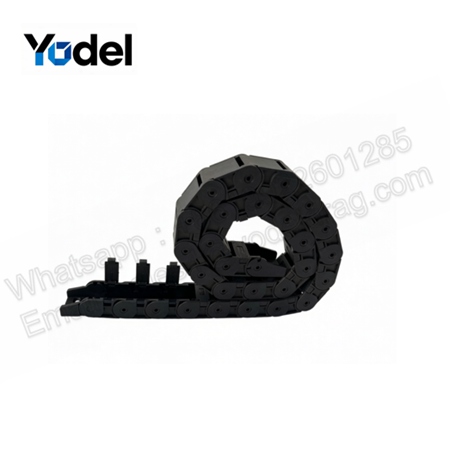

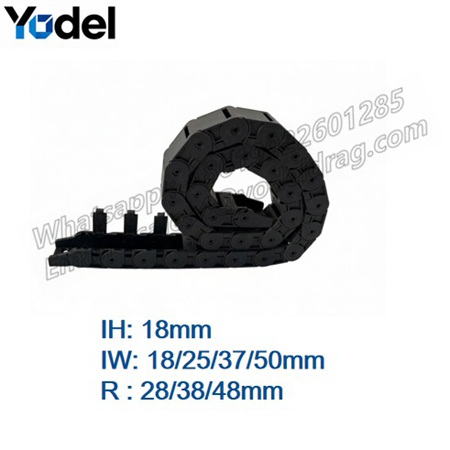

18mm Inner Height Semi-Enclosed Side-Opening PA66 Small Drag Chain for Dynamic Cable Management

Product Overview & Hero Highlights

Dynamic automation demands relentless speed and precision, but bound cables often cause friction, unexpected wear, and machine downtime. Enter the Yodel small drag chain system—engineered with high-grade PA66 reinforced nylon to eliminate torsional stress and protect sensitive wiring in high-velocity linear movement.

Unlike standard, rigid cable tracks that force technicians to tedious thread-through routines, this semi-enclosed small drag chain features a tool-less, side-opening hinged cover. Whether you are running high-flex servo cables, pneumatic hoses, or signal lines, this small cable carrier delivers rapid access, exceptional wear resistance, and silent articulation across every stroke.

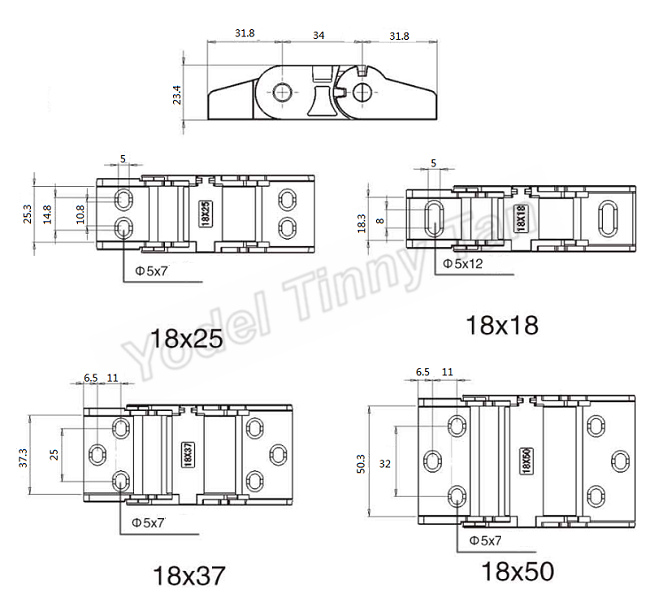

Technical Specifications Size Table :

18×18/18×25/18×37/18×50

Item.No	YST1818	YST1825	YST1837	YST1850
Internal Dimension (H×W) mm	18×18	18×25	18×37	18×50
External Dimension (H×W) mm	23×28	23×35	23×47	23×60
Bending Radius (R) mm	R28  R38  R48
Pitch mm	34
Chain Links Per Meter	30
Opening Method	Side-open
Max Cable Outer Diameter mm	≤16

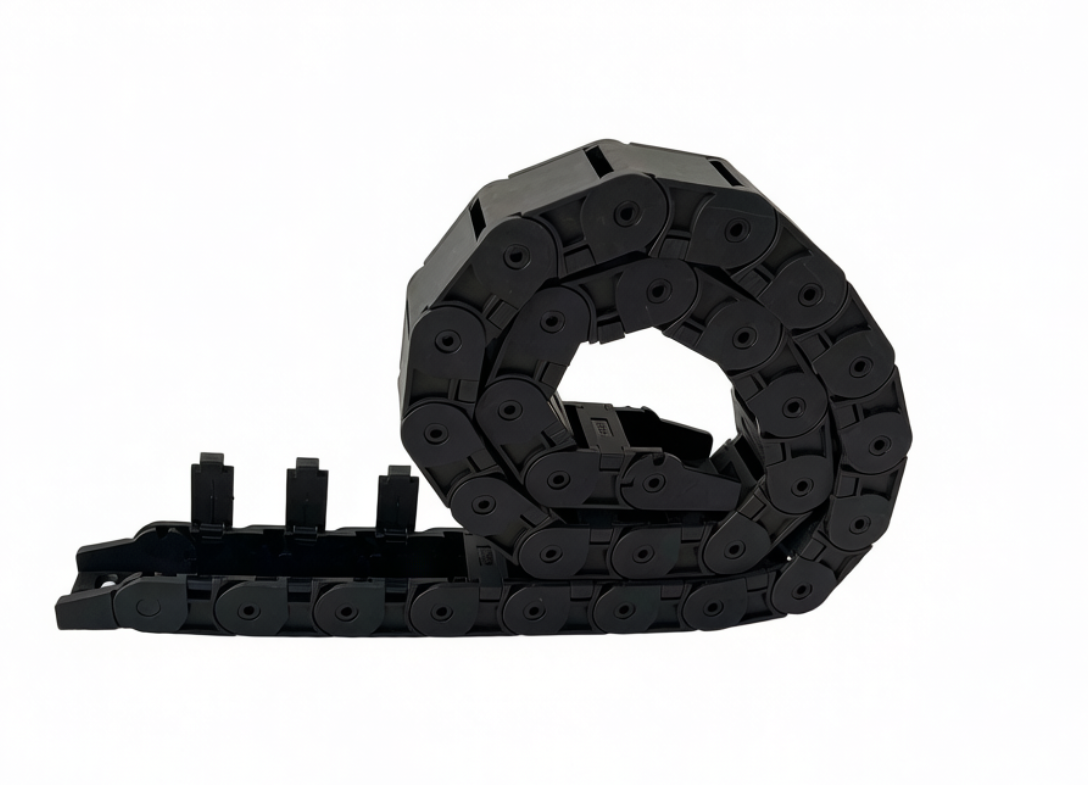

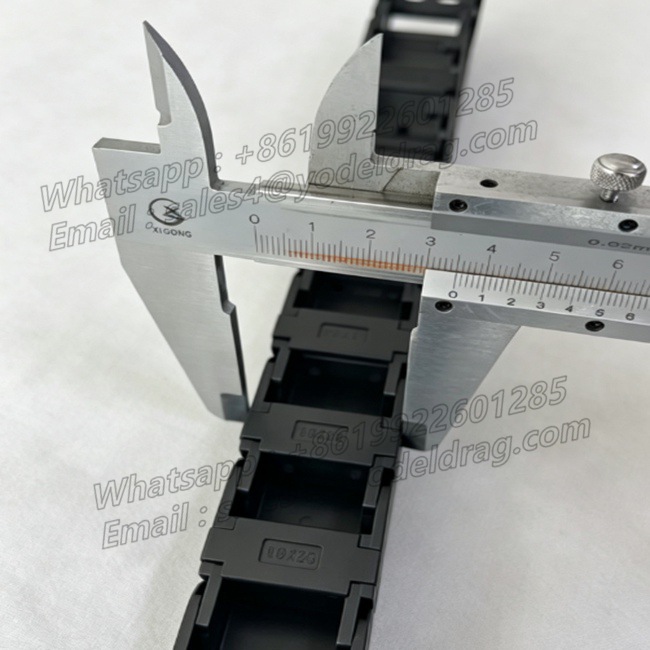

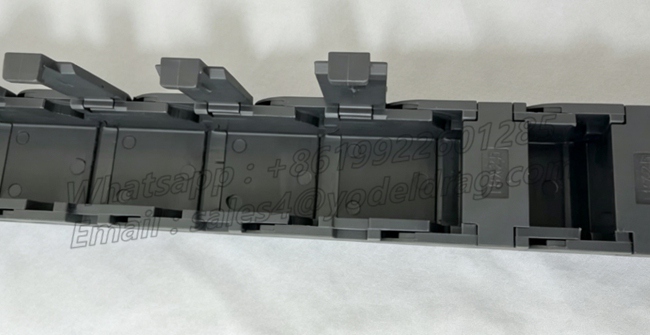

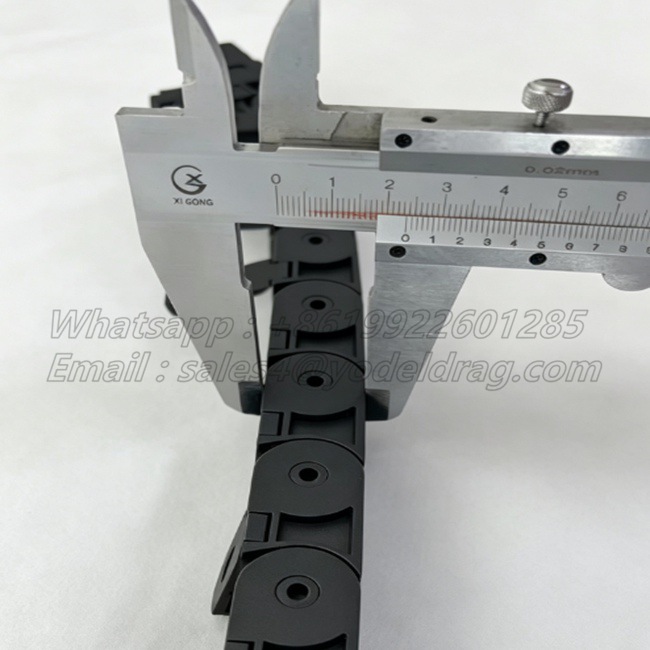

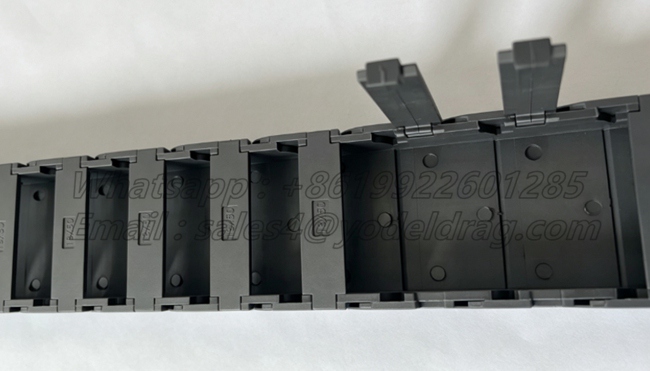

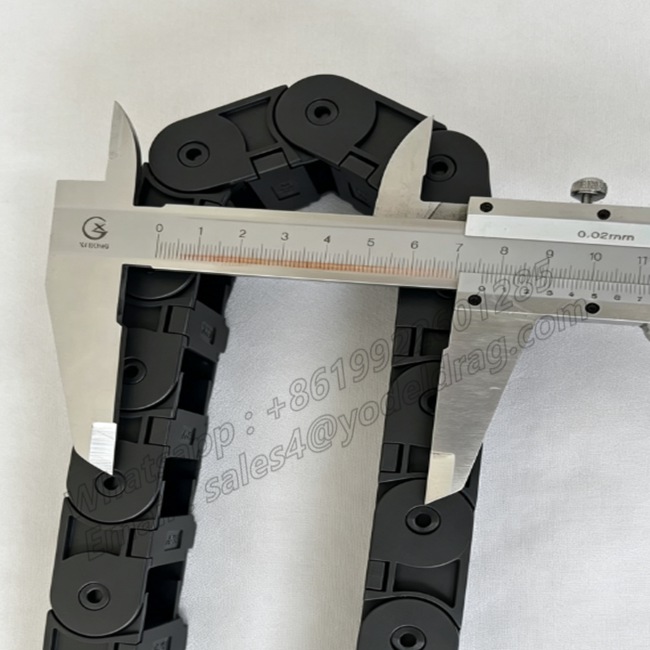

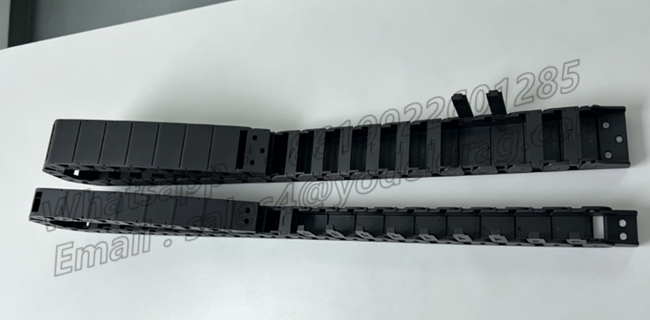

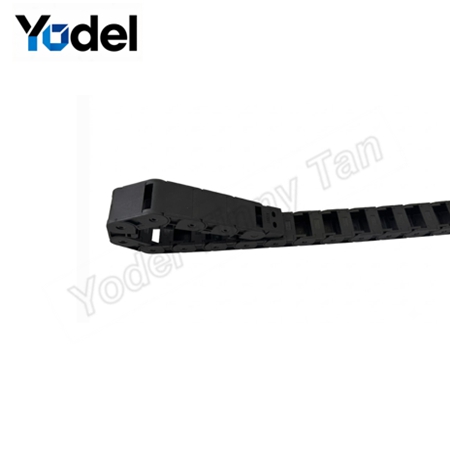

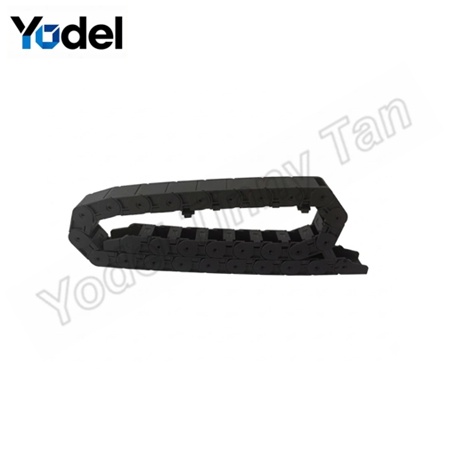

18‑Series Cable Carrier Real‑Shot: Side‑Open Structure, End Fittings & Measuring Outer Width, Outer Height, Bending Radius

Why Choose Our PA66 Small Drag Chain?

1. Tool-Less Side-Opening Architecture

Traditional closed-bridge chains waste precious engineering hours during installation and maintenance. Our side-opening small drag chain lets you snap open individual crossbars along the side axis. Insert, arrange, or replace cables within seconds—no need to dismantle connectors or unplug machine harnesses.

2. High-Grade Virgin PA66 Material Engineering

Not all plastic carriers are built the same. Every small drag chain we mold uses 100% virgin polyamide 66 (PA66) reinforced with structural heat stabilizers. This guarantees high tensile strength, outstanding fatigue resistance, and reliable performance across extreme thermal ranges (-40°C to +120°C).

3. Semi-Enclosed Debris Protection

Designed for demanding workshop environments, the semi-enclosed outer shell shields sensitive internal cables from falling metal chips, dust, and mechanical abrasion while maintaining heat dissipation along the open structural channels.

Real-World Application Case Study

Field Scenario: High-Speed 3D Gantry & CNC Router Retrofit

The Challenge:

A precision CNC equipment builder suffered recurring signal noise and insulation tear-through on their 3-axis router. Their original fixed-bridge plastic track created severe cable friction at high accelerations, making maintenance a multi-hour headache whenever a single sensor wire failed.

The Solution:

The engineering team replaced the legacy tracks with our 18x37mm small drag chain (bending radius R38mm).

The Outcome:

Wiring Time Cut by 65%: The side-opening snap lids allowed engineers to lay harness bundles directly into the trough rather than threading 3-meter cables.

Extended Cable Lifespan: The smooth inner radius of the PA66 link joints eliminated sharp bend points, completely preventing wire fatigue failure over 5 million continuous cycles.

Zero Machine Downtime: Routine sensor inspections now take under 5 minutes per axis.

Sizing & Selection Guide: Finding Your Perfect Fit

Selecting the correct small drag chain dimensions ensures smooth bending, zero cable bind, and maximum operational life. Follow this simple 3-step sizing strategy for the IH 18mm series:

Step 1: Calculate Inner Width (IW)

Add up the total outer diameters (OD) of all cables and hoses you plan to route inside the chain, then add a 10% to 15% clearance safety margin:

Required Inner Width = (∑ Cable Diameters) × 1.15

18 × 18 mm: Ideal for single sensor bundles, small stepper motor leads, or compact 3D printer rigs.

18 × 25 mm: Perfect for standard CNC axes running a main spindle power line alongside dual encoder cables.

18 × 37 mm: Designed for multi-axis machinery requiring simultaneous air lines and shielded control lines.

18 × 50 mm: The ultimate high-capacity choice for complex automated cells with dense multi-cable harnesses.

Step 2: Determine Bending Radius (R)

Match your largest cable's minimum allowable bend radius to one of our three standard options: R28mm, R38mm, or R48mm. As a rule of thumb, the chain bend radius should be at least 8 to 10 times the thickness of your thickest cable.

Step 3: Choose Mounting Brackets

Ensure your stroke length accommodates end-bracket fastening points for secure machine mounting without excessive sagging or tension.

Manufacturing Excellence & Quality Assurance

We maintain absolute control over every stage of production to deliver consistent, industrial-grade quality in every unit shipped.

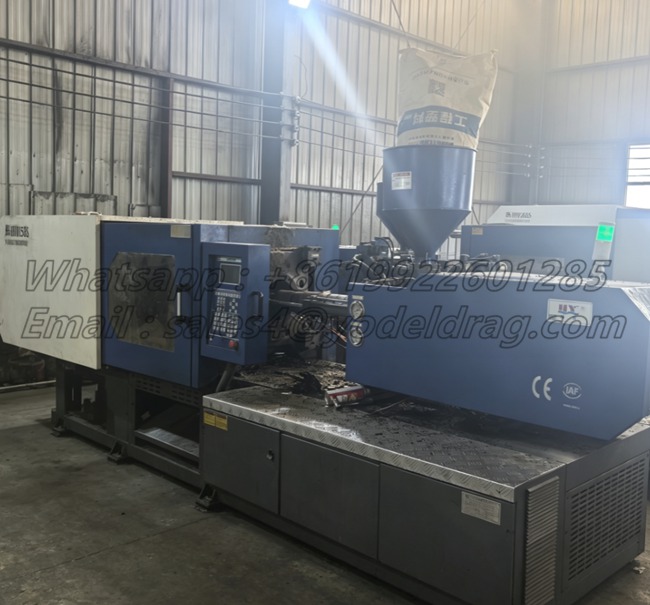

Precision Injection Molding: Automated presses ensure tight tolerances on every link pivot point, resulting in low noise and low vibration during high-speed travel.

Durability Testing: Sample batches undergo continuous acceleration and tensile strength tests to verify structural integrity.

Inspection Before Packing: Every meter of small drag chain is inspected for smooth hinge articulation, snap-lid locking security, and surface perfection.

Packaging & Global Logistics

To guarantee that your order arrives in pristine, factory-fresh condition regardless of transit distance, we implement strict B2B export packaging protocols:

Protective Bundling: Drag chains are neatly coiled or laid straight in anti-static protective wrapping to prevent surface scratching.

Export Crating: Orders are packed into reinforced 5-ply corrugated export cartons and palletized with edge protectors for sea or air freight.

Frequently Asked Questions (FAQ)

Q: What makes a PA66 small drag chain superior to standard PVC or lower-grade plastic tracks?

A: Polyamide 66 (PA66) provides significantly higher tensile strength, impact resistance, and thermal stability than standard plastics. A PA66 small drag chain will not become brittle in cold temperatures or sag under continuous thermal friction, ensuring a much longer service life in dynamic automation.

Q: How does the side-opening mechanism work on this small drag chain?

A: Each link features a hinged crossbar on the side profile. You can pop the cover open using a flathead screwdriver or fingernail, lay your cables directly into the channel, and press the lid back until it clicks securely into place.

Q: Can I extend or shorten the length of the small drag chain myself?

A: Yes. Every small drag chain link is modular. You can easily snap individual link joints apart or snap additional links together to achieve the exact length required for your travel distance.

Q: What is the maximum travel speed for this 18mm small drag chain series?

A: Thanks to the low-friction PA66 material compound, this small drag chain supports acceleration up to 50 m/s²and linear speeds up to 5m/s in unsupported or sliding applications.

Q: Do you provide custom inner width or custom color options for bulk OEM orders?

A: Absolutely. While our standard color is jet black, we offer custom color compounding, special anti-static or flame-retardant (UL94-V0) formulas, and custom mounting bracket solutions for OEM volume requirements.
