China Supplier PA66 15mm Small Drag Chain | Semi-Enclosed Side Opening Carrier

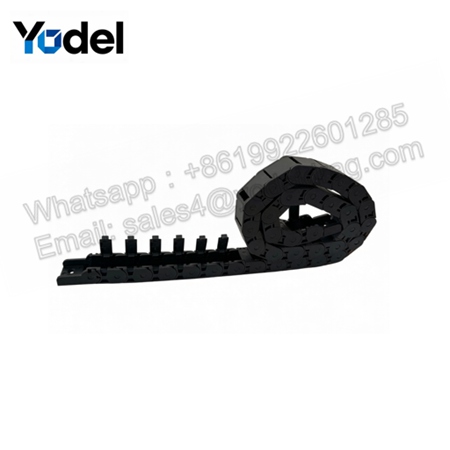

Semi-Enclosed Side-Opening PA66 Small Drag Chain for Rapid Cable Routing

Section 1: Advanced Structural Architecture & Material Performance

Modern industrial gantries require dynamic cable protection solutions that balance debris shielding with quick maintenance access. Our continuous-duty small drag chain series features a specialized side-opening snap-lid framework molded entirely from high-grade Polyamide 66 (PA66). Engineering-grade PA66 delivers superior tensile strength, chemical immunity against cutting oils, and thermal stability under prolonged cyclic loading.

Unlike fully closed structures that force time-consuming cable threading, this semi-enclosed small drag chain allows technicians to snap open the lateral side latches instantly. Cables with pre-fitted industrial connectors can be laid directly inside the link track. The semi-enclosed outer shell blocks flying metal chips and sawdust while providing optimized ventilation to dissipate heat generated by dynamic power cables.

Section 2: Dimensional Sizing Matrix & Selection Blueprint

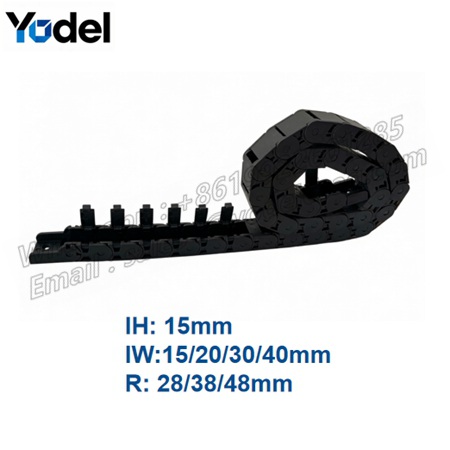

Selecting the optimal cross-section for a small drag chain ensures smooth linear motion and long cable service life. Our 15mm inner height family provides four distinct internal width configurations paired with three versatile bending radii (R28, R38, R48):

15mm x 15mm Profile: The essential small drag chain for single-axis stepper motor wiring, compact limit switch cables, and thin pneumatic tubes.

15mm x 20mm Profile: Provides additional clearance for bundled signal wiring alongside low-voltage DC power lines in compact pick-and-place units.

15mm x 30mm Profile: Broad internal track designed for multi-conduit setups where pneumatic lines and shielded communication cables run parallel.

15mm x 40mm Profile: Maximum width variant in the 15mm series, ideal for gantry axes carrying multiple servo motor power feeds and feedback lines.

Technical Specifications Size Table :

15×15/15×20/15×30/15×40

Engineering Selection Blueprint

Calculate the maximum outer diameter (OD) of your thickest cable or hose. The inner height of your selected small drag chain (15mm) must exceed the largest cable OD by at least 10%. Additionally, choose a bending radius (R28, R38, or R48) equal to or greater than 8 to 10 times the largest cable diameter to prevent dynamic bend stress and insulation fatigue.

CABLE CARRIER (INNER SIZE:15×20mm)

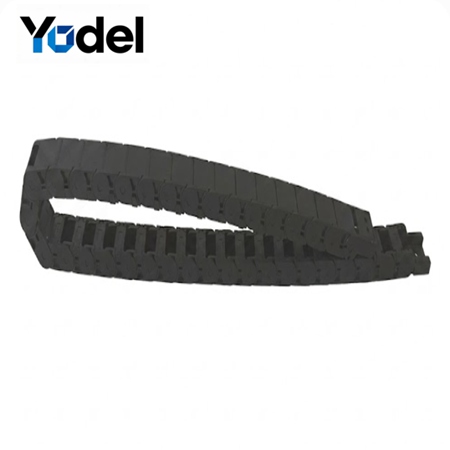

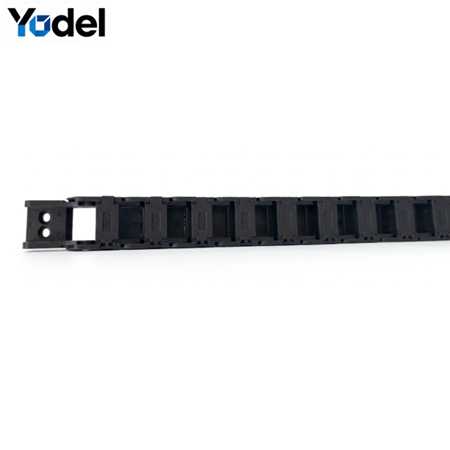

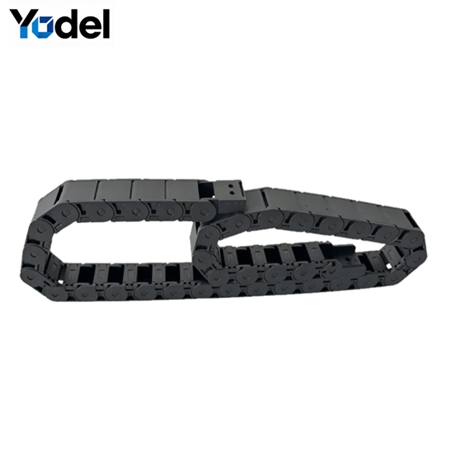

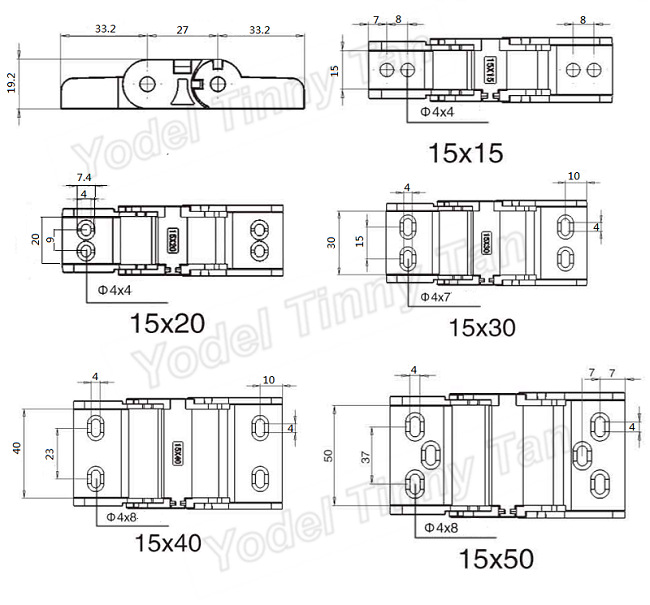

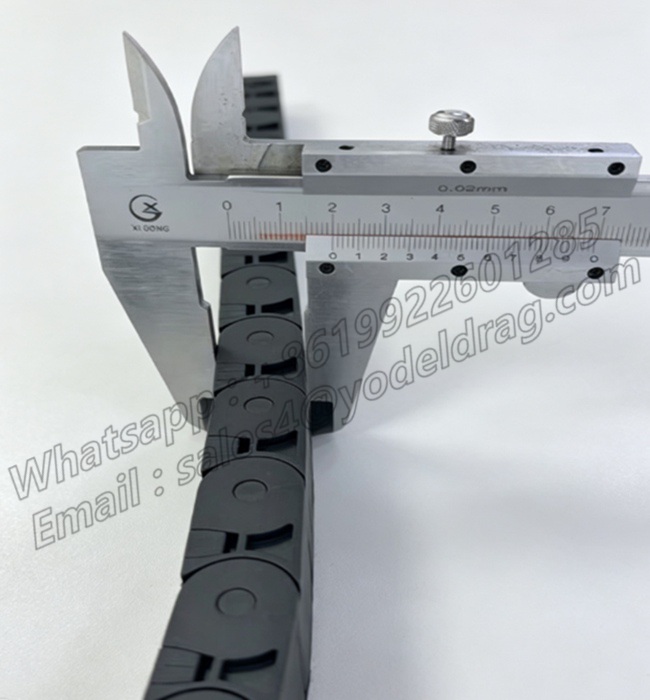

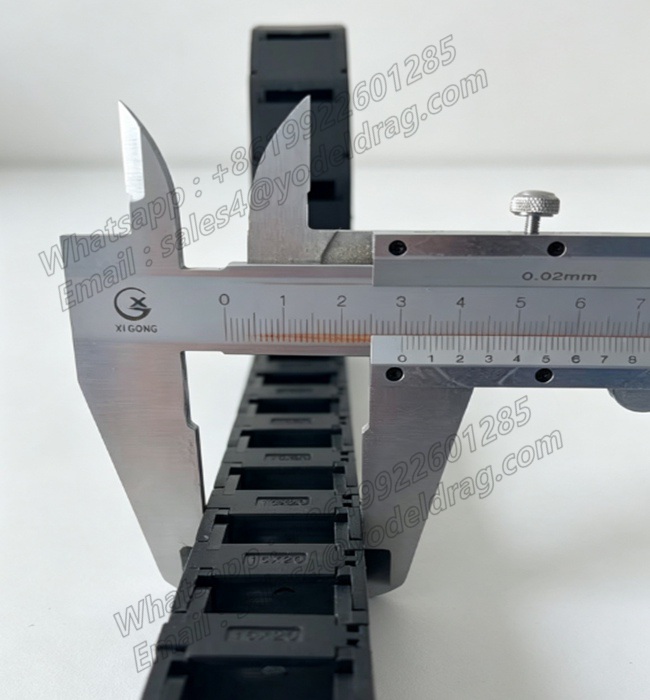

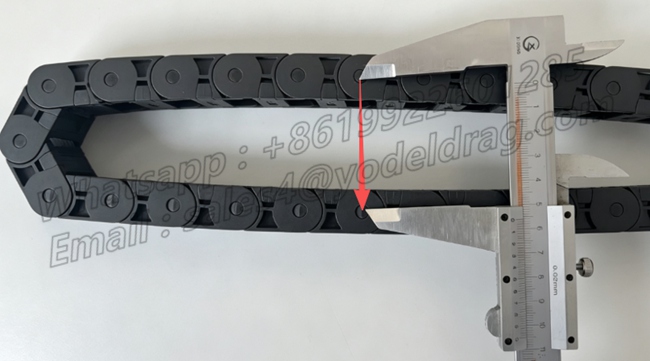

Show actual‑product views of outer height, outer width & bending radius

Section 3: Field Application Case Study

Real-World Implementation: High-Speed Laser Engraving Machine

Challenge: A CNC laser cutter manufacturer experienced frequent maintenance delays when replacing damaged proximity sensor wires enclosed inside traditional non-openable drag chains, leading to extended customer downtime.

Solution: The manufacturer retrofitted their X/Y gantry axes with our side-opening semi-enclosed PA66 small drag chain (15mm x 30mm, R38 radius). The side-opening feature allowed complete harness replacement in minutes without removing pre-molded cable plugs.

Result: Cable replacement service time dropped by 80%, while the semi-enclosed shell successfully protected wiring from airborne dust and debris across over 10 million flex cycles.

Section 4: Precision Manufacturing Integrity & Quality Assurance

Every link in our small drag chain manufacturing line is produced using high-precision automated injection molding equipment with multi-cavity hardened steel tooling. This guarantees exact pin-and-bore pivot tolerances, eliminating lateral snaking and reducing joint friction during ultra-fast reciprocating movement.

By combining rigid PA66 polymer formulation with rigid side-latch geometry, our semi-enclosed small drag chain maintains structural alignment under high acceleration up to 10 m/s², delivering smooth acoustic dampening and long operational lifetime across demanding factory automation environments.

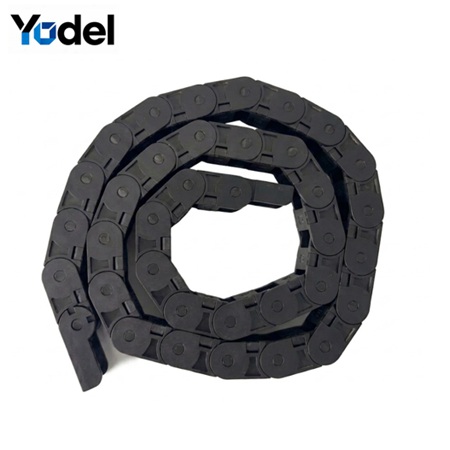

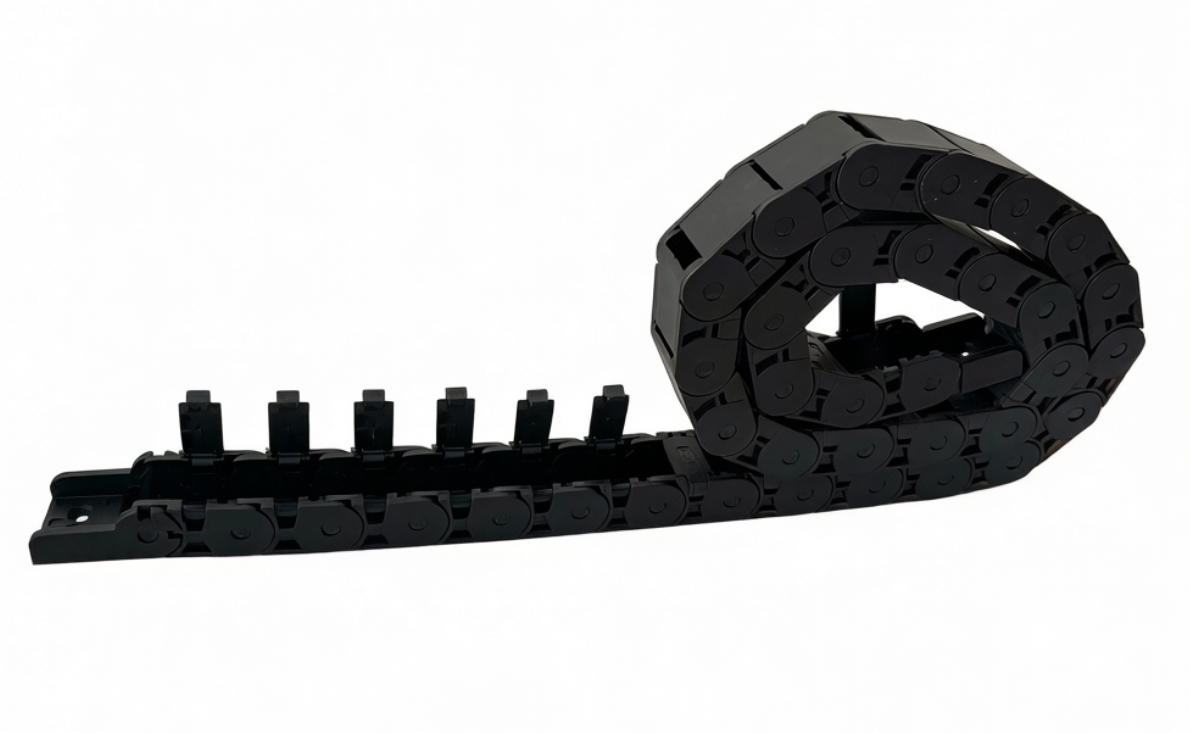

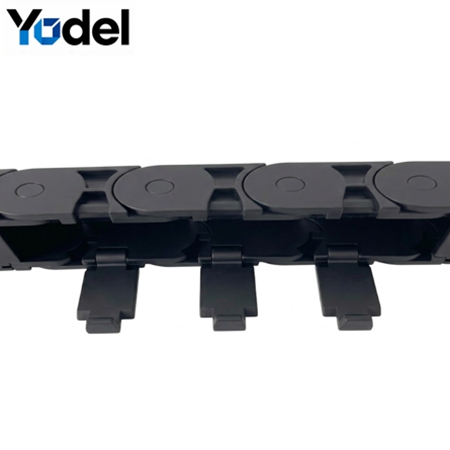

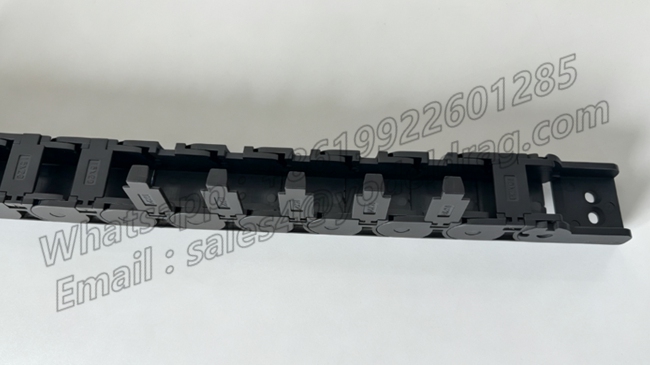

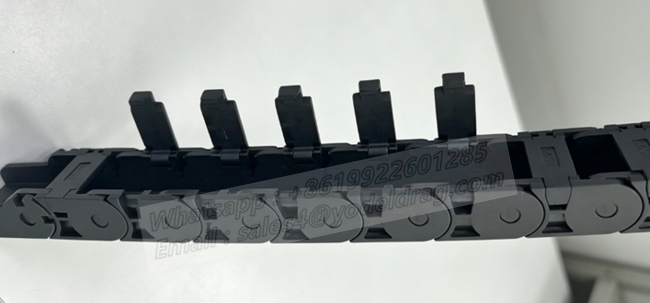

Side‑open type cable carrier physical structure photo

Section 5: Frequently Asked Questions (FAQ)

Q1: How does a side-opening small drag chain simplify cable installation?

A: A side-opening small drag chain features flexible lateral latches along the outer or inner radius. Technicians can snap open the side bars to lay cables directly into the track rather than threading them end-to-end, making it significantly easier to install cables with large pre-attached connectors.

Q2: Why is PA66 material preferred for a semi-enclosed small drag chain?

A: PA66 offers higher tensile modulus, better impact strength, and exceptional heat resistance compared to standard polypropylene or standard nylon. This ensures that the small drag chain maintains rigid joint geometry and flexible latch retention without becoming brittle over time.

Q3: How do I select between R28, R38, and R48 bending radii for my small drag chain?

A: The choice depends on your machine's vertical space limitations and cable dynamic bend requirements. R28 provides the most compact curve for tight enclosures, while R48 offers a gentler curve ideal for delicate fiber optic lines or stiffer power cables within the small drag chain cavity.

Q4: Does the semi-enclosed design protect cables against industrial debris?

A: Yes. The semi-enclosed structure provides substantial coverage against falling debris, plastic chips, and dust while allowing heat and moisture to escape, preserving both cable insulation and small drag chain durability.
