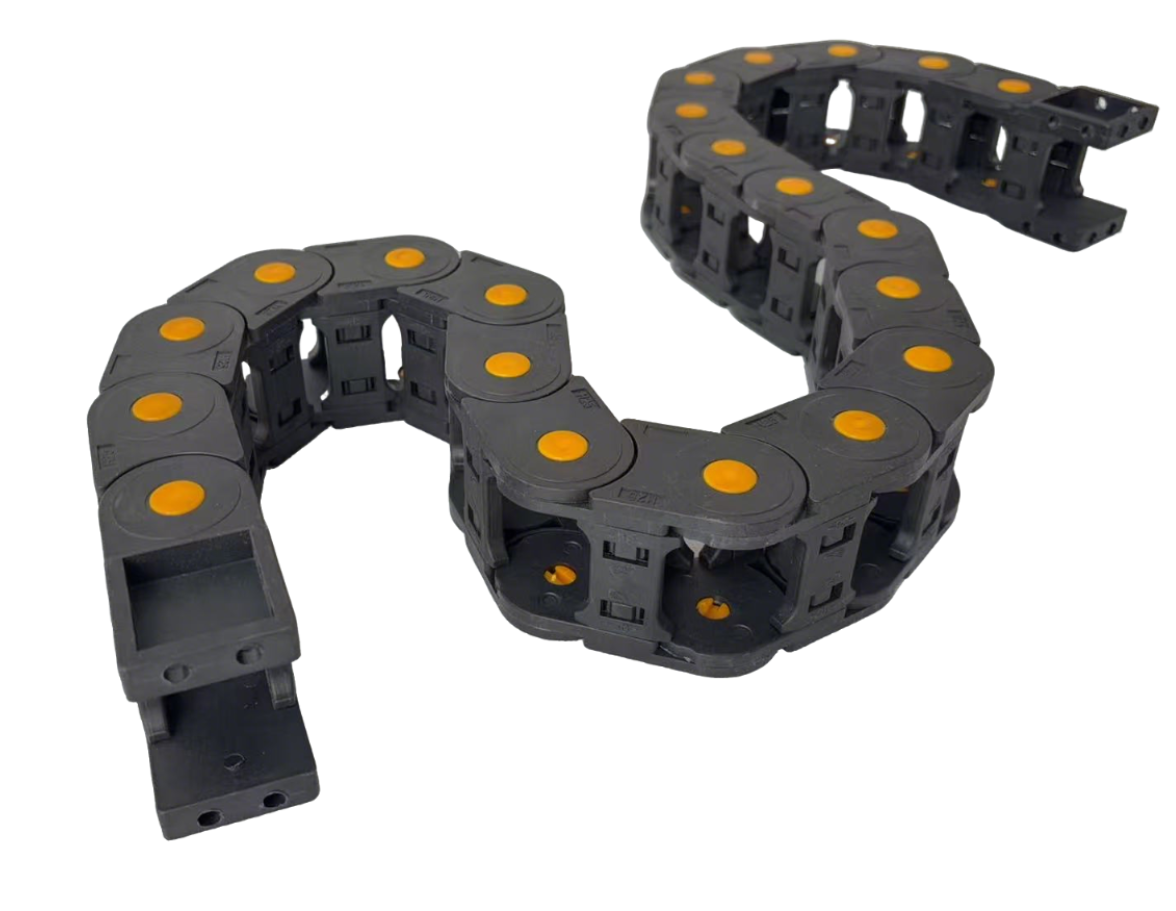

Heavy Duty Flexible Cable Carrier: Premium Bi-Directional S-Shape Nylon Cable Drag Chain for Advanced Motion Control

Redefining Multi-Axis Motion: The Ultimate Bi-Directional S-Shape Drag Chain

In modern industrial automation, multi-axis movements demand a dynamic wiring solution that conventional single-bending drag chains cannot provide. Our premium flexible cable carrier is engineered specifically for complex, multi-directional, and reverse-bending configurations. Featuring a unique bi-directional S-shape design, this high-performance nylon cable drag chain allows cross-axis flexibility while maintaining unparalleled structural stability. Built from specialized Nylon PA66, it provides robust defense for your critical lines in high-speed, demanding environments.

Unlike standard single-direction carriers, this specialized S-shape plastic energy chain smoothly transitions through alternating reverse bends. It is the ultimate alternative to rigid tracks, designed to minimize cable stress during multi-dimensional mechanical trajectories. By acting as an advanced cable & hose carrier, it isolates individual lines from friction, continuous torsional stress, and external impact, maximizing operational uptime.

Premium Nylon PA66 Formulation: Provides exceptional wear resistance, self-lubricating properties, and structural integrity under high fatigue.

S-Shape Dual Bending Mechanism: Enables seamless multi-axis loops, making it an ideal choice for complex CNC cable track deployment.

Industrial Grade Reliability: Operates efficiently under continuous movement, fulfilling the role of a true heavy duty cable carrier without structural degradation.

Technical Specifications & Dimension Matrix

To ensure precise integration with your machinery, our flexible cable carrier series is available in three optimized industrial sizes, explicitly tuned for substantial load stability and compact bending efficiency.

Real-World Case Study: S-Shape Application in Multi-Axis CNC Systems

Consider a heavy-duty multi-axis CNC machining center executing a continuous 3D contouring sequence. A standard plastic energy chain restricts motion to a single plane, forcing cables to twist during cross-travel maneuvers. This twisting leads to inner wire friction and premature jacket failure.

By upgrading to our bi-directional flexible cable carrier, the machine utilizes an alternating S-curve setup. As the gantry slides along the X-axis while simultaneously elevating along the Z-axis, the carrier flexes in both directions simultaneously. This eliminates torsional stress on the internal conduits. In actual factory tests, implementing this specialized nylon cable drag chain extended the service life of high-flex data cables from 1.5 million cycles to over 10 million cycles, completely preventing unexpected downtime in high-throughput production lines.

Sizing and Selection Guide: How to Calculate Your Requirements

Choosing the correct size for your cable & hose carrier prevents mechanical interference and guarantees optimum service life. Follow this standardized engineering calculation flow:

Step 1: Determine the Required Internal Clearance

Gather the outer diameters (OD) of all cables, pneumatic tubes, and hydraulic lines that will run through the carrier. Find the maximum cable diameter (dmax) and calculate the total combined width.

The minimum inner height of your chosen heavy duty cable carrier must include a safety clearance of at least 10%: Hmin≥dmax × 1.1.

Application: If your thickest hydraulic hose has an OD of 48mm, the 55mm inner height model provides the perfect clearance. If your cable bundle expands up to 70mm, select the 80mm inner height variant.

Step 2: Select the Proper Bending Radius (R)

The bending radius must be chosen based on the thickest, least flexible cable in your assembly. Refer to the cable manufacturer's specification sheet for the dynamic bending factor (typically 10 × to 15 × the cable OD).

Formula: Rmin ≥ dmax × Dynamic Factor.

Application: Our 55mm and 65mm inner height tracks feature a tight 75mm bending radius, optimized for dense, space-constrained automation layouts. The larger 80mm inner height version utilizes a 150mm radius to accommodate thicker, less flexible power cables without risking core breakage.

Step 3: Account for Multi-Axis Clearance

When routing cables in an S-shape configuration within a CNC cable track system, ensure that the cables are laid out flat and partitioned with vertical separators. Never cross cables inside the carrier; allowing adequate internal clearance ensures that lines shift smoothly during alternating bends.
