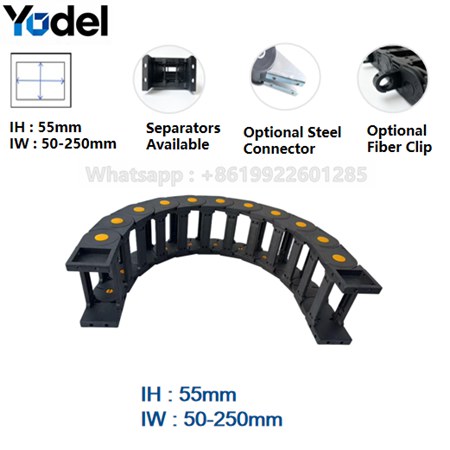

Cable Drag Chain 55x150 for CNC Router, Laser Cutting & Automated Machinery

Next-Level Cable Protection: Cable Drag Chain 55x150

Optimizing dynamic cable management in high-precision machinery requires structural integrity and flexible engineering. Our cable drag chain 55x150 is designed to provide smooth, low-friction guidance for electrical cables, optical fibers, and pneumatic hoses. Engineered specifically for dynamic equipment such as CNC woodworking routers, fiber laser cutters, automated packaging lines, and robotic gantry systems, this 55mm inner height by 150mm inner width cable carrier ensures continuous operational efficiency without cable twist or excessive wear.

As a premier China OEM Manufacturer, Exporter, and Direct factory supplier, we combine advanced injection molding technology with strict quality control. Whether you are an industrial equipment builder or a global distributor sourcing directly from the producer, our cable drag chain 55x150 delivers superior durability tailored to your exact mechanical specifications.

Technical Specifications (55mm Series Bridge Type Cable Carrier Chain)

Key Product Features & Technical Advantages

Openable Bridge Design for Effortless Maintenance

The signature openable crossbar mechanism of our cable drag chain 55x150 allows operators to snap open crossbars along either the inner or outer radius. This open-bridge structure significantly speeds up initial cable lay-in and routine maintenance, eliminating the need to tedious thread long wiring harnesses from end to end.

Glass-Fiber Reinforced PA66 Material Construction

Engineered from high-grade Nylon PA66 compounded with specialized glass fiber reinforcement, this cable drag chain 55x150 provides outstanding tensile strength, impact resistance, and long-term fatigue endurance. The material retains excellent mechanical stability under high continuous speed and rapid acceleration.

Integrated Optical Fiber Clips & Modular Separators

To prevent internal cable abrasion, the interior can be customized with vertical compartment separators to isolate power lines, signal wiring, and fluid hoses. Furthermore, integrated optical fiber clips are available to hold sensitive optical lines firmly without pinching, maintaining uninterrupted signal speed.

Interchangeable Steel End Brackets & Custom Radius

Connecting the energy chain securely to moving machine frames is made easy with standard reinforced connectors or upgraded interchangeable steel end brackets for maximum mechanical anchor strength. Operators can select a bending radius from 100mm up to 300mm to perfectly fit machine travel limits.

Custom Lengths & OEM Branding Options

As a direct factory supplier, we offer flexible customization. Order your cable drag chain 55x150 in exact pre-assembled link counts, or request custom logo stamping on the crossbars to enhance your machinery's brand identity.

Target Industry Applications

This versatile cable drag chain 55x150 is widely applied across modern industrial sectors, including:

• CNC Machining & Router Center: Protective cable routing along X, Y, and Z axes.

• Laser Cutting & Engraving Equipment: Smooth guidance for high-flex control cables and fiber optic lines.

• Robotic Workcells & Gantry Crane Systems: Managing heavy hose bundles across linear travel tracks.

• Automated Packaging & Material Handling Systems: Long-travel high-cycle operations requiring minimal friction.

Frequently Asked Questions (FAQ)

Q1: Can I order the cable drag chain 55x150 in customized lengths and with my company logo?

Yes. As a direct factory China OEM manufacturer, we supply pre-assembled chains tailored to your exact travel length and offer custom laser marking or molded company logos directly on the chain crossbars.

Q2: What bending radius options are available for this 55x150 drag chain model?

Our cable drag chain 55x150 offers a versatile bending radius spectrum ranging from 100mm to 300mm, allowing machine builders to match the exact radius required for tight spatial constraints or gentle cable curves.

Q3: Are steel end brackets interchangeable with the standard nylon brackets on this chain?

Absolutely. While high-strength nylon mounting brackets come standard, we offer fully interchangeable steel end brackets to provide enhanced mounting rigidity for high-acceleration machinery.
