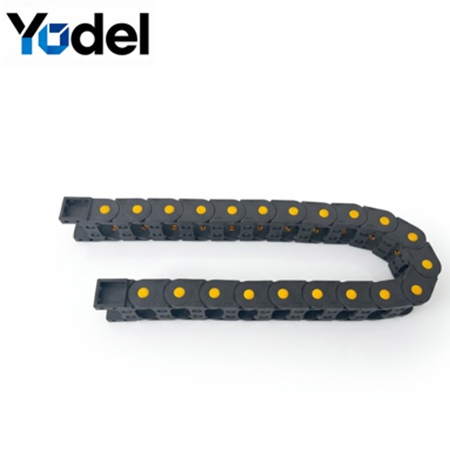

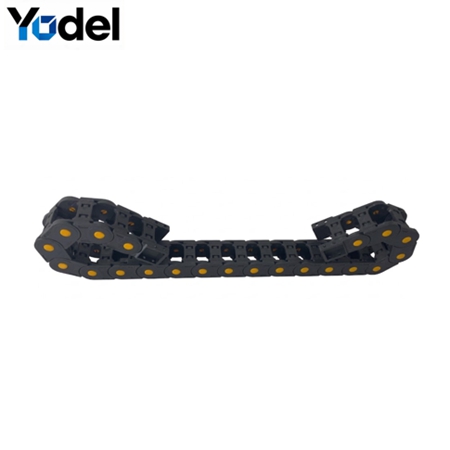

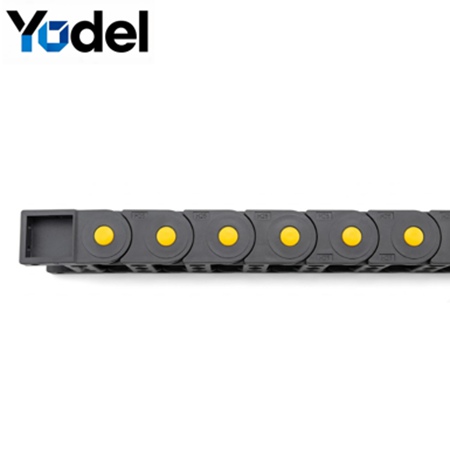

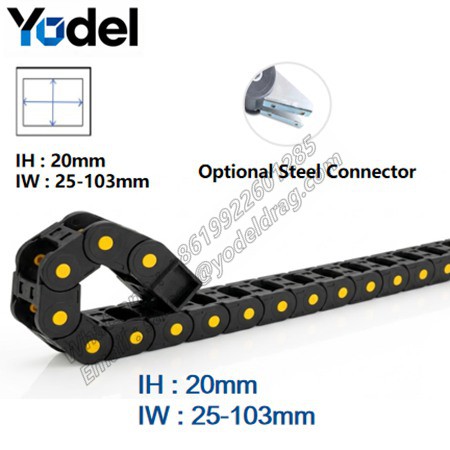

20mm Bridge Type Openable Nylon Cable Drag Chain with Optional Steel End Brackets

Product Detail Description

Reinventing Cable Protection: High-Flex PA66 Engineering Nylon

In dynamic industrial automation, cable failure directly causes costly machinery downtime. Our premium nylon cable drag chain with a 20mm inner height is engineered from 100% virgin PA66 raw material. Unlike standard plastic carriers that become brittle under stress, this high-performance nylon cable drag chain delivers superior tensile strength, exceptional wear resistance, and long-term fatigue immunity across temperatures ranging from -40°C to +120°C.

The openable bridge-type architecture allows maintenance technicians to snap open crossbars along either the inner or outer radius. This design speeds up wire installation and reduces cable inspection times by over 50% compared to traditional non-opening carriers.

Technical Parameters for 20mm Inner Height Bridge Nylon Cable Drag Chain

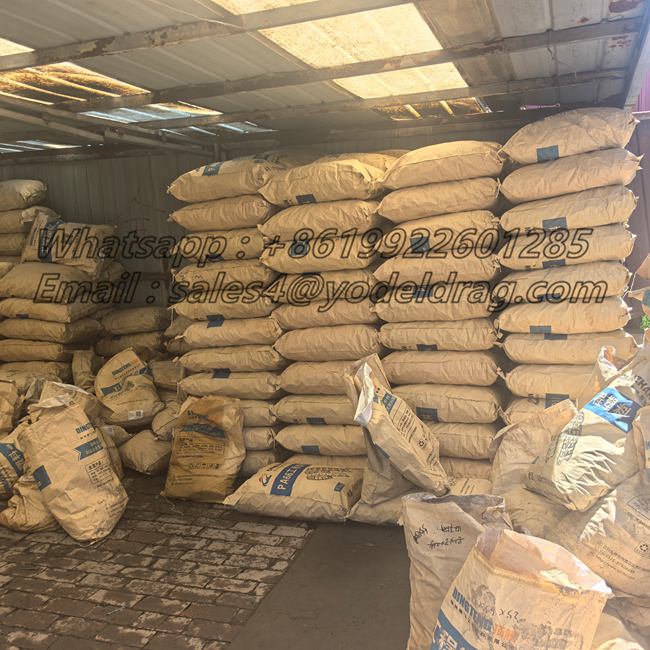

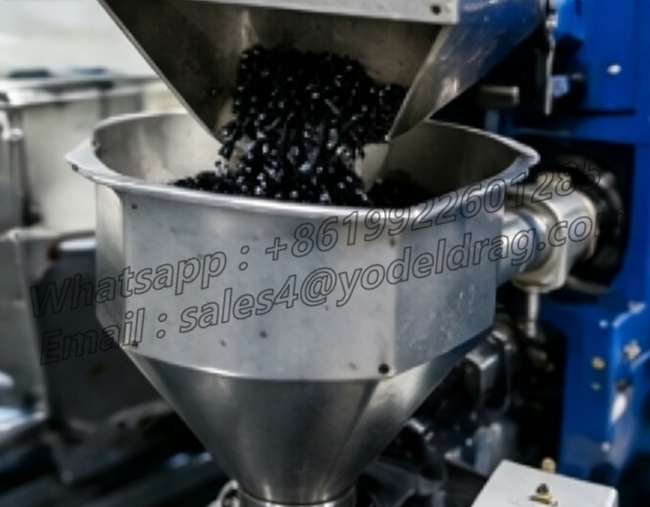

Raw Material Inspection - Pure virgin PA66 granules

Engineered Versatility: Flexible Bending Radius (55mm–200mm)

Different linear motion applications require precise motion geometry. This 20mm inner height nylon cable drag chain supports a versatile bending radius spectrum spanning from R55, R75, R100, R125, R150, up to R200mm.

Whether your machine enclosure requires compact articulation in tight spaces or smooth, low-stress movement over extended strokes, selecting the right radius prevents inner conductor pinching and dramatically extends cable service life.

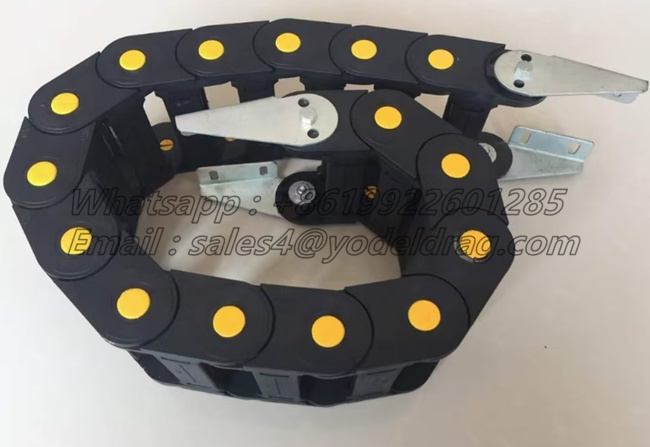

Innovation Breakdown: Heavy-Duty Steel End Brackets

Most plastic energy chains rely solely on nylon mounting brackets, which can crack or flex under extreme acceleration or heavy multi-cable loads. We broke industry conventions by offering customizable heavy-duty steel end brackets for this 20mm nylon cable drag chain.

Real-World Case Example:

A European CNC router manufacturer experienced frequent mounting point fractures on their X-axis gantry due to rapid 1.5G accelerations. After swapping generic plastic connectors for our nylon cable drag chain equipped with reinforced steel end brackets, connection failure was completely eliminated, and equipment vibration dropped significantly during high-speed directional changes.

Sizing & Cable Selection Guide

To ensure maximum operational stability, follow these calculation steps when sizing cables for your 20mm nylon cable drag chain:

1. Calculate Maximum Cable Outer Diameter:

Formula: Max Cable Diameter = Inner Height (20mm)×85%

Result: The maximum individual cable or hose outer diameter should not exceed 17mm.

2. Account for Internal Clearance:

Leave at least 10% to 15% radial clearance around all cables to allow smooth thermal expansion and bend articulation without internal friction.

Export-Grade Packaging & Quality Control

Every meter of our nylon cable drag chain undergoes rigorous flex-fatigue tests exceeding 5 million cycles before shipment. We ensure your order arrives factory-fresh and ready for immediate machine installation.

Frequently Asked Questions (FAQ)

Q1: Why choose a nylon cable drag chain with steel brackets over all-plastic mounting?

A: Steel end brackets provide significantly higher mechanical shear strength and torque resistance. They prevent bolt-hole stripping and bracket distortion under heavy acceleration, making your nylon cable drag chain installation virtually indestructible at connection points.

Q2: How do I select the optimal bending radius (R55 to R200) for my application?

A: The bending radius depends on the maximum bending limit of your internal cables. Always select a bending radius larger than the minimum bend radius specified by your cable manufacturer. Larger radii

(R150/R200) reduce mechanical stress on thick power cables, while smaller radii (R55/R75) save structural space.

Q3: Is this nylon cable drag chain suitable for high-speed automated equipment?

A: Yes. Constructed from high-rigidity PA66, this nylon cable drag chain easily withstands travel speeds up to 5 m/s and accelerations up to 10 m/s², making it ideal for CNC machinery, packaging lines, and industrial robotics.
