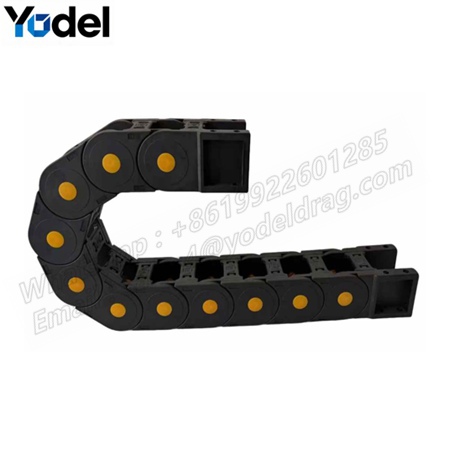

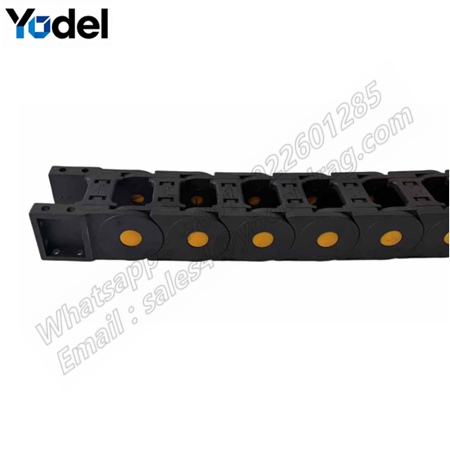

Industrial-Grade Open-Bridge Plastic Cable Drag Chain (55mm, 65mm, 80mm Inner Height)

Section 2: Material Science: Pure Virgin PA66 Composite Matrix

The core structural integrity of any high-speed plastic cable drag chain depends entirely on material compound chemistry. Cheap market alternatives often incorporate recycled polymer scraps, resulting in brittle pin connections and structural cracking after short cycle counts. Our cable carriers are synthesized exclusively from 100% pure virgin Nylon PA66.

Extreme Temperature Endurance: Operating smoothly under extreme thermal variance from -40°C cryogenic exposure up to +130°C peak mechanical operation.

Low Friction & High Wear Resistance: Modified molecular structure reduces inter-link dynamic friction, enabling long-distance linear travel speeds up to 5 m/s without joint seizing.

Chemical & Oil Inertness: Fully resistant to synthetic lubricants, cutting fluids, hydraulic oil splashes, and alkaline cleaning solvents common in CNC machining centers.

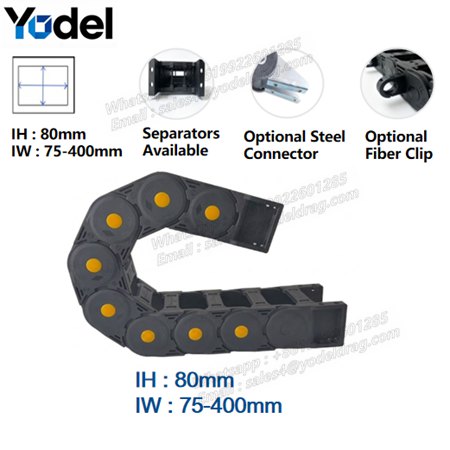

Section 3: Custom Modular Engineering Features

Every dynamic automation line presents unique structural challenges. To eliminate line sagging and mechanical stress, our open-bridge plastic cable drag chain offers modular customization options tailored to heavy industrial machinery:

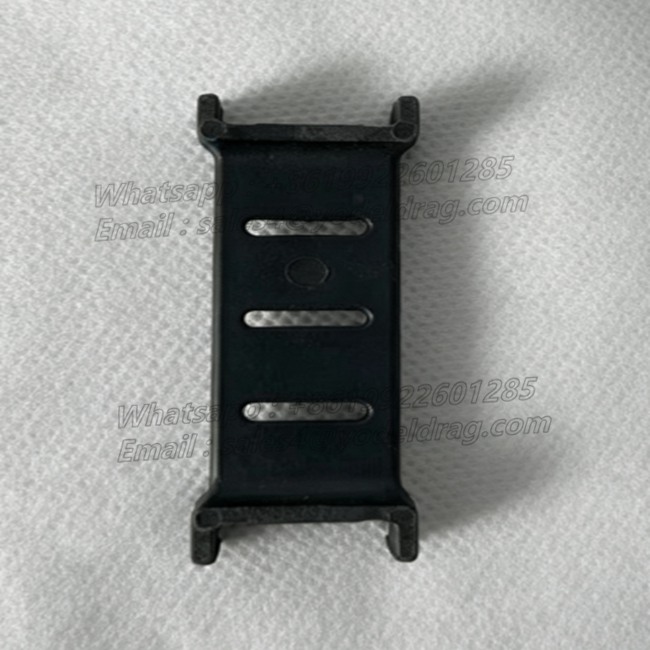

Vertical & Horizontal Separator Grid : Prevent line twist and internal friction by utilizing snap-in polyamide separators. These dividers compartmentalize power cables, control lines, and air hoses into isolated motion channels within the plastic cable drag chain cavity.

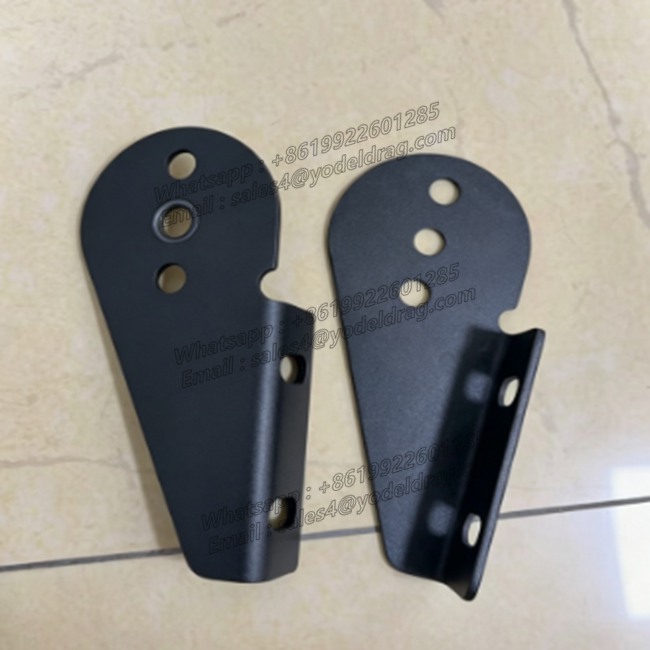

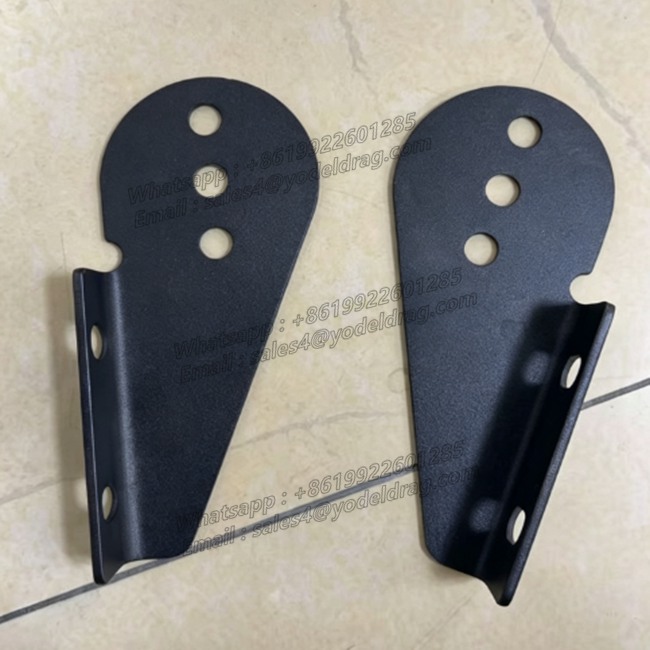

2. Reinforced Heavy-Duty Steel End Connectors : For applications experiencing high acceleration (g-forces) or heavy cantilever loads, standard plastic end brackets may deform. We supply zinc-plated steel or stainless steel end mounting brackets designed to anchor the plastic cable drag chain firmly to machine frames.

3. Integrated Snap-Fit Fiber Optic Clips : Delicate fiber optic lines require precise bend protection without compressive clamping. Specialized rubber-lined fiber clips snap directly onto the bridge cross-bars of the plastic cable drag chain, isolating sensitive optical lines from heavy power conduits.

4. Customized Double-Row Parallel Configuration : When handling extra-wide hose bundles or dual-axis utility lines, the 80mm inner height series can be assembled as an interconnected double-row plastic cable drag chain. This configuration doubles lateral stability and load-bearing capacity while maintaining single-track guidance.

Section 4: Technical Specifications & Bending Radius Matrix

Selecting the correct dimensions ensures optimal service life for both your machinery and internal conductors. Below is the operational sizing matrix for our heavy-duty bridge plastic cable drag chain:

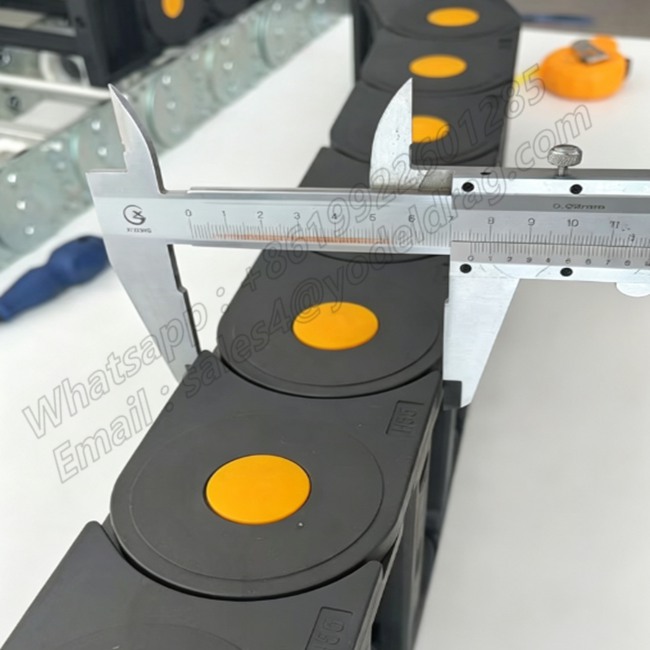

Inner Height 55mm Series :

Outer Height: 75mm | Compatible Bending Radius (R): 100mm, 125mm, 150mm, 200mm, 250mm, 300mm. Ideal for medium-to-large CNC gantries and material handling rigs.

Inner Height 65mm Series :

Outer Height: 90mm | Compatible Bending Radius (R): 100mm, 125mm, 150mm, 200mm, 250mm, 300mm. Perfect for heavy automation line feed mechanisms.

Inner Height 80mm Series :

Outer Height: 108mm | Compatible Bending Radius (R): 150mm, 200mm, 250mm, 300mm, 350mm, 400mm. Engineered for long-travel heavy machinery, high-diameter hydraulic hoses, and double-row custom layouts.

Section 5: Engineering Case Study & Practical Application

Application Focus: High-Speed Heavy-Duty Portal CNC Milling Center (Travel Distance: 12 Meters)

The Challenge: A precision steel fabrication facility experienced frequent machine downtime caused by hydraulic hose chafing and power cable snapping within a low-grade plastic cable drag chain. The existing setup lacked proper internal separation, causing heavy hydraulic hoses to crush adjacent signal wires during rapid 2.5g reversals.

The Solution: The facility upgraded to our 80mm inner height open-bridge plastic cable drag chain featuring a 250mm bending radius. We implemented full vertical separator grids to separate hydraulic channels from sensitive encoder wiring, anchored the chain with heavy-duty steel end brackets, and fitted fiber clips for line monitoring cables.

The Result: Cable wear was completely eliminated, system vibration decreased by 35%, and the machine achieved over 4 million continuous motion cycles without a single line failure.

Section 6: Size Selection & Engineering Calculation Guide

To ensure your dynamic cables move freely inside the plastic cable drag chain without mechanical bind, follow these three sizing steps:

1. Determine Height Clearance: Measure the maximum outer diameter (OD) of your largest cable or hose. Add at least 10% to 15% safety clearance space. Choose an inner height (55mm, 65mm, or 80mm) that comfortably exceeds this combined dimension.

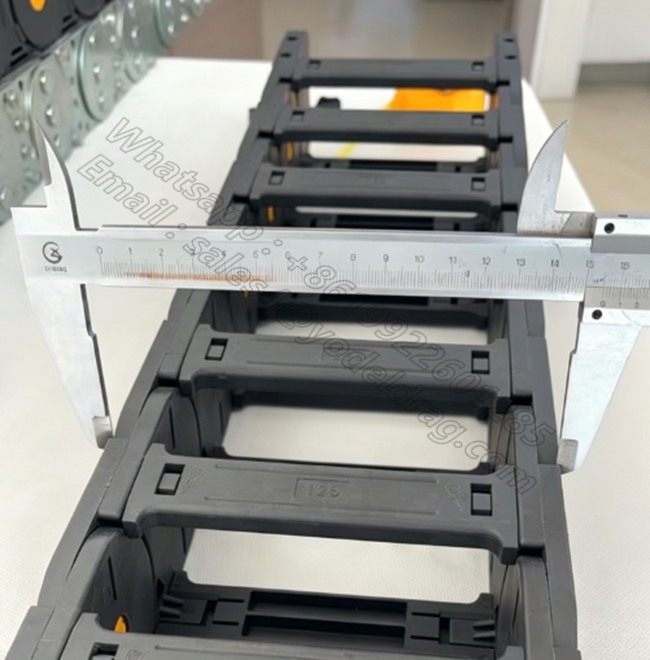

2. Calculate Cavity Width: Sum the outer diameters of all cables and hoses running together. Add the thickness of all internal vertical separators plus a 10% width clearance allowance to determine the required inner width.

3. Select Minimum Bending Radius (R): Check the manufacturer specification for the minimum allowable bend radius of your thickest cable. Select a plastic cable drag chain bending radius (R) equal to or greater than the largest cable radius requirement.

Section 7: Frequently Asked Questions

Q1: How do I choose between an open-bridge plastic cable drag chain and a fully enclosed cable carrier?

A: Open-bridge designs offer superior heat dissipation, lighter weight, easy visual inspection, and rapid cable installation without disconnecting end fittings. Fully enclosed models are preferred only when protection against hot metal chips or falling heavy debris is mandatory.

Q2: Can I adjust or extend the length of this plastic cable drag chain after delivery?

A: Yes. Each link is modular. You can easily unclip cross-bars and add or remove individual PA66 chain links using a flathead screwdriver to adjust total length to your exact machine travel distance.

Q3: Why is virgin Nylon PA66 critical for plastic cable drag chain manufacturing?

A: Virgin PA66 offers superior fatigue strength, flexibility, and impact tolerance under repeated cyclic strain. Recycled plastics become brittle, leading to broken link pins and chain collapse during operation.

Q4: When should I choose steel end brackets over standard plastic end connectors?

A: Steel end connectors are strongly recommended for long travel distances (>6 meters), high acceleration rates, elevated temperatures, or heavy internal load weights where rigid anchoring is critical.
