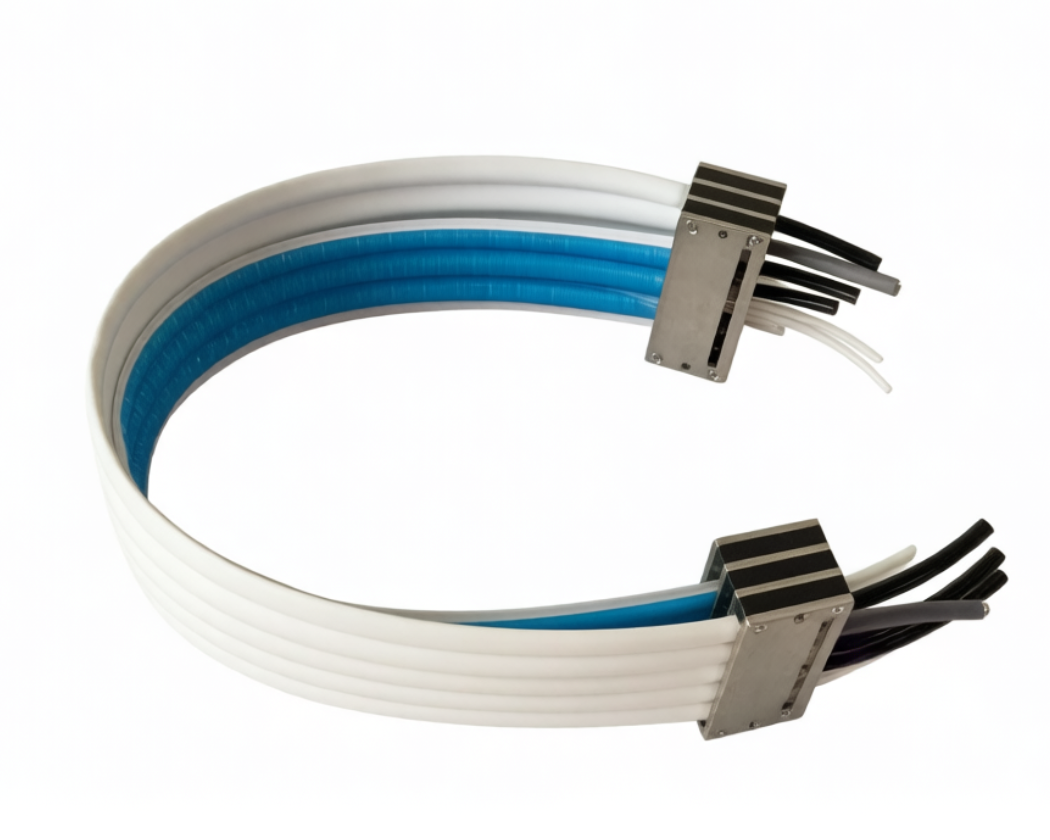

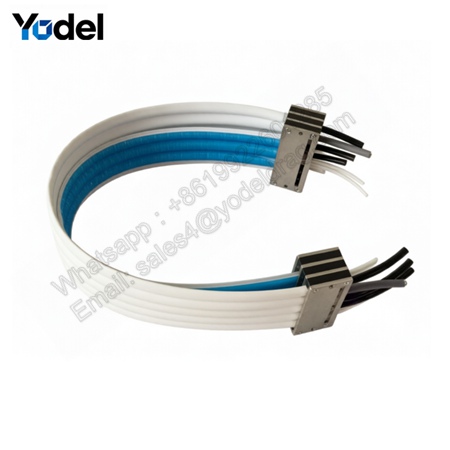

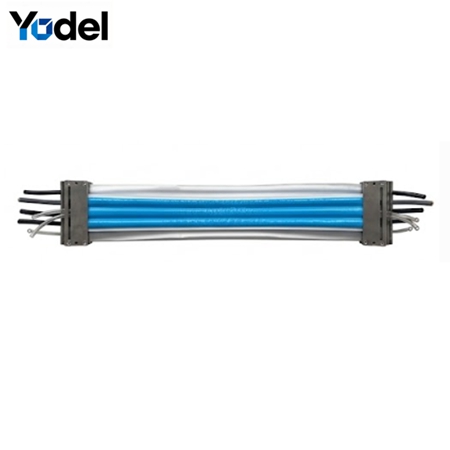

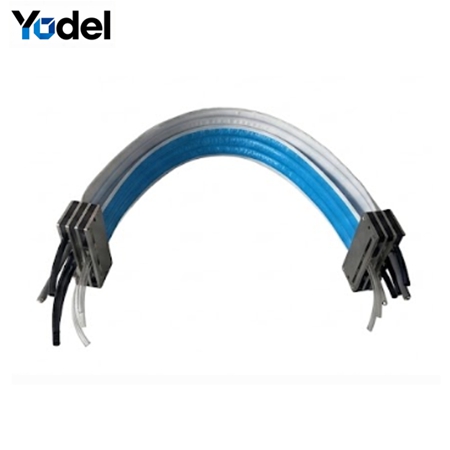

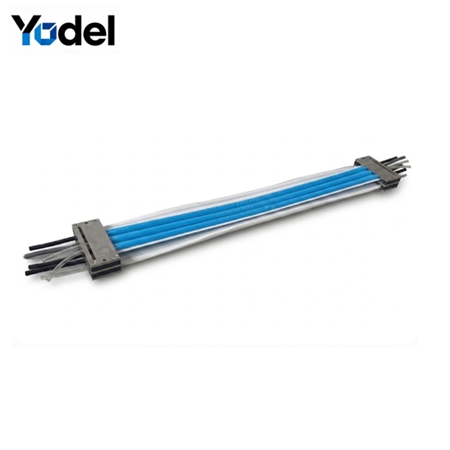

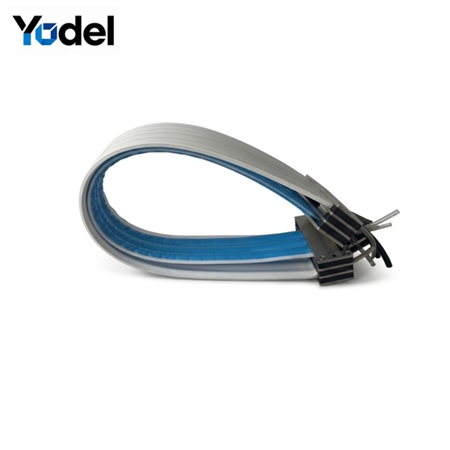

Ultra-Clean, Zero-Debris: The Next-Gen Cleanroom Flexible Cable Carrier

Ultra-Clean, Zero-Debris: The Next-Gen Cleanroom Flexible Cable Carrier

Traditional cable management solutions fail inside hyper-sterile environments. Standard plastics shed micro-particles, trap static electricity, and degrade under aggressive sterilization protocols.

Engineered specifically for semiconductor fabrication lines, pharmaceutical robotics, and biotech automation, our flexible cable carrier redefines dynamic cleanroom engineering. Built from an advanced molecular blend of Polyurethane (PU) and Expanded Polytetrafluoroethylene (E-PTFE), this drag chain delivers silent, friction-free movement while maintaining absolute particle containment.

Material Architecture: Beyond Standard Polymers

To eliminate particulate generation at the microscopic level, our manufacturing process fuses two high-performance matrices into a unified structure:

PU & E-PTFE Composite Core: Combines the high tensile elasticity of polyurethane with the extreme chemical inertness and low friction coefficient of E-PTFE.

Dissipative ESD Performance: Surface resistivity strictly controlled at ≤ 10⁹ Ω (customizable down to 10⁶ Ω), entirely neutralizing electrostatic discharge to prevent airborne dust attraction.

Cryogenic to High-Heat Endurance: Operates reliably from −50°C to +200°C, withstanding repeated thermal shock and high-temperature sterilization (autoclaving/VHP cycles).

Self-Lubricating Kinematics: Eliminates the need for external liquid lubricants, completely removing outgassing risks in vacuum or cleanroom environments.

Zero-Particle Mechanical Design

Hermetic Sealed Contour: Fully enclosed internal cavity blocks external environmental ingress, ensuring zero particulate escape during high-speed flexing.

Mirror-Smooth Finish: Micro-polished, burr-free exterior profiles with zero microscopic dead angles simplify IPA/sterile wiping and microbial decontamination.

Tool-Free Snap Modules: Modular, fast-opening link segments allow rapid cable embedding without shearing or scraping, eliminating micro-shavings generated during manual assembly or maintenance.

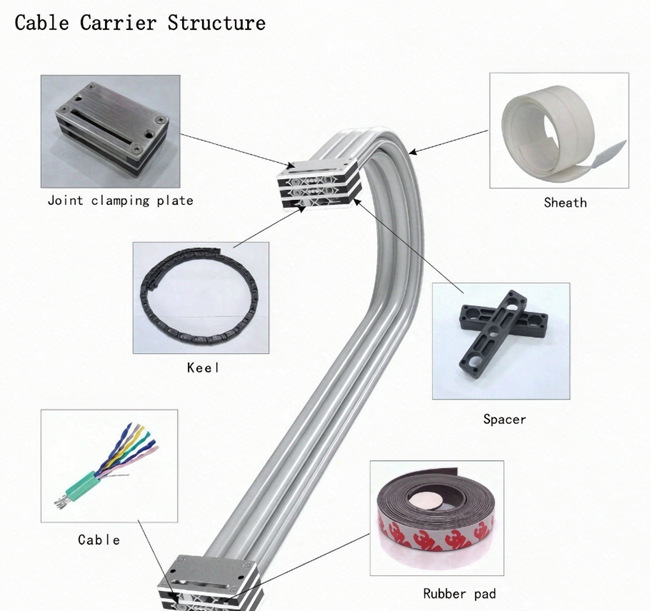

Modular Installation & Tiered Clamping System

Managing multi-cable bundles in tight spaces often leads to pinching or structural fatigue. Our proprietary Multi-Tier Stainless Steel Clamping Assembly solves this through a layered, decoupled architecture:

Independent Layer Fixation: Each mounting clamp layer secures individually. If adjustments are needed on tier three, tiers one and two remain completely undisturbed.

Anti-Collapse Interlock: Prevents catastrophic assembly loosening caused by continuous high-frequency machine vibration.

Aesthetic & Functional Customization: Standardized with an industrial-grade brushed stainless steel exterior, with custom anodized color-coding available for complex multi-line identification.

Engineering Calculator: How to Select Your Cable Carrier Length

Precision sizing reduces mechanical stress and maximizes service life. Use the formulas below to calculate your exact flexible cable carrier travel specifications.

Pro-Tip: Placing the fixed anchor point directly at the center of the total stroke is the most economical setup, minimizing both carrier length and overall footprint.

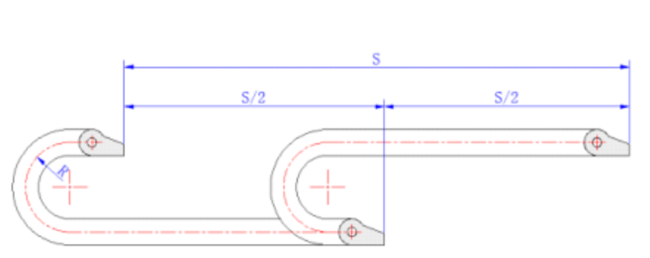

1. Fixed Point Centered (LK)

When the fixed end sits dead center in the application layout:

LK=2S+K

Where:

LK= Total Carrier Length

S= Total Stroke Length

K=(π×R)+2P(Where Ris the dynamic bending radius, and Pis the link pitch, plus a recommended 50mm safety margin for high-speed dampening).

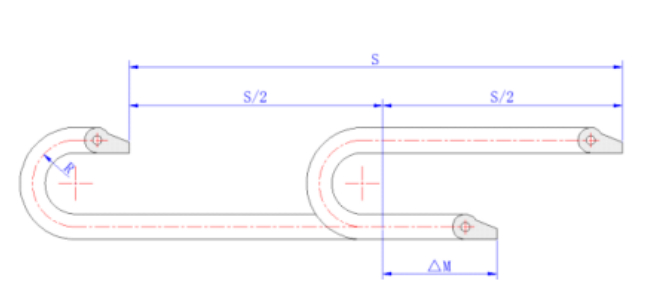

1. Fixed Point Off-Center (LKwith Offset)

When layout constraints force the fixed anchor away from the midpoint:

LK=2S​+K+ΔM

Where:

ΔM= Offset distance from the true centerline position.

Note: Always scale up your safety margin by an additional 10% if your operating speed exceeds 3 m/s or acceleration surpasses 20 m/s².

Real-World Application Blueprint

Case Study: Semiconductor Wafer Handling Robot

The Challenge: A tier-1 semiconductor fabrication plant experienced frequent micro-dust accumulation on wafer transport tracks, traced back to standard nylon cable carriers shedding particles during high-speed $Z$-axis acceleration.

The Solution: Retrofitted with our flexible cable carrier (PU/E-PTFE composite, ISO Class 1 certified).

The Result: Zero particle generation recorded after 10 million continuous flexing cycles. Static buildup dropped to zero, eliminating electrostatic wafer rejection anomalies entirely.



Size Table ：

Sheath parameters

Model	Number of holes	Sheath thickness	Inner hole Width	Total Width	Maximum cable diameter
CL205-1	1	1.3	20.5	26	12
CL205-2	2	1.3	20.5	48.5	12
CL205-3	3	1.3	20.5	71.5	12
CL205-4	4	1.3	20.5	94.5	12
CL205-5	5	1.3	20.5	117.5	12
CL205-6	6	1.3	20.5	140.5	12
CL280-1	1	1.3	28	33	16
CL280-2	2	1.3	28	63.5	16
CL280-3	3	1.3	28	94	16
CL280-4	4	1.3	28	124.5	16
CL280-5	5	1.3	28	155	16
CL280-6	6	1.3	28	185.5	16
CL410	1	1.3	41	46	25
CL620	1	1.3	62	67	38

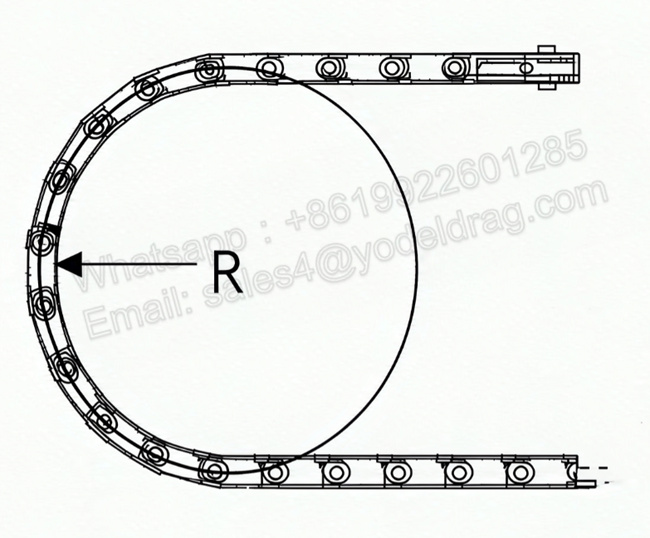

Skeleton parameters

Model	Material	R	Height
CL.LG40	Nylon	40	88
CL.LG55	Nylon	55	118
CL.LG70	Nylon	70	148
CL.LG100	Nylon	100	208

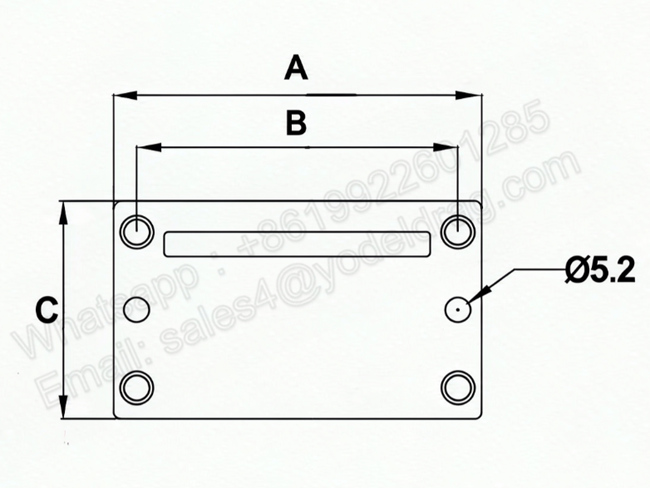

Joint clamping plate parameters

Model	A	B	C
2HL	55	47	45
3HL	77	67	45
4HL	95	85	45
5HL	115	105	45
6HL	134	124	45
