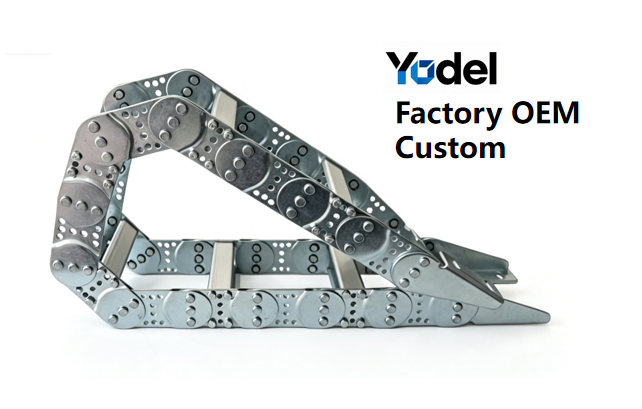

Engineered-to-Order Steel Cable Drag Chains: Fully Customizable Internal Dimensions, Length & Metallurgy

The Engineering Paradigm: Beyond Off-the-Shelf Cable Protection

Traditional industrial procurement forces a frustrating compromise: either buy rigid, pre-configured plastic tracks that fail in extreme thermal zones, or deal with massive Minimum Order Quantities (MOQs) just to get a custom metal carrier.

We dismantle that bottleneck. As an advanced manufacturing direct partner, we build high-end steel cable drag chain systems tailored entirely to your precise mechanical blueprints, internal spatial requirements, and chemical exposure thresholds—with zero quantity restrictions, starting at just a single meter up to any continuous length you specify.

Tailored Freedom: Internal Dimensions & Overall Lengths Built to Spec

Standard catalog sizes frequently restrict heavy machinery design. We engineer every link around your exact operational space:

Completely Customizable Internal Dimensions: Internal width, height, and bending radius are built strictly to your CAD drawings. Whether you are housing heavy-gauge hydraulic hoses, complex multi-core power lines, or sensitive fiber optics, we scale the inner cavity precisely to prevent pinching or excessive friction.

Arbitrary Lengths with Zero MOQ: Need a exact 1-meter prototype for testing, a short run for a retrofitted milling machine, or a massive continuous span for an automated gantry crane? We manufacture your steel drag chain to your exact meter requirement with no minimum order constraints.

Core Metallurgy & Surface Mastery

Every dimension, alloy, and protective finish of our steel drag chain is variable-parameter driven to match hostile industrial environments:

Alloy & Metallurgy: Choose from high-strength Carbon Steel or premium Stainless Steel grades (201, 304, and 316), delivering tailored corrosion resistance ranging from standard factory floors to aggressive marine and chemical plants.

Surface Treatment & Anti-Corrosion: Select from Electro-Galvanized, Colorful Zinc Plating, or high-performance Dacromet Coatings. Every batch is rigorously validated via neutral salt spray (NSS) testing to withstand severe oxidation and washdowns.

Plate Thickness & Structural Gauge: Both side bands and crossbar thicknesses are manufactured precisely according to your load requirements, eliminating structural sag over long unsupported spans.

Brand Integration: OEM-ready trademark customization available through precision laser-etching or high-pressure logo stamping directly onto the structural link plates.

Why Google Ranks This Architecture: High-Performance Alloy Performance

For engineers and procurement specialists searching for a heavy-duty steel drag chain, durability in hostile environments is non-negotiable. Our manufacturing process integrates specialized anti-corrosion treatments that far exceed standard industry thresholds:

Dacromet & Advanced Zinc Shielding: Tested rigorously under prolonged salt spray conditions, our zinc and Dacromet treatments prevent micro-cracking and galvanic corrosion, ensuring smooth articulation under constant dynamic friction.

Load-Bearing Precision: By allowing custom gauge sizing on side bands and crossbars alongside tailored internal dimensions, we optimize structural integrity for high-load robotic arms and heavy-duty CNC gantries.

4-Step Frictionless Customization Workflow

We’ve streamlined our custom manufacturing pipeline to turn your technical parameters into shipped hardware rapidly, ensuring zero guesswork.

[1. Parametric Blueprint Submission]

   └──> Send specs (Exact Length, Internal Dimensions, Alloy, Radius, Load, Trademark)

              ▼

[2. Metallurgical & Structural Verification]

  └──> Engineering review of plate thickness, internal clearance & Salt Spray compliance

              ▼

[3. Precision Production & Laser Branding]

  └──> CNC stamping, custom sizing, coating application, and custom logo integration

              ▼

[4. Quality Audit & Global Dispatch]

 └──> Rigorous articulation & finish testing before express shipping (1 meter to bulk)

1. Parametric Blueprint Submission: Share your operational requirements—including your exact required internal dimensions, total length (starting from 1 meter), alloy choice (such as 316 stainless steel), and trademark layout.

2. Metallurgical & Structural Verification: Our engineering cell reviews your load dynamics, clearance needs, and corrosion criteria (confirming salt spray benchmarks) to lock in the optimal plate thickness and crossbar configuration.

3. Precision Production & Laser Branding: Utilizing advanced CNC stamping and automated surface-treatment lines, we fabricate your custom steel drag chain to your exact spatial specifications and permanently laser-etch your requested trademark.

4. Quality Audit & Global Dispatch: Every link undergoes mechanical tension and articulation checks before secure crating and direct-from-factory shipping.
