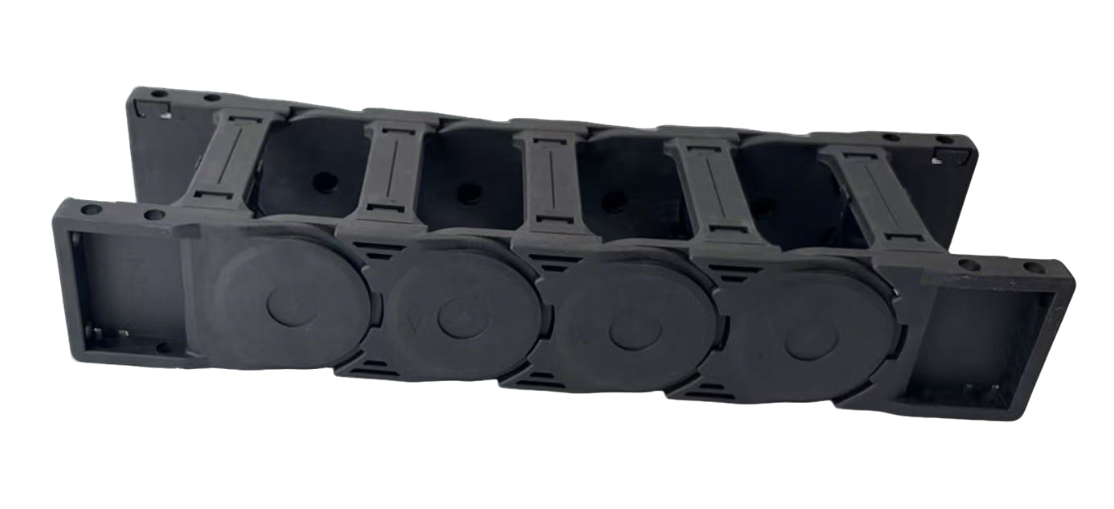

Heavy Duty Cable Carrier: Enclosed 65mm, 80mm & 100mm Nylon Cable Drag Chain with Optional Aluminum Alloy Lids

Hybrid Material Evolution: Engineering Beyond Standard Conduits

In heavy-duty machining and dynamic automation environments, relying on a single material formulation always introduces a compromise. This specialized heavy duty cable carrier series breaks that bottleneck with a high-integrity hybrid layout:

High-Impact Nylon Side Links: The outer profile links are molded exclusively from highly resilient nylon. Compared to heavy, all-metal chains,this architecture reduces articulation noise, lowers overall cantilever weight, and offers superior wear resistance through millions of dynamic cycles.

>30% Fiberglass Reinforced Matrix: By embedding more than 30% structural glass fibers directly into the nylon PA66 crossbars, we radically elevate cross-sectional tensile strength. This composite compound eliminates vertical sagging and structural twisting under heavy payload demands.

Exclusive Aluminum Alloy Lids (80mm Series Only): For extreme shop floors throwing off heavy metallic slag or abrasive material drops, our 80mm series features an optional aluminum lid upgrade. These lids lock into the nylon side wings, combining the lightweight agility of polymer mechanics with the rugged impact defense of hard metal.

This sophisticated build turns the carrier into a fully sealed plastic energy chain, providing an impenetrable barrier that keeps your critical conductors safe from harsh workspace environments.

Cavity Layout: Advanced Cable & Hose Isolation

When high-pressure fluid lines and bulky power cords share a single tracking space, chaotic internal movement causes outer jacket friction. The internal layout of this cable & hose carriers line is carefully designed to preserve component service life:

Rigid Vertical Separators Only: We intentionally bypassed horizontal shelves in favor of heavy-duty vertical splitters. This arrangement leaves the inner cavity with completely unobstructed vertical clearance. It allows bulkier lines in a hydraulic hose drag chain bundle to expand and flex naturally under pressure spikes without crushing adjacent low-voltage control lines.

Dedicated Fiber Optic Buckles: High-speed data links demand strict compliance with minimal bend radiuses. Our snap-in data loops safely isolate sensitive glass lines from the heavy weight and shifting forces of surrounding copper power cords.

Dual-Option Anchoring: Choose impact-absorbing, glass-reinforced nylon end brackets for fast-moving gantry cells, or upgrade to heavy carbon steel brackets for maximum structural mounting security on large machinery frames.

Real-World Application: Heavy Gantry Kinematics

Scenario: Multi-Axis Heavy Gantry Machining Center

Operational Challenge: A heavy structural manufacturing facility ran dense fluid conduits and main spindle lines along a massive moving gantry. The original open tracking setup allowed sharp composite dust and hot metal chips to settle inside the guide frame, causing constant abrasion failures and unscheduled downtime.

Implemented Solution: The engineering team replaced the system with our 80mm internal height nylon cable drag chain featuring aluminum alloy lids, heavy steel brackets, and dedicated internal vertical separators.

Observed Performance:

1. Sharp, hot metal fragments are deflected instantly by the aluminum covers, keeping the internal tracking cavity completely free of foreign debris.

2. Because the side links are molded from pure nylon, the carrier moves with a quiet gliding sound, entirely bypassing the harsh clattering noise of traditional all-steel tracks.

3. The internal vertical separators keep the high-pressure fluid lines running along a clean parallel path, ensuring the cnc cable track coordinates smooth, trouble-free power delivery over long operational shifts.

Sizing Logic: Engineering Selection Matrix

To turn incoming organic traffic into high-value inquiries, you need to provide clear calculation logic. Industrial engineers use precise math to verify their track configurations.

Step 1: Internal Height Clearance Threshold

To prevent structural binding and jacket wear, maintain a physical clearance buffer of at least 15% around your enclosed bundles:

Hi: Internal Carrier Clearance Height (65mm / 80mm / 100mm)

dmax: The outside diameter of the thickest cable or hose in your configuration layout

Step 2: Bending Radius Calculation

Prevent structural conductor fatigue by matching the carrier's radius parameter to the minimum bending limit of your stiffest line
