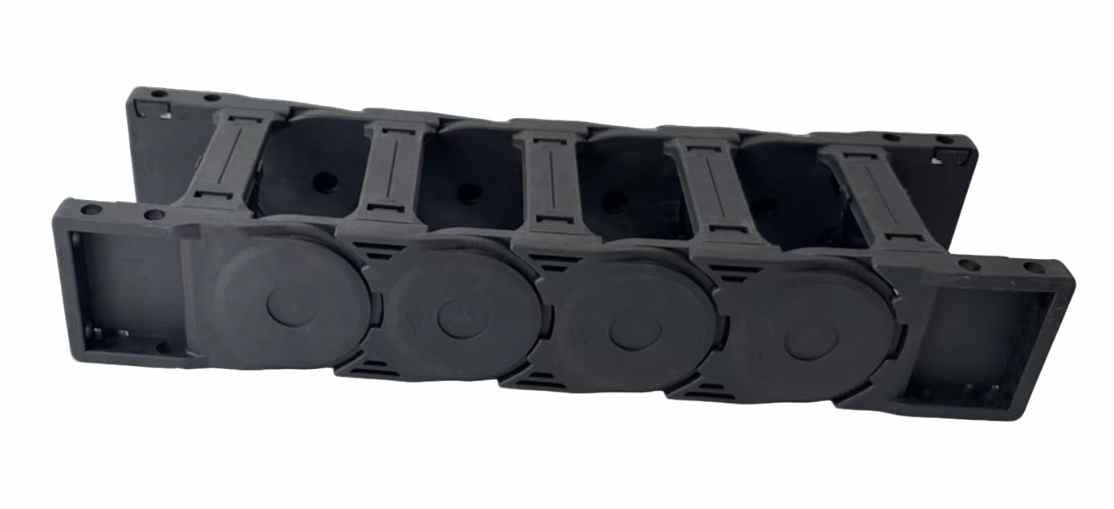

Heavy Duty Cable Carrier: 80mm & 100mm Reinforced Bridge-Type Nylon Drag Chain

When standard plastic chains fail under maximum mechanical loads, a premium heavy duty cable carrier becomes the backbone of your machinery. Engineered specifically for high-speed, long-travel, and punishing industrial environments, our 80mm and 100mm inner height reinforced bridge-type nylon cable drag chain series provides absolute protection for heavy cable bundles and high-pressure hydraulic hoses.

Whether you are designing large-scale CNC machining centers, port machinery, long-stroke gantry robots, or automated heavy-duty logistics systems, this high-performance cable track chain is built to eliminate unexpected downtime.

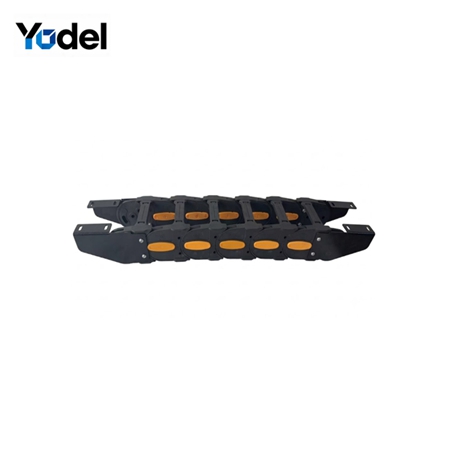

Engineering Edge: Why This Energy Chain Cable Carrier Redefines Structural Rigidity

Most standard plastic cable drag chain models suffer from crossbar warping or structural sagging when loaded with heavy hydraulic lines over long travels. Our heavy-duty series eliminates these engineering vulnerabilities through radical material advancement and hybrid modularity.

1. Ultra-Rigid Material Compound (PA66 + >30% Glass Fiber)

This is not your average lightweight cable guide chain. Molded from premium Nylon PA66 integrated with over 30% high-density fiberglass reinforcement, this energy chain cable carrier boasts exceptional tensile strength, extreme rigidity, and high wear resistance. It maintains its structural integrity even under high acceleration (> 20 m/s²) and continuous frictional wear.

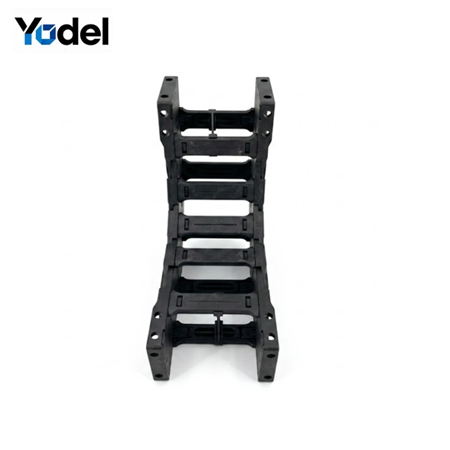

2. The Hybrid Aluminum Crossbar Upgrade

The Solution to Sagging: For the 80mm and 100mm inner height series, the standard nylon crossbars can be upgraded to high-strength aluminum alloy crossbars.

Unmatched Lateral Stability: This hybrid construction yields the lightweight benefits of engineering plastics with the heavy-duty bending resistance of metal, allowing for wider carrier widths (Bi) and longer unsupported travels without risk of twisting.

Bridge-Type Ventilation: The open bridge-type design prevents heat buildup around your lines, allows industrial debris to fall through, and makes visual inspections effortless.

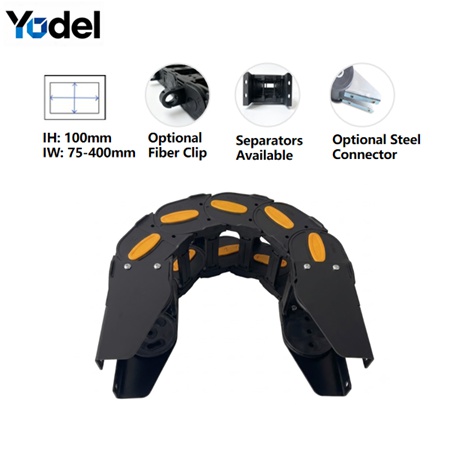

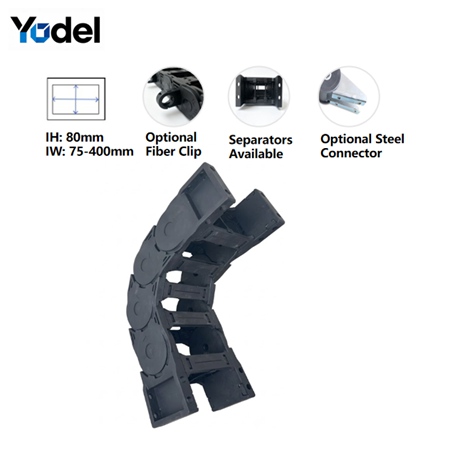

3. Precision Interior Layout Customization

Vertical Separators Only: Avoid dangerous cable friction and cross-twisting. Our rugged vertical separators lock securely into the bridge profile, creating dedicated, isolated vertical chambers.

Fiber Optic Clips (Optional Upgrade): Specially engineered integrated clips protect sensitive, low-radius fiber optic lines from being crushed or kinked by heavier surrounding power cables.

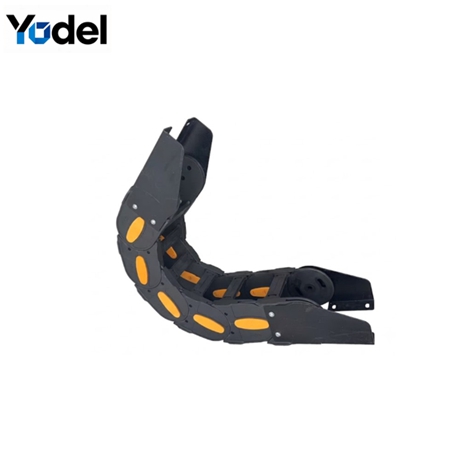

4. Dual End Bracket System: Nylon or Steel

To anchor this powerful heavy duty cable carrier to your machinery, we provide two tailored mounting solutions depending on your structural load:

Reinforced Nylon End Brackets: Perfect for standard high-speed, low-vibration automated lines.

Heavy-Duty Steel End Brackets: Engineered for maximum anchoring strength, high-impact environments, and massive physical pulling forces in harsh industrial sectors.

Multiple Bending Radii: Available in a comprehensive range of bending radius (R) options to perfectly match your machine's clearance and dynamic turnaround envelope.

Real-World Case Study: Eliminating Hose Damage in a Portal CNC Milling Gantry

The Structural Challenge: A heavy machinery manufacturer was experiencing frequent cable failures with a standard cable track chain. The machine featured a 12-meter gantry stroke carrying a dense bundle of high-pressure hydraulic lines and thick power cables. Under rapid acceleration, the old plastic cable drag chain began to sag and twist, causing internal hoses to rub against each other, leading to pressure leaks and costly unscheduled downtime.

The Engineered Solution: We replaced the failing system with our 100mm inner height reinforced bridge-type nylon cable drag chain, customized with aluminum alloy crossbars and dedicated vertical separators.

The Operational Result: The aluminum crossbars provided unmatched lateral stability, completely eliminating chain sag across the 12-meter run. The vertical separators isolated the high-pressure hydraulic hoses from the delicate signal lines. The system has now been running flawlessly under a 24/7 production schedule for over 18 months, requiring zero maintenance.

Sizing & Selection Guide: Engineering Your Cable Track Chain

Choosing the right cable guide chain dimensions directly impacts the lifespan of your internal lines. Follow this quick 3-step engineering guide to select between our 80mm and 100mm series:

Step 1: Calculate the Required Inner Height (Hi)

Measure the outside diameter (OD) of your thickest internal cable or hose.

The Engineering Rule of Thumb: Always allow a 10% to 15% safety clearance space above the largest cable.

Calculation Example: If your largest hydraulic hose has an OD of 68mm, adding a 15% safety margin (68mm ×1.15 = 78.2mm) means our 80mm inner height series is the perfect fit. If your thickest cable bundle or hose coupler exceeds 70mm, you must step up to our 100mm inner height series.

Step 2: Determine the Bending Radius (R)

Check the minimum bending radius specified by your cable manufacturer.

The bending radius (R) of your heavy duty cable carrier must be larger than the minimum allowable bending radius of your stiffest cable. A larger radius reduces dynamic mechanical stress, prevents internal copper fatigue, and extends cable life.

Step 3: Interior Separation Allocation

Never let cables or hoses of widely different diameters lie loosely on top of each other.

Utilize our vertical separators to divide the 80mm or 100mm space into distinct horizontal compartments. Place heavy, high-pressure lines on the outer edges and delicate data or communication lines in the center—secured safely by our optional fiber optic clips.

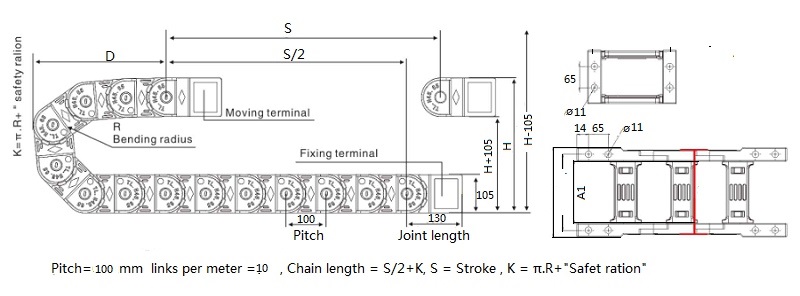

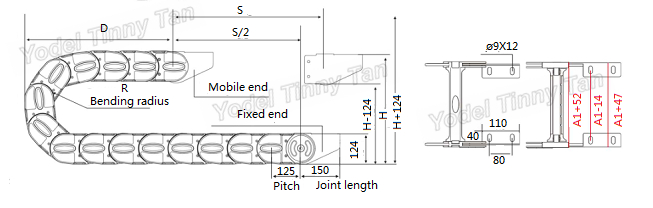

Size Table  & Technical Drawing​ :
