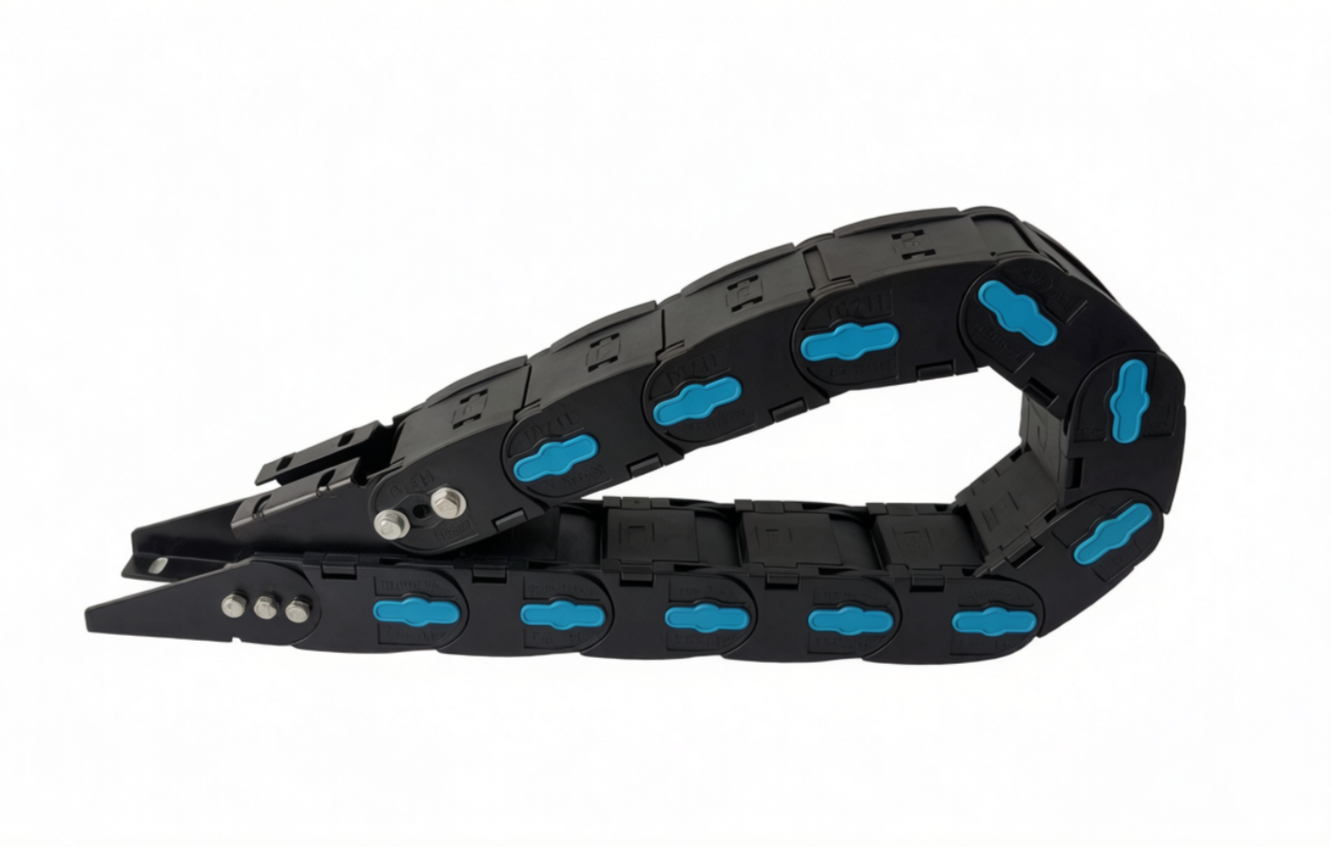

High-Performance Side-Opening Fully Enclosed Plastic Cable Carrier Premium Heavy Duty Cable Carrier for Long-Stroke Automation Systems

1. Product Overview

In modern industrial automation, protecting dynamic cables and hoses from harsh environments while maintaining high-speed operation requires a robust and reliable dynamic shielding solution. Our premium series plastic cable carrier is engineered specifically to meet these rigorous demands. Designed as a side-opening, fully enclosed Nylon cable drag chain, this product delivers superior sealing capabilities alongside quick-access structural mechanics, rendering it an indispensable choice for advanced machinery manufacturing.

Manufactured using high-grade virgin Nylon PA66 matrix materials combined with more than 30% advanced high-fiber reinforcement, this heavy duty cable carrier exhibits unmatched structural rigidity, thermal stability, and wear resistance.

Whether facing persistent dust debris, heavy mechanical loads, or aggressive high-speed linear movements, this plastic cable chain guarantees steady kinematic guidance and dependable cable longevity.

2. Key Specifications & Engineering Dimensions

This dynamic Nylon drag chain lineup features versatile modular engineering frameworks designed to adapt perfectly across varying automation scale dimensions:

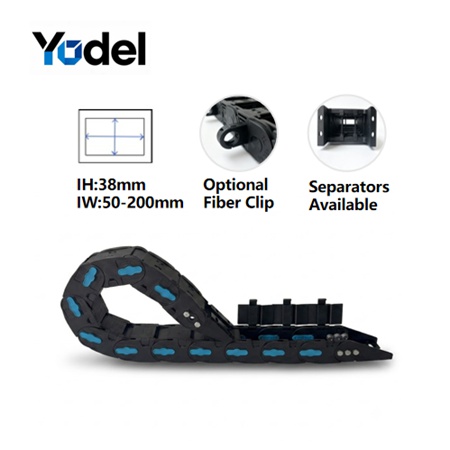

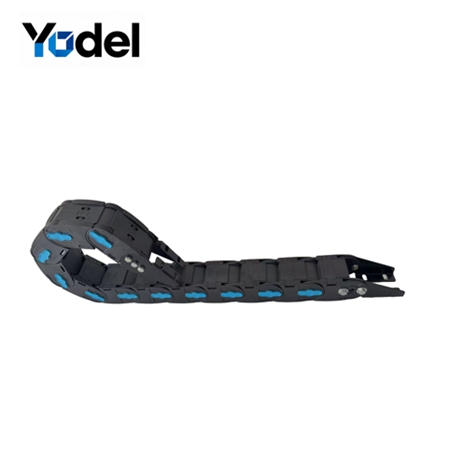

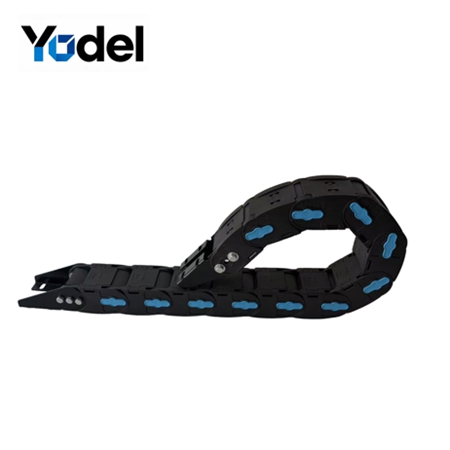

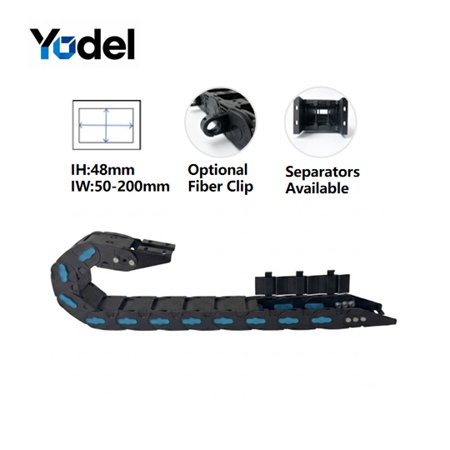

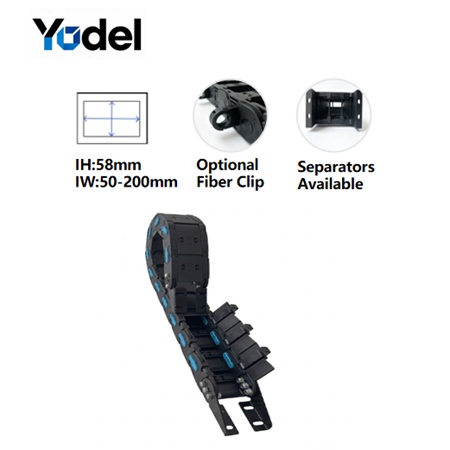

Inner Height Dimensions: Available in precise standard configurations of 38mm, 48mm, and 58mm to optimize inner cross-sectional cable distributions.

Structural Style: Side-opening mechanism with a fully enclosed outer profile, permitting straightforward lateral layouts and flawless dust-proof enclosing barriers.

Material Composite: Premium Nylon PA66 matrix integrated with a proprietary >30% high-density fiber reinforcement formulation.

Bending Radii (R): Broad spectrum of variable bending radii choices engineered to conform perfectly with your exact cable flexibility specifications.

Internal Organization Matrix: Specialized dynamic vertical separators (vertical dividers only) and custom-fitted fiber optic brackets/buckles are available to eliminate cable friction and crossover wear.

3. Unrivaled Product Advantages & Technological Differentiation

Revolutionary Lateral Side-Opening Mechanics

Unlike standard split-cover designs, this cable hose carrier implements an advanced side-opening mechanical jointing configuration. Operators can effortlessly open or lock down entire continuous tracks from the lateral side, radically accelerating on-site cable layouts, routine inspection intervals, and quick maintenance swaps without needing to dismantle the integrated cable guide chain system from the equipment.

Reinforced Matrix Compound for Long-Stroke Stability

By augmenting pristine industrial Nylon PA66 with more than 30% specialized structural fiber reinforcement, we have significantly boosted the tensile properties and structural modulus of this plastic cable carrier. This distinct engineering enhancement drastically limits material sag over massive horizontal distances, empowering robust performance in long-stroke configurations without sacrificing tracking precision.

Seamless Environmental Enclosure Protection

The completely enclosed outer shielding structure acts as an impenetrable physical barrier against flying sparks, hot metal metallic shavings, fine abrasive dust particulate, and corrosive cooling liquid sprays. This premium configuration transforms our Nylon cable drag chain into the ideal shield for complex optical fiber lines and sensitive control wiring networks operating under hostile manufacturing conditions.

Intelligent Internal Partitioning Options

To prevent internal twisting and frictional cross-wear during high-frequency cycles, this plastic cable chain supports precise vertical interior partitioning layouts. Users can choose to integrate sturdy, rigid vertical dividers or specialized fiber-optic locking buckles, isolating data links from heavy power conductors and ensuring streamlined, organized cable positioning.

4. Professional Selection Guide & Engineering Recommendations

To maximize the operational lifecycles of your heavy duty cable carrier assemblies, apply these expert structural calculation standards during your engineering phase:

1. Internal Clearance Buffers: Ensure a minimum safety clearance buffer of 10% to 15% between the inner ceiling height (38mm / 48mm / 58mm) and the maximum outer diameter of your thickest cable or fluid conduit.

2. Bending Radius Alignment: Select a dynamic track bending radius (R) that correlates directly with the recommended technical specifications of your cable vendor; typical long-life industrial data lines demand an R-value of at least 10x to 12x the maximum cable diameter.

3. Internal Weight Distribution: Distribute internal weight distributions evenly across the carrier width. Use our dedicated vertical dividers to separate heavy dynamic hydraulic hoses from brittle, high-speed fiber lines.

5. Real-World Industrial Application Scenarios

Large-Scale CNC Machining Centers & Woodworking Lines: Our fully enclosed Nylon drag chain provides unmatched physical protection against heavy sawdust build-up and flying metallic shards, keeping critical power and signal lines shielded across extreme multi-axis travel distances.

Automated Gantry Systems & High-Bay Warehousing Shuttles: Built with a reinforced composite structure, this high-durability cable guide chain operates reliably in fast-moving, long-stroke automated tracking systems without sagging or twisting.

Laser Cutting & Plasma Processing Machinery: The high thermal resistance of our reinforced Nylon PA66 matrix prevents hot splatter and thermal deformation, ensuring consistent, smooth tracking in intense cutting environments.

6. Frequently Asked Questions

Q: Can this plastic cable carrier be applied in unsupported long-stroke systems?

A: Yes. Thanks to our specialized formula containing more than 30% high-fiber reinforcement combined with structural Nylon PA66, this heavy duty cable carrier extends the safe, unsupported travel distance considerably. For ultra-long travel paths that exceed these limits, we recommend adding standard lower guiding troughs to guarantee ideal alignment and frictionless performance.

Q: What are the distinct advantages of vertical dividers versus fiber-optic brackets?

A: Our rugged vertical dividers are designed to keep heavy power cables or pneumatic hoses vertically separated to prevent overlapping. In contrast, our dedicated fiber-optic brackets are engineered specifically to accommodate delicate, low-radius data lines, protecting them from high tensile pressures and avoiding signal attenuation.

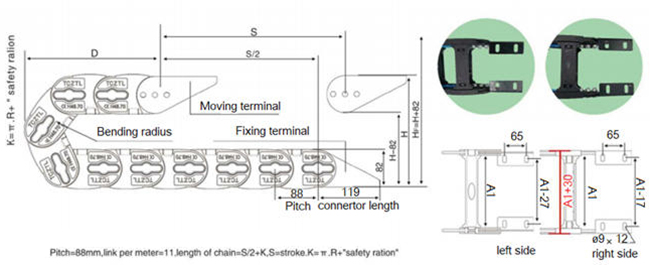

Size Table  & Technical Drawing​ :
