China Factory PA66 Miniature Cable Carrier 10mm | High-Flex Wire Drag Chain

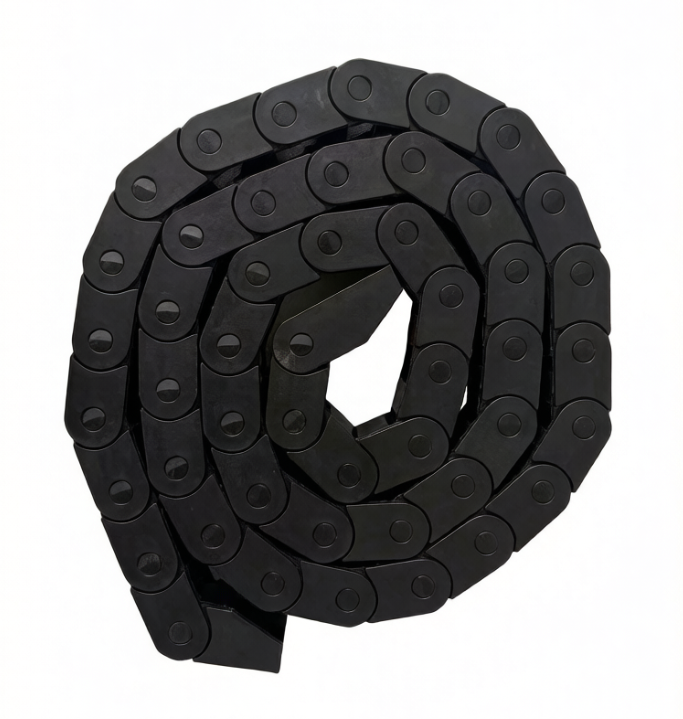

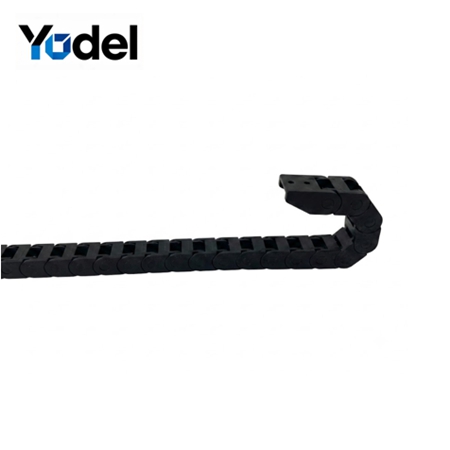

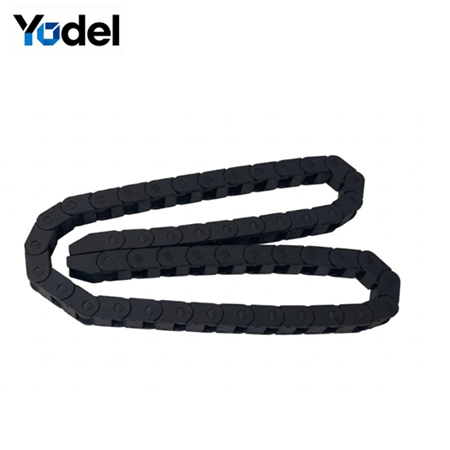

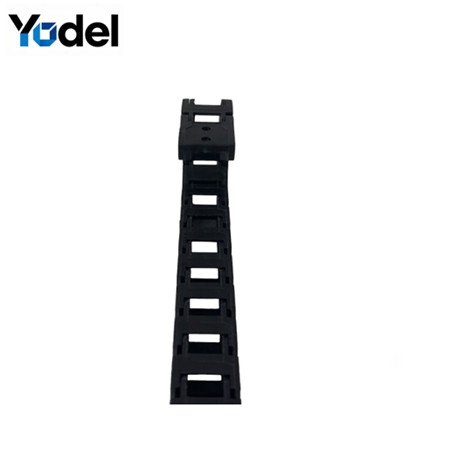

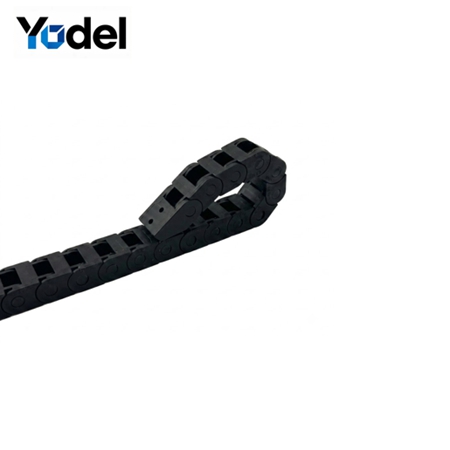

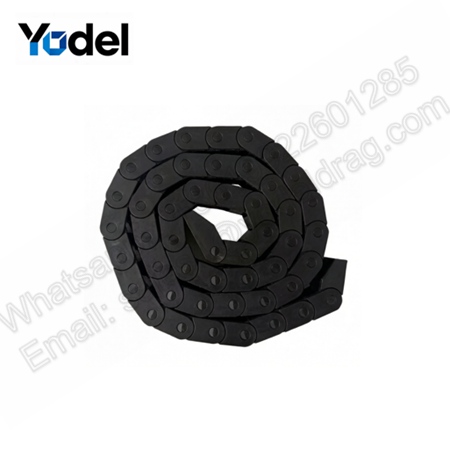

Non-Openable Miniature Cable Carrier (PA66 Nylon | R18 Bend Radius | Inner Sizes: 10x10, 10x15, 10x20 mm)

Section 1: Structural Architecture & Polymer Material Excellence

Modern precision machinery demands dynamic cable management solutions that fit within constrained envelopes without sacrificing structural integrity. Our signature miniature cable carrier series is purpose-engineered from high-density Polyamide 66 (PA66), reinforced with molecular-stabilizing additives to deliver superior tensile modulus, chemical endurance, and fatigue resistance during continuous high-speed reciprocating movement.

Unlike conventional open-hinge energy chains, this non-openable bridge-type miniature cable carrier incorporates a continuous solid cross-rib geometry. By eliminating snap-fit crossbars, the structural frame resists lateral twisting and torsional deflection under high acceleration. Each individual link articulates smoothly over a precision-molded pin-and-bore pivot axis, maintaining exact alignment through millions of flex cycles.

Section 2: Sizing Matrix & Selection Architecture

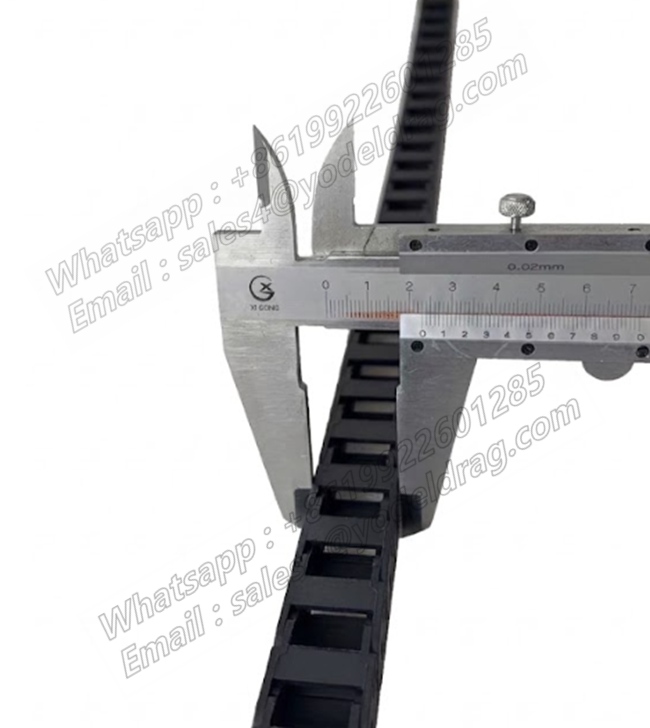

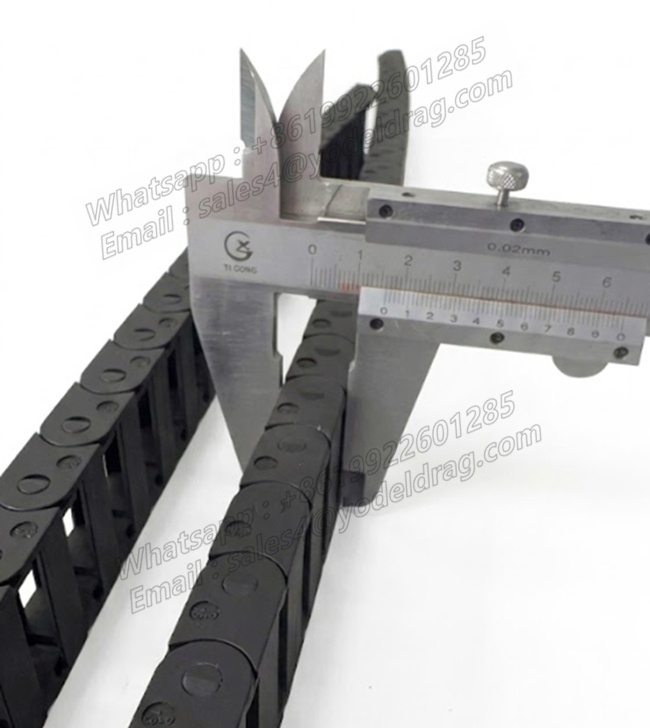

Choosing the correct internal cross-section for a miniature cable carrier directly impacts cable service life. Our 10mm inner height family is available in three distinct width profiles, all built around an ultra-compact 18mm bending radius (R18):

10mm x 10mm Profile: The ideal miniature cable carrier for single sensor lines, pneumatic tubing pairs, or thin servo encoder wires in multi-axis micro-robots.

10mm x 15mm Profile: Provides supplemental lateral clearance for multi-core power feeds paired with shielded communication lines, preventing inner cable binding.

10mm x 20mm Profile: Expanded internal volume engineered for complex wire bundles where pneumatic supply lines and electrical conduits must run side-by-side.

Engineering Selection Tip :

Always compute the maximum total outer diameter (OD) of your conduit bundle. For optimal service life within a non-openable miniature cable carrier, ensure that total cable cross-sectional area does not exceed 60% of the internal cavity (10mm height x chosen width). Maintain a 10% clearance clearance around all internal conductors to eliminate dynamic strain during high-speed bends.

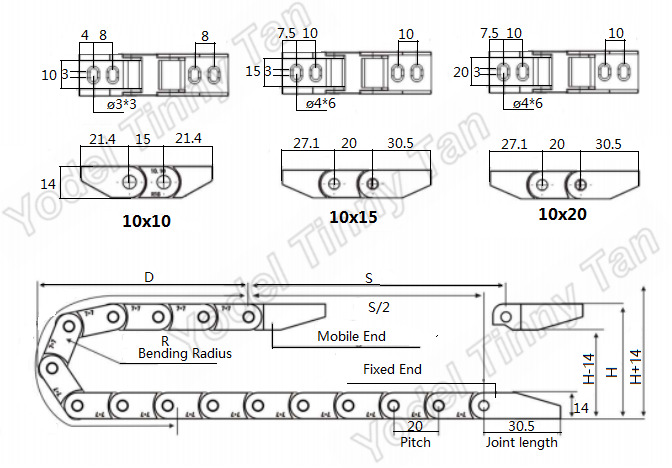

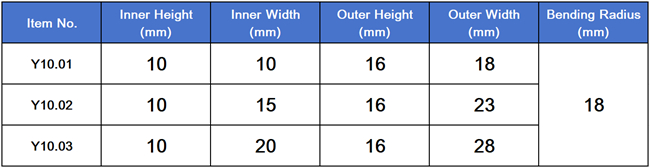

Technical Specifications Size Table :

10×10mm / 10×15mm / 10×20mm

Section 3: Industrial Application Case Study

Real-World Implementation: High-Speed Surface Mount Pick-and-Place Machine

Challenge: A precision electronic manufacturing client experienced premature sensor wire abrasion and dynamic flexing fatigue on their X/Y-axis high-speed gantries, operating under space limitations under 35mm total vertical clearance.

Solution: Replacing open-style flexible carriers with our non-openable PA66 miniature cable carrier (10mm x 15mm, R18 radius) provided complete mechanical encasement. The rigid bridge structure eliminated sag and prevent external debris entanglement.

Result: Zero wire breakages reported over 12 million continuous motion cycles at linear velocities exceeding 3.2 m/s, reducing machine maintenance downtime by 94%.

Section 4: Advanced Manufacturing Integrity & Quality Control

Every single link in our miniature cable carrier line is manufactured using high-tonnage precision injection molding equipment operating with tight tolerance tooling. This guarantees uniform wall density, eliminating internal micro-voids that lead to structural failure under cyclic loading.

Our bridge-type design delivers superior flexural endurance compared to segmented open-style chains. By locking the internal clearance permanently, the carrier prevents accidental dislodging of top bars under shock loads, ensuring continuous production uptime in demanding industrial automation environments.

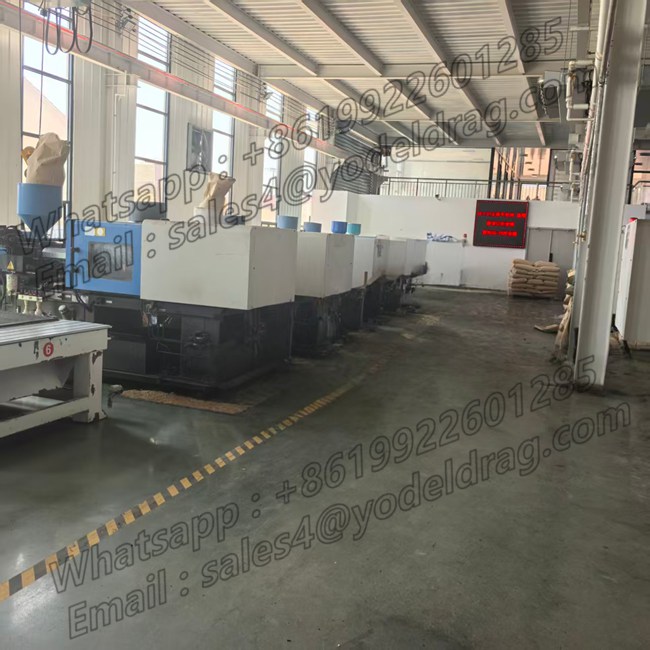

Real‑shot photos of factory production line & precision molds

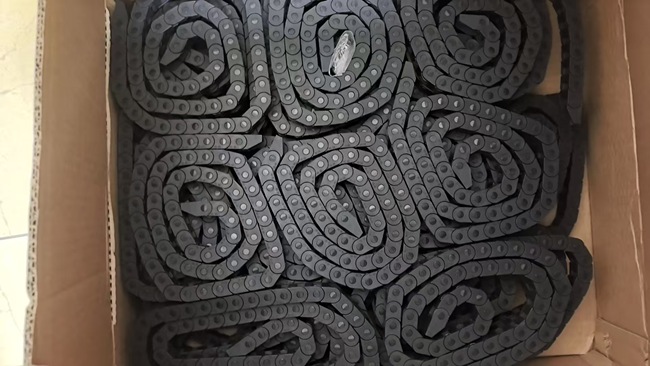

Packaging photos & quality labels before shipment

Section 5: Frequently Asked Questions (FAQ)

Q1: How do I route pre-assembled cables through a non-openable miniature cable carrier?

A: Because this model utilizes a rigid, non-openable bridge frame for maximum mechanical strength, cables must be pulled or threaded sequentially through the inner channel prior to mounting end connectors, or un-terminated wiring must be guided using a flexible pull rod.

Q2: Why choose PA66 over standard PA6 for a miniature cable carrier?

A: PA66 offers significantly higher mechanical strength, superior thermal stability, and lower moisture absorption compared to standard PA6. This ensures that your miniature cable carrier retains structural stiffness and dimensional precision even under continuous operation in warm enclosed control boxes.

Q3: Is the 18mm bending radius suitable for dynamic flex cables?

A: Yes! An R18 bending radius is specifically calibrated for ultra-compact micro-automation. Ensure that your selected cables are rated for high-flex dynamic applications with a minimum bend radius equal to or smaller than 18mm.

Q4: Can this miniature cable carrier withstand high-speed linear acceleration?

A: Absolutely. Thanks to the reinforced non-openable structural bridge and PA66 material construction, our miniature cable carrier handles linear speeds up to 5 m/s and accelerations up to 10 m/s² with low acoustic noise and minimal wear.
