Premium 7x7mm Miniature Plastic Cable Carrier | PA66 High-Flex Drag Chain

7x7mm Non-Openable Micro Nylon PA66 Miniature Cable Carrier (Bridge Type)

When Millimeters Count: Re-Engineering Cable Protection for Micro-Automation

In high-speed micro-automation, desktop 3D printing, and compact medical robotics, traditional drag chains are simply too bulky, heavy, and prone to premature wear. When routing fine signal wiring through tight enclosures, cable binding, friction snags, and unexpected downtime are unacceptable risks.

Our 7x7mm miniature cable carrier is specifically designed to eliminate these failure points. Molded as a closed, non-openable bridge structure from modified virgin Polyamide 66 (PA66), this micro cable track delivers maximum torsional rigidity and exceptionally smooth bending dynamics in a space-saving 7mm by 7mm inner cross-section.

Key Engineering Advantage: Unlike standard snap-open chains that loosen under extreme acceleration, the integrated non-openable link architecture ensures complete structural integrity at high travel speeds up to 5 m/s.

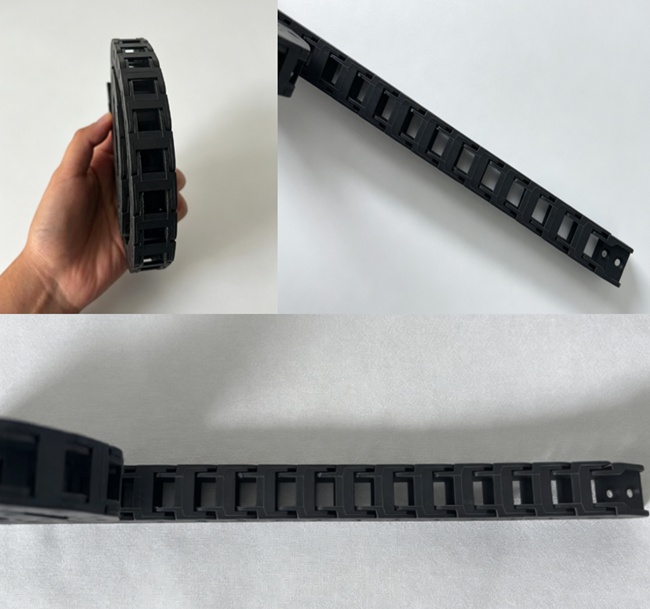

7x7mm miniature cable carrier photos

Technical Specifications Size Table :

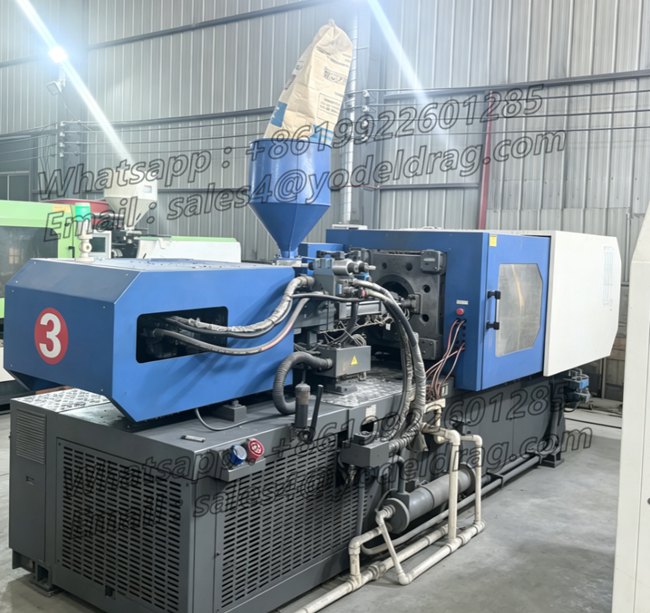

Material & Manufacturing Advantage

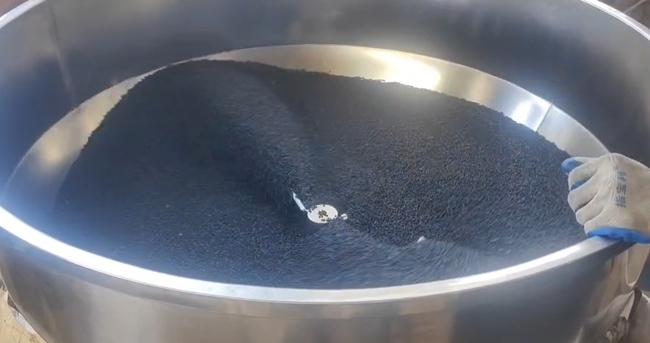

1. Virgin PA66 Material vs. Recycled Plastics

Many low-cost drag chains utilize recycled nylon blends mixed with scrap plastic, leading to brittle links, high friction noise, and structural snapping under continuous flexing. Every batch of our miniature cable carrier is extruded using premium virgin PA66 polymer. This guarantees higher tensile strength, exceptional wear resistance, self-lubricating flex joints, and resistance to synthetic oils, grease, and mild chemical exposure.

2. Non-Openable Bridge Architecture

The non-openable bridge structure provides a rigid, continuous perimeter round your wires. With zero crossbar hinges to vibrate loose or dislodge during high G-force linear direction changes, your delicate sensor lines, fiber cables, and low-voltage power leads remain securely guided without dynamic interference.

Interactive Sizing & Selection Guide

Selecting the precise size and length for your miniature cable carrier prevents cable binding and extends system longevity. Follow our 3-step dynamic engineering guide:

Step 1: Calculate Minimum Internal Clearance

To avoid cable binding, ensure total cable diameter does not exceed 80% of the inner height and width:

Max Cable Outer Diameter (OD): ≤ 5.5 mm (for a single cable layout)

Multi-Cable Filling Factor: Keep total cable cross-sectional area under 60% of the 49 mm² total inner area.

Step 2: Determine Required Carrier Length (L)

Calculate total carrier length based on stroke length (S) and bending radius (R):
